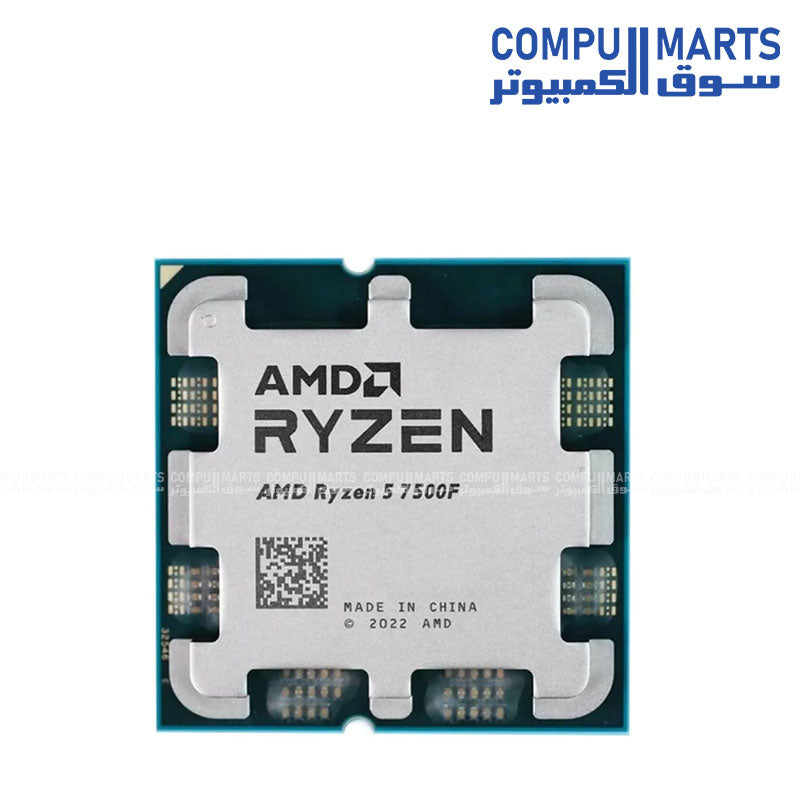

AMD Ryzen 5 7500F, 6C/12T, 3.70-5.00GHz, tray With out fan

AMD Ryzen 5 7500F, 6C/12T, 3.70-5.00GHz, tray

Platform : Desktop

Market Segment : Enthusiast Desktop

Product Family : AMD Ryzen Processors

Product Line : AMD Ryzen 5 Desktop Processors

AMD PRO Technologies : No

Consumer Use : Yes

Regional Availability : Global

Former Codename : "Raphael AM5"

Architecture : "Zen 4"

# of CPU Cores :6

Multithreading (SMT) : Yes

# of Threads : 12

Max. Boost Clock : Up to 5.0GHz

Base Clock : 3.7GHz

L1 Cache : 384KB

L2 Cache : 6MB

L3 Cache : 32MB

Default TDP : 65W

Processor Technology for CPU Cores : TSMC 5nm FinFET

Processor Technology for I/O Die : TSMC 6nm FinFET

CPU Compute Die (CCD) Size : 71mm²

I/O Die (IOD) Size : 122mm²

Package Die Count : 2

Unlocked for Overclocking : Yes

AMD EXPO Memory Overclocking Technology : Yes

Precision Boost Overdrive :Yes

Curve Optimizer Voltage Offsets : Yes

AMD Ryzen Master Support : Yes

CPU Socket : AM5

Supporting Chipsets

A620

X670E

X670

B650E

B650

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions : AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB) : AMD Wraith Stealth

Thermal Solution (MPK) : AMD Wraith Stealth

Max. Operating Temperature (Tjmax) : 95°C

Launch Date : 7/22/2023

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C Support : Yes

Native USB 3.2 Gen 2 (10Gbps) Ports : 4

Native USB 3.2 Gen 1 (5Gbps) Ports : 0

Native USB 2.0 (480Mbps) Ports : 1

Native SATA Ports : 0

PCI Express Version : PCIe 5.0

Native PCIe Lanes (Total/Usable) : 28 / 24

Additional Usable PCIe Lanes from Motherboard

AMD X670E

12x Gen4

AMD X670 : 12x Gen4

AMD B650E : 8x Gen4

AMD B650 : 8x Gen4

AMD A620 : 4x Gen3

NVMe Support : Boot, RAID0, RAID1, RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 128GB

System Memory Subtype : UDIMM

Max Memory Speed  : 2x1R

DDR5-5200 : 2x2R

DDR5-5200 : 4x1R

DDR5-3600 : 4x2R

DDR5-3600

ECC Support : Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics  : No

Graphics Model

Discrete Graphics Card Required

Product IDs

Product ID Tray : 100-000000597

Product ID MPK : 100-100000597MPK

Key Features

Supported Technologies

AMD EXPO Technology

AMD Ryzen Technologies
