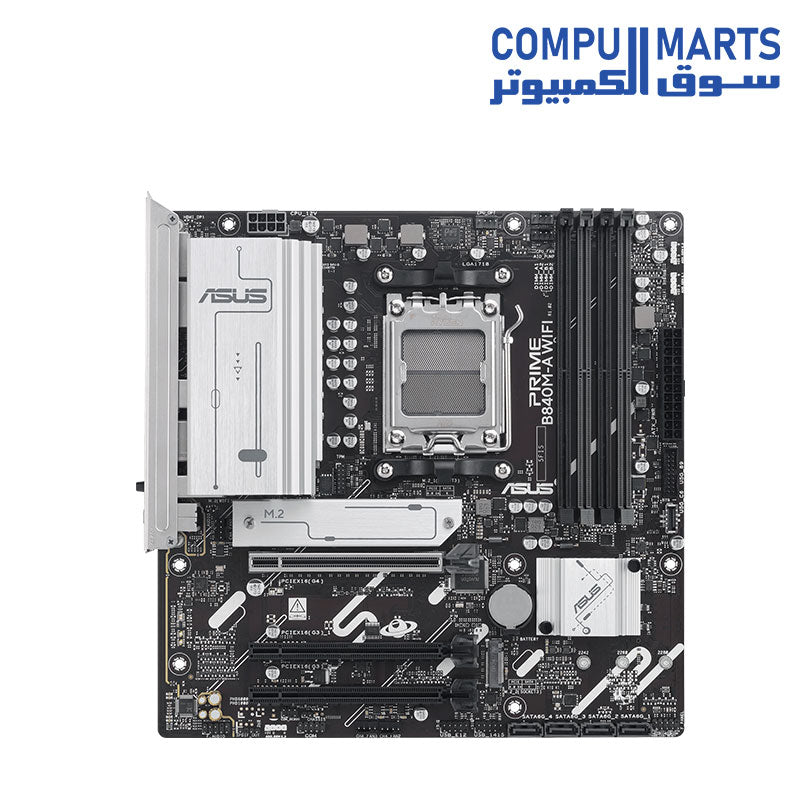

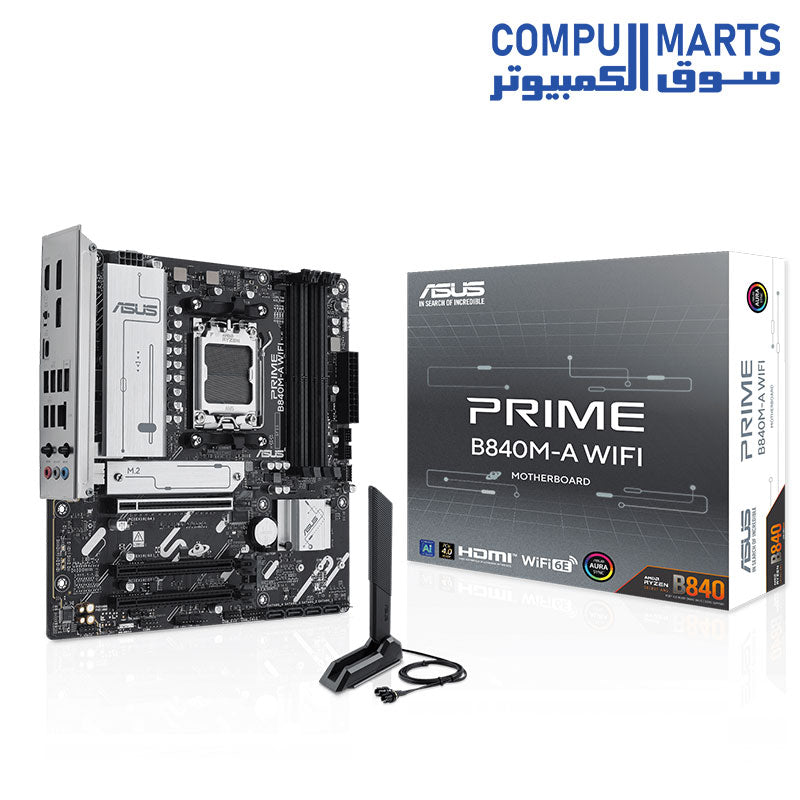

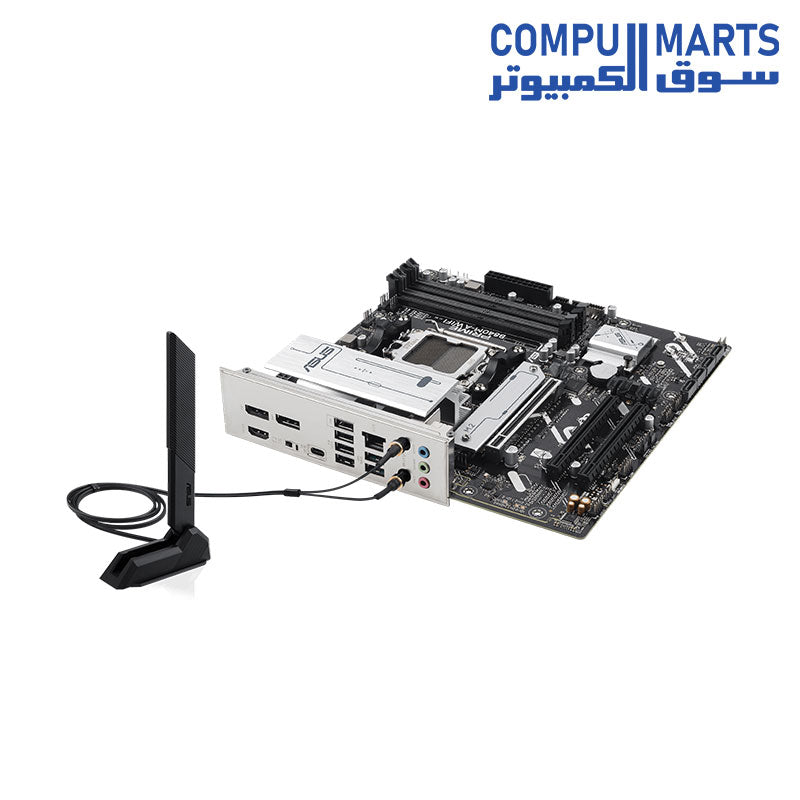

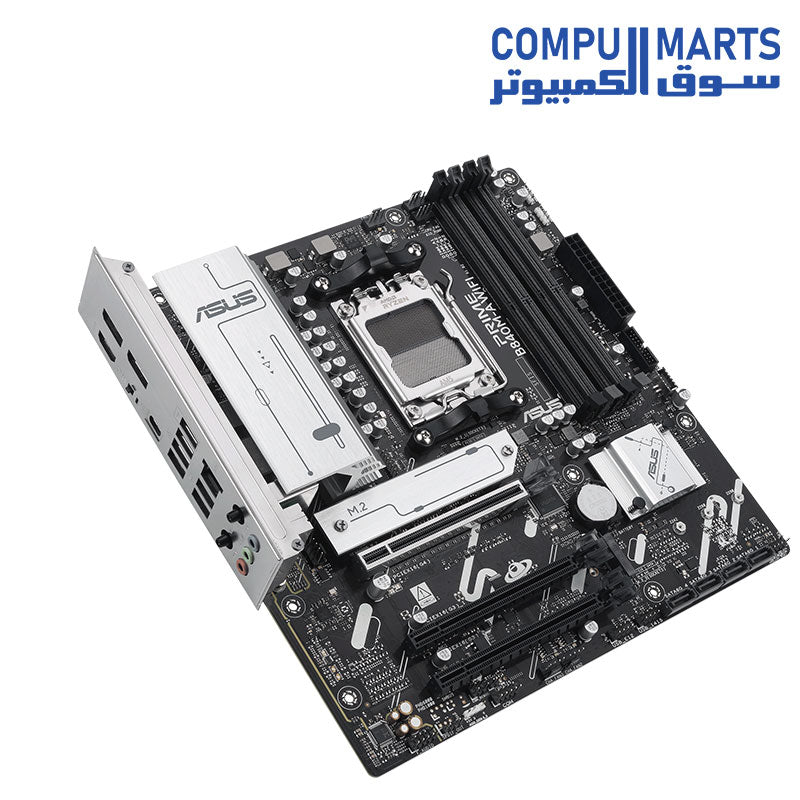

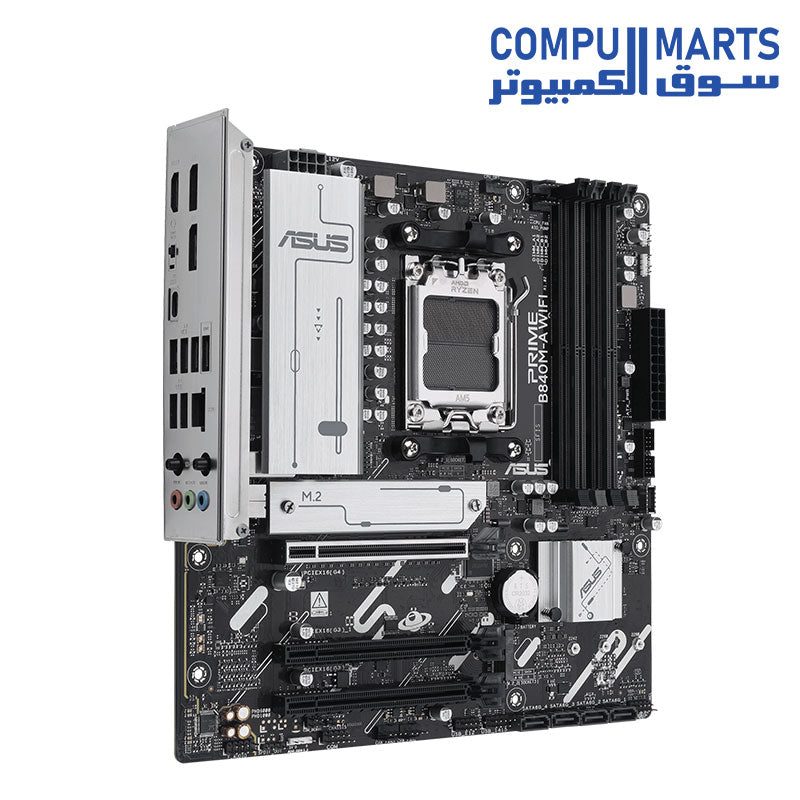

ASUS PRIME B840M-A WiFi Motherboard, AM5 socket, AMD Micro-ATX, DDR5

PRIME B840M-A WIFI Motherboard:

• CPU: Supports AMD Ryzen  9000/8000/7000 processors with AM5 socket.

• Chipset: AMD B840.

• Memory (RAM):

  • 4 DDR5 slots, up to 192GB.

  • Supports up to 7600+MT/s (OC), ECC/Non-ECC, dual-channel architecture.

• Graphics:

  • 2 x DisplayPort (supports 8K 30Hz).

  • 1 x HDMI  port (supports 4K 60Hz).

• Expansion Slots:

  • 1 x PCIe 4.0 x16 slot (varies based on CPU).

  • 2 x PCIe 3.0 x16 slots (x1 mode).

• Storage:

  • 3 x M.2 slots, 4 x SATA 6Gb/s ports.

  • RAID support (varies by processor): RAID 0/1/5/10 for Ryzen 9000, RAID 0/1 for Ryzen  8000, and RAID 0/1/10 for Ryzen 7000.

• Networking:

  • Ethernet: Realtek 2.5Gb with ASUS LANGuard protection.

  • Wi-Fi 6E (2x2) and Bluetooth  5.3.

• USB Ports:

  • Rear: 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C), 4 x USB 2.0 (Type-A).

  • Front: 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps, and support for 4 additional USB 2.0 ports.

• Audio:

  • Realtek 7.1 Surround Sound CODEC.

  • Premium components and 24-bit/192 kHz playback support.

• Cooling:

  • 4-pin headers for CPU fan, optional fan, AIO pump, and 3 chassis fans.

• Special Features:

  • ASUS 5X PROTECTION III for enhanced durability.

  • M.2 and VRM heatsinks for efficient cooling.

  • Aura Sync support for RGB lighting.

  • BIOS FlashBack with pre-mounted I/O shield.

• Supported OS: Windows 11 and Windows 10 (64-bit).

• Form Factor: micro-ATX (24.4 cm × 24.4 cm).
