ASUS  |  SKU: 90MB1CF0-M0EAY0

ASUS ROG MAXIMUS Z790 APEX Motherboard

1.00 EGP
Shipping calculated at checkout.

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Compumarts Points

Become a memberWith more ways to unlock exciting perks, this is your all access pass to exclusive rewards.

Description

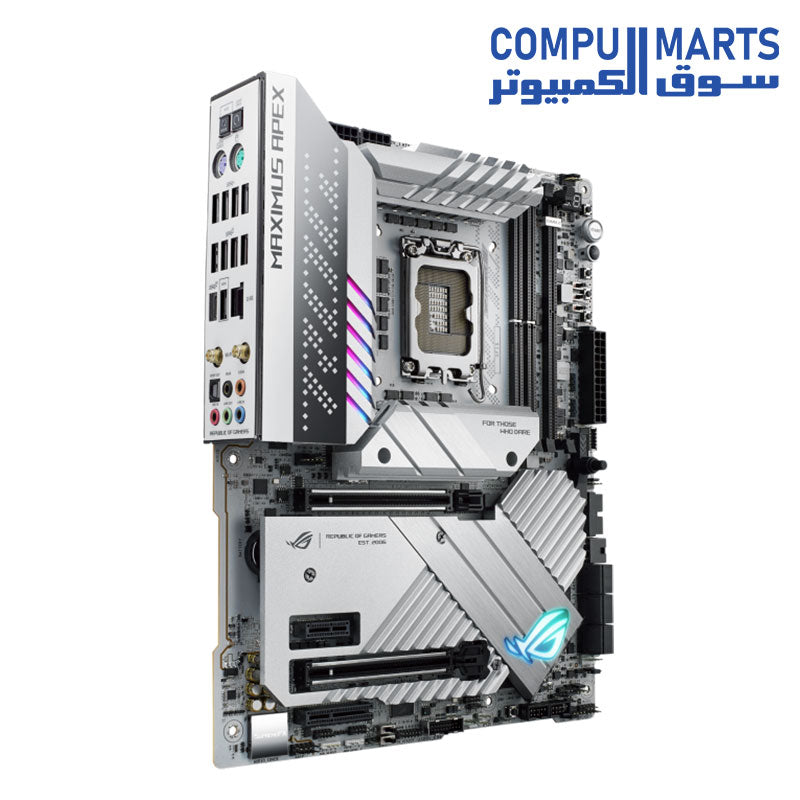

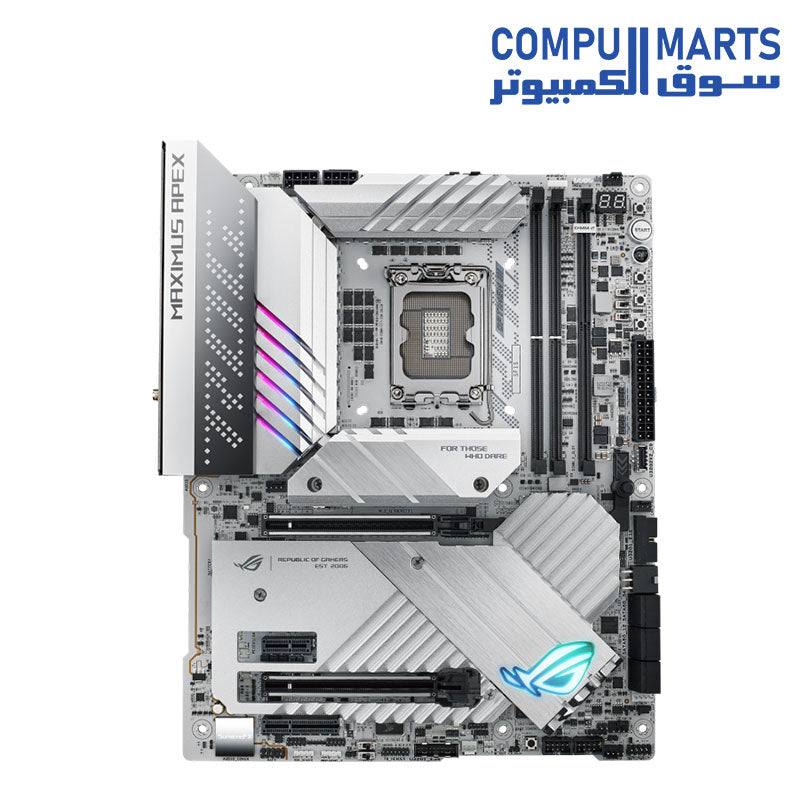

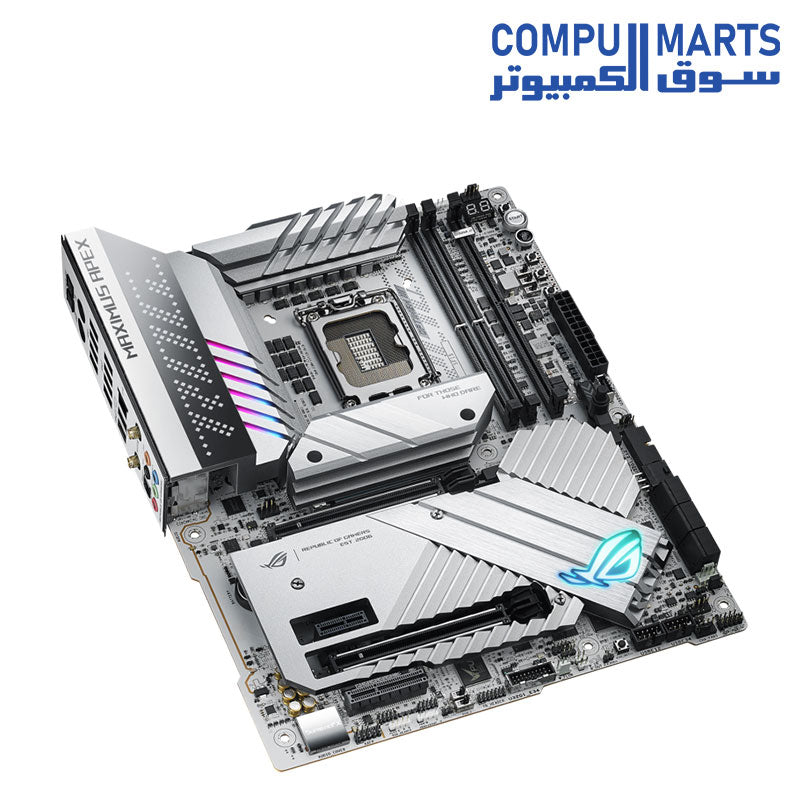

ASUS ROG MAXIMUS Z790 APEX Motherboard



A relentless focus on overclocking makes the Maximus Apex Z790 a dream for upper-echelon enthusiasts. Bountiful power delivery and similarly capable cooling stack the odds in your favor for reaching 6 GHz and higher with the latest 13th Gen Intel Core Processors. PCB trace optimizations allow DDR5 memory to strut timings and frequencies far beyond the capabilities of 4-DIMM-slot designs. A plethora of quality-of-life features and controls afforded by onboard components and software utilities make it all readily accessible for users of all stripes. Get ready for the highest performance number

OVERCLOCKING

ROG Maximus Apex boards are well-known as a record-setting platform for overclocking enthusiasts. From OC-centric components and design choices, to a massive power delivery system, the beast is back to rock new world records in multiple domains.



MEMORY

Comprehensive memory tuning options are a cornerstone of ROG motherboards. With the ROG Maximus Z790 Apex, you can extract maximum potential out of the highest-performing DDR5 modules.

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven as far as 8 GT/s on the Maximus Z790 Apex, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.



Z790 Apex runs DDR5 memory at speeds up to 8000MT/s and higher.





COOLING

Massive heatsinks cover the Z790 Apex from top to bottom and across both M.2 expansion cards, giving critical components ample thermal headroom to realize their true potential.

COOLER COMPATIBILITY

The ROG Maximus Z790 Apex bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.

CONNECTIVITY

As the Maximus moniker implies, the Z790 Apex is fully equipped with the latest storage, networking, and audio features





USB 3.2 GEN 2X2

ROG Maximus Z790 Apex comes loaded with two USB 3.2 Gen 2x2 Type-C connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Quick Charge 4+ technology to quickly charge devices at up to 60W


  • The ROG Maximus Z790 Apex motherboard features USB 3.2 Gen 2x2 front-panel connector with quick charge 4+.
  • The ROG Maximus Z790 Apex motherboard features two USB4 Type-C ports.





  • WIFI 6E

    Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

    WiFi 6E logo

  • 2.5G ETHERNET

    Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.

WiFi 6E antenna





SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Maximus Z790 Apex's SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback. The front-panel output is streamed through a highly integrated Savitech amplifier that is capable of driving a wide variety of gaming headsets and high-fidelity headphones.

OPTIMIZATION

A bevy of innovative tools offers control over every aspect of your system.



AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

PERSONALIZATION

The Z790 Apex keeps its iconic cross-board slash, but brings a new silver and white color scheme to the Maximus lineup. Onboard components contrast beautifully against a white PCB, and a tasteful touch of RGB on the shroud and chipset heatsink brings customizable color into the mix.



GROW YOUR GAMING WORLD

ROG motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.



ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.

AIDA64 EXTREME

The ROG Maximus Z790 Apex includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers





CPU

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z790 Chipset

Memory

2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600 (OC)/7467(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem III
Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to

Expansion Slots

Intel 13th & 12th Gen Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

Intel Z790 Chipset
1 x PCIe 4.0x4 slot
1 x PCIe 4.0x1 slot

 When the PCIE 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.

Storage

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110

Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
 IntelRapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
 RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

Ethernet

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3

WiFi 6E 6GHz regulatory may vary between countries.
 The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
5 x USB 3.2 Gen 2 ports (5 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

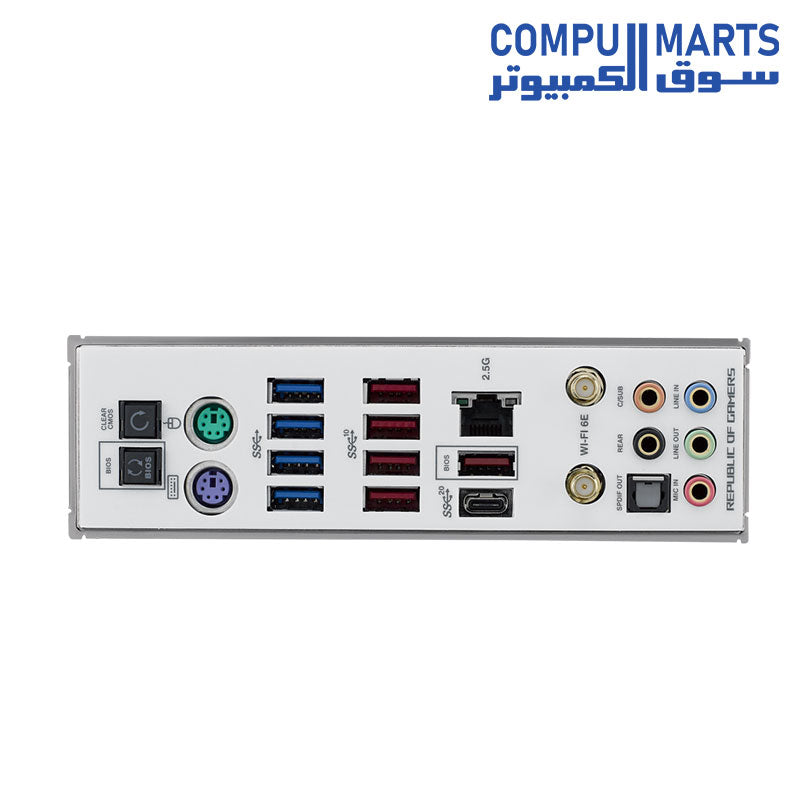

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
5 x USB 3.2 Gen 2 ports (5 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
2 x 4-pin Full Speed Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Power connector

Storage related
2 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x 80 Light Bar jumper
3 x Addressable Gen 2 headers
1 x Aura RGB header
2 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sense header
1 x Pause switch
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switches
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
1 x Thermal Sensor header

Special Features

Extreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode

Extreme Engine Digi+
-SMD Capacitor
- MicroFine Alloy Choke

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)

Dual BIOS

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- BullGuard or equivalent internet security (1-year full version)

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
MyAsus
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2

PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for ROG PCIe 5.0 M.2 Card

Additional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 Fan holder
1 x DDR5 Fan
1 x DDR5 Fan screw

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x ROG overclocking medal
1 x ROG thank you card
2 x M.2 Q-Latch packages for M.2 backplate
2 x M.2 backplate Rubber Packages

Installation Media
1 x USB drive with utilities and drivers

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4
