ASUS TUF GAMING B760M-PLUS WIFI 6 D4 Intel(13th and 12th Gen)LGA 1700 mATX motherboard,PCIe 5.0,2xPCIe 4.0 M.2 slots,DDR4,2.5Gb LAN,USB 3.2 Gen 2x2 Type-C,front USB 3.2 Type-C,Thunderbolt (USB4®)
ASUS TUF GAMING B760M-PLUS WIFI 6 D4 Intel(13th and 12th Gen)LGA 1700 mATX motherboard,PCIe 5.0,2xPCIe 4.0 M.2 slots,DDR4,2.5Gb LAN,USB 3.2 Gen 2x2 Type-C,front USB 3.2 Type-C,Thunderbolt (USB4®) is backordered and will ship as soon as it is back in stock.
Pickup available at Ismailia , Egypt
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description

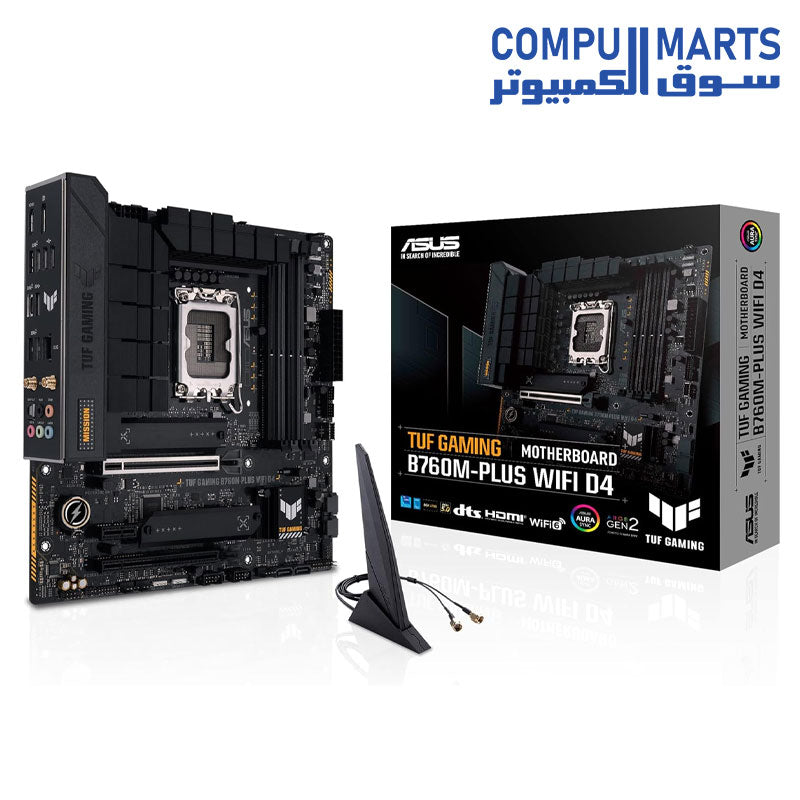

ASUS TUF GAMING B760M-PLUS WIFI 6 D4 Intel
-
Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
-

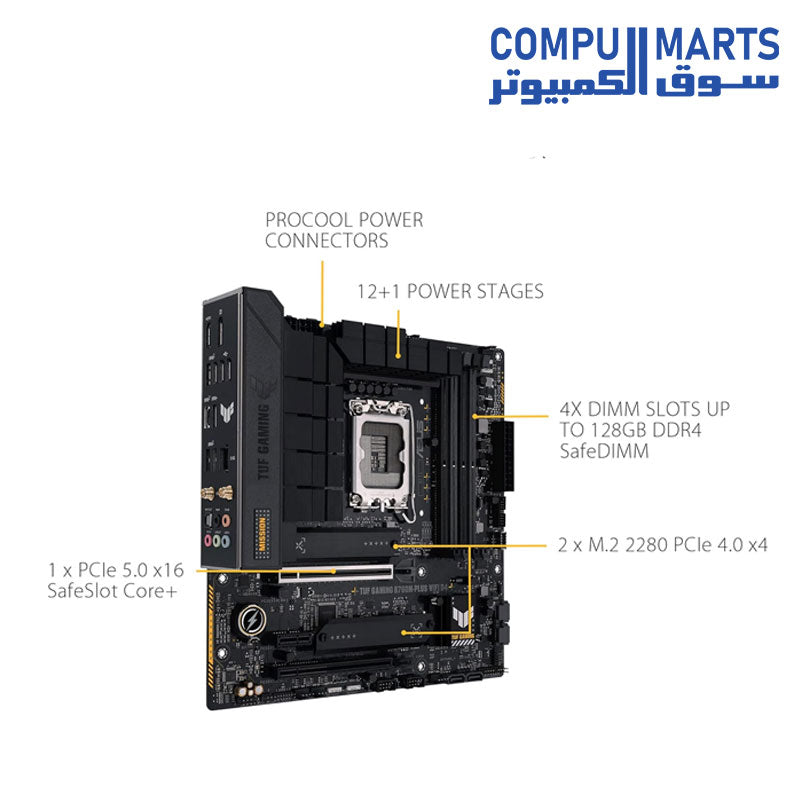

Enhanced power solution: 12plus1 DrMOS power stages, six-layer PCB, 8plus4 ProCool sockets, military-grade TUF components and Digiplus VRM for maximum durability
-

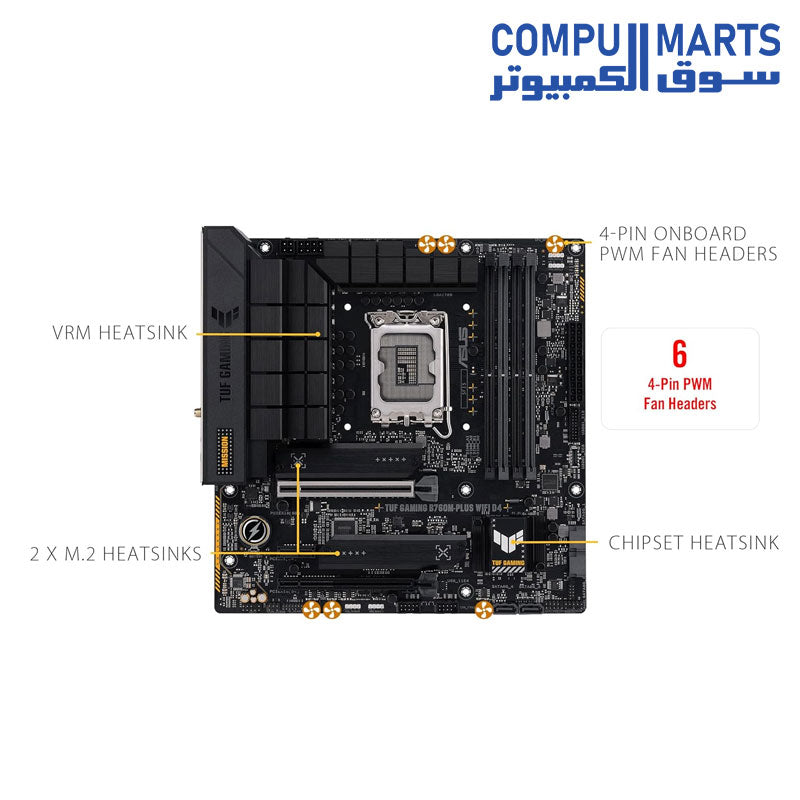

Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
-
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support
-
Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
-
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
-
Model
-
TUF GAMING B760M-BTF WIFI
-
CPU
-
Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
-
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
-
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
-
Chipset
-
Intel B760 Chipset
-
Memory
-
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
-
Dual Channel Memory Architecture
-
Supports Intel Extreme Memory Profile (XMP)
-
OptiMem II
-
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under
-
the Support tab of product information site or visit https://www.asus.com/support/
-
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
-
Graphics
-
1 x DisplayPort**
-
1 x HDMI port***
-
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
-
*** Supports 4K@60Hz as specified in HDMI 2.1.
-
Expansion Slots
-
Intel 13th & 12th Gen Processors
-
1 x PCIe 5.0 x16 slot
-
Intel B760 Chipset
-
1 x PCIe 4.0 x16 slot (supports x4 mode)
-
1 x PCIe 4.0 x1 slot
-
Storage
-
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
-
Intel 13th & 12th Gen Processors
-
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
Intel B760 Chipset
-
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
-
4 x SATA 6Gb/s ports
-
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
-
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
-
Ethernet
-
1 x Realtek 2.5Gb Ethernet
-
Wireless & Bluetooth
-
Wi-Fi 6
-
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
-
Supports 2.4/5GHz frequency band
-
Bluetooth v5.2*
-
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
-
USB
-
Rear USB (Total 10 ports)
-
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
-
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
-
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C)
-
4 x USB 2.0 ports (4 x Type-A)
-
Front USB (Total 7 ports)
-
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
-
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
-
2 x USB 2.0 headers support 4 additional USB 2.0 ports
-
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
-
** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
-
Audio
-
Realtek 7.1 Surround Sound High Definition Audio CODEC*
-
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-
- Supports up to 24-Bit/192 kHz playback
-
Audio Features
-
- Audio Shielding
-
- Dedicated audio PCB layers
-
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
-
Back Panel I/O Ports
-
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
-
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)
-
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C)
-
4 x USB 2.0 ports (4 x Type-A)
-
1 x DisplayPort
-
1 x HDMITM port
-
1 x Wi-Fi Module
-
1 x Realtek 2.5Gb Ethernet port
-
3 x Audio jacks
-
1 x Clear CMOS button
-
Internal I/O Connectors
-
Fan and Cooling related
-
1 x 4-pin CPU Fan header
-
1 x 4-pin CPU OPT Fan header
-
1 x 4-pin AIO Pump header
-
3 x 4-pin Chassis Fan headers
-
Power related
-
1 x 24-pin Main Power connector
-
1 x 8-pin +12V Power connector
-
1 x 4-pin +12V Power connector
-
Storage related
-
3 x M.2 slots (Key M)
-
4 x SATA 6Gb/s ports
-
USB
-
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C )
-
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
-
2 x USB 2.0 headers support 4 additional USB 2.0 ports
-
Miscellaneous
-
3 x Addressable Gen 2 headers
-
1 x Aura RGB header
-
1 x COM Port header
-
1 x Front Panel Audio header (AAFP)
-
1 x 10-1 pin System Panel header
-
1 x Thunderbolt (USB4) header
-
Special Features
-
ASUS TUF PROTECTION
-
- DIGI+ VRM (- Digital power design with DrMOS)
-
- ESD Guards
-
- TUF LANGuard
-
- Overvoltage Protection
-
- SafeSlot Core+
-
- Stainless-Steel Back I/O
-
ASUS Q-Design
-
- M.2 Q-Latch
-
- Q-DIMM
-
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
-
- Q-Slot
-
ASUS Thermal Solution
-
- M.2 heatsinks
-
- VRM heatsink design
-
ASUS EZ DIY
-
- Clear CMOS button
-
- CPU Socket lever protector
-
- ProCool
-
- Pre-mounted I/O shield
-
- SafeDIMM
-
Aura Sync
-
- Aura RGB header
-
- Addressable Gen 2 headers
-
Software Features
-
ASUS Exclusive Software
-
Armoury Crate
-
- Aura Creator
-
- Aura Sync
-
- FAN Xpert 2+
-
- Power Saving
-
- Two-Way AI Noise Cancellation
-
AI Suite 3
-
- DIGI+ VRM
-
- PC Cleaner
-
TUF GAMING CPU-Z
-
DTS Audio Processing
-
MyASUS
-
Norton 360 for Gamers (60 Days Free Trial)
-
WinRAR
-
UEFI BIOS
-
ASUS EZ DIY
-
- ASUS CrashFree BIOS 3
-
- ASUS EZ Flash 3
-
- ASUS UEFI BIOS EZ Mode
-
BIOS
-
128 Mb Flash ROM, UEFI AMI BIOS
-
Manageability
-
WOL by PME, PXE
-

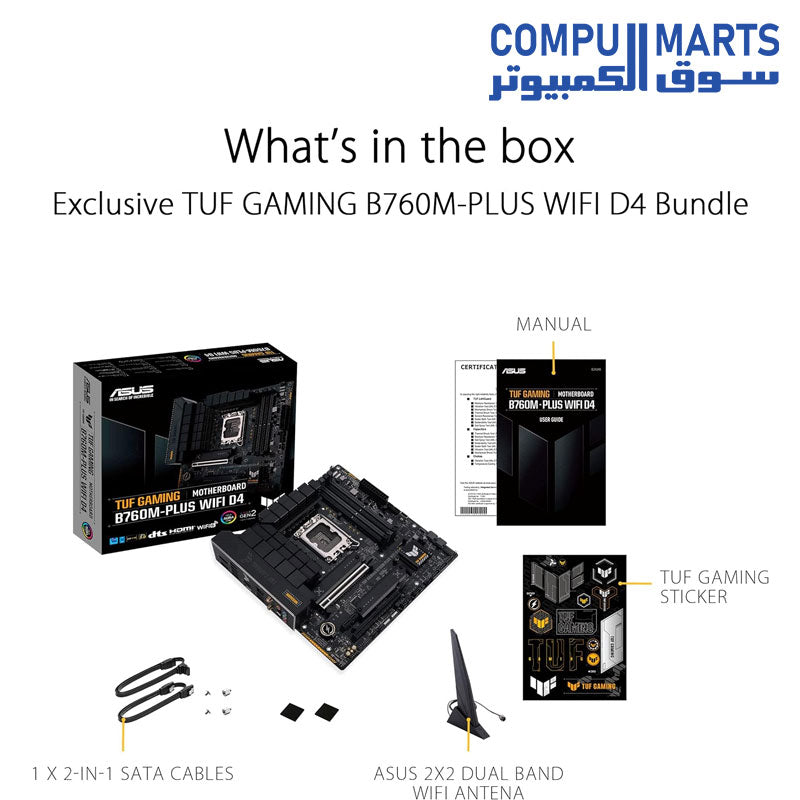

Accessories
-
Cables
-
2 x SATA 6Gb/s cables
-
Miscellaneous
-
1 x ASUS Wi-Fi moving antenna
-
1 x TUF Gaming sticker
-
1 x M.2 Rubber Package
-
1 x Screw package for M.2 SSD
-
Documentation
-
1 x User guide
-
Operating System
-
Windows 11, Windows 10 64-bit
-
Form Factor
-
micro-ATX Form Factor
-
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
