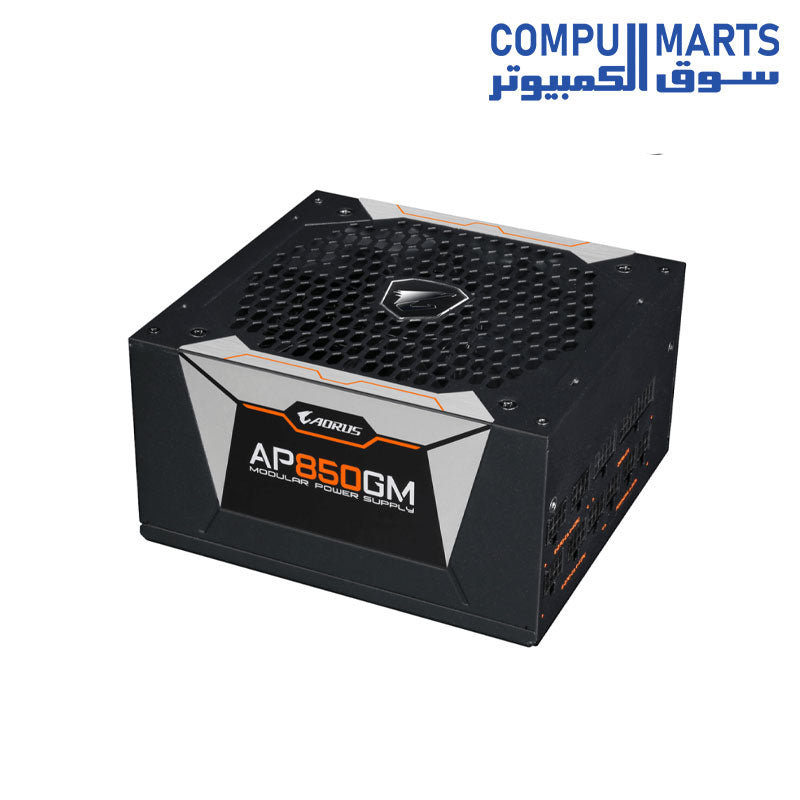

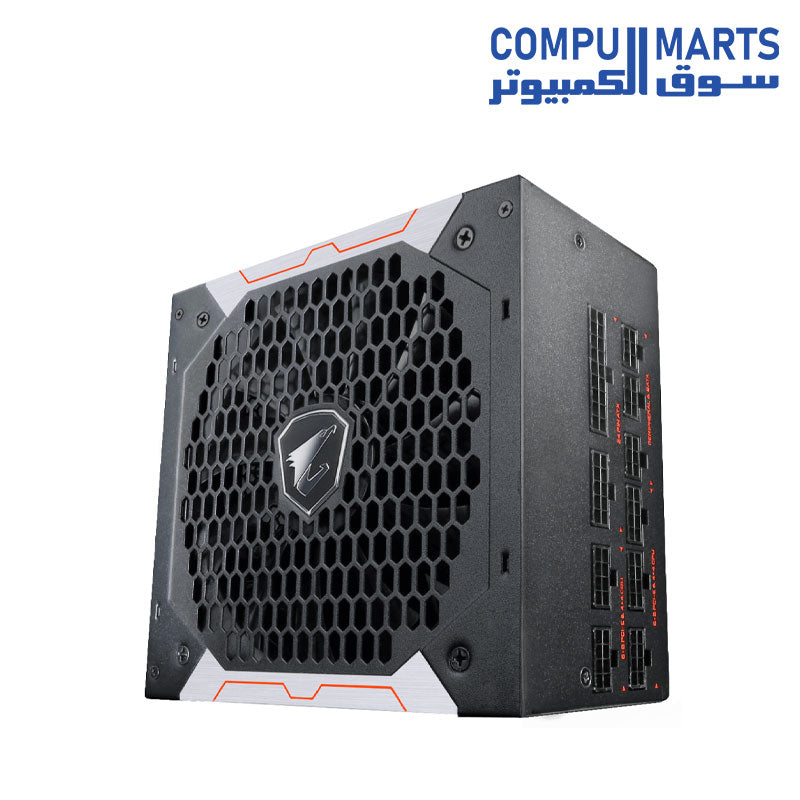

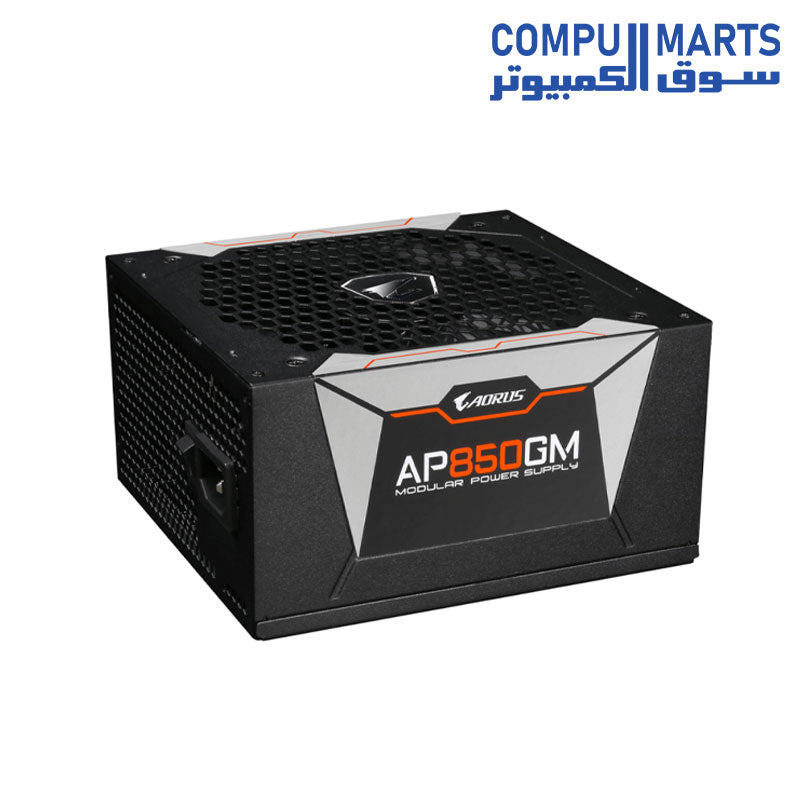

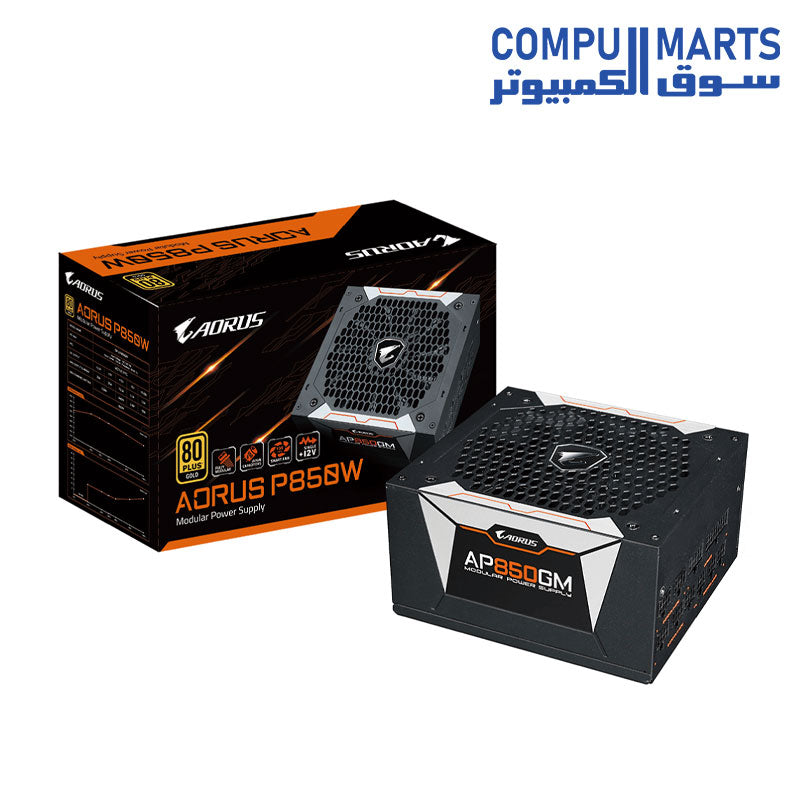

GIGABYTE AORUS P850W GP-AP850GM 850W - ATX 12V v2.31 - 80 PLUS GOLD Certified - Full Modular - Active PFC - Power Supply

GIGABYTE AORUS P850W GP-AP850GM 850W

• Fully Modular Design

• High quality 100% Japanese Capacitors

• 135mm 2 ball bearing smart fan with fan stop function

• 80 PLUS Gold certified: above 90% efficiency at 50% load

• Single +12V rail

• OCP/OTP/OVP/OPP/UVP/SCP protection

• Model

  GP-AP850GM

• Type

  Intel Form Factor ATX 12V v2.31

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  10A

• Input Frequency

  47-63 Hz

• Output Capacity

  850W

• Dimension

  150 x 160 x 86mm

• Fan Type

  135mm Double ball bearing fan

• 80 PLUS

  Gold

• Efficiency

  90% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100ms ~ 150ms

• Hold Up Time

  > 16m sec at full load (115V)

• Cable Type

  Flat, All black

• Connectors

  ATX/MB 20+4 Pin x 1 : 650mm
  CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
  PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
  SATA x6 + 4 Pin Peripheral x2 :
  550mm+100mm+100mm+100mm*1
  450mm+100mm+100mm+100mm *1
  4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
  4 Pin Floppy x 1 : 100mm
