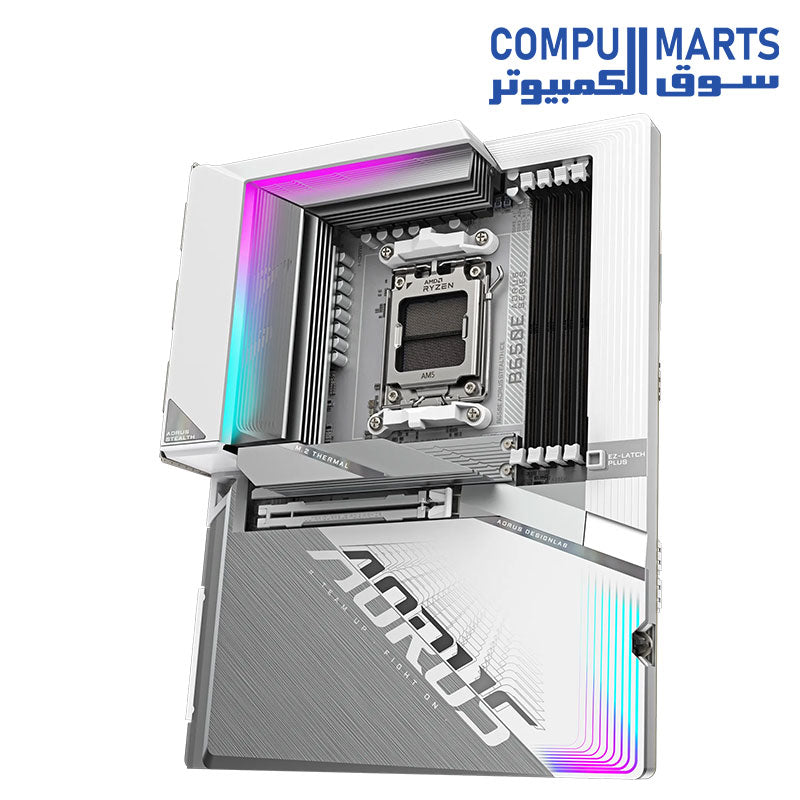

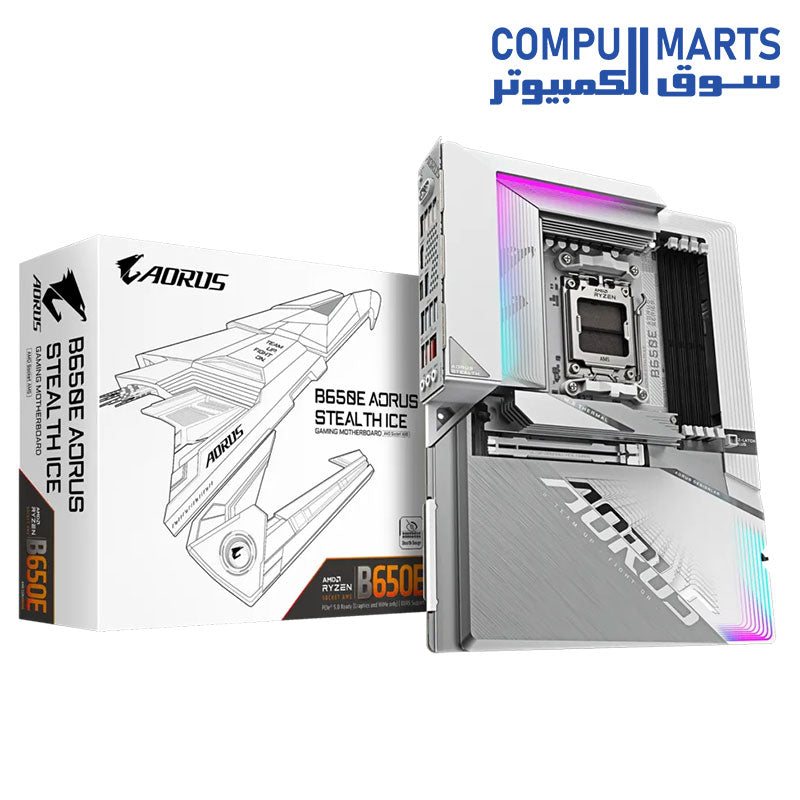

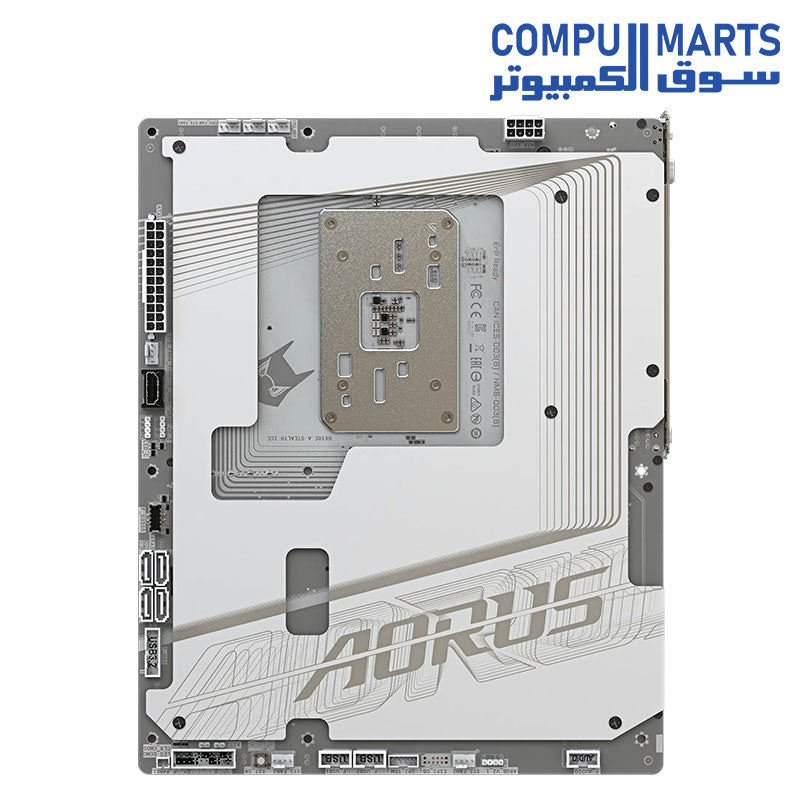

GIGABYTE B650E AORUS STEALTH ICE Motherboard — Supports AMD Ryzen 9000 CPUs- 12+2+2 phases VRM- up to 8000MHz DDR5 (OC)- 1xPCIe 5.0 M2 + 3xPCIe 4.0 M.2- Wi-Fi 7-2.5GbE LAN- USB 3.2 Gen 2x2

GIGABYTE B650E AORUS STEALTH ICE Motherboard — Supports AMD Ryzen 9000 CPUs- 12+2+2 phases VRM- up to 8000MHz DDR5 (OC)- 1xPCIe 5.0 M2 + 3xPCIe 4.0 M.2- Wi-Fi 7-2.5GbE LAN- USB 3.2 Gen 2x2

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen 9000 Series Processors/
  AMD Ryzen 8000 Series Processors/
  AMD Ryzen 7000 Series Processors



• Chipset

  AMD B650

• Memory

  Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
  (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics










  Integrated Graphics Processor with AMD Radeon Graphics support:

  - 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs

  and a maximum resolution of 3840x2160@144 Hz

  * Support for DisplayPort 1.4 version and HDR.

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

  * Support for HDMI 1.4 version

  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  MediaTek Wi-Fi 7 MT7925

  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

  - BLUETOOTH 5.4

  - Support for 11be 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)

  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

• Expansion Slots

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Storage Interface

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  - AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  CPU:
  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 (Note1)
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  CPU + USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset:
  - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports on the back panel

  (Note 1) This USB Type-C port supports a maximum speed of 40Gbps. Actual support may vary by CPU.

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  2 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  3 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x HDMI port (Note2)
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

  (Note 2) Only available with the AMD Radeon Graphics Processors.

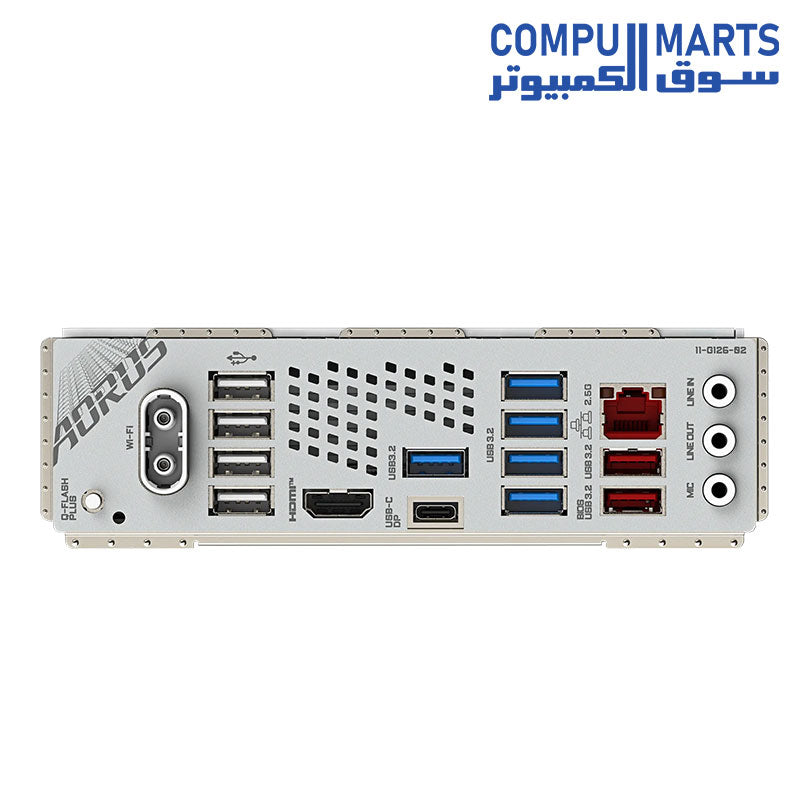

• Back Panel Connectors

  1 x Q-Flash Plus button
  2 x SMA antenna connectors (2T2R)
  1 x HDMI port
  1 x USB Type-C port (DisplayPort)
  2 x USB 3.2 Gen 2 Type-A ports (red)
  5 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• I/O Controller

  iTE I/O Controller Chip

• H/W Monitoring

  Voltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection Fan fail warning

  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features










  Support for GIGABYTE Control Center (GCC)




  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus

• Bundled Software

  Norton Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
