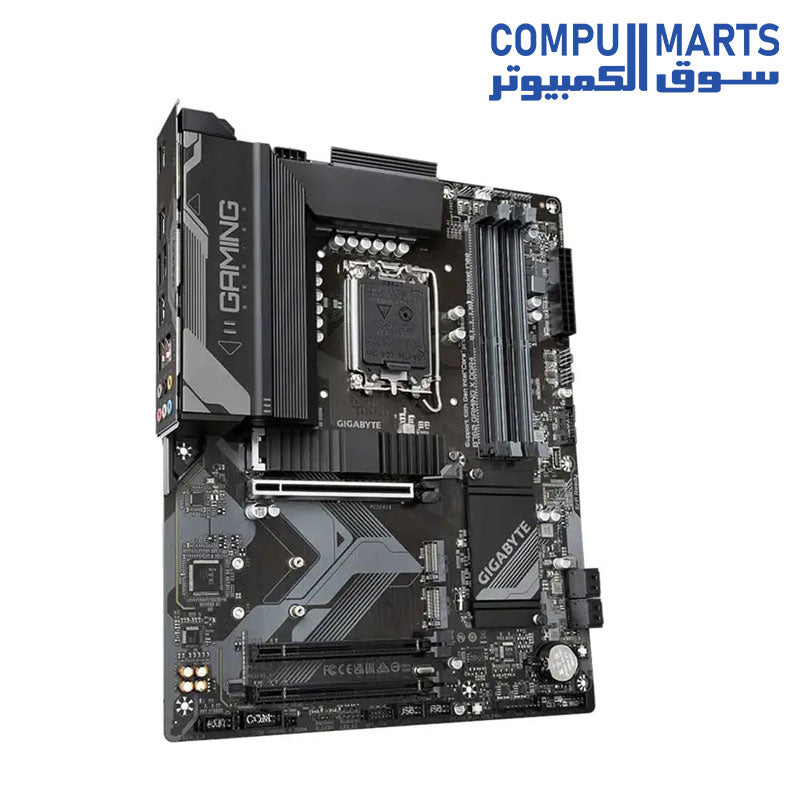

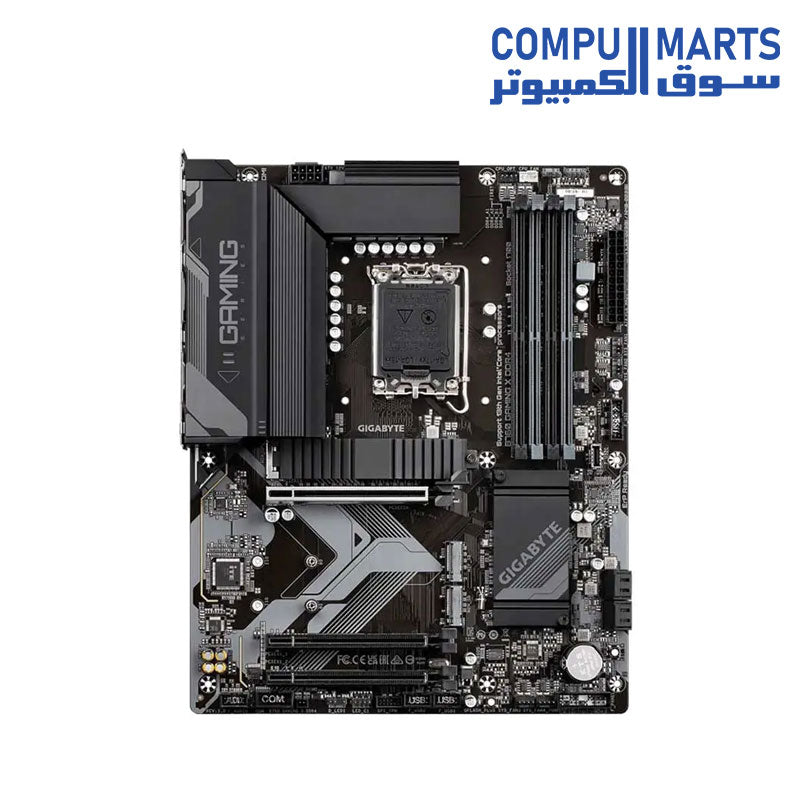

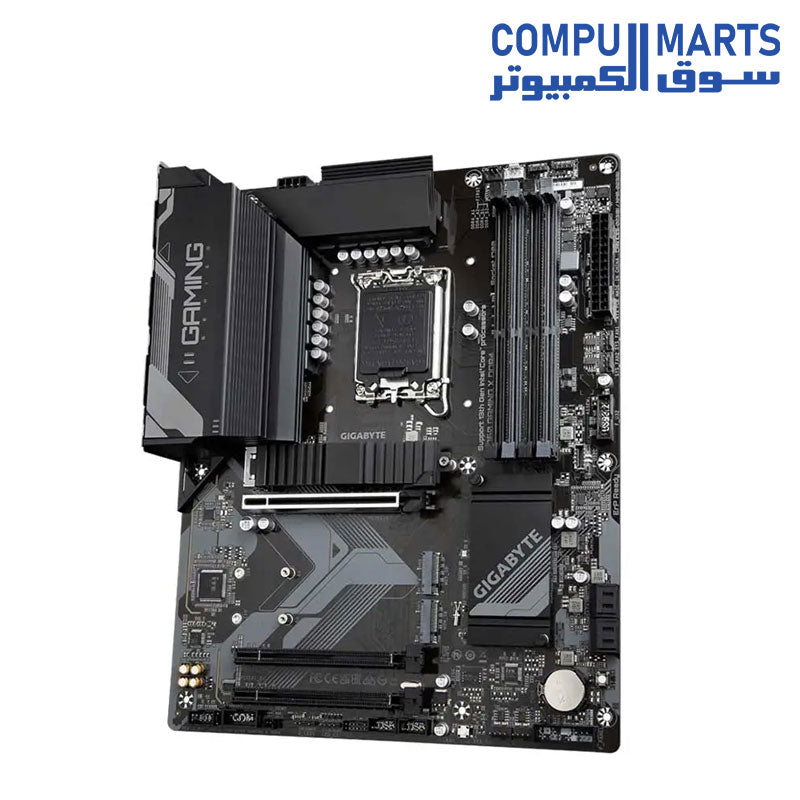

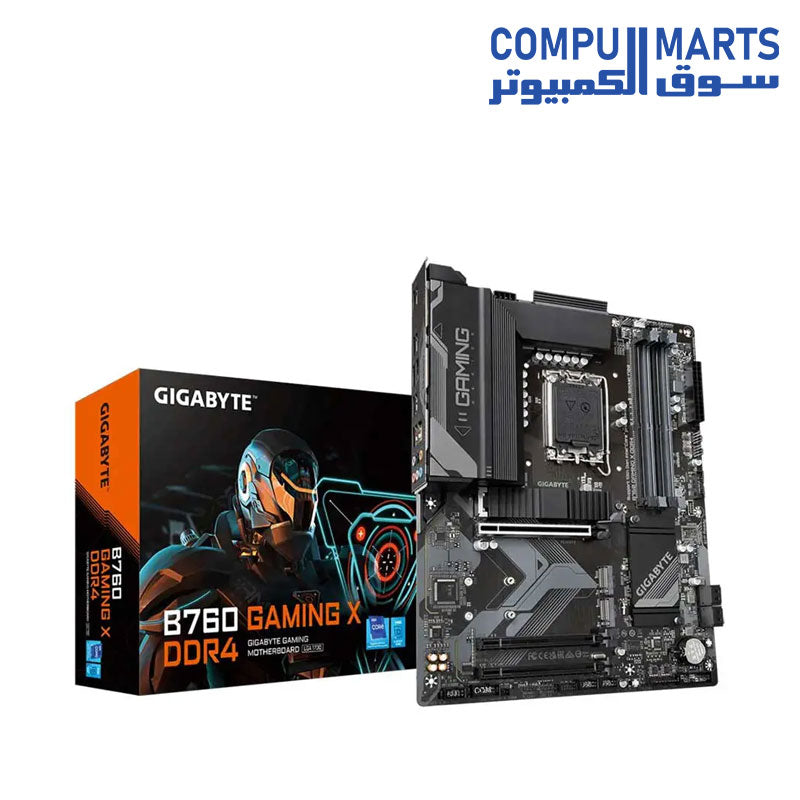

GIGABYTE B760 GAMING X DDR4 Motherboard

GIGABYTE B760 GAMING X DDR4 Motherboard

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors

• Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution

• Dual Channel DDR4：4*DIMMs XMP Memory Module Support

• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design

• Fast Networks：2.5GbE LAN

• Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

First adopter on 2.5GbE LAN onboard

2X Faster than ever

• CPU

  LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  L3 cache varies with CPU

  Chipset : Intel B760 Express Chipset

• Memory

  Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

  4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules

  *Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

  * Support for DisplayPort 1.2 version and HDCP 2.3

  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

  * Support for HDMI 2.0 version and HDCP 2.3.

  Audio

  Realtek Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out

  LAN : Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

  CPU:

  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset: : 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

• Storage Interface

  CPU:

  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

  5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

  1 x USB 2.0/1.1 port on the back panel

  Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x CPU fan header

  3 x system fan headers

  2 x addressable LED strip headers

  2 x RGB LED strip headers

  2 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x S/PDIF Out header

  1 x USB Type-C header, with USB 3.2 Gen 2 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  2 x Thunderbolt add-in card connectors

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  1 x serial port header

  1 x reset button

  1 x Q-Flash Plus button

  1 x reset jumper

  1 x Clear CMOS jumper

• Back Panel Connectors

  3 x USB 3.2 Gen 1 ports

  5 x USB 2.0/1.1 ports

  1 x HDMI 2.0 port

  1 x DisplayPort

  1 x RJ-45 port

  3 x audio jacks

• I/O Controller : iTE I/O Controller Chip

• H/W Monitoring

  Voltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control

  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus

• Bundled Software

  Norton Internet Security (OEM version)

  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm
