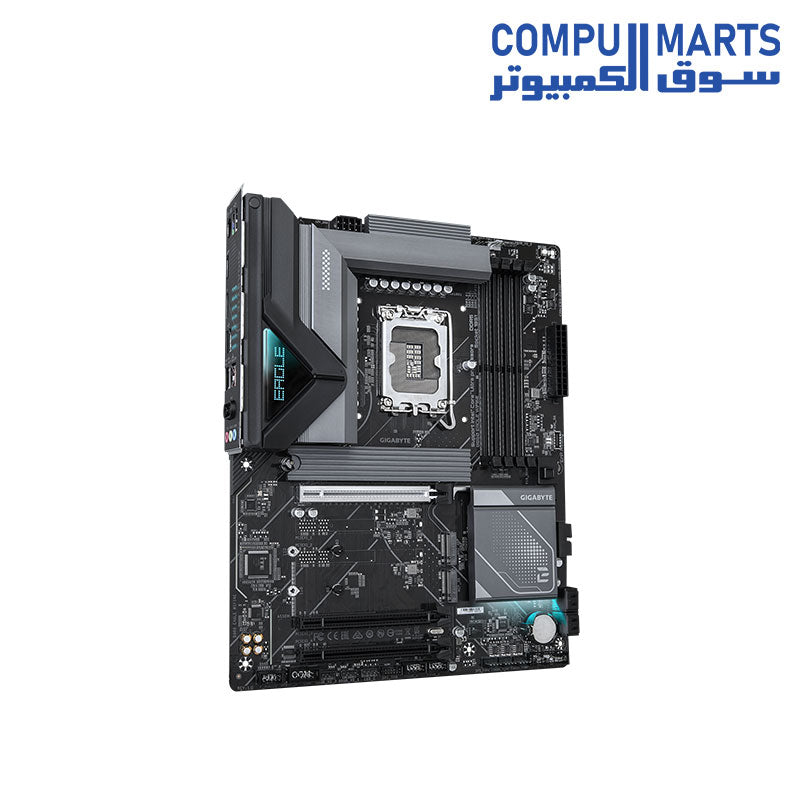

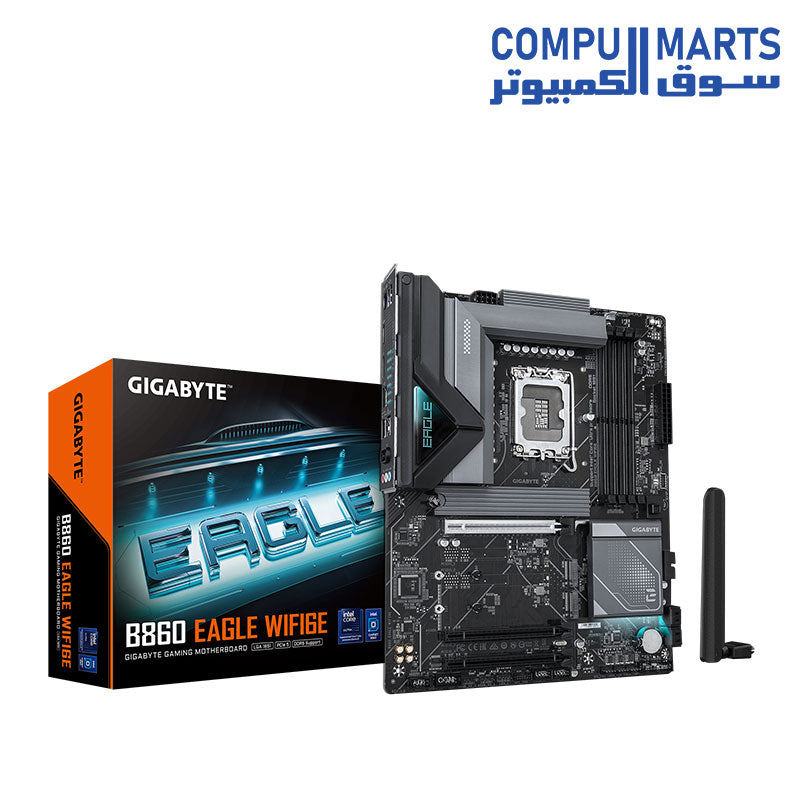

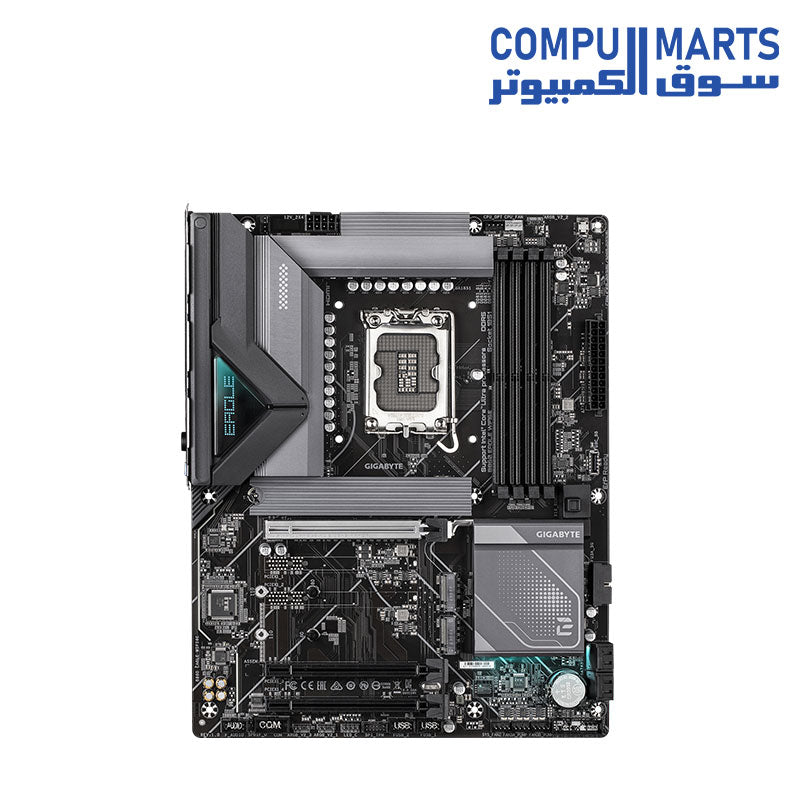

GIGABYTE B860 EAGLE WIFI6E DDR5 LGA1851 ATX Motherboard

GIGABYTE B860 EAGLE WIFI6E DDR5 LGA1851 ATX Motherboard

CPU

Socket LGA1851: Supports Intel Core Ultra Processors.

L3 Cache: Varies based on CPU model.

Chipset

Intel B860 Express Chipset.

Memory

Supports DDR5 RAM with speeds up to 9066 MT/s (O.C).

4 x DDR5 DIMM Slots with up to 256 GB total capacity (64 GB per module).

Dual-channel architecture for improved performance.

XMP support for easy memory overclocking.

Compatibility with ECC and non-ECC unbuffered memory modules.

Graphics

Integrated Intel HD Graphics:

HDMI Port: Supports up to 4K@60Hz, HDMI 2.1, and HDCP 2.3.

DisplayPort: Supports up to 3840x2160@144Hz, DisplayPort 2.1.

Audio

Realtek Audio CODEC with High Definition Audio.

Supports 2/4/5.1/7.1 channel audio.

S/PDIF Out for digital audio output.

Networking

Wired: Realtek 2.5GbE LAN.

Wireless: Wi-Fi 6E and Bluetooth 5.3 with dual-band (2.4/5/6 GHz).

Expansion Slots

1 x PCIe 5.0 x16 Slot (for GPU or NVMe SSDs).

2 x PCIe 4.0 x1 Slots.

Storage

1 x M.2 Slot (PCIe 5.0) for ultra-fast NVMe SSDs.

2 x M.2 Slots (PCIe 4.0).

4 x SATA 6Gb/s Ports with RAID support (RAID 0/1/5/10).

USB Connectivity

Rear Panel:

1 x USB-C (USB 3.2 Gen 2x2).

1 x USB 3.2 Gen 2 (Type-A).

4 x USB 2.0/1.1 Ports.

Internal Headers:

1 x USB-C (USB 3.2 Gen 1).

2 x USB 3.2 Gen 1 Ports.

4 x USB 2.0 Ports.

Internal I/O Connectors

1 x 24-pin ATX Main Power Connector.

1 x 8-pin ATX 12V Power Connector.

3 x M.2 Sockets.

4 x SATA 6Gb/s Ports.

3 x Addressable RGB Gen2 Headers.

1 x RGB Header.

Headers for Fans, USB, Audio, TPM, and more.

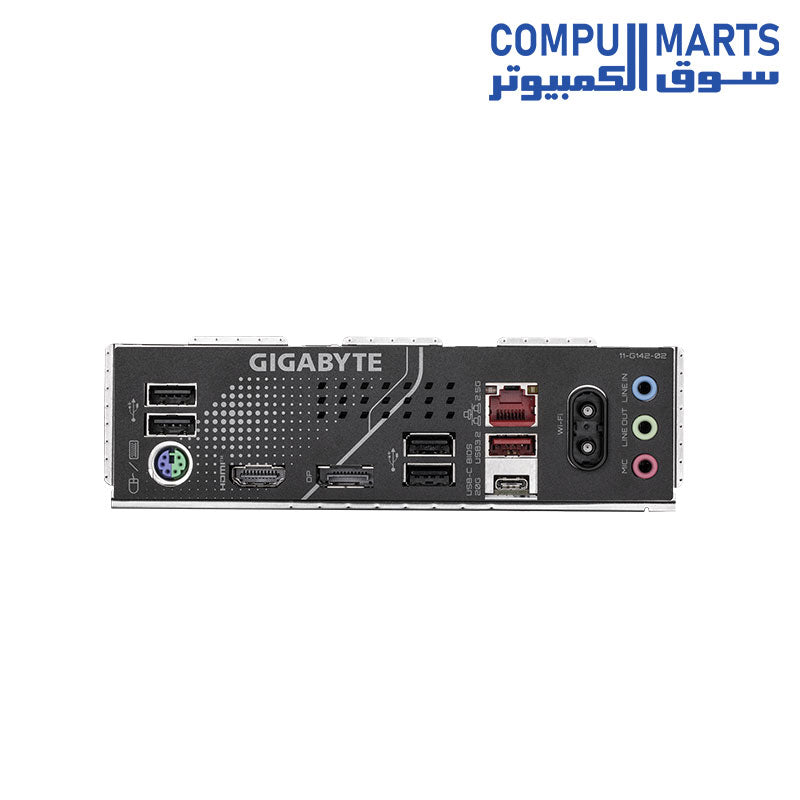

Back Panel Ports

1 x PS/2 Keyboard/Mouse Port.

1 x HDMI Port.

1 x DisplayPort.

1 x USB-C (USB 3.2 Gen 2x2).

1 x USB 3.2 Gen 2 (Type-A).

4 x USB 2.0 Ports.

2 x Antenna Connectors.

1 x RJ-45 LAN Port.

3 x Audio Jacks.

BIOS

AMI UEFI BIOS with Q-Flash and Q-Flash Plus for easy updates.

Unique Features

Gigabyte Control Center (GCC) for system management.

Smart Backup and bundled software like Norton Internet Security.

Operating Systems

Supports Windows 11 64-bit and Windows 10 64-bit.

Form Factor

ATX: Dimensions 30.5 cm x 24.4 cm.
