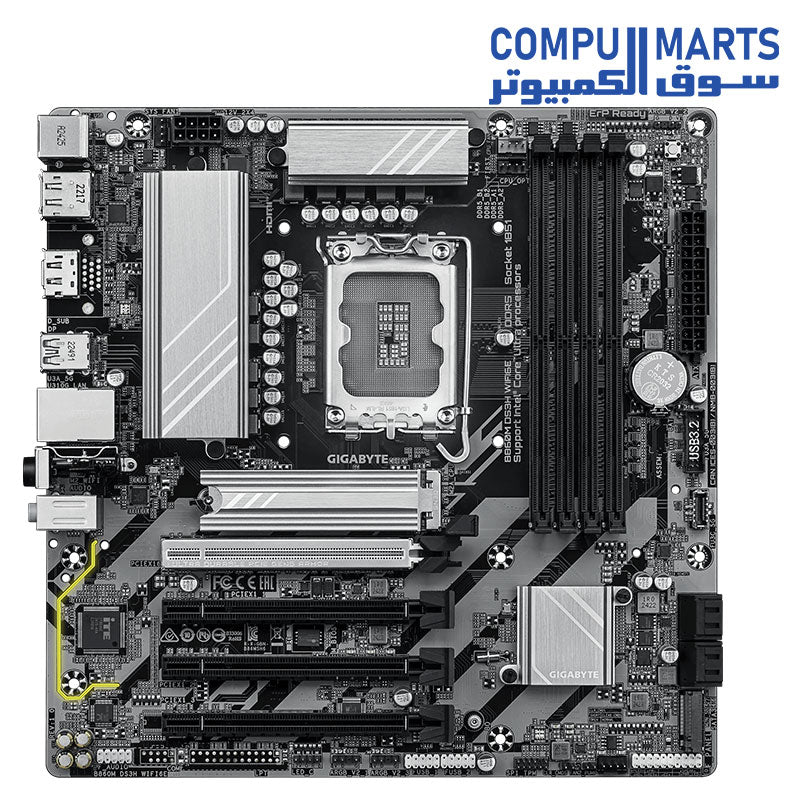

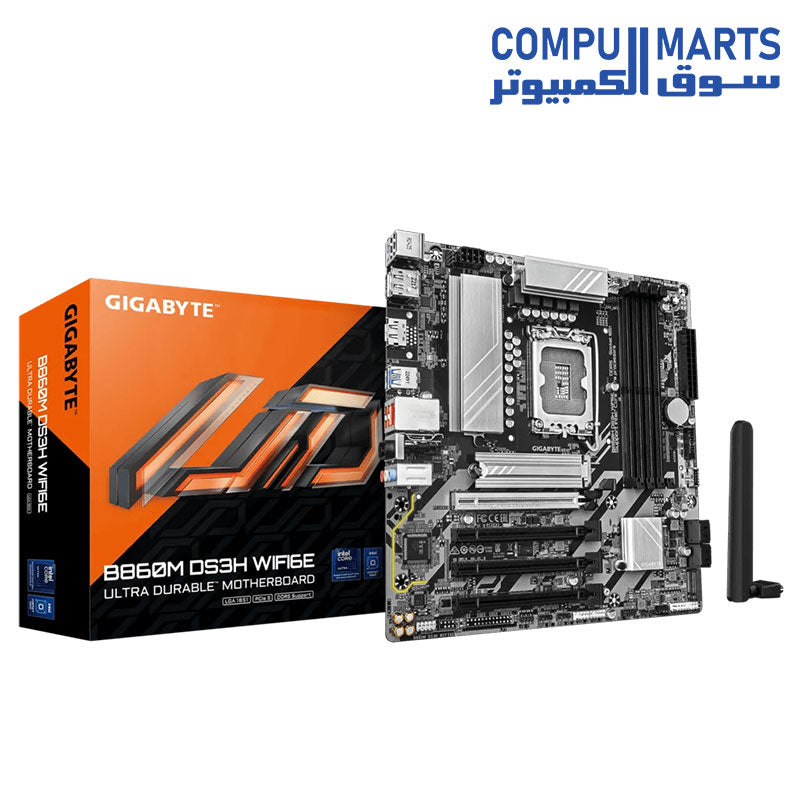

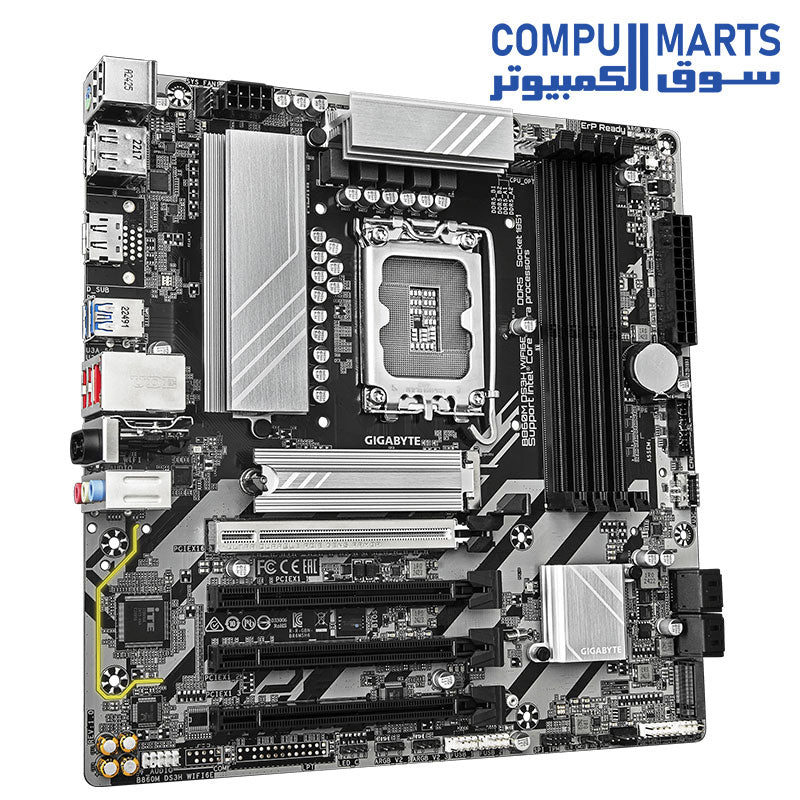

GIGABYTE B860M DS3H WIFI6E MOTHERBOARD

CPU & Chipset:
Socket: LGA1851 (Intel Core Ultra)
Chipset: Intel B860 Express
L3 Cache: Varies by CPU
Memory:
Type: DDR5 (up to 9066MT/s OC)
Capacity: 4× DIMM slots, up to 256GB
Features: Dual-channel, XMP, ECC (non-ECC mode)
Graphics:
Outputs: HDMI 2.1 (4096x2160@60Hz), 2× DisplayPort 2.1 (3840x2160@144Hz)
Triple-display support
Audio:
Codec: Realtek High Definition Audio
Channels: 2/4/5.1/7.1 (configurable via software)
Networking:
LAN: Realtek 2.5GbE
Wi-Fi: 6E (Intel AX211 or Realtek RTL8852CE, varies by revision)
Bluetooth: 5.3
Expansion Slots:
CPU: 1 × PCIe 5.0 x16 (for GPU or NVMe SSD only)
Chipset: 3 × PCIe 4.0 x1
Storage:
CPU: 1 × M.2 PCIe 5.0 x4/x2 (M2A_CPU)
Chipset: 1 × M.2 PCIe 4.0 x4/x2 (M2N_SB), 4 × SATA 6Gb/s
RAID Support: 0/1/5/10
USB Ports:
Rear: 1 × USB-A 3.2 Gen 2, 2 × USB-A 3.2 Gen 1, 3 × USB 2.0
Internal: 1 × USB-C 3.2 Gen 1, 2 × USB-A 3.2 Gen 1, 4 × USB 2.0
Internal Connectors:
Power: 24-pin ATX, 8-pin 12V
Cooling: Multiple fan & water pump headers
RGB: 3 × Addressable RGB Gen2, 1 × RGB header
Storage: 2 × M.2, 4 × SATA
Other: Q-Flash Plus button, TPM header, Reset & Clear CMOS jumpers

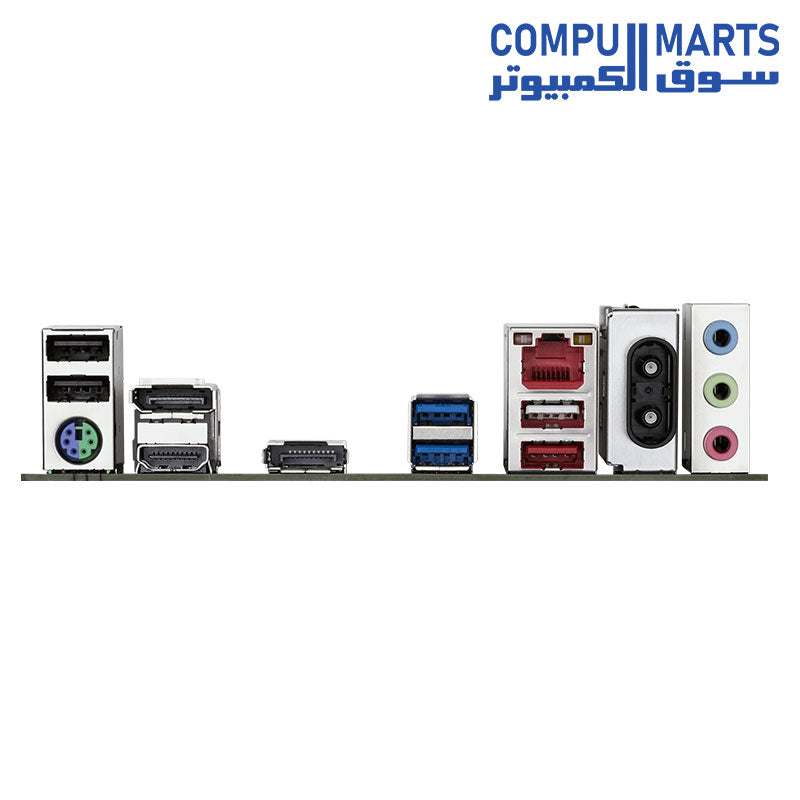

Rear Panel Connectors:
Video: HDMI, 2 × DisplayPort
USB: 1 × USB-A 3.2 Gen 2, 2 × USB-A 3.2 Gen 1, 3 × USB 2.0
Network & Audio: RJ-45, 3 × Audio jacks, Wi-Fi antenna connectors
Features & BIOS:
BIOS: AMI UEFI, Q-Flash Plus
Software: GIGABYTE Control Center (GCC), Norton Security (OEM)
OS Support: Windows 11/10 (64-bit)
Form Factor:
Micro ATX (24.4 × 24.4 cm)
