GIGABYTE GAMING OC Radeon RX 6500 XT 4GB GDDR6 GRAPHIC CARD

GIGABYTE GAMING OC Radeon RX 6500 XT 4GB GDDR6 GRAPHIC CARD

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

PROTECTION BACK PLATE

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

• Graphics Processing : Radeon RX 6500 XT

• Core Clock Boost Clock* : up to 2825 MHz (Reference card: 2815 MHz)

  Game Clock* : up to 2685 MHz (Reference card: 2610 MHz)

• Stream Processors : 1024

• Process Technology : 6 nm

• Memory Clock : 18000 MHz

• Memory Size : 4 GB

• Memory Type : GDDR6

• Memory Bus : 64 bit

• Memory Bandwidth (GB/sec) : 144 GB/s

• Card Bus : PCI-E 4.0

• Digital max resolution : 7680x4320

• Multi-view : 2

• Card size : L=282 W=114 H=40 mm

• PCB Form : ATX

• DirectX : 12 Ultimate

• OpenGL : 4.6

• Recommended PS : 400W

• Power Connectors : 6 pin*1

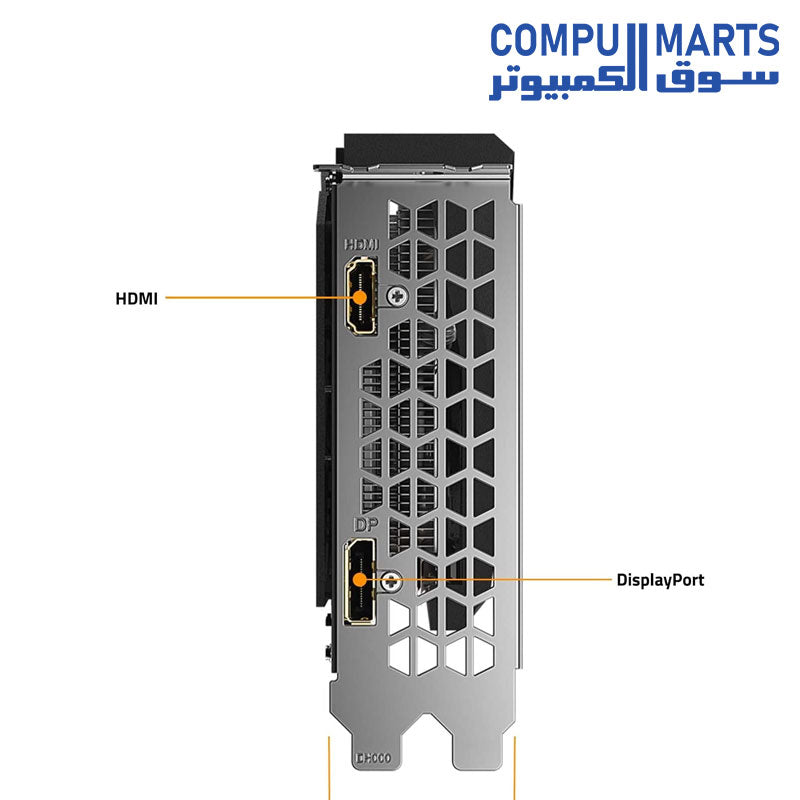

• Output Display Port 1.4a *1

  HDMI 2.1 *1

• Accessories

• Quick guide

  • Digital Max Resolution:7680x4320.Form Factor :ATX

  • Powered by AMD RDNA 2 Radeon RX 6500 XT

  • Integrated with 4GB GDDR6 64-bit memory interface

  • WINDFORCE 3X Cooling System with alternate spinning fans

  • Screen Cooling

  • 1x DisplayPort

  1x HDMI

  • Graphene nano lubricant

  • Protection metal backplate
