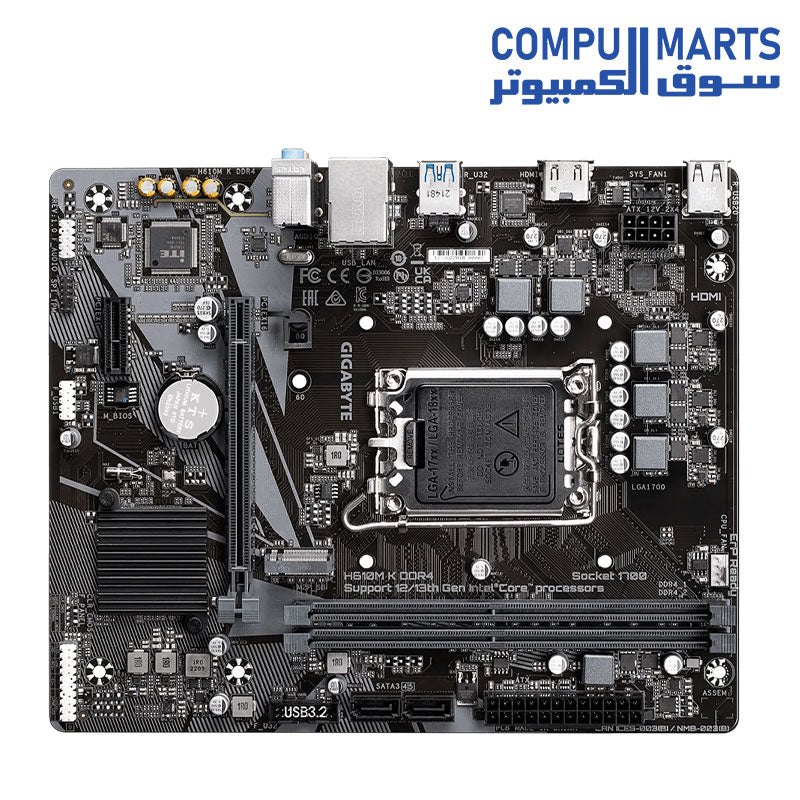

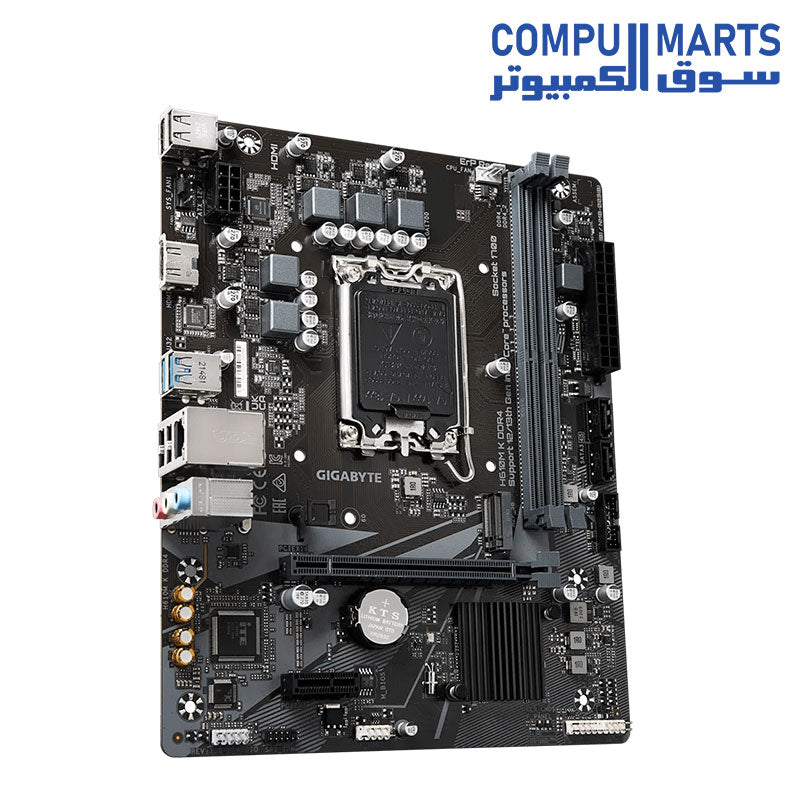

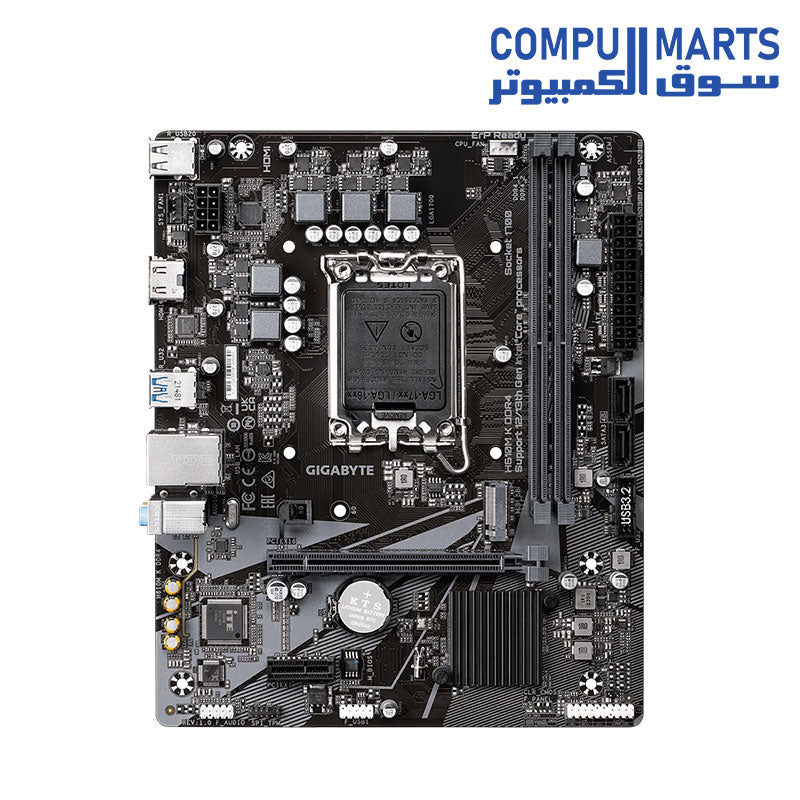

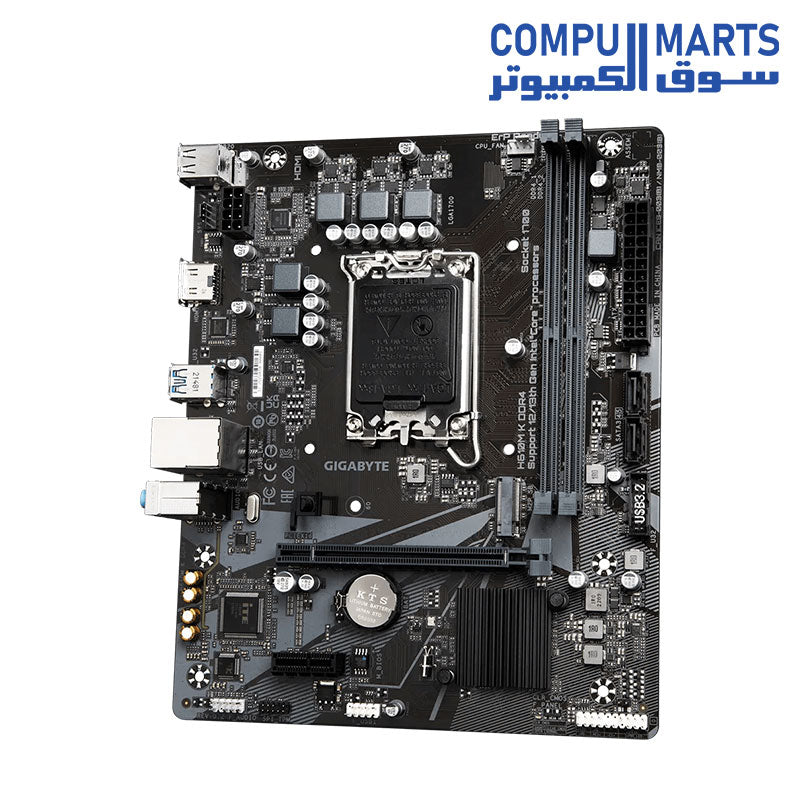

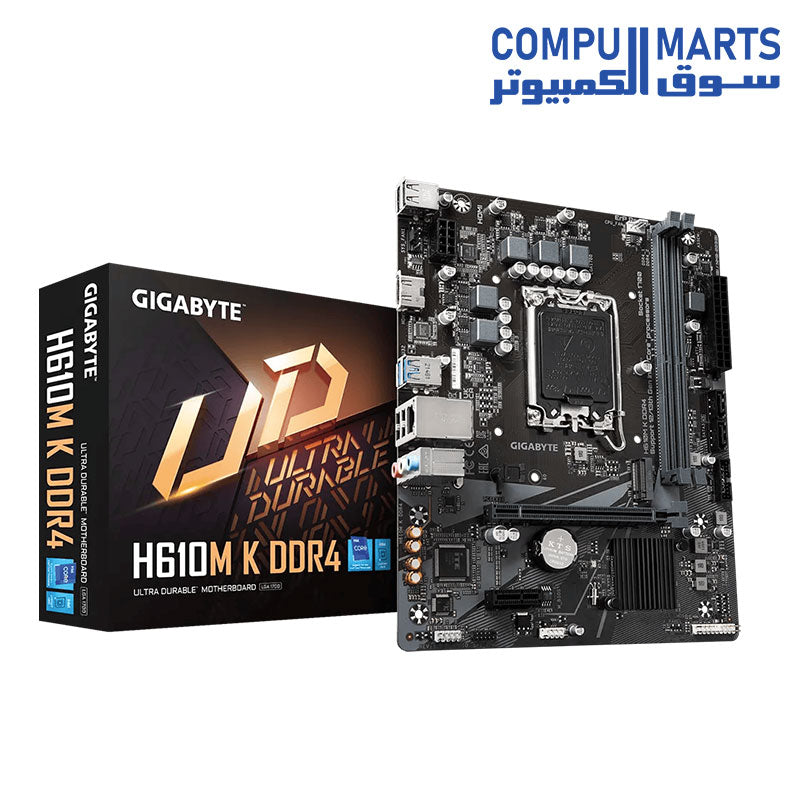

GIGABYTE H610M K DDR4 MOTHERBOARD

GIGABYTE H610M K DDR4 MOTHERBOARD

PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

• Supports Intel Core 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​

• GbE LAN with Bandwidth Management​

• NVMe PCIe 3.0 x4 M.2​

• High Quality Audio Capacitors and Audio Noise Guard​

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​

• GIGABYTE APP Center, Simple and Easy Use​

• Anti-Sulfur Resistors Design​

• CPU

  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

• Chipset

  1. Intel H610 Express Chipset

• Memory

  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules




• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

     * Support for HDMI 2.1 version and HDCP 2.3.

     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

  2. 2 x SATA 6Gb/s connectors

• USB

  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 1 x system fan header

  5. 1 x M.2 Socket 3 connector

  6. 2 x SATA 6Gb/s connectors

  7. 1 x front panel header

  8. 1 x front panel audio header

  9. 1 x USB 3.2 Gen 1 header

  10. 1 x USB 2.0/1.1 header

  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  12. 1 x Clear CMOS jumper

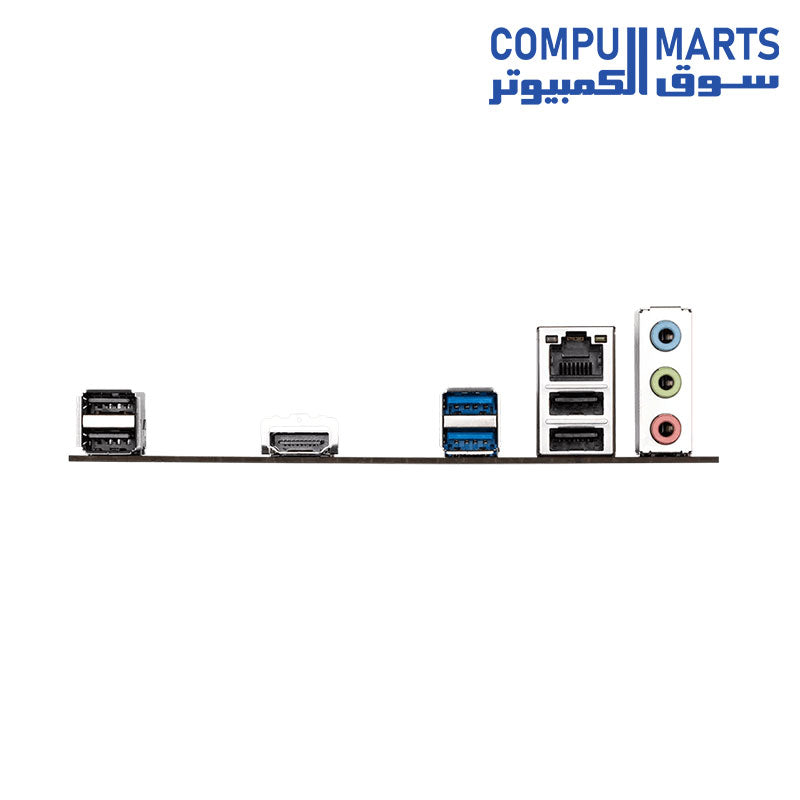

• Back Panel Connectors

  1. 1 x HDMI port

  2. 2 x USB 3.2 Gen 1 ports

  3. 4 x USB 2.0/1.1 ports

  4. 1 x RJ-45 port

  5. 3 x audio jacks

• I/O Controller

  1. iT I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 128 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center

     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

     @BIOS

     EasyTune

     Smart Backup

     System Information Viewer

  2. Support for Q-Flash

  3. Support for Xpress Install

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 22.6cm x 18.5cm
