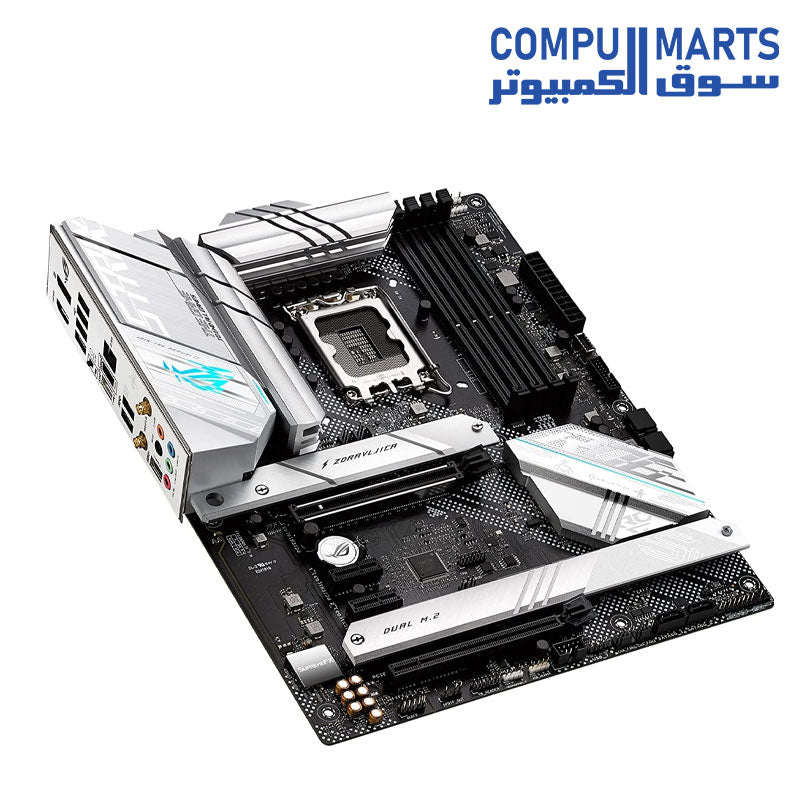

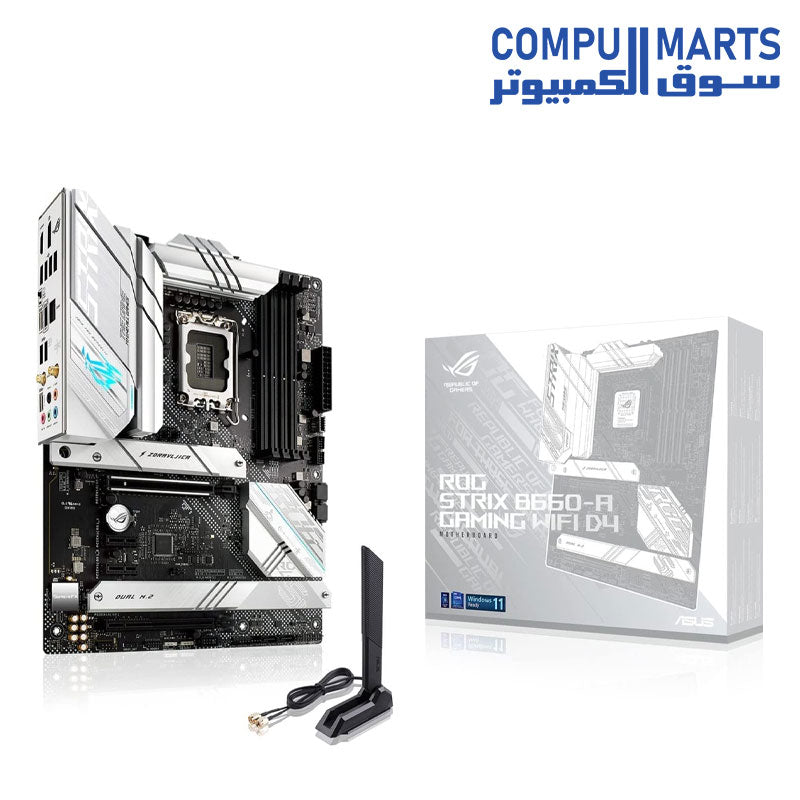

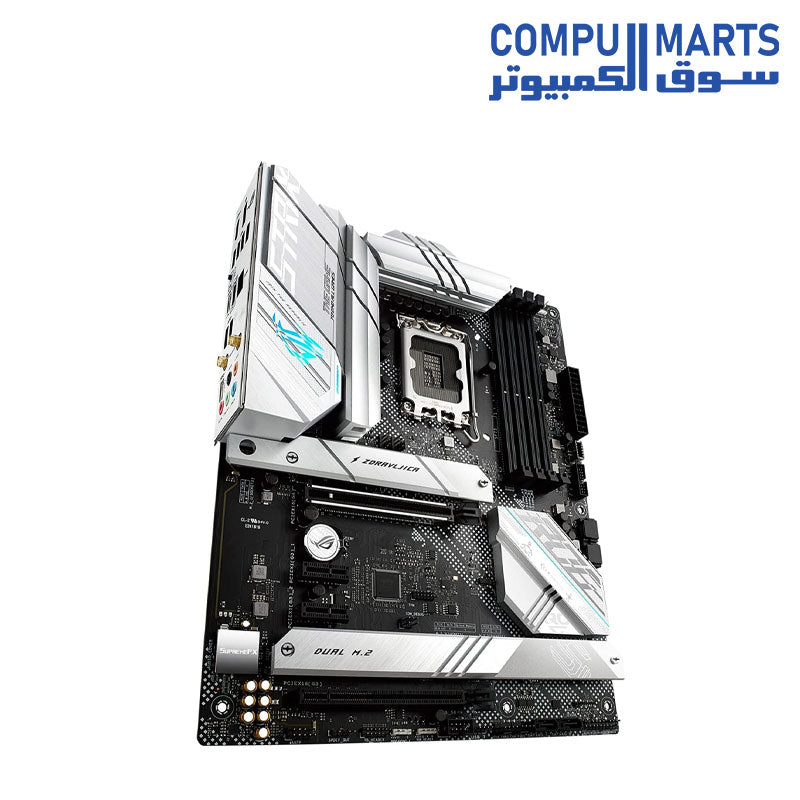

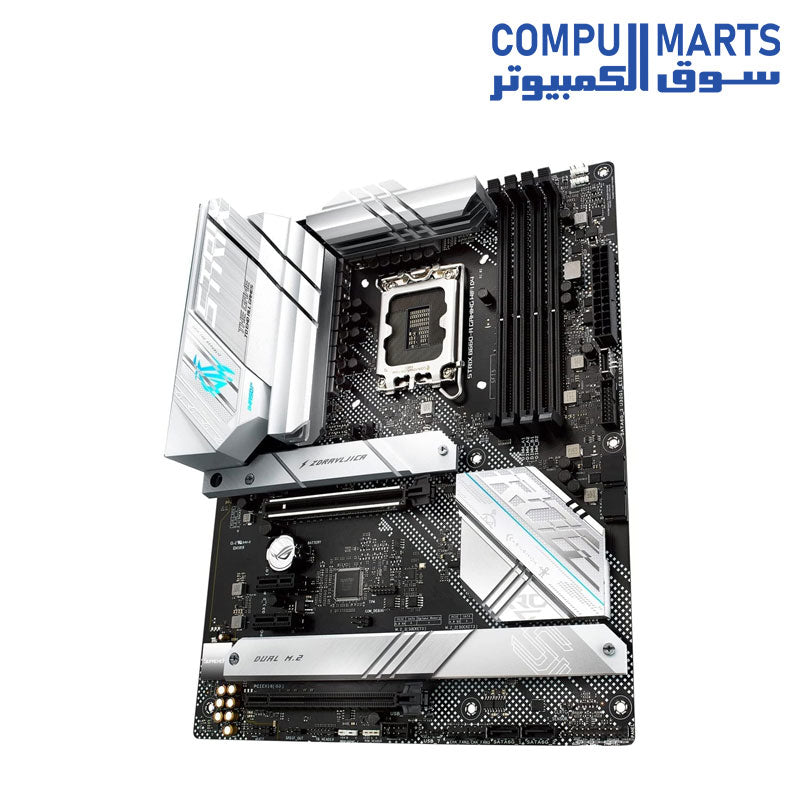

ASUS ROG Strix B660-A Gaming WiFi D4 LGA 1700(Intel 12th Gen) ATX (PCIe 5.0,12+1 Power Stages,WiFi 6, 2.5 Gb LAN, 3xM.2 Slots Motherboard

ASUS ROG Strix B660-A Gaming WiFi D4 LGA 1700(Intel 12th Gen) ATX (PCIe 5.0,12+1 Power Stages,WiFi 6, 2.5 Gb LAN, 3xM.2 Slots Motherboard



Intel B660 LGA 1700 ATX motherboard with PCIe 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold, and Celeron Processors

• Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors



• Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks



• High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard



• Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C



• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance



• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Q-LED



• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers



• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III



• Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard

CPU

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

 IntelTurbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset : Intel B660 Chipset

*Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory



Dual Channel Memory Architecture

OptiMem II

Actual Memory frequency support depends on the CPU types and DRAM modules.

Graphics : 1 x DisplayPort

1 x HDMI port

Graphics specifications may vary between CPU types.

Support 4K 60Hz as specified in DisplayPort 1.4.

Support 4K 60Hz as specified in HDMI 2.1.

 VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel 13^th & 12^th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

 Please check PCIe bifurcation table in User Guide Chapter 1 // support site.

 Supports Intel Optane Memory H Series on PCH-attached PCIe slot

*Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel 13^th & 12^th Gen processors support PCIe 4.0 x4 mode.

Intel B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

 Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Audio cover

 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.





*Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

*USB

1 x USB 3.2 Gen 2 connector (support USB Type-C)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports

*Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Special Features

Extreme Engine Digi+

-5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- CPU Socket lever protector

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 header(s)

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

192 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

 Accessories

Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package(s)

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide

Operating System

Windows 11 64-bit, Windows10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
