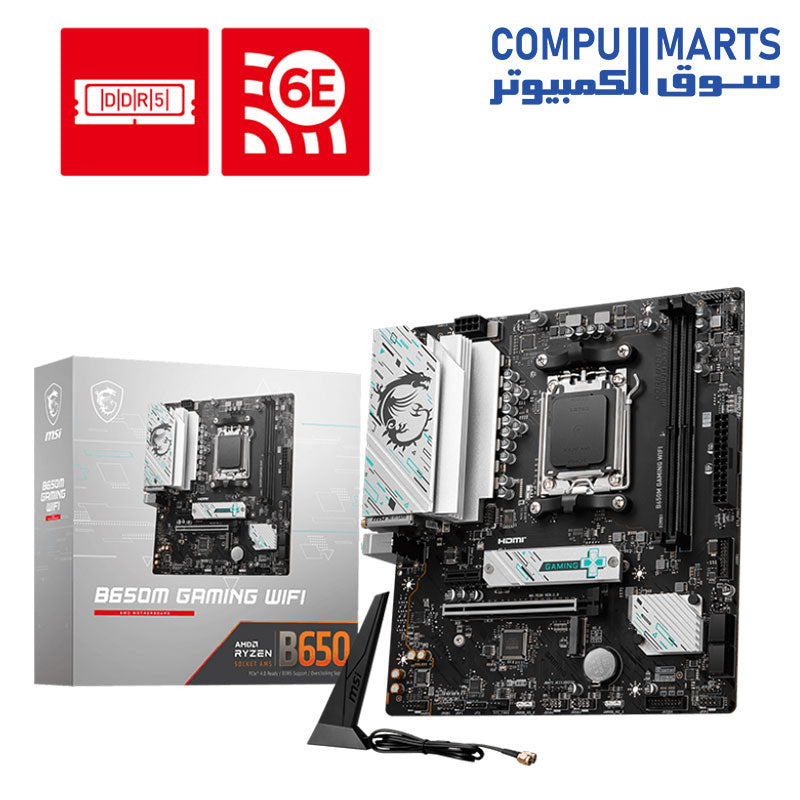

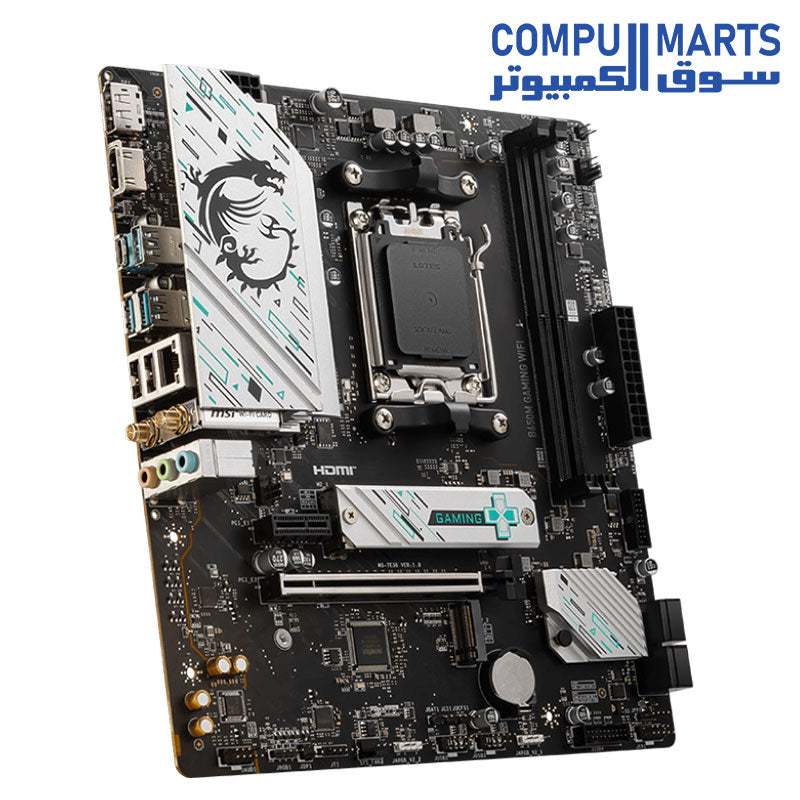

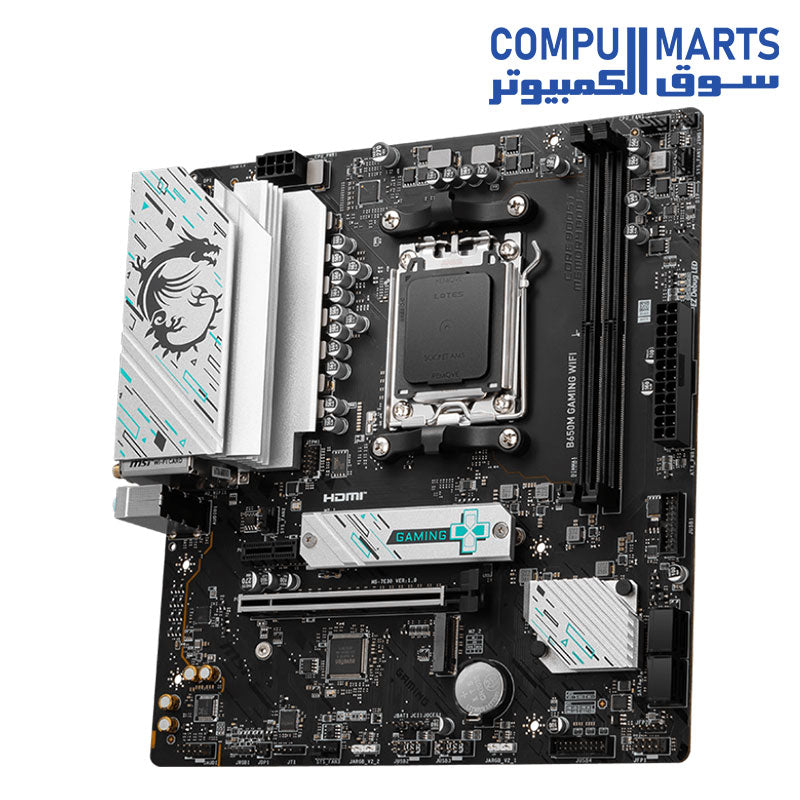

MSI B650M Gaming WIFI DDR5 Motherboard

MSI B650M Gaming WIFI DDR5 Motherboard

Model Name B650M GAMING WIFI
CPU Support Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5-7800+(OC)
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gb/s ports

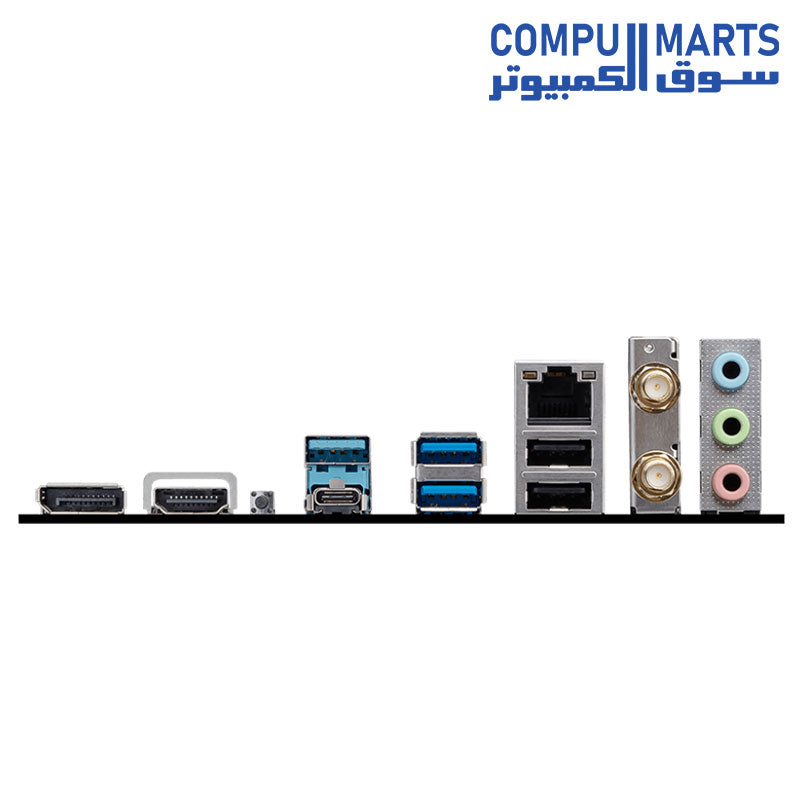

USB ports 8x USB 3.2 Gen 1 5Gbps (7 Type-A + 1 Type-C)
6x USB 2.0 (Type-A)
LAN Realtek
 RTL8125BG 2.5Gbps LAN
WiFi / BT AMD
 Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
