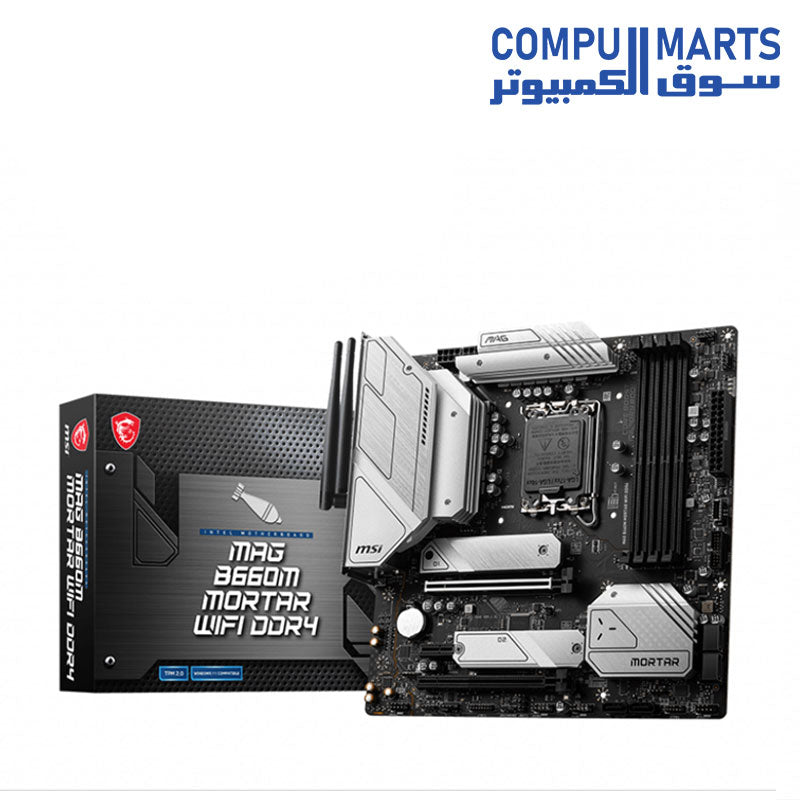

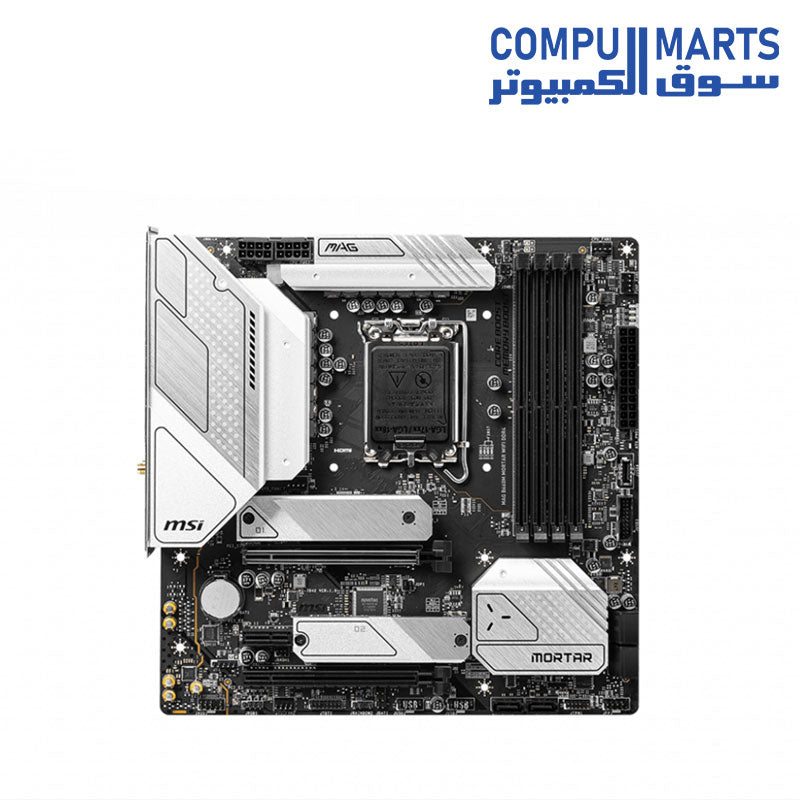

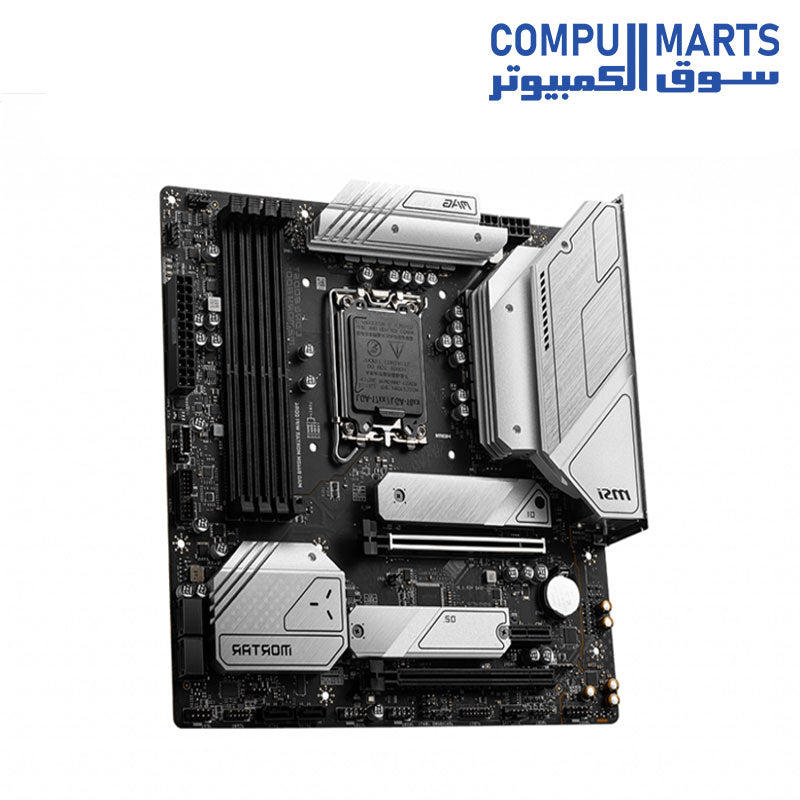

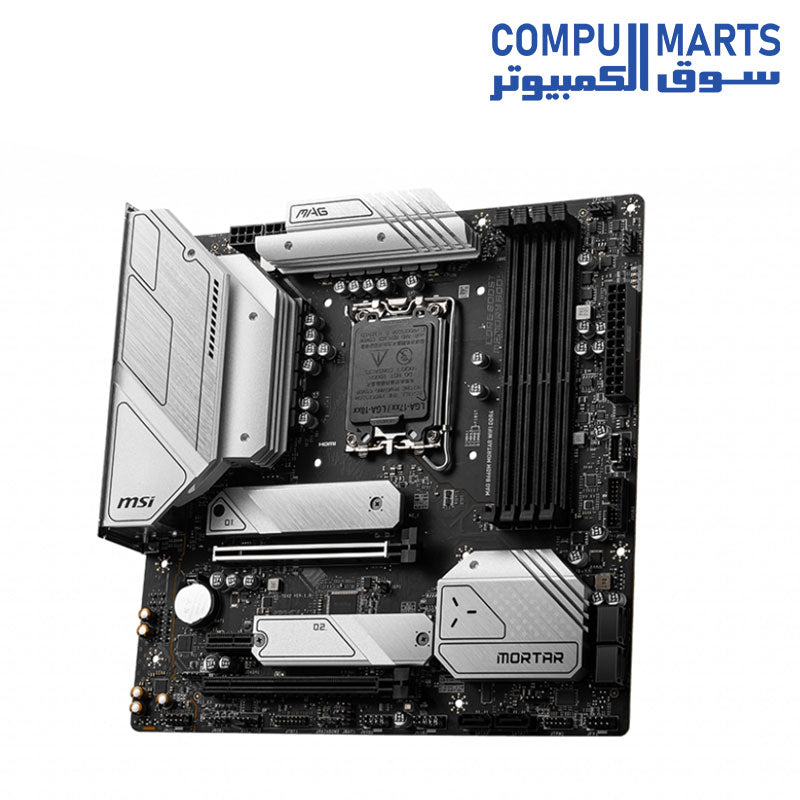

MSI MAG B660M Mortar WiFi DDR4 Motherboard

MSI MAG B660M Mortar WiFi DDR4 Motherboard

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast

LIGHTNING GEN 4 M.2

Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

• Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

• Supports DDR4 Memory, up to 4800+(OC) MHz

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

• 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

• AUDIO BOOST: Reward your ears with studio grade sound quality

• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

• SOCKET  1700




• CHIPSET

  Intel B660 Chipset




• MEMORY CHANNEL    Dual

• DIMM SLOTS  :4

• MAX MEMORY (GB) :128

• PCI-E X16: 2

• PCI-E X1   :1

• SATAIII  : 6

• M.2 SLOT  : 2

• RAID     0/1/5/10

• WIFI & BLUETOOTH

  Intel Wi-Fi 6 module

• USB 3.2 PORTS (FRONT)

  1(Gen 2, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR)

  1(Gen 2, Type C), 2(Gen 1, Type A)




• USB 2.0 PORTS (FRONT)  : 4

• USB 2.0 PORTS (REAR)     :4

• AUDIO PORTS (REAR)

  Realtek ALC1200 Codec

• DISPLAYPORT   :1

• HDMI   :   1

• DIRECTX    :  12

• CROSSFIRE  : y

• OPERATING SYSTEM

  Support for Windows 11 64-bit, Windows 10 64-bit

• FORM FACTOR    mATX
