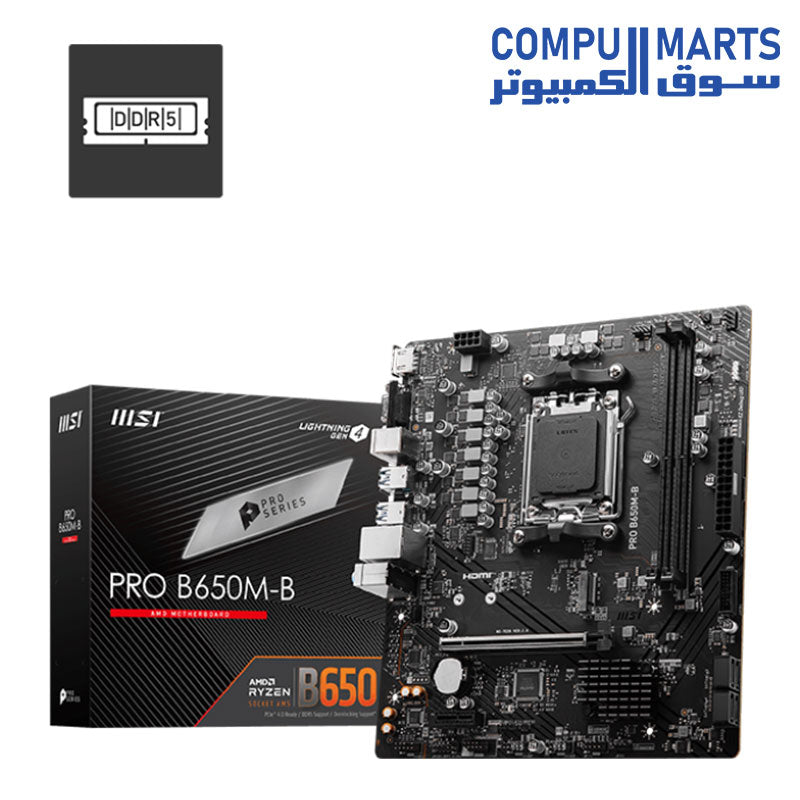

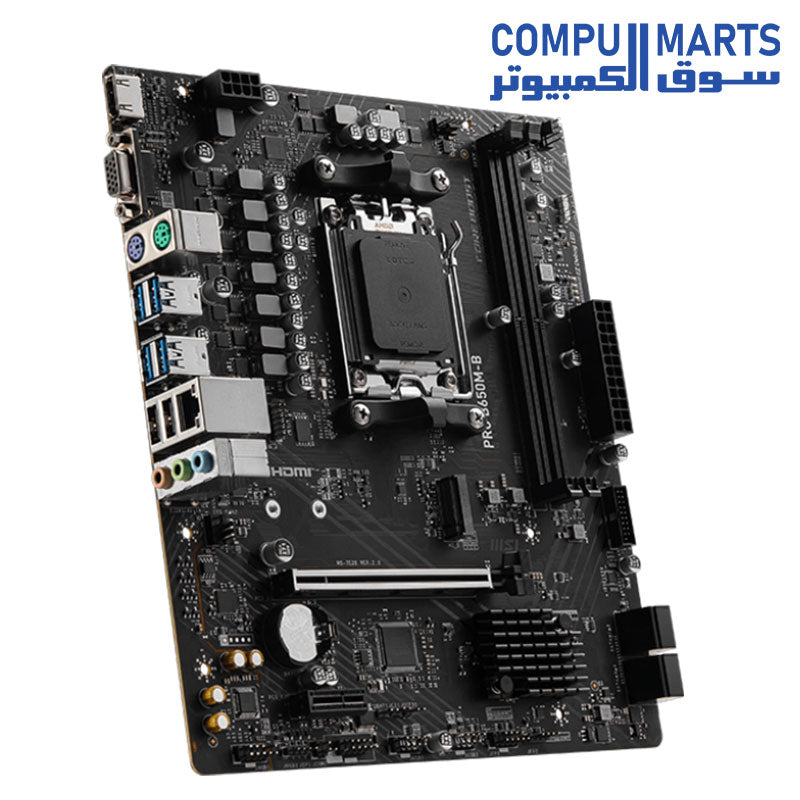

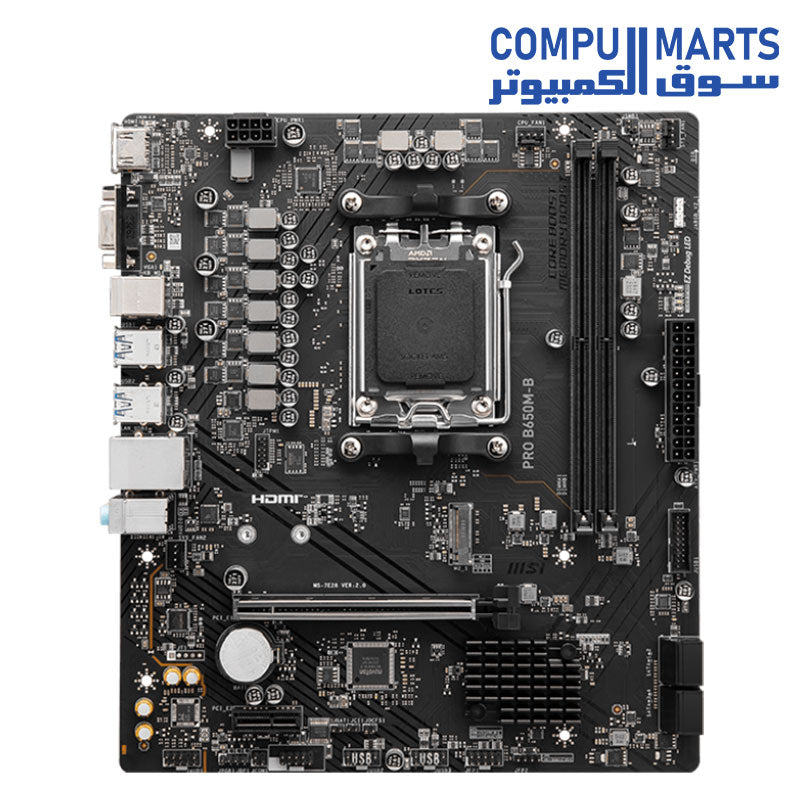

MSI Pro B650M-B Micro ATX Motherboard, Compatible with AMD Ryzen 7000 Series Processors, AM5 - DDR5 Memory Boost 6800+MHz/OC, 1 x PCIe 4.0 x16, 1 x M.2 Gen4, 2.5G LAN

MSI Pro B650M-B Micro ATX Motherboard, Compatible with AMD Ryzen 7000 Series Processors, AM5 - DDR5 Memory Boost 6800+MHz/OC, 1 x PCIe 4.0 x16, 1 x M.2 Gen4, 2.5G LAN

Model Name PRO B650M-B
CPU Support Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMITM 2.1, VGA – Requires
Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5-6800+MHz (OC)
Storage 1x M.2 Gen4 x4 64Gbps slot,
4x SATA 6Gbps ports

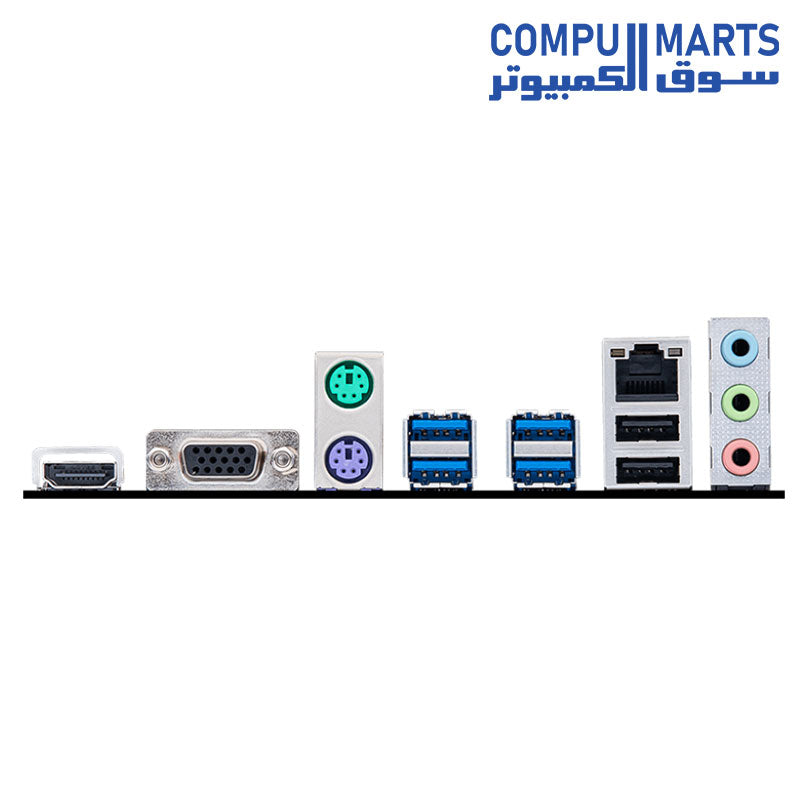

USB ports 6x USB 3.2 Gen 1 5Gbps (6 Type-A),
6x USB 2.0
LAN Realtek
 RTL8125B 2.5G LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
