MSI  |  SKU: 4067488418730

MSI PRO B760-P WIFI DDR5 Motherboard

8,888.00 EGP
Shipping calculated at checkout.

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Compumarts Points

Become a memberWith more ways to unlock exciting perks, this is your all access pass to exclusive rewards.

Description

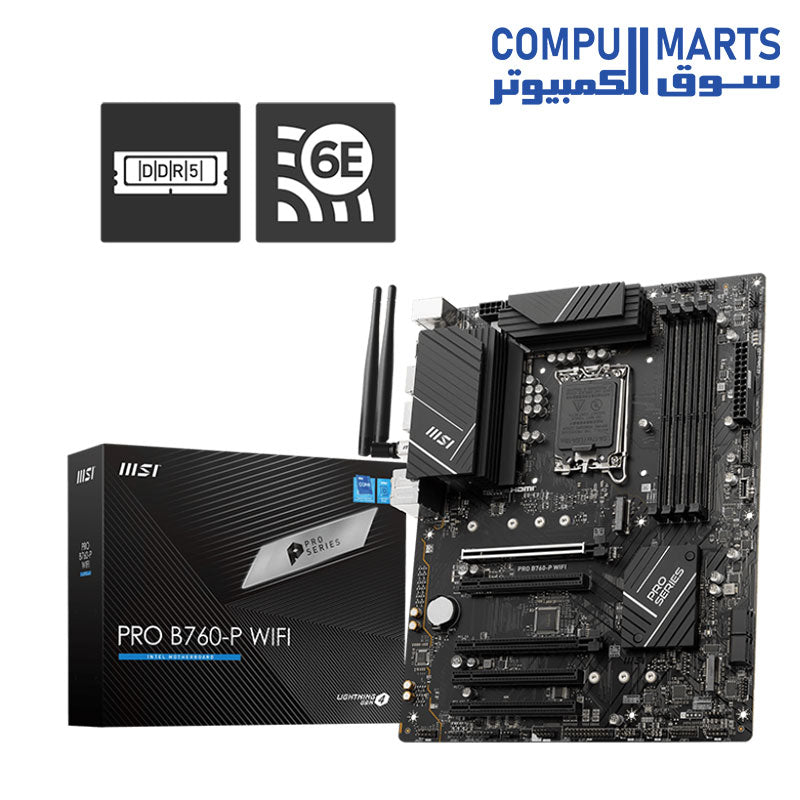

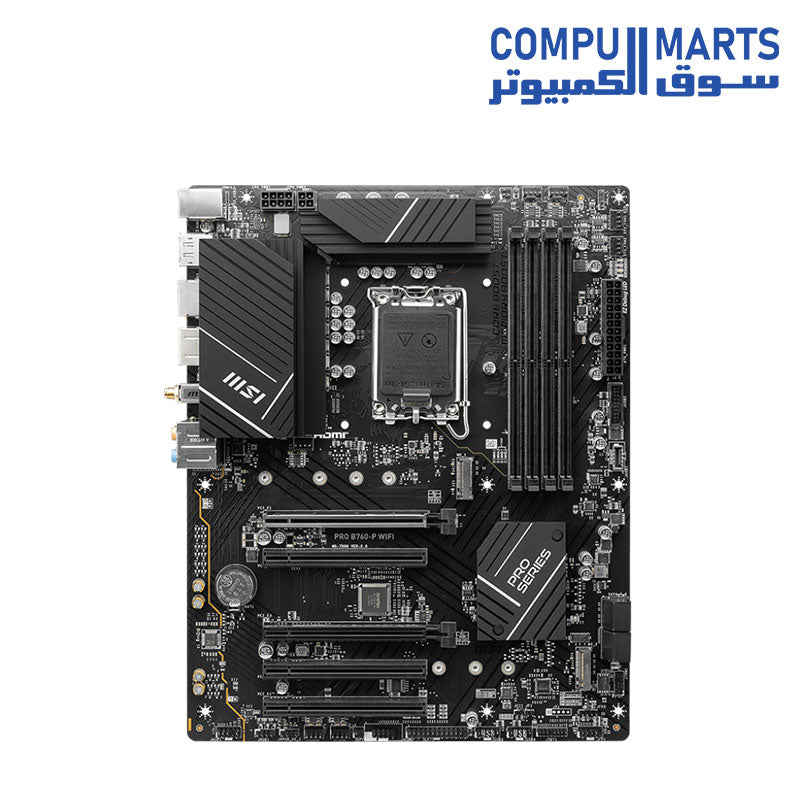

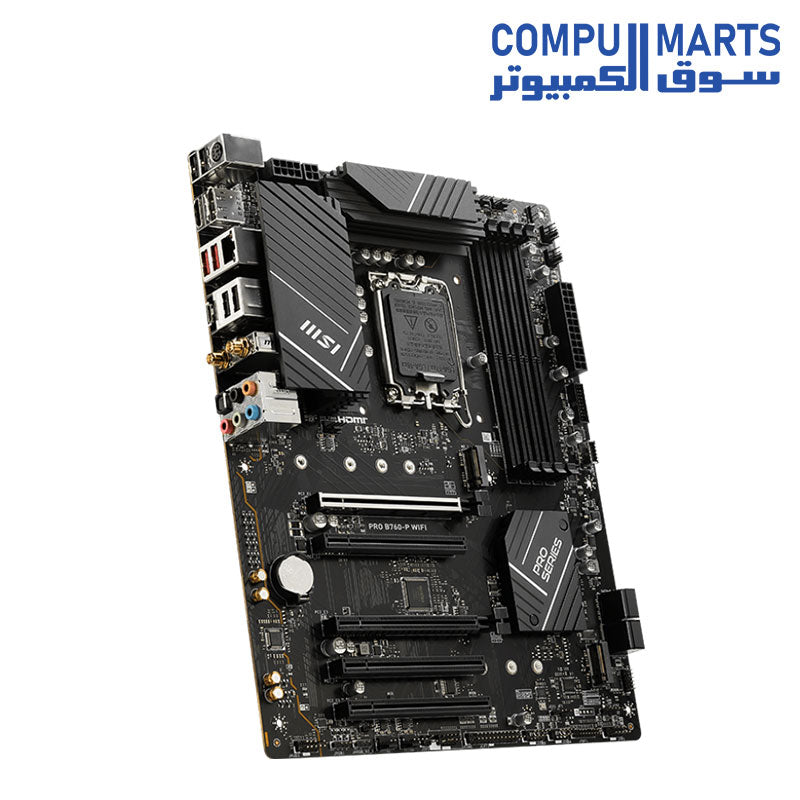

MSI PRO B760-P WIFI DDR5 Motherboard



  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and CeleronLGA1700 Processors

LGA 1700

MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

EXPANSION SLOT

5x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

LAN

Realtek RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

 Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x TBT connector (JTBT, supports RTD3)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

LED FEATURE

4x EZ Debug LED

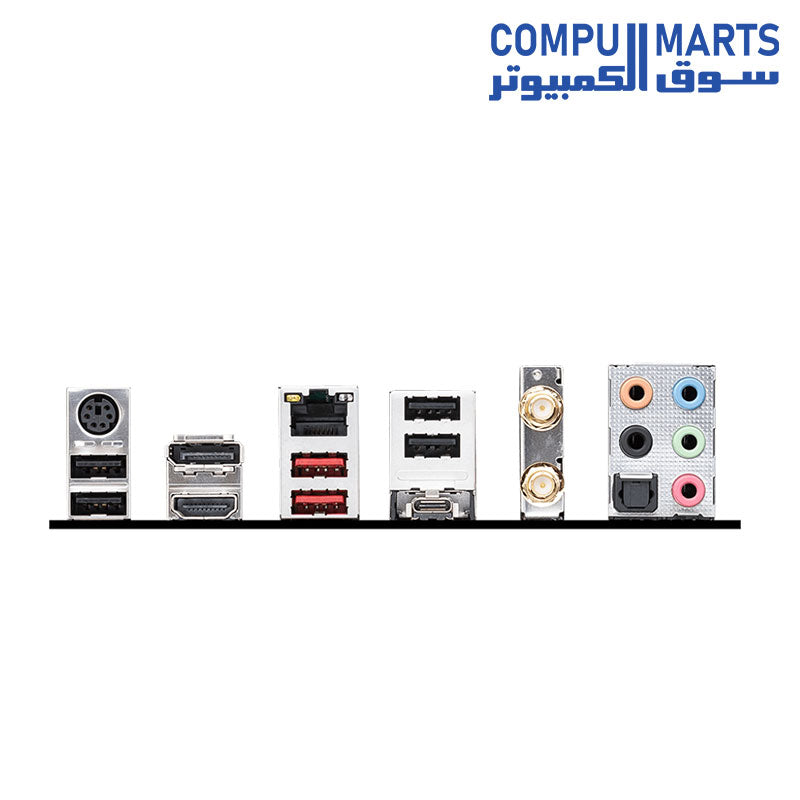

BACK PANEL PORTS

  1. Keyboard / Mouse

  2. DisplayPort

  3. 2.5G LAN

  4. USB 2.0

  5. Wi-Fi / Bluetooth

  6. Audio Connectors

  7. USB 2.0

  8. HDMI

  9. USB 3.2 Gen 2 10Gbps (Type-A)

  10. USB 3.2 Gen 2 10Gbps (Type-C)

  11. S/PDIF-OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows  10 64-bit

PCB DIMENSION

ATX

243.84mmx304.8mm
