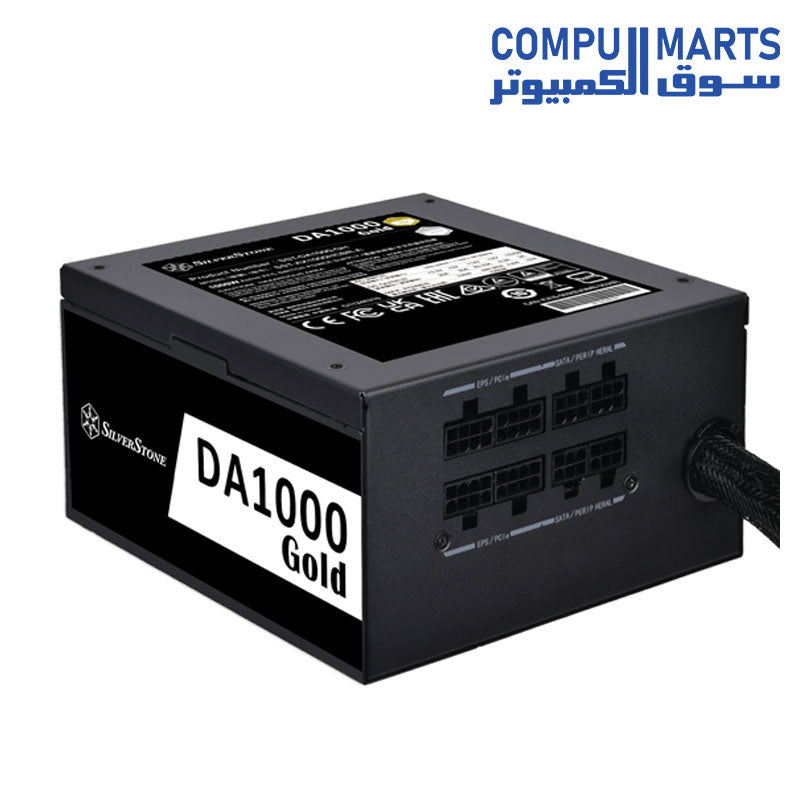

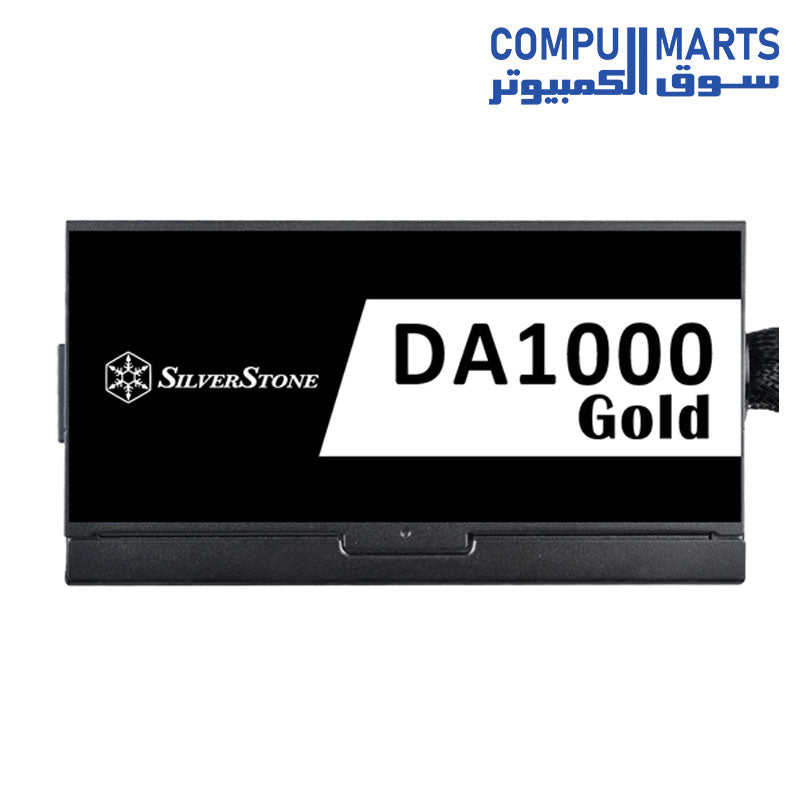

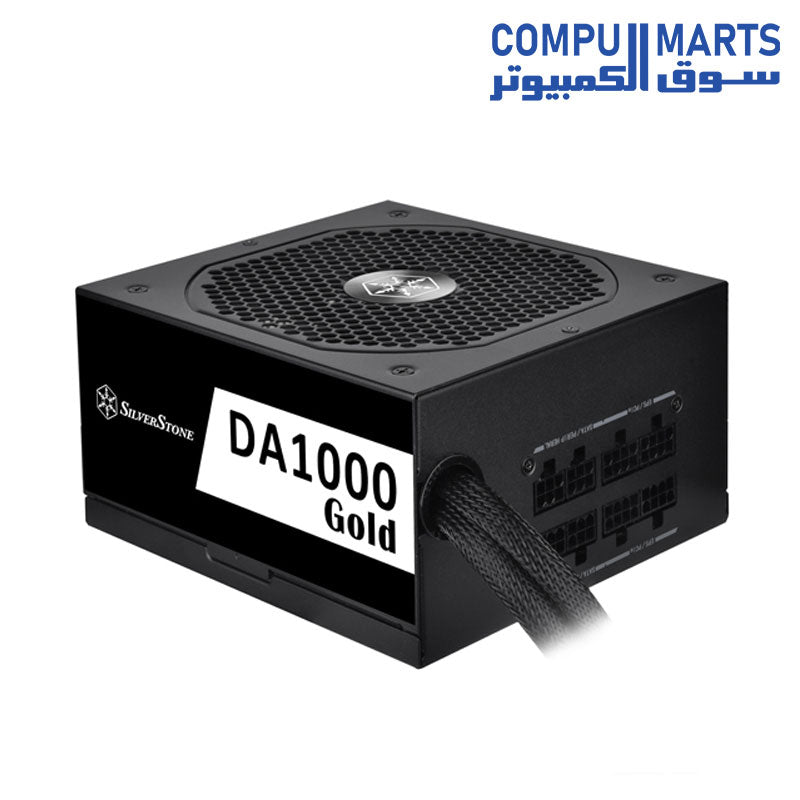

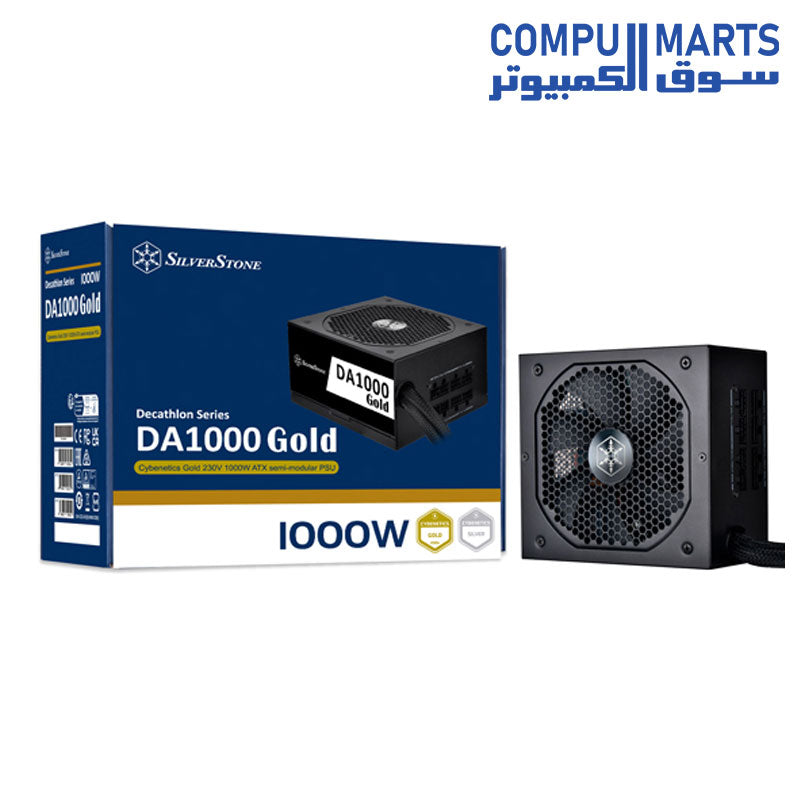

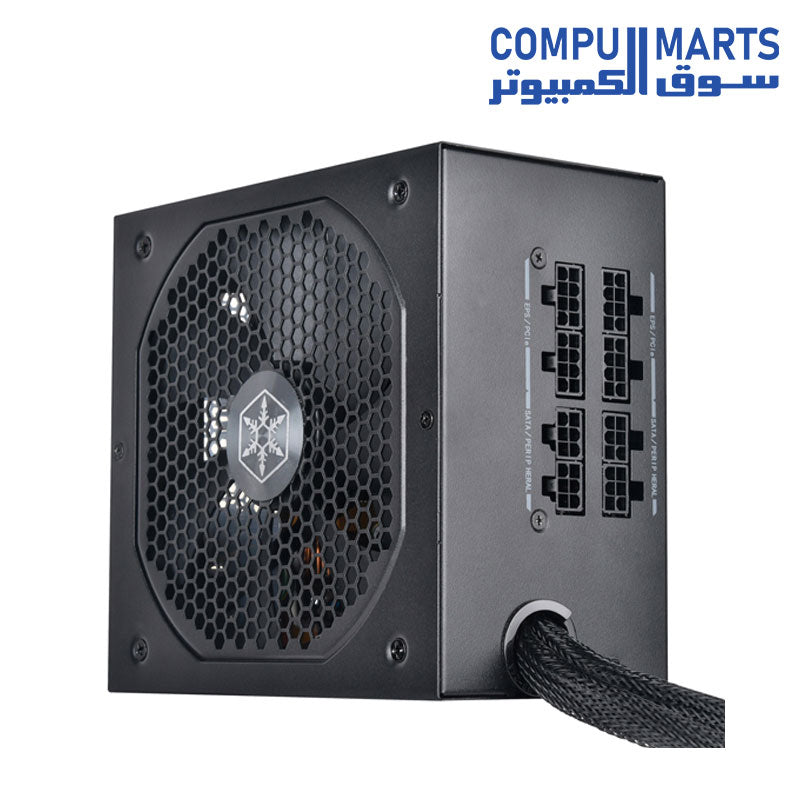

silver stone DA1000 Gold Cybenetics Gold 1000W semi-modular ATX PSU

• High efficiency with 1000W Cybenetics 230V Gold / 115V Silver certification

• Semi-modular cabling design

• Japanese primary capacitors

• 24/7 continuous power output with 40℃ operating temperature

• Class-leading single +12V rail

• Silent running 140mm fan with 18 dbA minimum

• Dual EPS 8 pin with multiple PCIe 8 / 6 pin connectors

Cybenetics 230V Gold / 115V Silver Certification

Designed for Cybenetics 230V Gold / 115V Silver level of efficiency to reduce wasted heat and save on electricity

Semi-modular cabling design

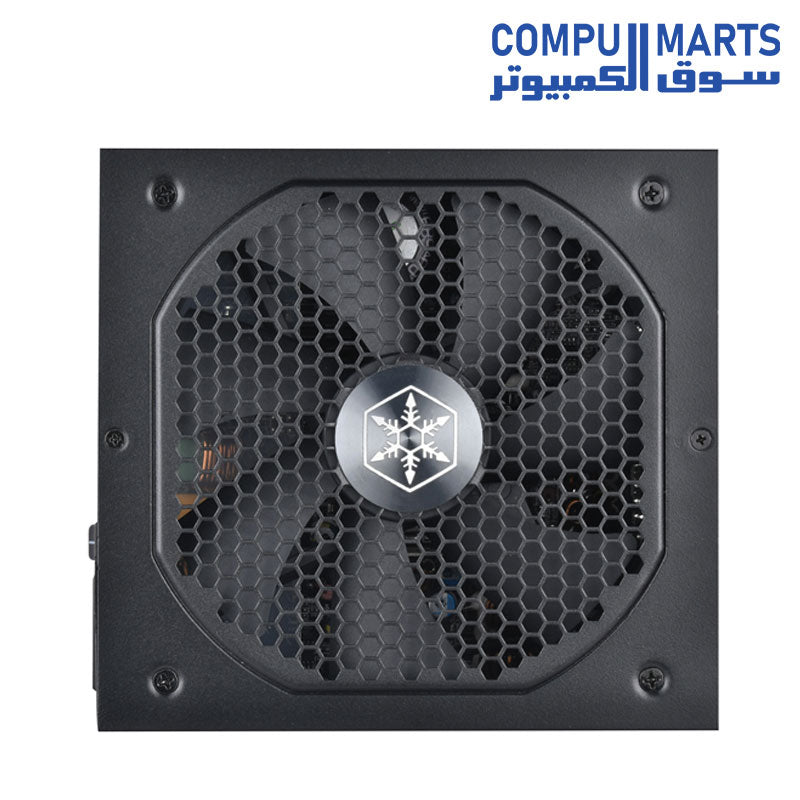

Silent running cooling fan

Built-in 140mm with excellent airflow and low operational noise, ideal for quiet home or office use

Advanced protections for safety and security

Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

Over temperature protection

Product Specifications

Product No. SST-DA1000-GH

Model (safety certification) SST-AX1000HCBR-A

Color

*Combined +3.3V & +5V : 100W

*Combined +12V : 999.66W

*Input Voltage : 90 ~ 264 Vrms

*Input Frequency Range : 47Hz ~ 63Hz PFC : Active PFC (PF>0.9 at full load)

*Efficiency : ≥87% & <89%

*MTBF : 100,000 hours

*Operating temperature : 0°C ~ 40°C

*Protection Over Current

Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation

*Connectors

1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector

*Cooling System : Silent 140mm FDB fan

*Noise Level : 18 dBA minimum

*Certification : Cybenetics Gold

*Form factor : ATX (PS2)

*Dimension 150mm (W) × 86mm (H) × 160mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)

*Weight : 2.24 kg
