XPG | SKU:
COREREACTORII850G-BKCUS

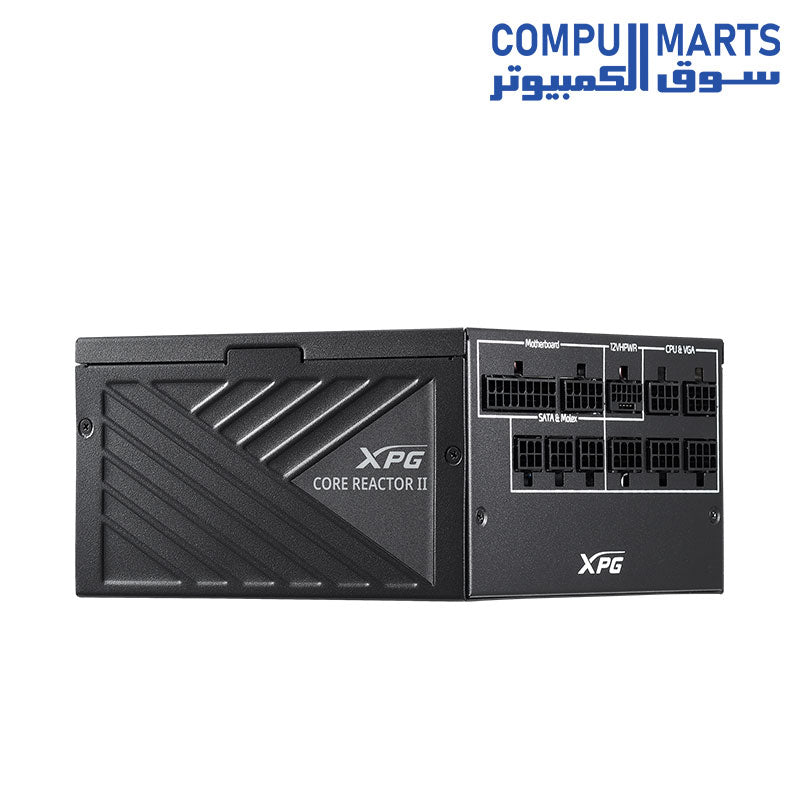

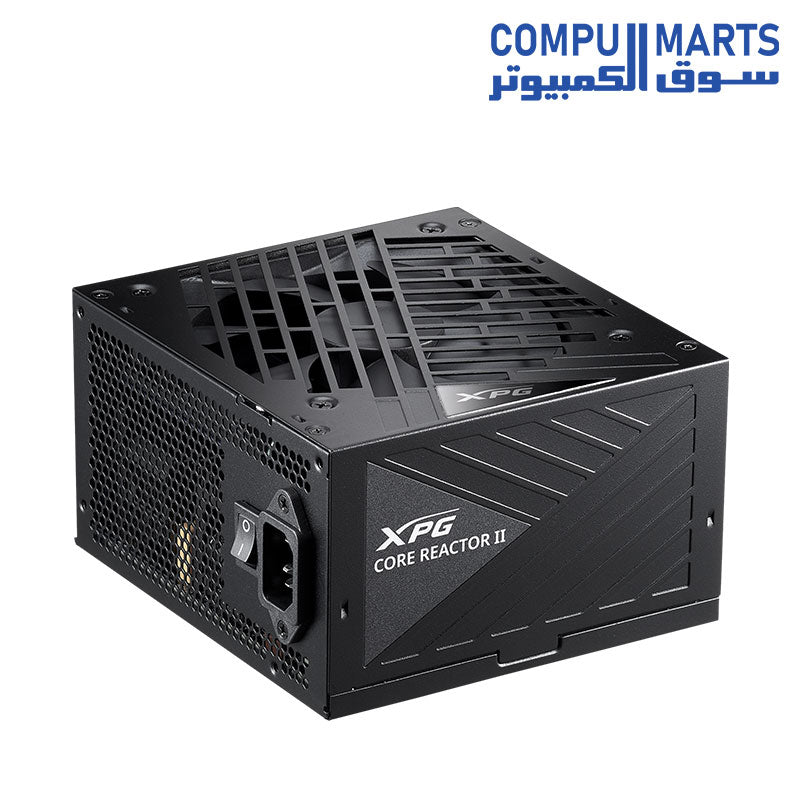

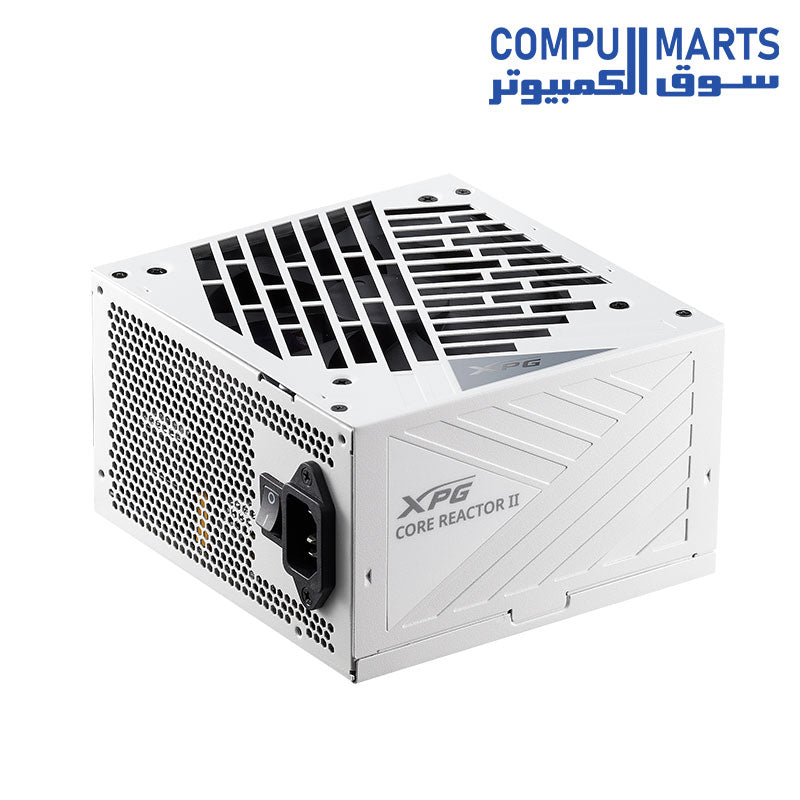

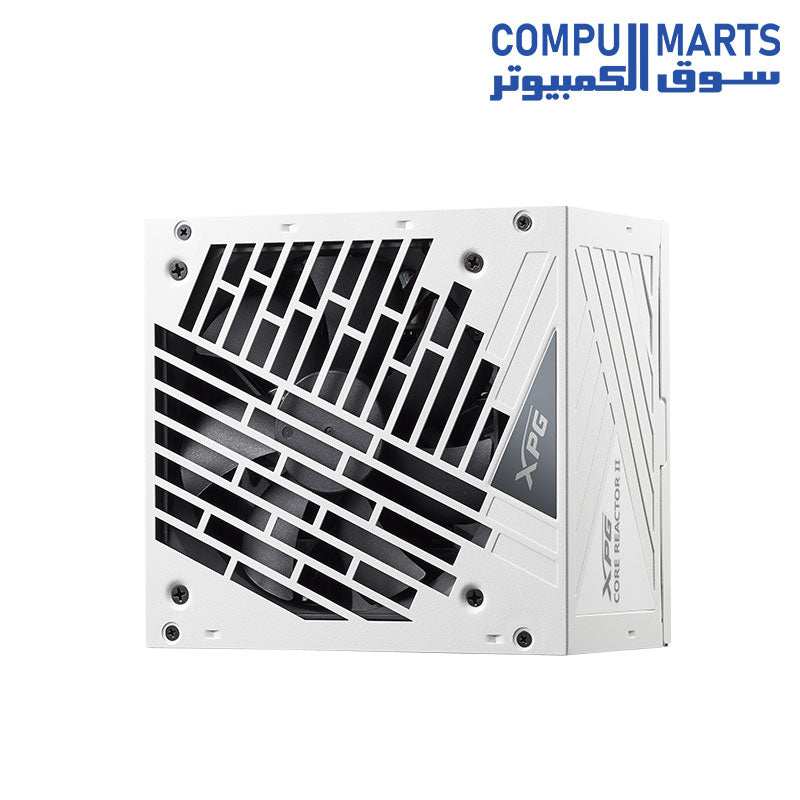

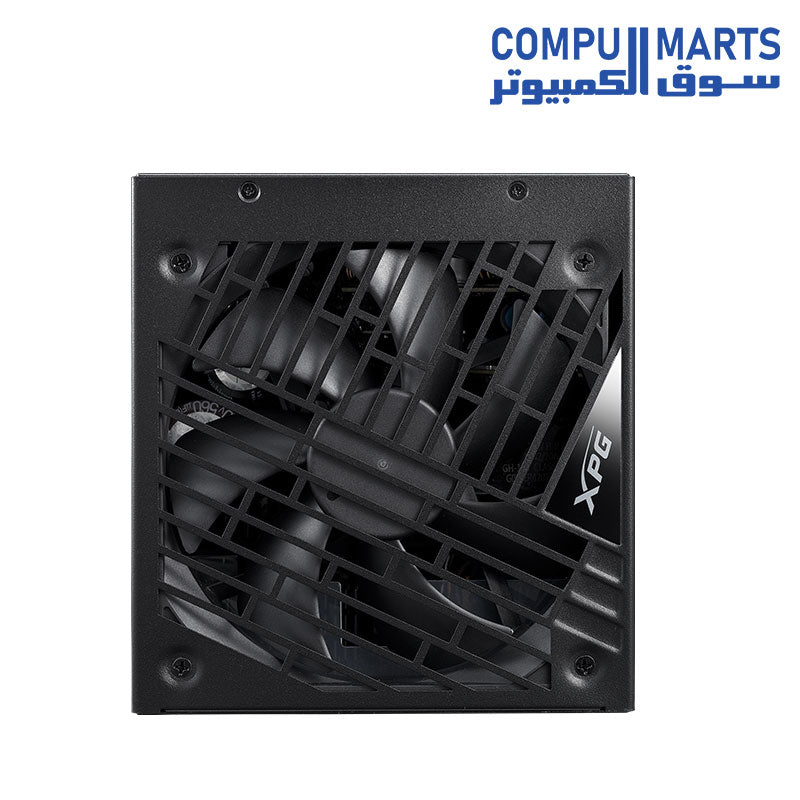

XPG CORE REACTOR II Power Supply Unit
6,500.00 EGP
Unit price
/
Unavailable
Shipping calculated at checkout.
XPG CORE REACTOR II Power Supply Unit - black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
XPG CORE REACTOR II Power Supply Unit
From
6,500.00 EGP
Unit price
/
Unavailable
Compumarts Points
Become a memberWith more ways to unlock exciting perks, this is your all access pass to exclusive rewards.
Description
Description
XPG Core Reactor II Power Supply Unit Modular ATX3.0-80 Plus Gold - ATX - Fully Modular - 850
CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Next-Gen Ready - ATX 3.0 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.
Certified GOLD Efficiency
CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.
Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.
Premium all 105°C Japanese Capacitors
CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
Dimensions (L x W x H)
650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm
Cybenetics Rating
1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM
80 Plus Rating
GOLD
ATX Version
ATX 12V v3.0 and EPS v2.92
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A
Input Frequency
650/750/850/1000/1200W:47Hz-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
Power Excursion
1200W: 2820W(*up to 235% of the PSU's rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
650W: 1527W(*up to 235% of the PSU's rated power for 100μs)
Operating Temperature : 50°C
Fan Size
650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 Pin Connector
1200W/1000W:1
850W/750W/650W:1
EPS 8 Pin Connector
1200W/1000W:2
850W/750W/650W:2
PCI-E 6+2 Pin Connector
1200W/1000W:8
850W/750W:6
650W:4
Molex 4 Pin Connector
1200W/1000W:3
850W/750W/650W:4
12VHPWR (12 + 4) Connector (600W)
1200W/1000W/850W/750W: 1
12VHPWR (12 + 4) Connector (450W)
650W:1
SATA Connector
1200W/1000W:9
850W/750W/650W:8
Weight
1200W/1000W:
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables：1596g+1254g
with Package:3.1kg
650W:
Product+cables：1299g+1231g
with Package:2.78kg
