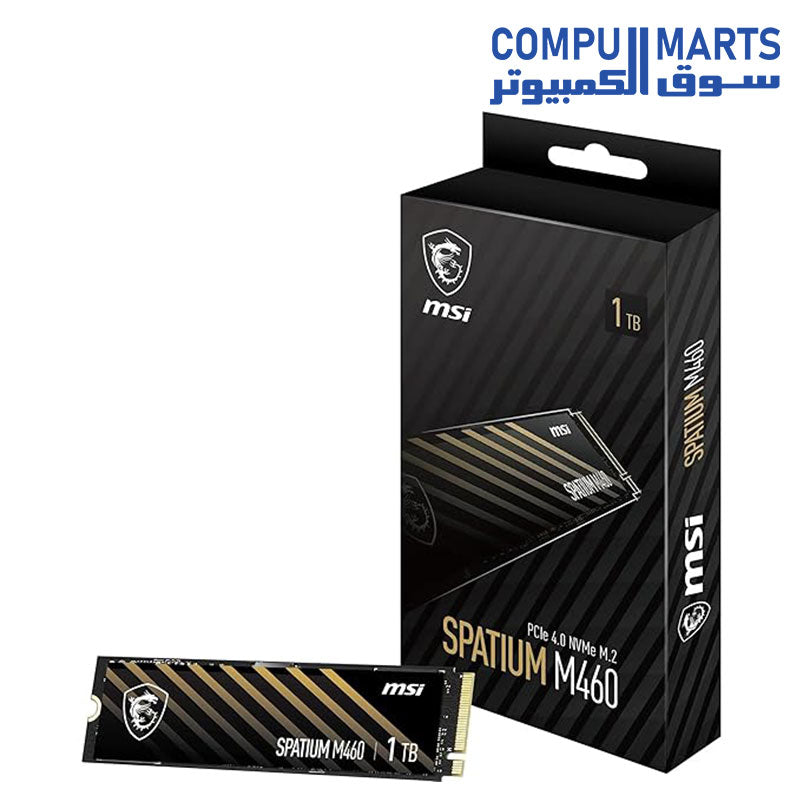

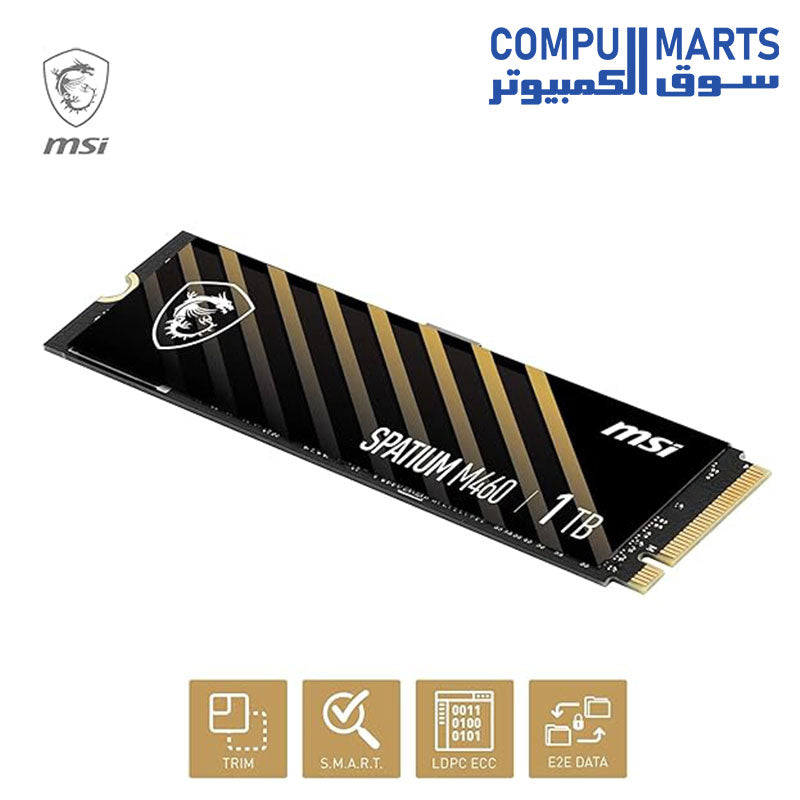

MSI SPATIUM M460 PCIe 4.0 NVMe M.2 1TB Solid State Drive

MSI SPATIUM M460 PCIe 4.0 NVMe M.2 1TB Solid State Drive

Model Name SPATIUM M460 PCIe 4.0 NVMe M.2
Capacity 250GB 500GB 1TB 2TB
Controller PHISON E21T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen4x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to
(MB/s) 4650 5000 5000 4900
Sequential Write up to
(MB/s) 1900 3750 4500 4400
Random Read 4KB up to
(IOPS) 220,000 440,000 550,000 525,000
Random Write 4KB up to
(IOPS) 470,000 920,000 950,000 950,000
Maximum Operating
Power (W) 3.6 4.0 4.3 5.2
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 200 300 600 1200
Mean Time Between
Failure (MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW
as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS Support
required)
SMART (Self-Monitoring, Analysis and Reporting
Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
FEATURES
Blazing Speeds
Optimized for the PCIe Gen4 interface.
3D NAND Flash
3D NAND Flash technology brings dense storage in a compact
design and allows storage capacities up to 2TB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
Low Latency Gaming
Enjoy minimal latency in smooth gameplay and loading games
with optimized high-performance bandwidth and throughput.
Nonstop Creativity Booster
Keep up nonstop productivity by opening up images, movies,
documents, and heavy-duty applications at lightning speeds.
MSI Center
Migrate data with backup & restore functionality, monitor drive
health and performance metrics in real-time in MSI Center.
Optimal M.2 SSD
Designed in the M.2 2280 form factor, MSI SSDs are easy to install
into external enclosures, desktops, or laptops.
5 Years Warranty
MSI stands by the quality and reliability of their SSD's with a 5
year limited warranty.
TEST CONFIGURATION
Sequential and random performance, and power consumption were measured
with the system configurations listed below. All performance data was tested
with the SSD as a secondary drive.
Interface PCIe Gen4x4
Operating System Windows 11 Pro 21H2 OS Build 22000.675
CPU AMD Ryzen 7 3700X 8-Core @3.60 GHz
Memory Kingston DDR4 4G-2400 x4
Chipset MSI MEG B550
Test Program Crystal Diskmark 8.04, ATTO Disk Benchmark V4.01.0f1,
IO Meter v1.1.0
