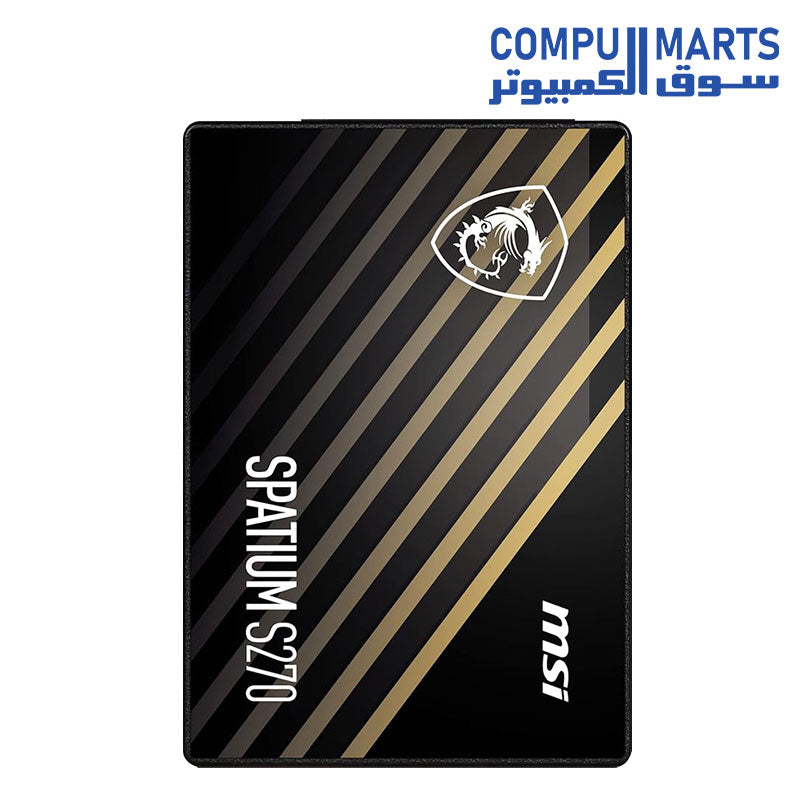

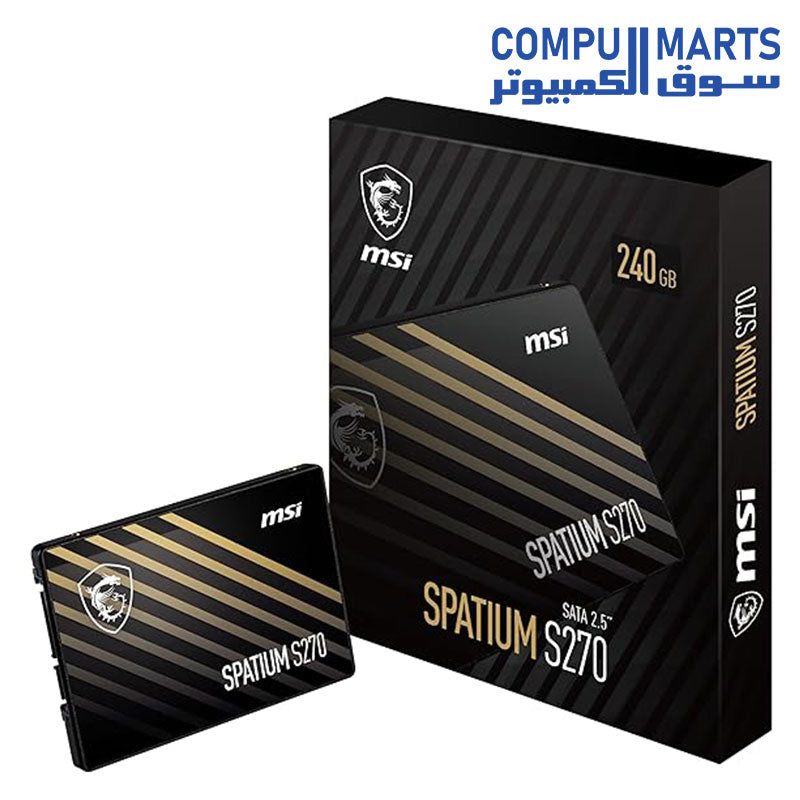

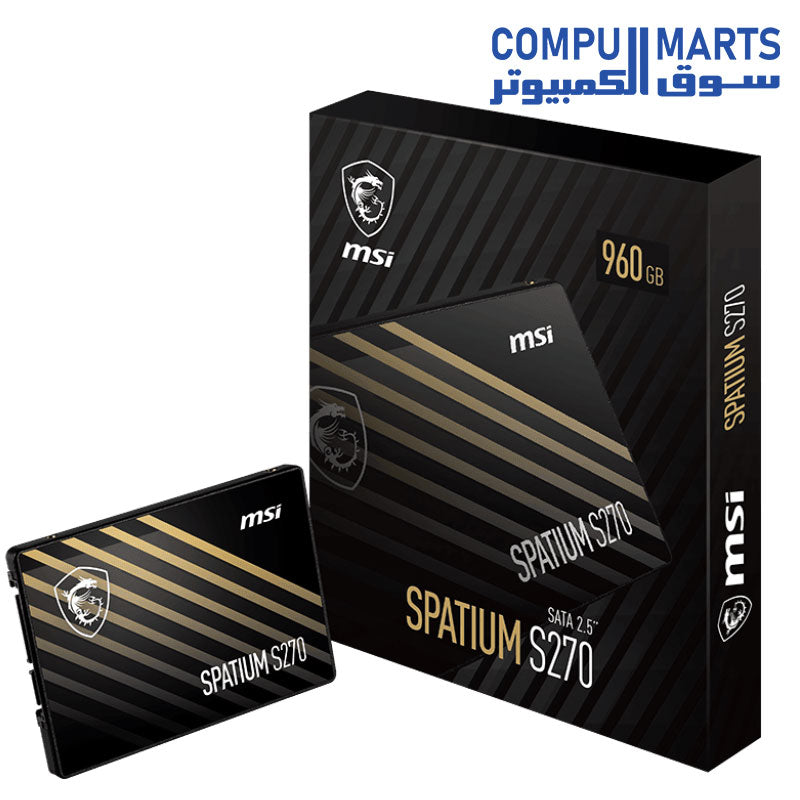

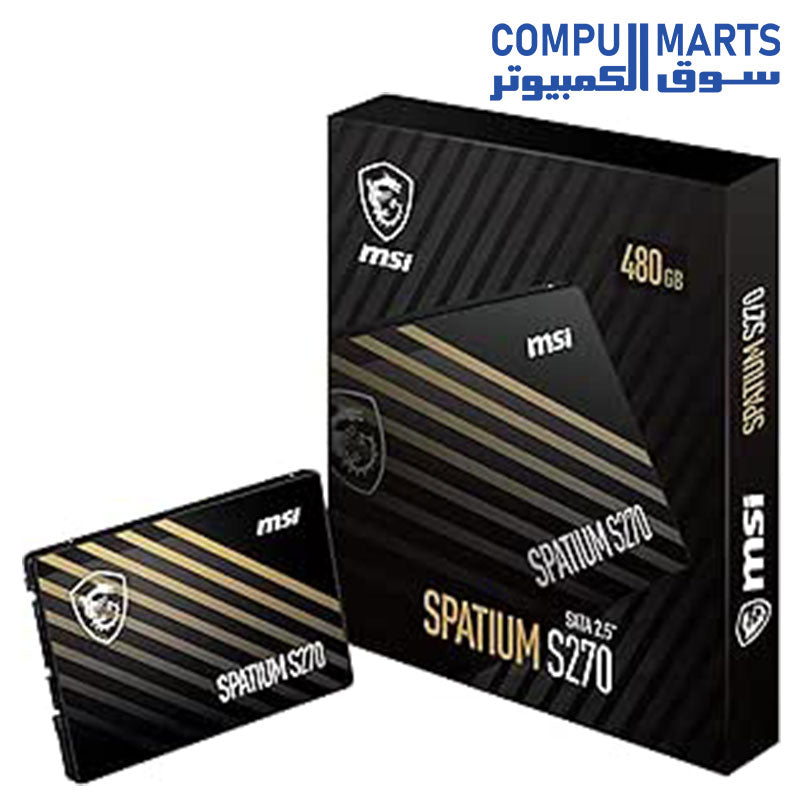

MSI SPATIUM S270 SATA 2.5" SSD

MSI SPATIUM S270 SATA 2.5" SSD

Model Name SPATIUM S270 SATA 2.5"
Capacity 120GB 240GB 480GB 960GB
Controller PHISON 11 PHISON
S11
PHISON
S11
PHISON
S11
Flash Memory 3D NAND
Form Factor SATA 2.5"
Interface SATA III 6Gbps
Compatibility SATA III (6Gbps) / II (3Gbps) / I (1.5Gbps)
Dimensions 100.20mm (L) x 69.85mm (W) x 7.00mm (H)
Sequential Read up to
(MB/s) 500
Sequential Write up to
(MB/s) 360 400 450 450
Random Read 4KB up to
(IOPS) 38,000 50,000 55,000 55,000
Random Write 4KB up to
(IOPS) 72,000 80,000 80,000 80,000
Maximum Operating
Power (W) 1.8 1.7 2.0 2.1
Idle Power PS3 (mW) 325 325 335 330
Low Power L1.2 (mW) 4.9
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 40 110 250 500
Mean Time Between
Failure (MTBF) Up to 2,000,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW
as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS support
required)
SMART (Self-Monitoring, Analysis and Reporting
Technology)
LDPC (Low Density Parity Check) ECC Algorithm
Over-Provision
FEATURES
Blazing Speeds
Optimized for the SATA III interface.
3D NAND Flash
3D NAND flash technology brings dense storage in a compact
design and allows storage capacities up to 960GB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
Low Latency Gaming
Enjoy minimal latency in smooth gameplay and loading games
with optimized high-performance bandwidth and throughput.
Nonstop Creativity Booster
Keep up nonstop productivity by opening up images, movies,
documents, and heavy-duty applications at lightning speeds.
MSI Center
Migrate data with backup & restore functionality, monitor drive
health and performance metrics in real-time in MSI Center.
5 Years Warranty
MSI stands by the quality and reliability of their SSD's with a 5
year limited warranty.
TEST CONFIGURATION
Sequential and random performance, and power consumption were measured
with the system configurations listed below. All performance data was tested
with the SSD as a secondary drive.
Interface SATA Gen 3 (6Gbps)
Operating System Windows 11 Pro 21H2 OS Build 22000.778
CPU 11th Gen Intel Core i7-11700KF @3.6GHz
Memory Crucial Technology DDR4 -2400 8G x2
Chipset MSI MPG Z590 GAMING CARBON WIFI
Test Program Crystal Diskmark 8.04 , ATTO Disk Benchmark
V4.01.0f1 , IO Meter v1.1.0
