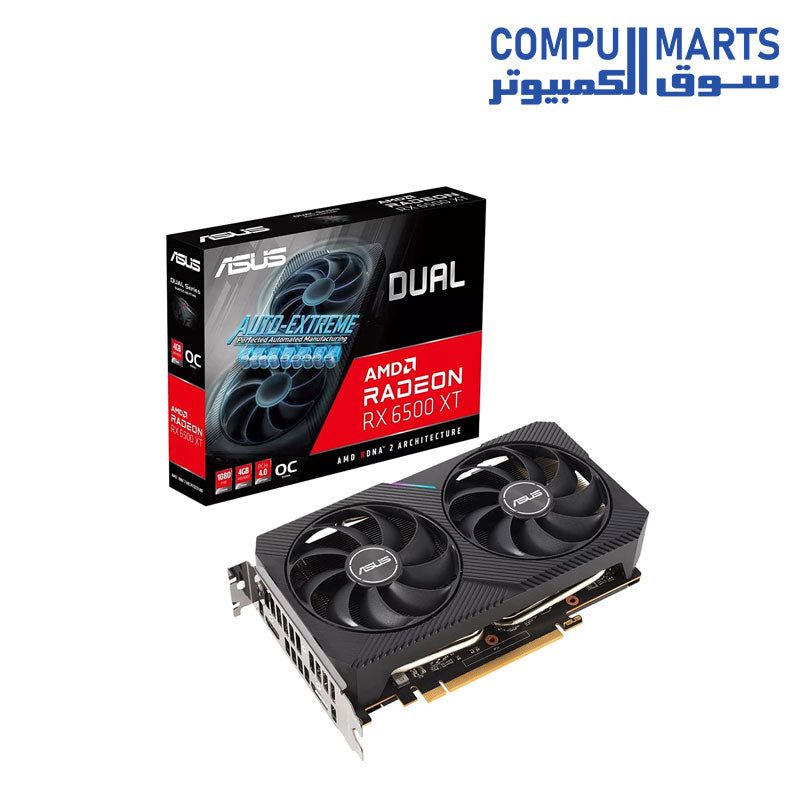

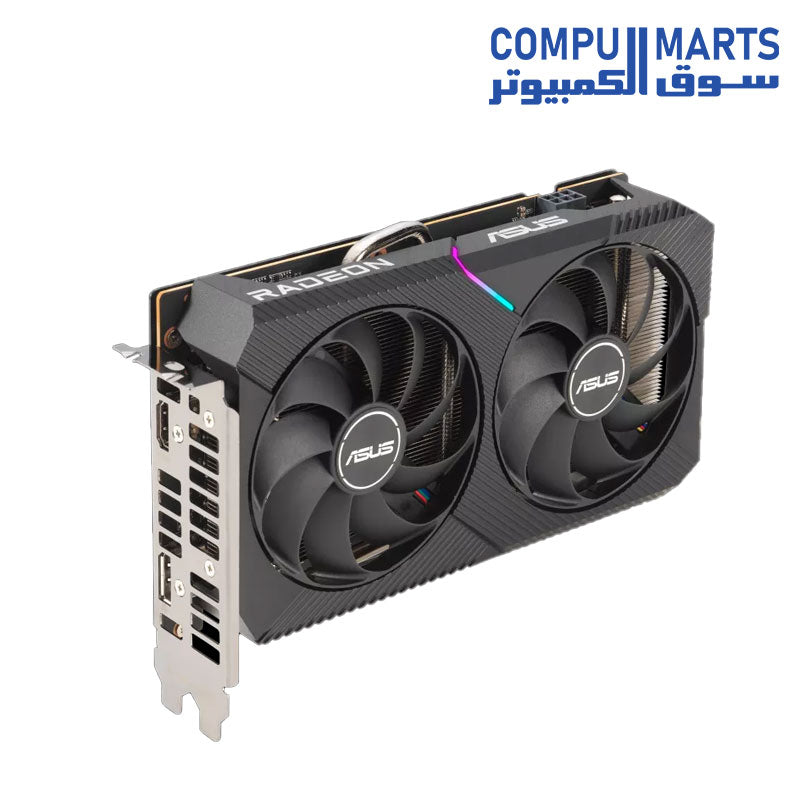

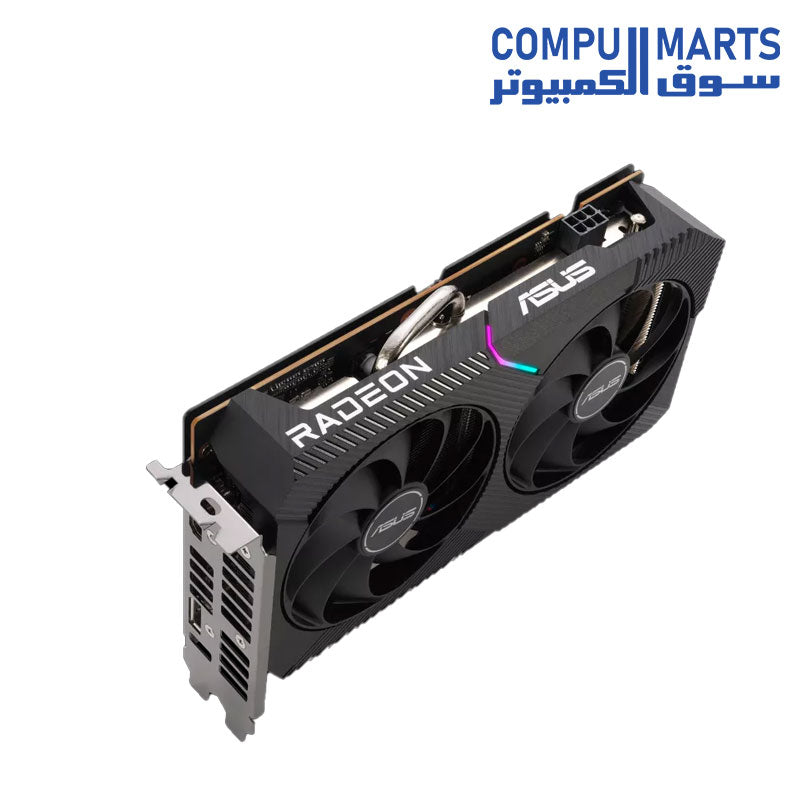

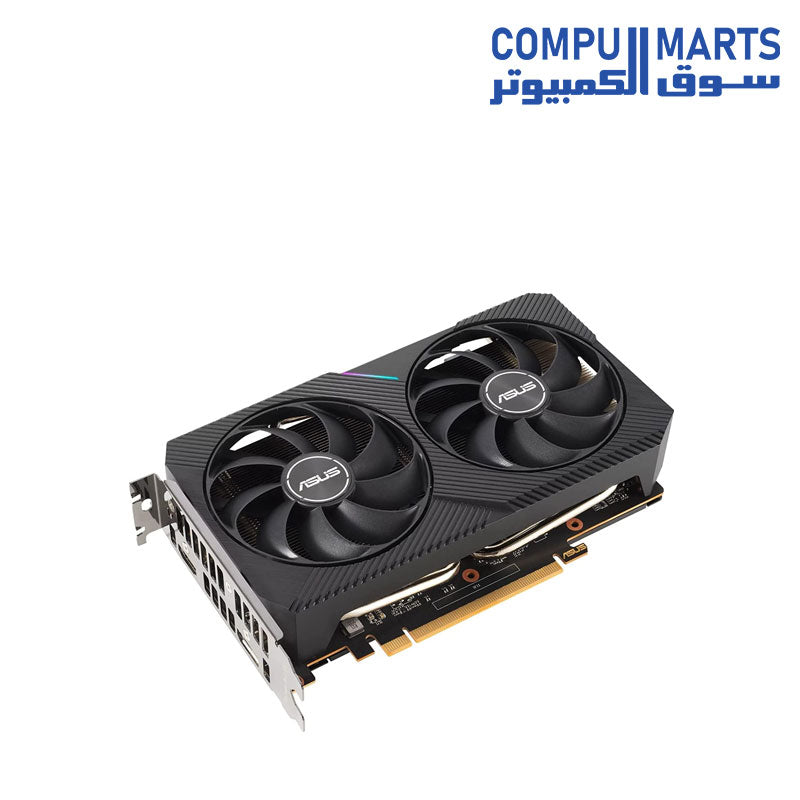

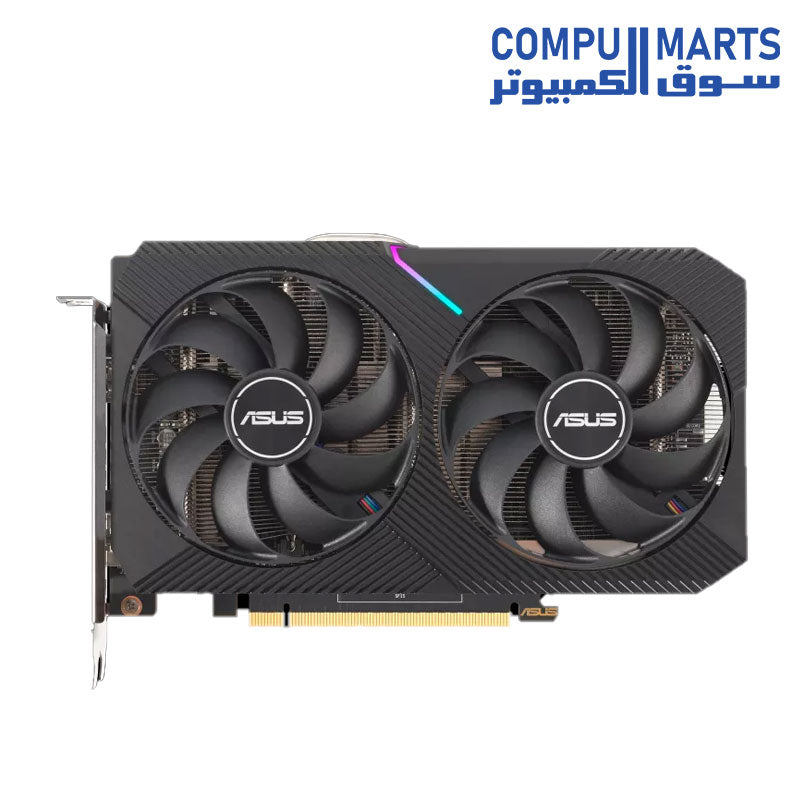

ASUS Dual AMD Radeon RX 6500 XT OC Edition 4GB GDDR6 Gaming Graphics Card

ASUS Dual AMD Radeon RX 6500 XT OC Edition 4GB GDDR6 Gaming Graphics Card

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

• A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• Auto-Extreme Technology uses automation to enhance reliability.

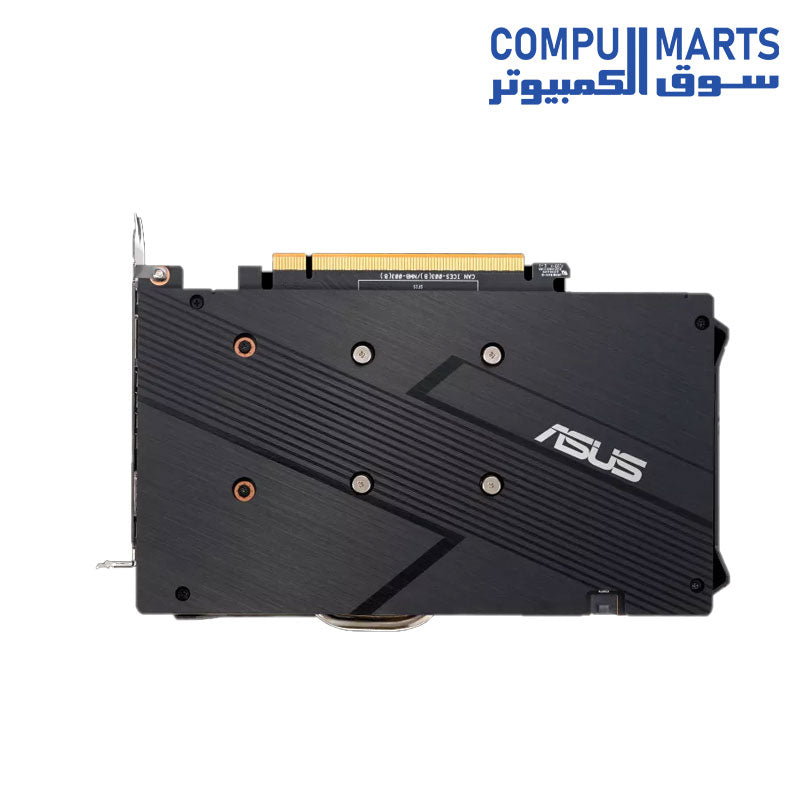

• A protective backplate prevents PCB flex and trace damage.

2x Fans. 2x Fun.

Featuring the latest AMD RDNA 2 architecture, ASUS Dual Radeon RX 6500 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards  including two Axial-tech fans for maximizing airflow to the heatsink  are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

GPU Tweak II

Monitor, tweak, and tune

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

144-hour Validation Program

“Extensive” may be an understatement

Each card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and Player Unknown's Battlegrounds. We also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.

Model :ASUS Dual Radeon RX 6500 XT OC Edition

Graphic Engine : Radeon RX 6500 XT

Bus Standard : PCI Express 4.0

OpenGL : OpenGL 4.6

Video Memory : 4GB GDDR6

Engine Clock  : OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)

Stream Processors : 1024

Memory Speed : 18 Gbps

Memory Interface  : 64-bit

Resolution : Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support : 2

NVlink/ Crossfire Support : Yes

Accessories: 1 x Speedsetup Manual

Dimensions

201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch

Recommended PSU : 500W

Power Connectors : 1 x 6-pin

Slot : 2 Slot

AURA SYNC : RGB
