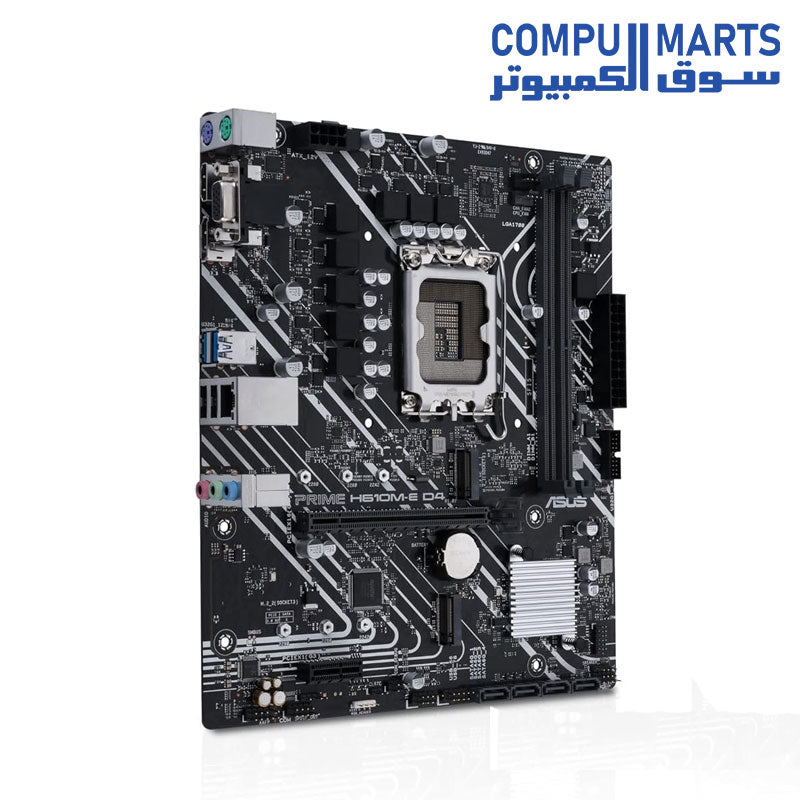

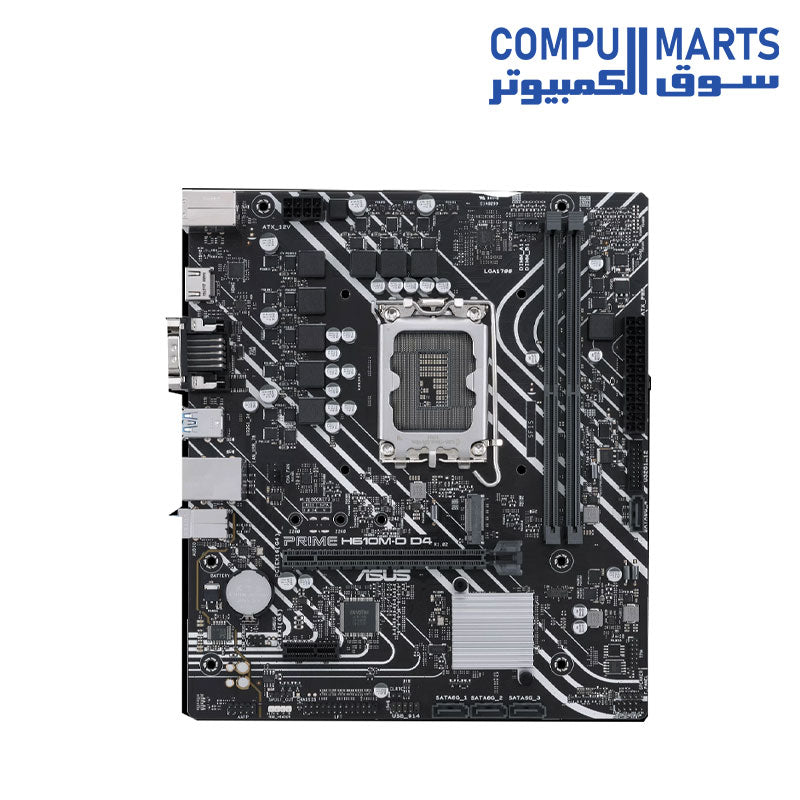

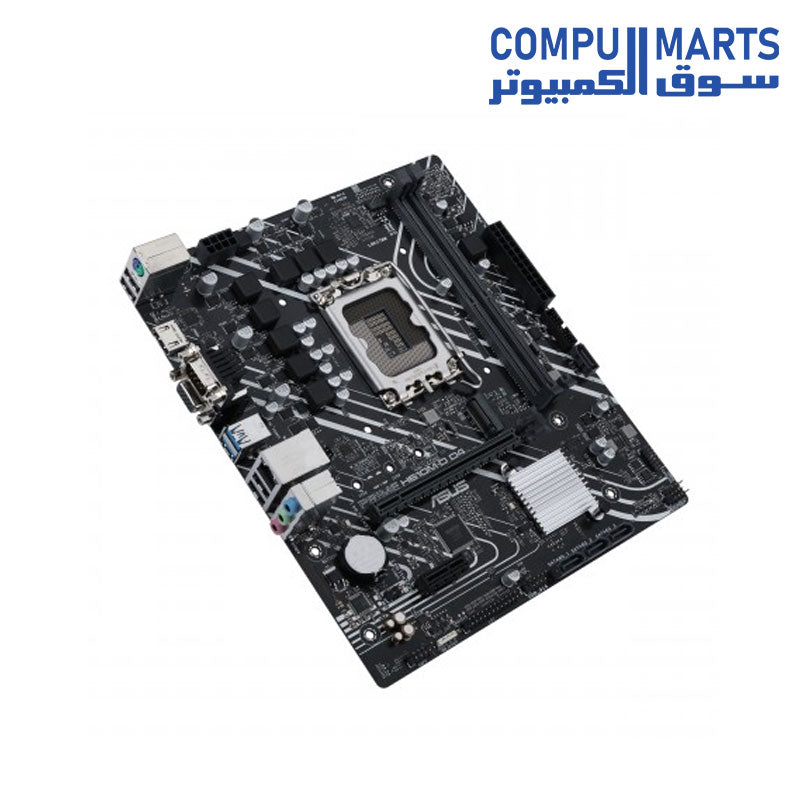

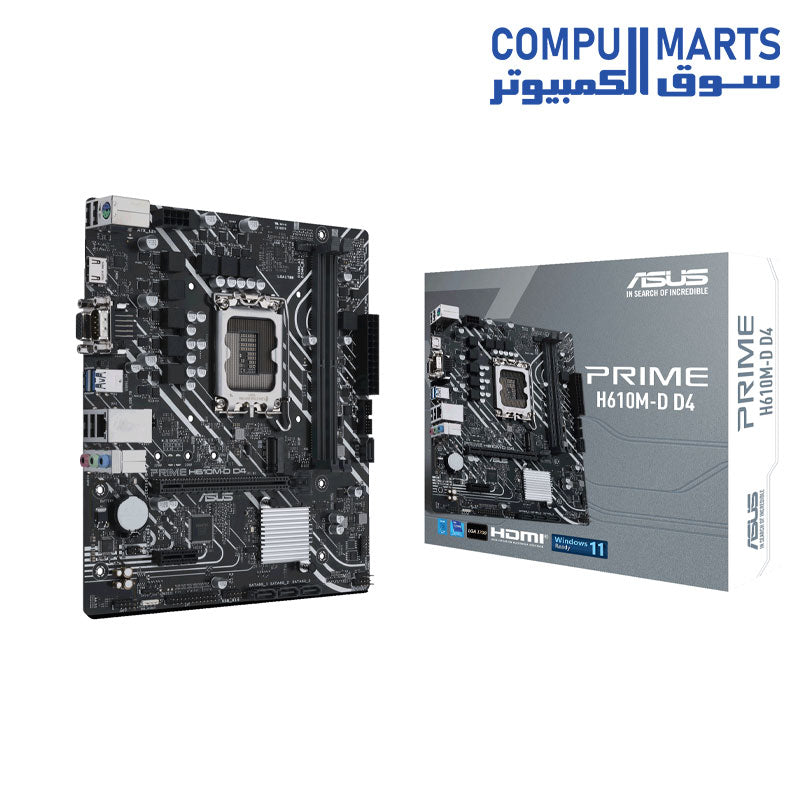

Asus Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header

Asus Intel H610 (LGA 1700) mic-ATX motherboard with DDR4

• Intel LGA 1700 socket: Ready for 13^th & 12^th Gen Intel processors

• Comprehensive cooling: PCH heatsink and Fan Xpert

• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support

• 5X Protection III: Multiple hardware safeguards for all-round protection

• Model

• PRIME H610M-D D4

• CPU

• Intel Socket LGA1700 for 13^th Gen Intel Core Processors & 12^th Gen Intel Core, Pentium Gold and Celeron Processors*

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel H610 Chipset

• Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel Extreme Memory Profile (XMP)

• * Actual memory data rate depends on the CPU types and DRAM modules

• Graphics

• 1 x D-Sub port

• 1 x HDMI port**

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• Intel 13^th & 12^th Gen Processors

• 1 x PCIe 4.0 x16 slot

• Intel H610 Chipset

• 1 x PCIe 3.0 x1 slot

• Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

• Intel H610 Chipset

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

• 4 x SATA 6Gb/s ports

• * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

• Ethernet

• 1 x Realtek 1Gb Ethernet

• USB

• Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 4 ports)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x D-Sub port

• 1 x HDMI port

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• 1 x COM port

• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin Chassis Fan header

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 1 x M.2 slot (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Miscellaneous

• 1 x RGB header

• 1 x Clear CMOS header

• 1 x Front Panel Audio header (AAFP)

• 1 x LPT header

• 1 x S/PDIF Out header

• 1 x Speaker header

• 1 x SPI TPM header (14-1pin)

• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage Protection

• - SafeSlot Core

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-Slot

• ASUS Thermal Solution

• - Aluminum heatsink design

• ASUS Lighting Control

• - RGB header

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• AI Suite 3

• - Performance And Power Saving Utility

• TurboV EVO

• EPU

• DIGI+ VRM

• Fan Xpert

• ASUS CPU-Z

• Norton Anti-virus software (Free Trial version)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x I/O Shield

• 1 x M.2 ANCHOR

• Installation Media

• 1 x Support DVD

• Documentation

• 1 x User Guide

• Operating System

• Windows 11 64-bit, Windows 10 64-bit

• Form Factor

• mATX Form Factor

• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
