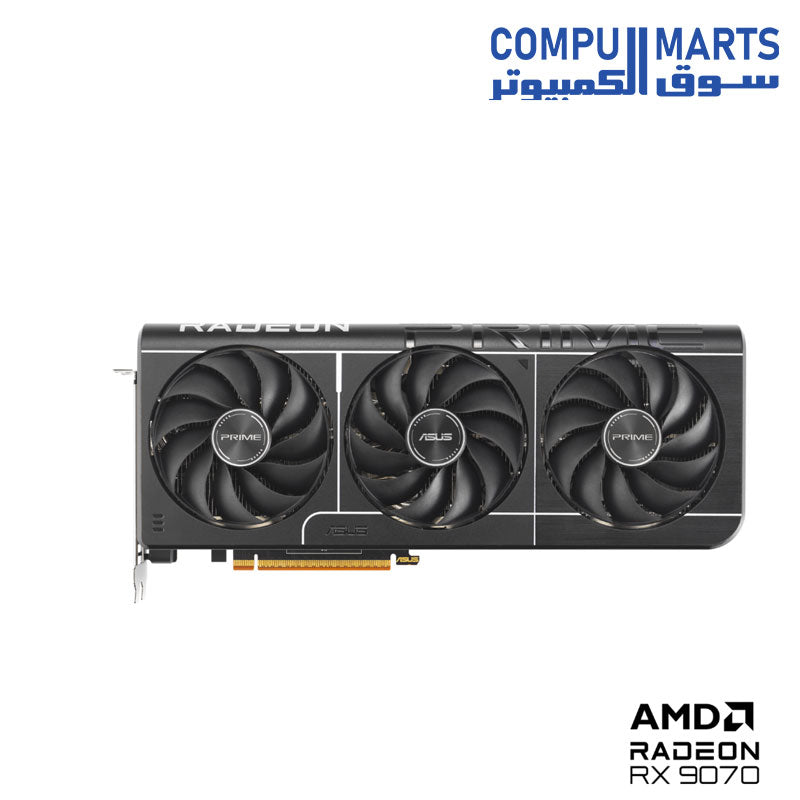

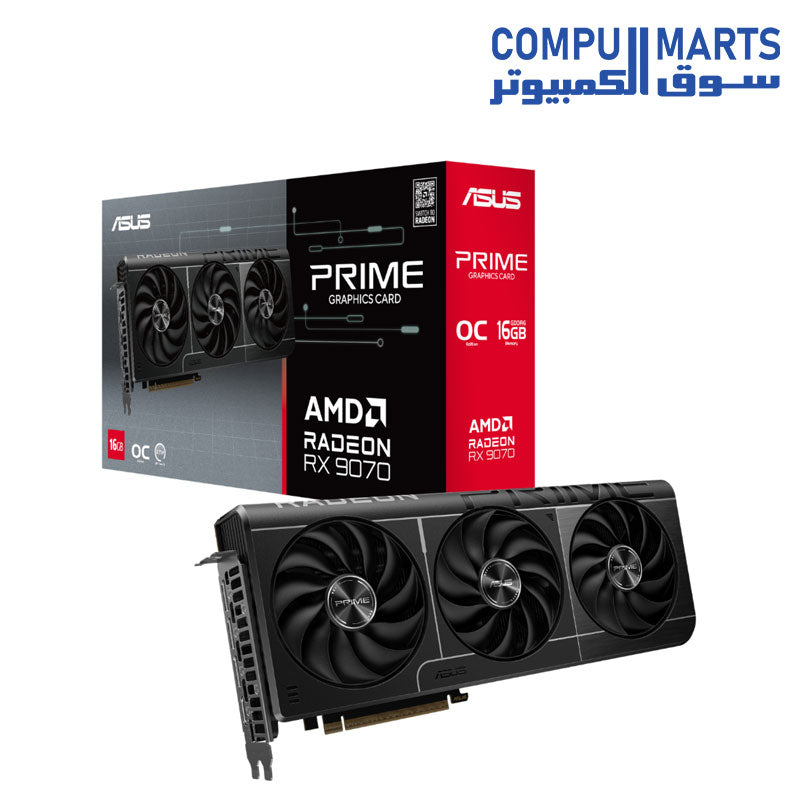

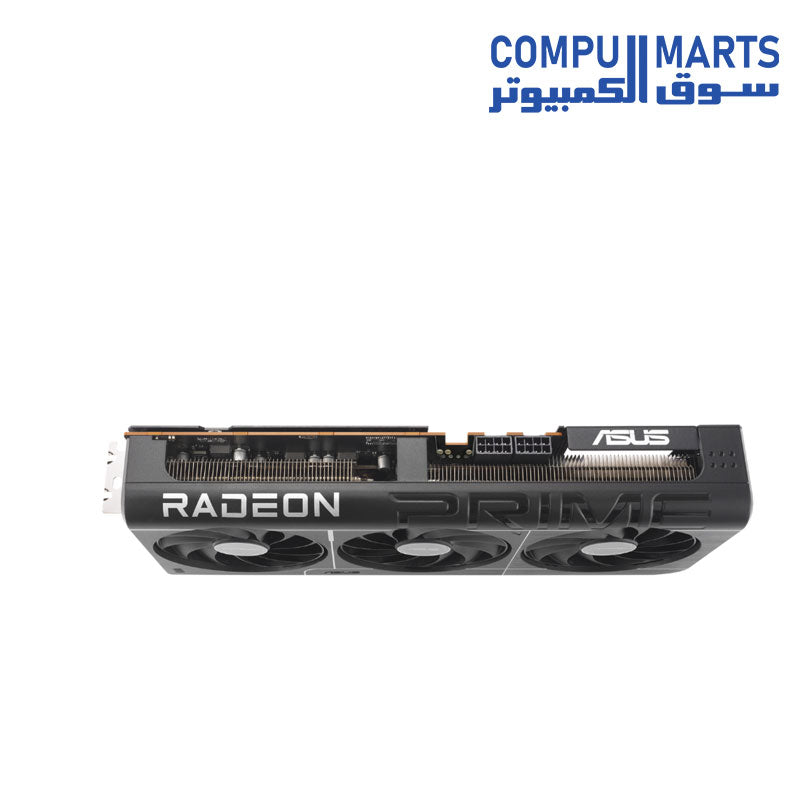

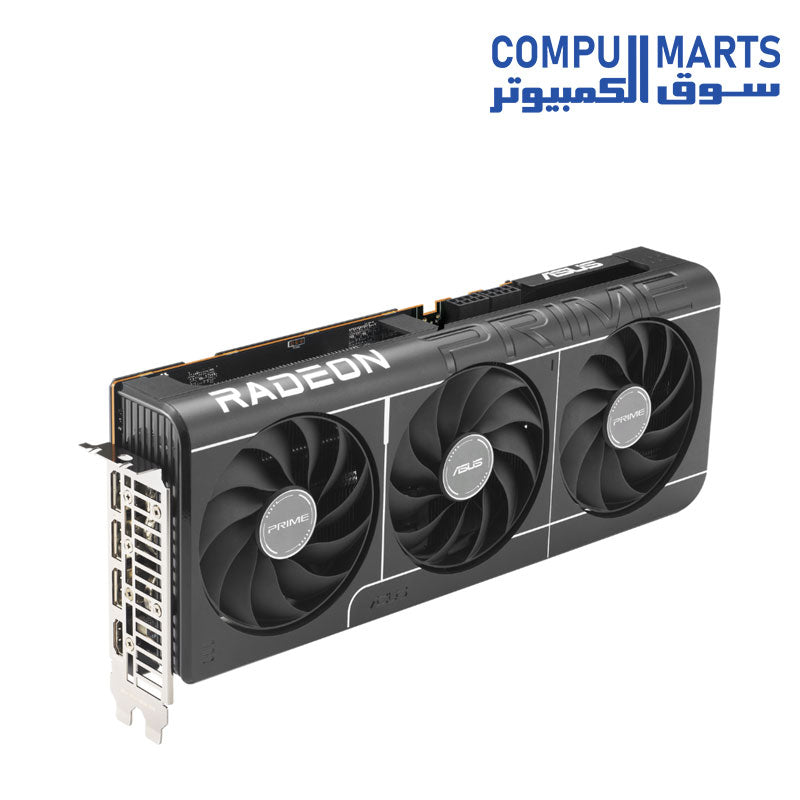

ASUS Prime Radeon RX 9070 OC Edition 16GB GDDR6

ASUS Prime Radeon RX 9070 OC Edition 16GB GDDR6 – AMD RX 9070, OC Boost up to 2610MHz, 20Gbps Memory, HDMI 2.1b

Core Features

• Graphic Engine: AMD Radeon™ RX 9070.

• Bus Standard: PCI Express 5.0 for high-speed performance.

• OpenGL Support: OpenGL® 4.6.

Memory and Performance

• Video Memory: 16GB GDDR6 for advanced graphical rendering.

• Memory Speed: 20 Gbps.

• Memory Interface: 256-bit for robust bandwidth.

• Stream Processors: 3584 for efficient parallel computing.

• Engine Clock:

  • OC Mode (via GPU Tweak III): Up to 2610 MHz (Boost Clock) / 2140 MHz (Game Clock).

  • Default Mode: Up to 2590 MHz (Boost Clock) / 2120 MHz (Game Clock).

Display and Connectivity

• Resolution: Supports up to a maximum resolution of 7680 x 4320 (8K-ready).

• Display Outputs:

  • 1 x Native HDMI 2.1b.

  • 3 x Native DisplayPort 2.1a.

• HDCP Support: Version 2.3 for content protection.

• Maximum Display Support: Up to 4 monitors.

Additional Features

• VR Technologies:

  • Does not support NVlink or Crossfire.

• Lighting: AURA SYNC RGB for customizable aesthetics.

Accessories

• Included in the Box:

  • 1 x Thank You Card.

  • 1 x Speedsetup Manual.

Power and Dimensions

• Recommended PSU: 650W for stable operation.

• Power Connectors: 2 x 8-pin.

• Slot Size: 2.5-slot design.

• Dimensions:

  • 312 x 130 x 50 mm (12.3 x 5.1 x 2.0 inches).

Software

• Utilities: ASUS GPU Tweak III and drivers, available for download from the official support site.
