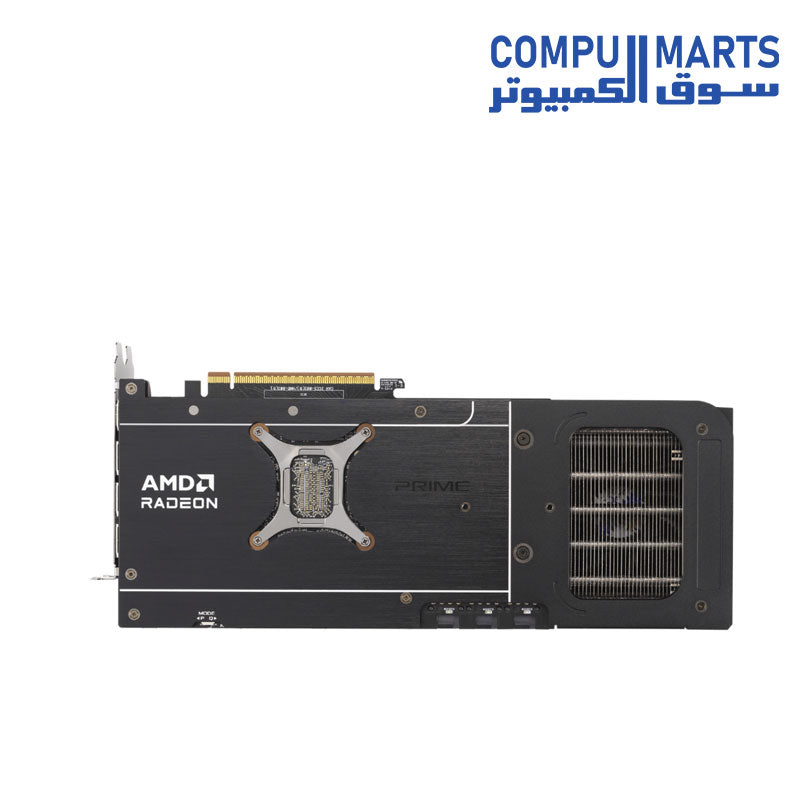

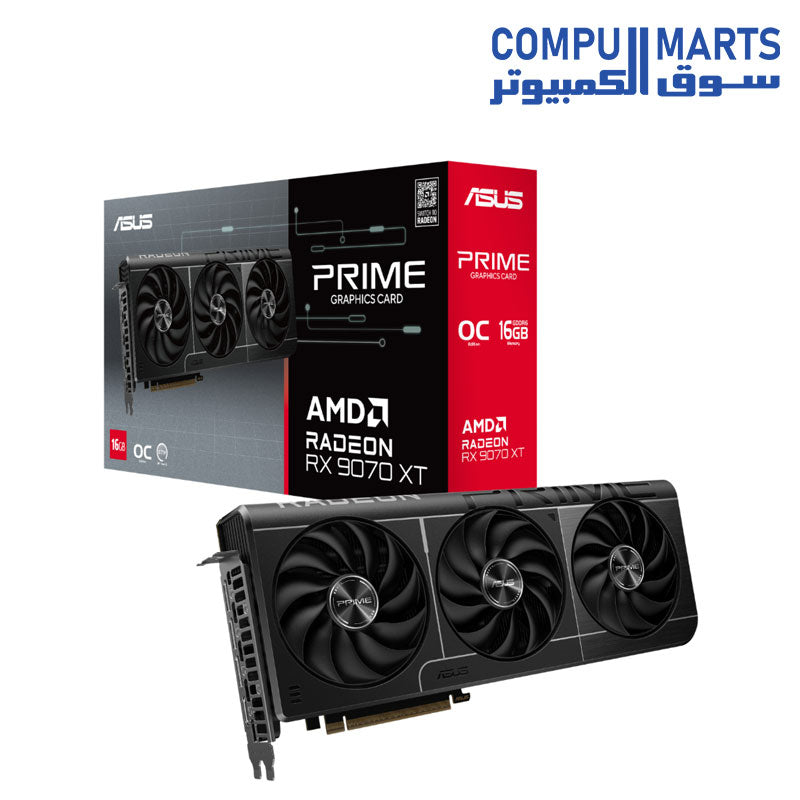

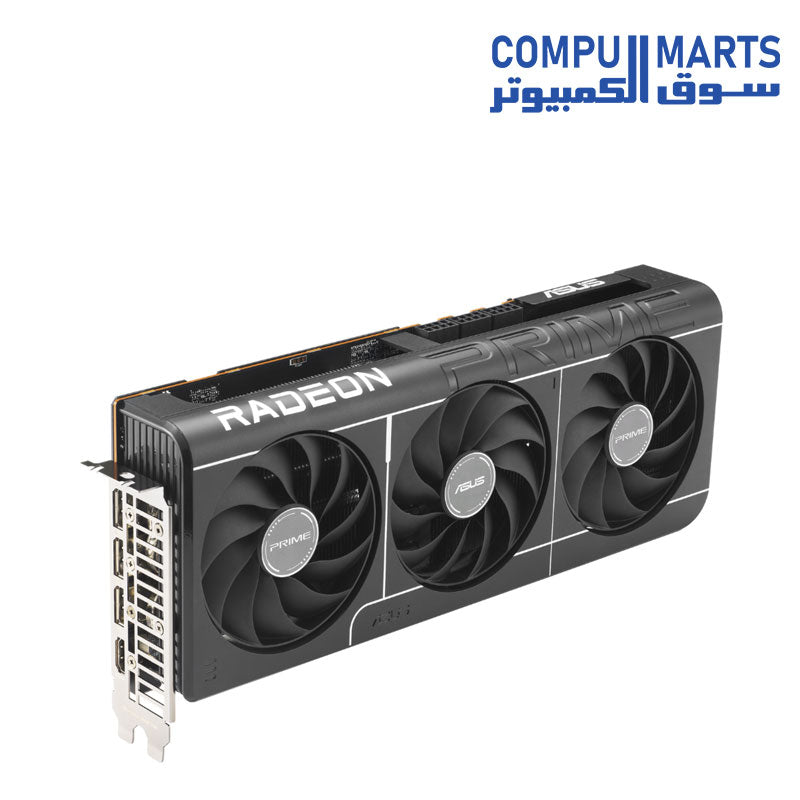

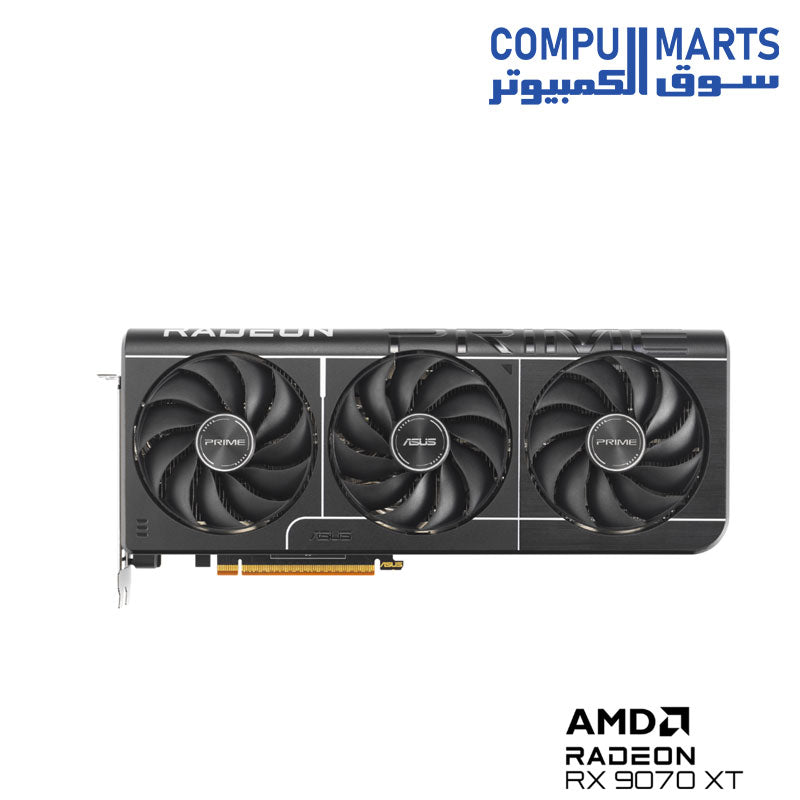

ASUS Prime Radeon RX 9070 XT OC Edition 16GB GDDR6

ASUS Prime Radeon RX 9070 XT OC Edition 16GB GDDR6 – PCIe 5.0, 3030MHz Boost, 20Gbps, 1x HDMI 2.1b & 3x DP 2.1a, 2.5-Slot, 4096 SP, 256-bit

Core Features

• Graphic Engine: AMD Radeon™ RX 9070 XT.

• Bus Standard: PCI Express 5.0 for cutting-edge performance.

• OpenGL Support: OpenGL® 4.6.

Memory and Performance

• Video Memory: 16GB GDDR6 for high-resolution rendering and gaming.

• Memory Speed: 20 Gbps for seamless performance.

• Memory Interface: 256-bit for excellent bandwidth.

• Stream Processors: 4096 for parallel task execution.

• Engine Clock:

  • OC Mode (via GPU Tweak III): Up to 3030 MHz (Boost Clock) / 2480 MHz (Game Clock).

  • Default Mode: Up to 3010 MHz (Boost Clock) / 2460 MHz (Game Clock).

Display and Connectivity

• Maximum Resolution: Digital max resolution of 7680 x 4320 (8K-ready).

• Display Outputs:

  • 1 x Native HDMI 2.1b.

  • 3 x Native DisplayPort 2.1a.

• HDCP Support: Version 2.3.

• Maximum Display Support: Up to 4 monitors.

Additional Features

• Crossfire or NVlink Support: Not available.

• Included Accessories:

  • 1 x Thank You Card.

  • 1 x Speedsetup Manual.

Power and Design

• Recommended PSU: 750W for stable performance.

• Power Connectors: 3 x 8-pin connectors.

• Slot Size: 2.5-slot form factor.

• Dimensions:

  • 312 x 130 x 50 mm (12.3 x 5.1 x 2.0 inches).

Software

• Utilities: ASUS GPU Tweak III & Drivers, available for download on the ASUS support site.
