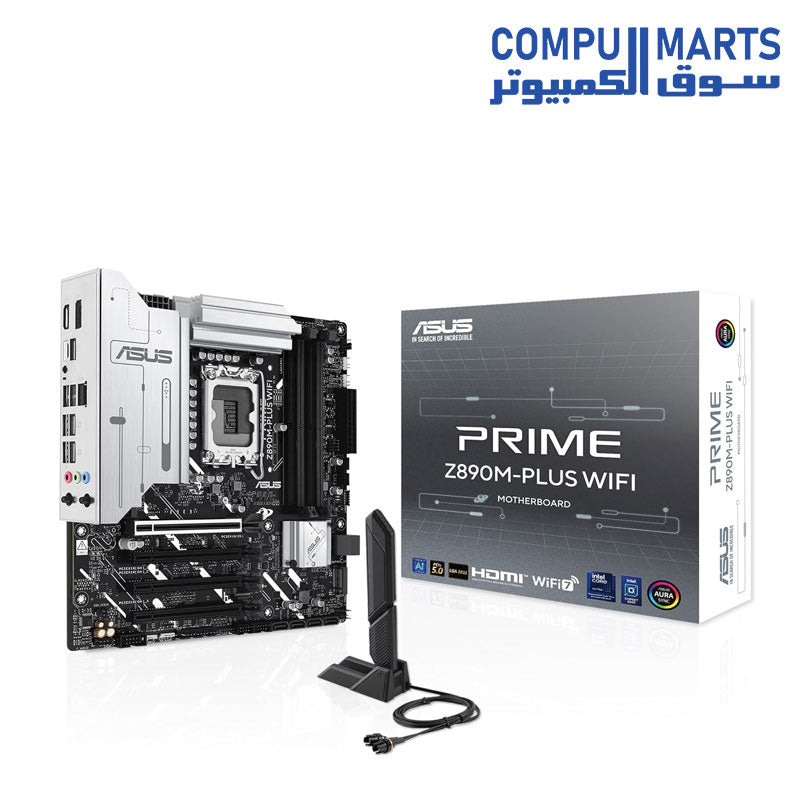

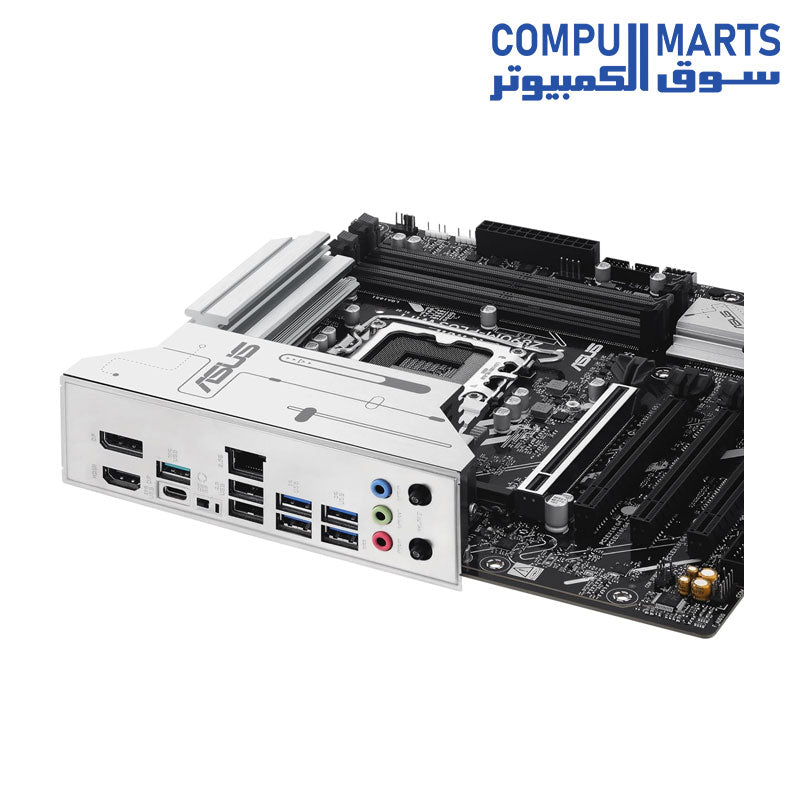

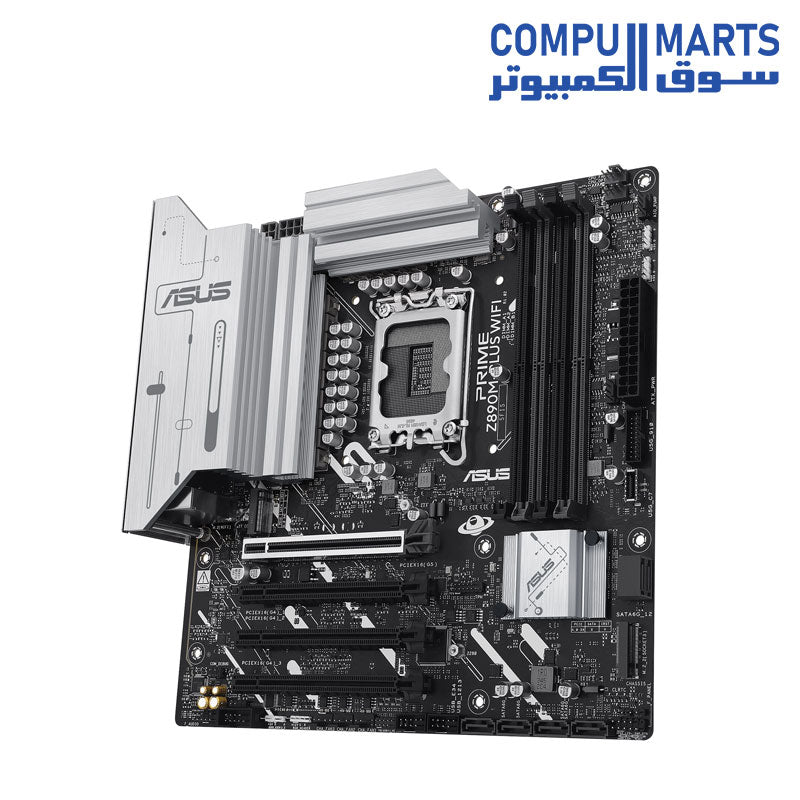

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard

Vendor: ASUS
SKU: 90MB1J80-M0EAY0
Availability: In Stock
Product Type: Motherboards
12,500.00 EGP
12,500.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
Z890M-PLUS-Motherboard-ASUS-PRIME-LGA-1851-M-ATX

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard

12,500.00 EGP

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard

12,500.00 EGP

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard



ASUS PRIME Z890M-PLUS WIFI Specs:

Chipset

Intel Z890

CPU Socket

LGA 1851

Memory Slots

4x 288-Pin

Memory Support

DDR5 3800 MT/s

Storage Slots

1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)

Wi-Fi

Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)

Form Factor

Micro-ATX

CPU

Chipset

Intel Z890

CPU Socket

LGA 1851

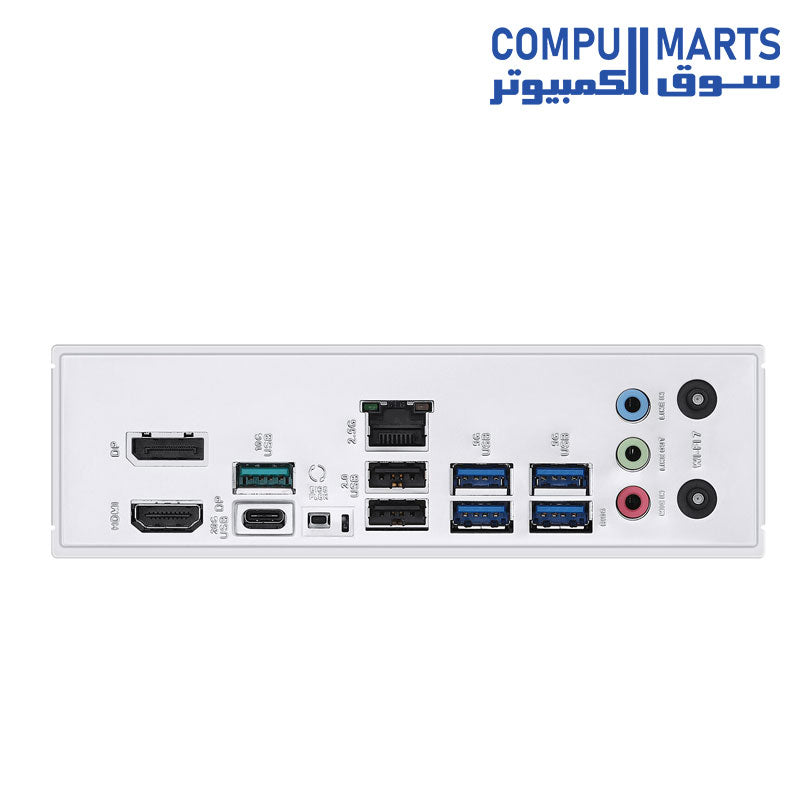

Back Panel I/O

USB

1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)

Thunderbolt

No

Display

1x HDMI 2.1
1x DisplayPort 1.4

Audio

3x 1/8" / 3.5 mm

Ethernet / Controller

1x Realtek 2.5Gigabit

Wi-Fi Antenna

2x Connector

Buttons

BIOS Flashback

Memory

Memory Slots

4x 288-Pin

Memory Support

DDR5 3800 MT/s

Maximum Capacity

192 GB

Channel Architecture

Dual Channel

ECC Support

Non-ECC Unbuffered

Storage Expansion

SATA

6x SATA III

Storage Slots

1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)

Optane Memory Support

No

RAID Support

RAID 0, 1, 5, 10

Internal I/O

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)

USB

1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)

Air Cooling

2x 4-Pin CPU

Liquid Cooling

1x 4-Pin Pump

Power Connectors

1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin CPU

Security

Chassis Intrusion, TPM Header

LED Header

4x RGB

Audio

1x Speaker
1x S/PDIF

Diagnostics

Clear CMOS, Flash BIOS

Add-On

1x Thunderbolt Header

Legacy

1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

Front Panel I/O

AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec

Realtek (7.1-Channel)

DAC

No

Wireless

Wi-Fi

Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)

Bluetooth

5.4

Module Support

1 E Key M.2

Software

OS Compatibility

Windows 11

Physical

Form Factor

Micro-ATX

Dimensions

9.6 x 9.6" / 24.4 x 24.4 cm

Packaging Info

Package Weight

3.44 lb

Box Dimensions (LxWxH)

10.9 x 10.8 x 2.8"
