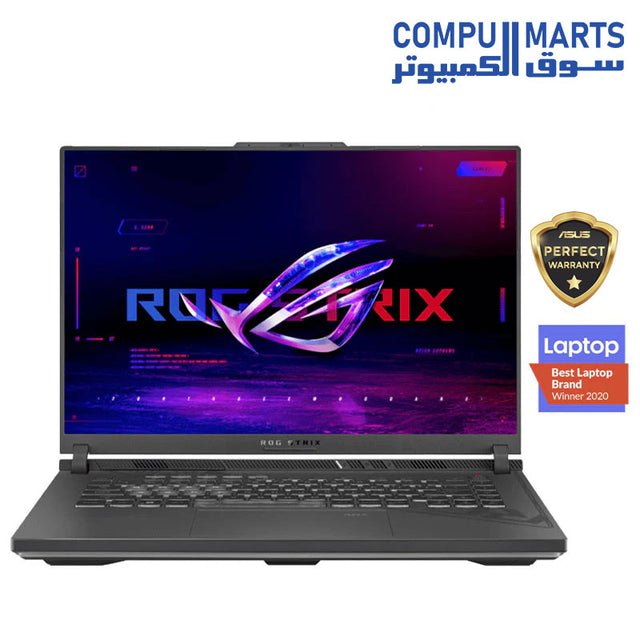

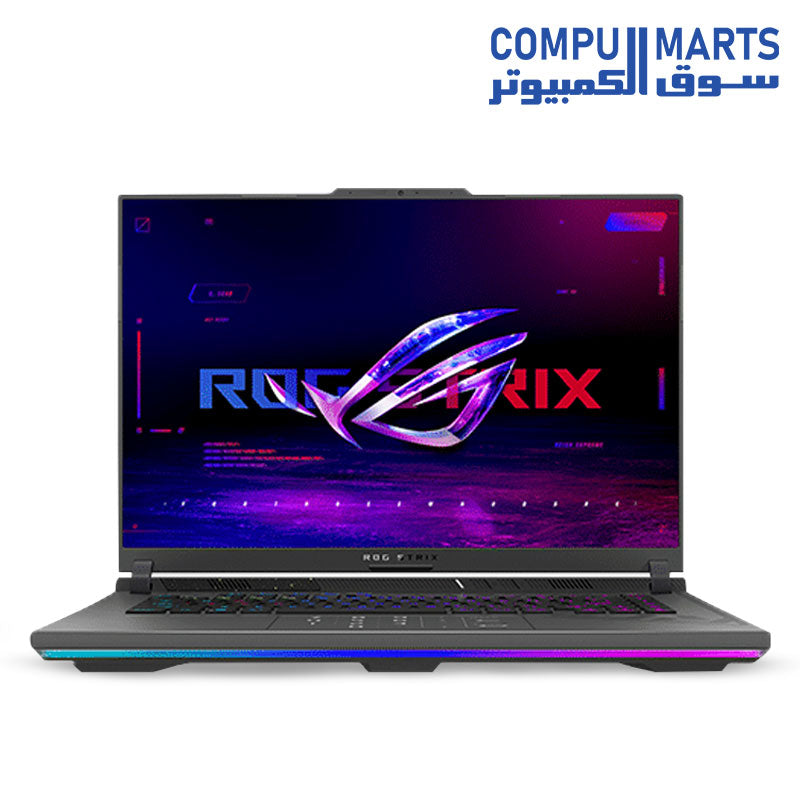

ASUS ROG Strix G16 (2023) Gaming Laptop G614JZ-NN007W-Intel Core i7-13650HX 14-Cores, NVIDIA RTX 4080 12GB GDDR6,16GB,DDR5 4800MHz,1TB PCIe 4.0 NVMe M.2 SSD, 16″ FHD+ (1920x1200,WUXGA)165Hz100% sRGB Display, Eclipse Gray, Windows 11, (Free ROG backpack)

Part No

90NR0CZ1-M003S0

Model Name

 G614JZ-NN007W

 Brand

 ASUS

EAN Code

4711387158807

UPC Code

197105158801

Marketing Name

ROG Strix G16

Color

Eclipse Gray

Dimension (W x D x H)

35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20")

Weight

2.50 Kg ( lbs)

Processor

13th Gen Intel Core i7-13650HX Processor 2.6 GHz 24M Cache, up to 4.9 GHz, 14 cores: 6 P-cores and 8 E-cores)

Chipset

Mobile Intel HM770 Express Chipsets

Discrete/Optimus

MUX Switch + NVIDIA Advanced Optimus

Graphic

NVIDIA GeForce RTX 4080 Laptop GPU 12GB

Graphic Wattage

ROG Boost: 2330MHz at 175W (2280MHz Boost Clock+50MHz OC, 150W+25W Dynamic Boost)

Graphic Memory

12GB GDDR6

IGPU

Intel UHD Graphics

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

165Hz

Response Time (G2G)

7ms

Viewing Angle

170

Panel Tech

IPS-level

Brightness

250nits

Contrast

1000:1

SRGB %

100%

Anti glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

Pantone Validated

Support Dolby Vision HDR

Yes

Thermal Feature

ROG intelligent cooling

On board memory

N/A

DIMM Memory

16GB DDR5-4800 SO-DIMM

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

System Storage Installed

1TB PCIe 4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

512G/ 1TB /2TB G4x4 PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x PCIe

LAN

10/100/1000/2500 Mbps

On board Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.2 (*Bluetooth version may change with OS version different.)

Wi-Fi/Bluetooth

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

I/O Ports

1x 2.5G LAN port

1x Thunderbolt 4 support DisplayPort / G-SYNC

1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC

2x USB 3.2 Gen 2 Type-A

Display output

1x HDMI 2.1 FRL

Audio

1x 3.5mm Combo Audio Jack

Webcam

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard Per-Key RGB

NumberPad

Support NumberPad

Aura Sync

Yes

Speakers

2-speaker system with Smart Amplifier Technology

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification

Smart Amp Technology

Support Microsoft Cortana near field/Far field

Operating System

Windows 11 Home

Antivirus

MCAFEE_30D

Xbox Game Pass

Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection

Trusted Platform Module (Firmware TPM)

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 330W AC Adapter, Output: 20V DC, 16.5A, 330W, Input: 100~240C AC 50/60Hz universal

Bundled Peripherals

ROG backpack

Ecolabels & Compliances

N/A

Reparability Index (for FR)

8.6
