Part No
|
90NR0821-M00390
|
Model Name
|
GA503RW-LN054W
|
|
|
EAN Code
|
4711081665915
|
UPC Code
|
195553665919
|
|
|
Marketing Name
|

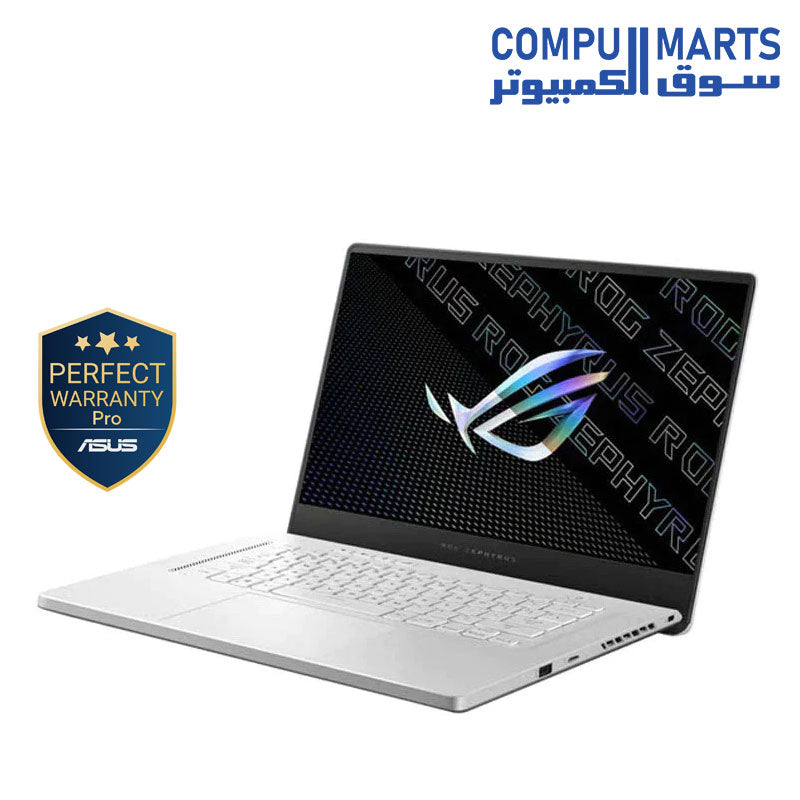

ROG Zephyrus G15
|
Color
|
Moonlight White
|
Dimension (W x D x H)
|
35.5 x 24.3 x 1.99 ~ 1.99 cm (13.98" x 9.57" x 0.78" ~ 0.78")
|
Weight
|
1.90 Kg (4.19 lbs)
|
Processor
|
AMD Ryzen 9 6900HS Mobile Processor (8-core/16-thread, 16MB cache, up to 4.9 GHz max boost)
|
Chipset
|
N/A
|
Discrete/Optimus
|
MUX Switch + Optimus
|
Graphic
|
NVIDIA GeForce RTX 3070 Ti Laptop GPU
|
Graphic Wattage
|
ROG Boost: 1085MHz* at 120W (1035MHz Boost Clock+50MHz OC, 100W+20W Dynamic Boost)
|
Graphic Memory
|
8GB GDDR6
|
IGPU
|
AMD Radeon Graphics
|
Panel Size
|
15.6-inch
|
Resolution
|
WQHD (2560 x 1440) 16:9
|
Refresh Rate
|
240Hz
|
Response Time (G2G)
|
3ms
|
Viewing Angle
|
85/85/85/85
|
Panel Tech
|
IPS-level
|
Brightness
|
300nits
|
Contrast
|
1000:1
|
DCI-P3 %
|
100%
|
Anti glare
|
Anti-glare display
|
Adaptive-Sync technology
|
Adaptive-Sync
|
Pantone
|
Pantone Validated
|
Support Dolby Vision HDR
|
Yes
|
On board memory
|
16GB DDR5 on board
|
DIMM Memory
|
16GB DDR5-4800 SO-DIMM
|
Total System Memory
|
DDR5 32GB
|
Memory Slot
|
1x SO-DIMM slot
|
Memory Max.
|
48GB
|
Multi-channel memory technology
|
Support dual channel memory
|
How to upgrade memory
|
Upgradable
|
System Storage Installed
|
1TB PCIe 4.0 NVMe M.2 SSD
|
M.2 slots support either SATA or NVMe
|
2
|
M.2 SSD Support List
|
Value PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB
|
Expansion Slot (includes used)
|
1x DDR5 SO-DIMM slot
1x PCIe
|
LAN
|
10/100/1000/2500 Mbps
|
Wi-Fi/Bluetooth
|
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)
|
I/O Ports
|
1x RJ45 LAN port
2x USB 3.2 Gen 2 Type-A
2x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery
1x card reader (microSD) (UHS-II)
|
Display output
|
1x HDMI 2.1 TMDS
|
Audio
|
1x 3.5mm Combo Audio Jack
|
Webcam
|
720P HD IR Camera for Windows Hello
|
Mic
|
Built-in array microphone
|
Keyboard Type
|
Backlit Chiclet Keyboard 1-Zone RGB
|
NumberPad
|
N/A
|
Aura Sync
|
N/A
|
Speakers
|
2x 2W dual-force woofer with Smart Amp Technology
2x 2W Tweeter
|
Audio Tech
|
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology
|
Operating System
|
Windows 11 Home
|
Antivirus
|
MCAFEE_30D
|
Xbox Game Pass
|
Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
|
Security
|
BIOS Administrator Password and User Password Protection
Kensington Security Slot
Trusted Platform Module (Firmware TPM)
|
Battery
|
90WHrs, 4S1P, 4-cell Li-ion
|
Power
|
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
|
Reparability Index (for FR)
|
7.3
|
