ASUS TUF 750B 80+Bronze 750W, Dual Ball Fan Bearings, Power Supply GAMING-750B
-
Military-grade Certification: All critical capacitors and chokes pass demanding tests to achieve Military-grade Certification
-
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
-
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
-
0dB Technology lets you enjoy light gaming in relative silence.
-
An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
-
80cm 8-pin CPU connector (EPS 12V)
-
6-year warranty included.
Brand
|
ASUS
|
wattage
|
750W
|
Case Type
|
ATX12V V2.4
|
Product Dimensions
|
3.39" x 5.91" x 5.91"
|
80PLUS Certifications
|
BRONZE
|
Fan Size
|
135mm
|
Fan Bearing
|
Dual ball fan bearings
|
Item model number
|
90YE00D0-B0NA00
|
BUILT FOR THE LONG HAUL
TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It’s the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.
DURABILITY
MILITARY−GRADE CERTIFICATION
Top marks
All critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.
DUAL BALL FAN BEARINGS
2x longer lifespan

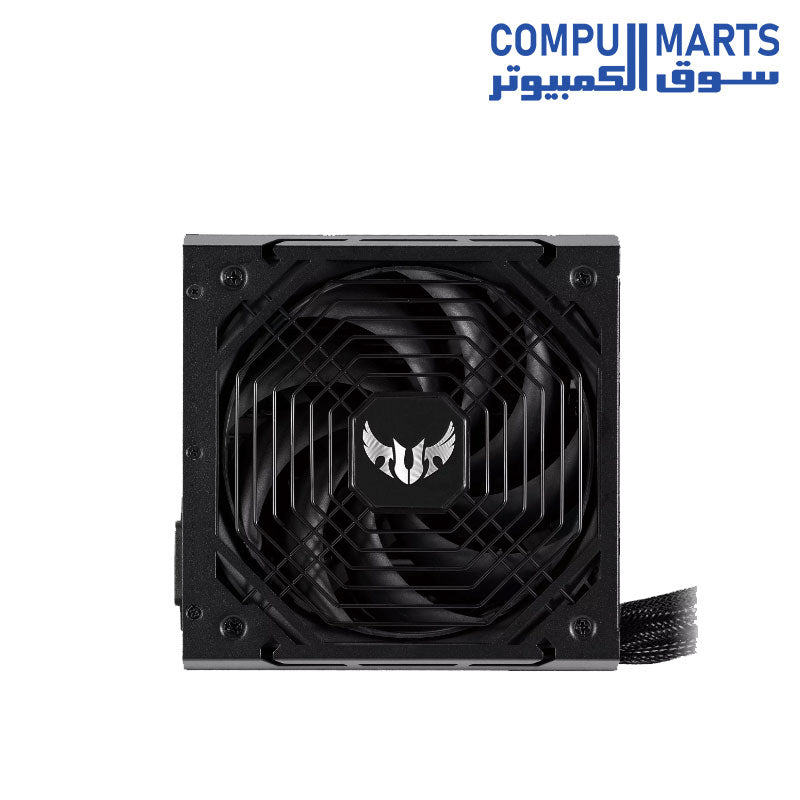

Exemplary cooling is provided by a 135 mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
PROTECTIVE PCB COATING
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
ENGINEERING
80 PLUS BRONZE CERTIFICATION
Brains and Bronze
The high-quality components used in TUF Gaming power supplies ensure efficient and reliable operation worthy of an 80 PLUS Bronze Certification. The efficiency also leads to low temperatures within the PSU, facilitating an even quieter acoustic profile for the 135 mm Axial-tech fan.
.gif)
AXIAL−TECH FAN DESIGN
Better, faster, stronger
Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we’ve scaled that design to 135 mm so it keeps things cool at low RPMs while producing less noise.
.gif)
0 DB TECHNOLOGY
Quiet intelligence
An onboard controller brings the 135 mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
EXPERIENCE
.jpg)
SLEEVED CABLES
Slim-fit
Cables swathed in black sleeving leave your rig looking tactically clean.
General
Brand
|
ASUS
|
Series
|
TUF GAMING
|
Model
|
TUF GAMING 750B
|
Details
Type
|
ATX12V
|
Maximum Power
|
750 W
|
Fans
|
1 x 135mm Dual Ball Fan Bearing Fan
|
Main Connector
|
20+4Pin
|
+12V Rails
|
Single
|
PCI-Express Connector
|
4 x 6+2-Pin
|
SATA Power Connector
|
8
|
Max PSU Length
|
150 mm
|
Modular
|
Non-Modular
|
Energy-Efficient
|
80 PLUS BRONZE Certified
|
Protection
|
OPP / OVP / UVP / SCP / OCP / OTP
|
Input Voltage
|
100 – 240 V
|
Input Frequency Range
|
47 – 63 Hz
|
Input Current
|
10 – 5A
|
Output
|
+3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
|
Approvals
|
RoHS
|
Connectors
|
1 x MB 24/20-pin
2 x CPU 4+4-pin
4 x PCI-E 6+2-pin
8 x SATA
4 x Peripheral
|
Features
Features
|
Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective PCB coating protects against moisture, dust, and extreme temperatures.
An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB technology lets you enjoy light gaming in relative silence.
Sleeved cables leave your rig looking tactically clean.
80cm 8-pin CPU connector (EPS 12V)
6-year warranty included.
|
Dimension & Weight
Dimensions
|
3.39″ x 5.91″ x 5.91″
|
Weight
|
4.81 lbs.
|
Package
Package Content
|
Power Cord x1
Motherboard Power Cable x1 (600mm)
CPU Cable x2 (800mm)
PCI-E Cable x2 (600mm)
SATA Cable x2 (400+120+120+120 mm)
Periphreal x1 (400+150+150+150mm)
TUF Gaming sticker x1
|
