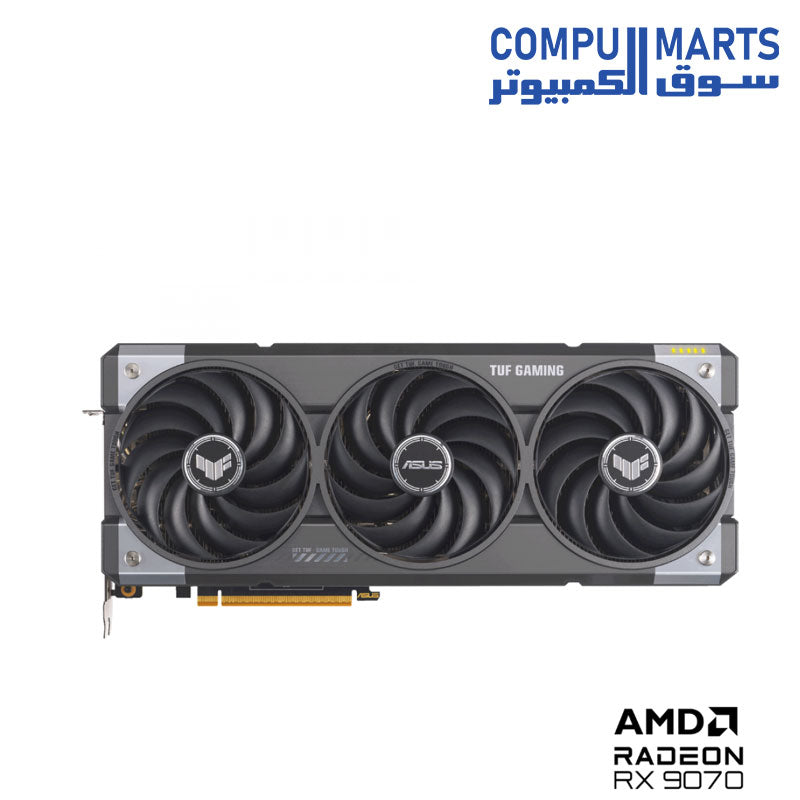

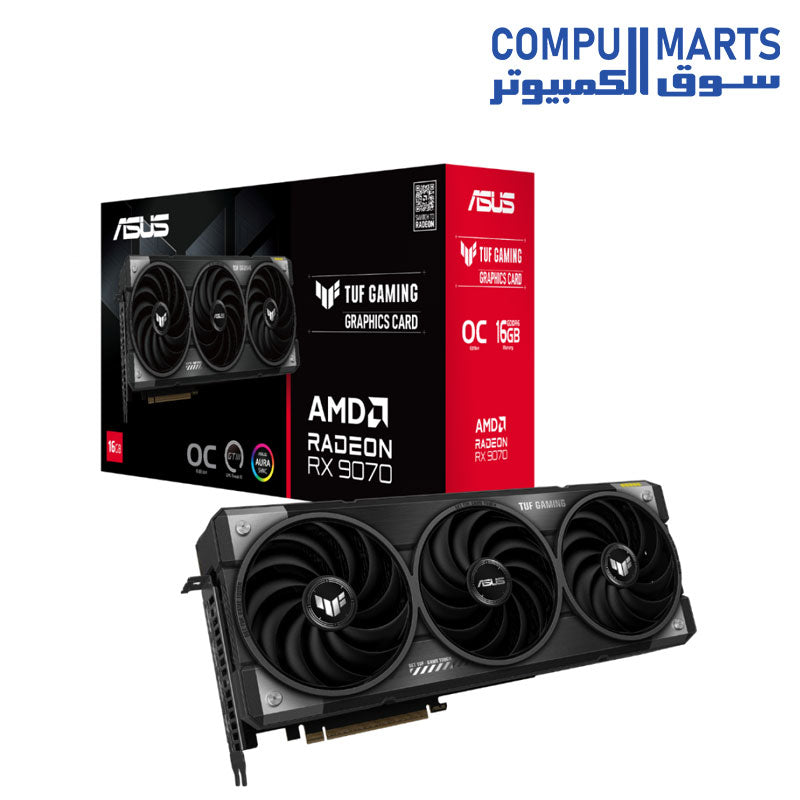

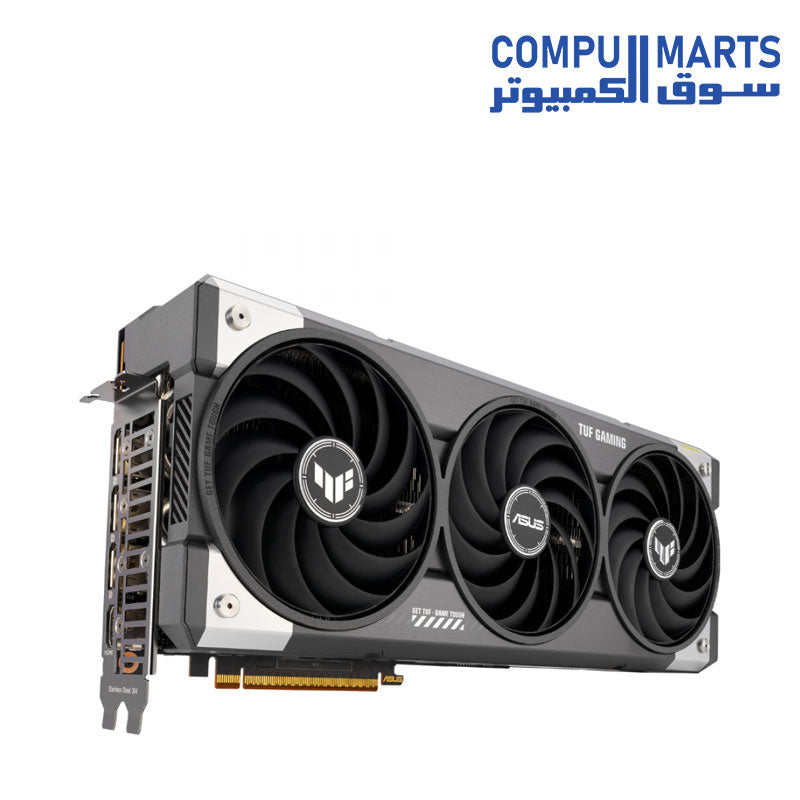

ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6

ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6 – PCIe 5.0, 2x8-pin, 3.125 Slot, 20Gbps, 3584 SP, HDMI 2.1b, 3x DP 2.1a, Aura Sync RGB

Core Features

• Graphic Engine: AMD Radeon™ RX 9070.

• Bus Standard: PCI Express 5.0 for seamless performance.

• OpenGL Support: OpenGL® 4.6 for advanced graphics rendering.

Memory and Performance

• Video Memory: 16GB GDDR6 for smooth gaming and intensive workloads.

• Memory Speed: 20 Gbps for faster data transfer.

• Memory Interface: 256-bit for robust bandwidth.

• Stream Processors: 3584 for parallel task execution.

• Engine Clock:

  • OC Mode (via GPU Tweak III): Up to 2670 MHz (Boost Clock) / 2190 MHz (Game Clock).

  • Default Mode: Up to 2650 MHz (Boost Clock) / 2170 MHz (Game Clock).

Display and Connectivity

• Maximum Resolution: Digital max resolution of 7680 x 4320 (8K-ready).

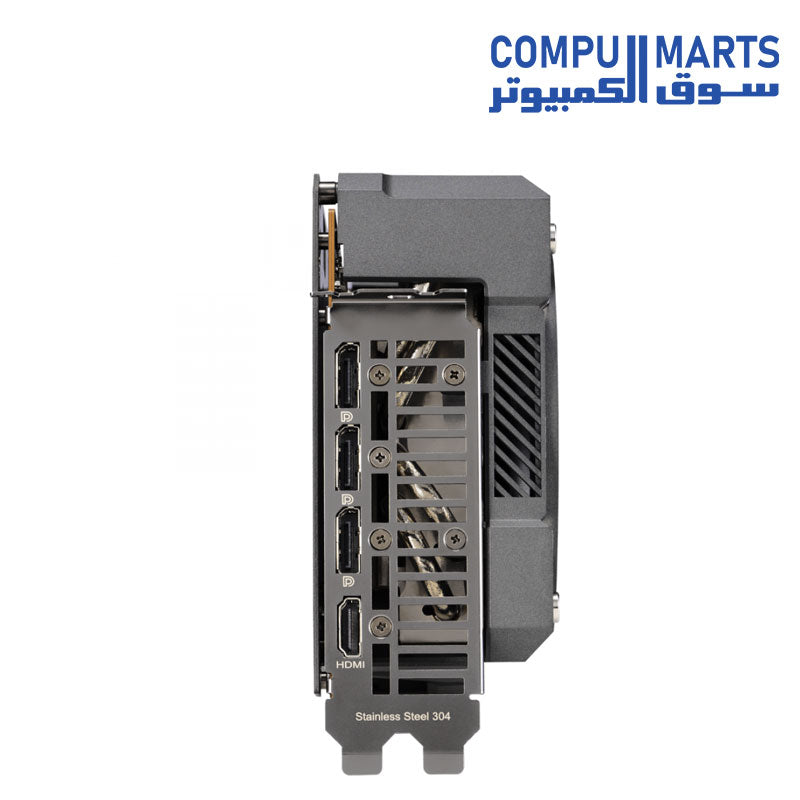

• Display Outputs:

  • 1 x Native HDMI 2.1b.

  • 3 x Native DisplayPort 2.1a.

• HDCP Support: Version 2.3 for protected content streaming.

• Maximum Display Support: Connect up to 4 monitors simultaneously.

Additional Features

• NVlink/Crossfire Support: Not available.

• RGB Lighting: AURA SYNC RGB compatibility for customizable visuals.

Included Accessories

• TUF Additions:

  • 1 x TUF Certificate of Reliability.

  • 1 x TUF Gaming Graphics Card Holder.

  • 1 x TUF Velcro Hook & Loop.

  • 1 x TUF Fridge Magnet.

• Other Inclusions:

  • 1 x Thank You Card.

  • 1 x Speedsetup Manual.

Power and Dimensions

• Recommended PSU: 750W for stable operation.

• Power Connectors: 2 x 8-pin.

• Slot Size: 3.125-slot design.

• Dimensions:

  • 330 x 140 x 62.5 mm (13 x 5.5 x 2.5 inches).

Software

• Utilities: ASUS GPU Tweak III & Drivers, available for download on the ASUS support site.
