UM5606WA-RJ288W AMD Ryzen™ AI 9 HX 370 32GB LPDDR5X on board 2TB SSD 1x M.2 2280 PCIe 4.0x4 AMD Radeon™ 890M Graphics 16 Inch 3K (2880 x 1800) OLED 16:10 aspect ratio Win 11 - Scandinavian White - ( 1 Year Perfect Warranty )

Part No

90NB13M4-M00HM0

Sales Model Name

UM5606WA-RJ288W

EAN Code

4711387671429

UPC Code

197105671423

WEEE

1.2

BASE UNIT

VSNB13M4-BU1001

Marketing Name

ASUS Zenbook S 16 OLED

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Scandinavian White

Top case-material

Aluminum

Top case-color

Scandinavian White

Keyboard color

White

Bottom case-material

Aluminum

Bottom case-color

Scandinavian White

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Touch screen

Panel Size

16.0-inch

Resolution

3K (2880 x 1800) OLED 16:10 aspect ratio

Response time

0.2ms response time

Refresh rate

120Hz refresh rate

Brightness

400nits

Peak Brightness

500nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Gamut mapping

Yes

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 500

Color depth

1.07 billion colors

Pantone

PANTONE Validated

Glare

Glossy display

Low blue light

70% less harmful blue light

TÜV Rheinland-certified

TÜV Rheinland-certified

SGS Eye Care Display

SGS Eye Care Display

Screen-to-body ratio

90%

Stylus support

With stylus support

Processor

AMD Ryzen AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12 cores, 24 Threads); AMD XDNA NPU up to 50TOPS

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

AMD Radeon 890M Graphics

Graphic Memory

N/A

Neural Processor

AMD XDNA NPU up to 50TOPS

Expansion Slot(includes used)

1x M.2 2280 PCIe 4.0x4

On board memory

32GB LPDDR5X on board

Total System Memory

LPDDR5X 32GB

Storage

2TB M.2 NVMe PCIe 4.0 SSD

Front-facing camera

FHD camera with IR function to support Windows Hello

on board Wireless

Wi-Fi 7(802.11be) (Tri-band)2*2 + Bluetooth 5.4 Wireless Card (*Bluetooth® version may change with OS version different.)

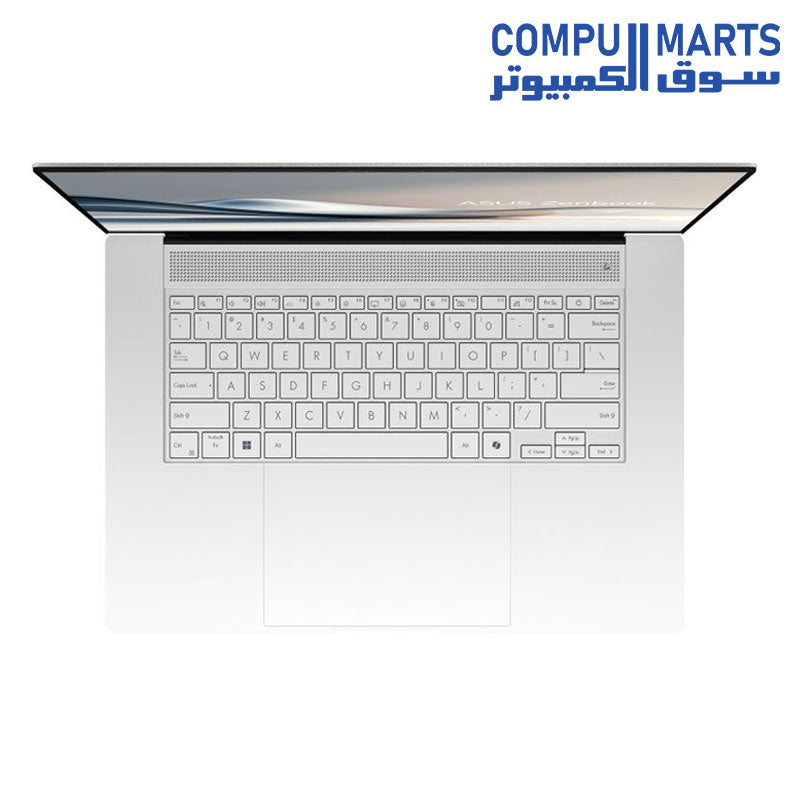

Keyboard type

Backlit Chiclet Keyboard

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market.

Touchpad

Precision touchpad

FingerPrint

N/A

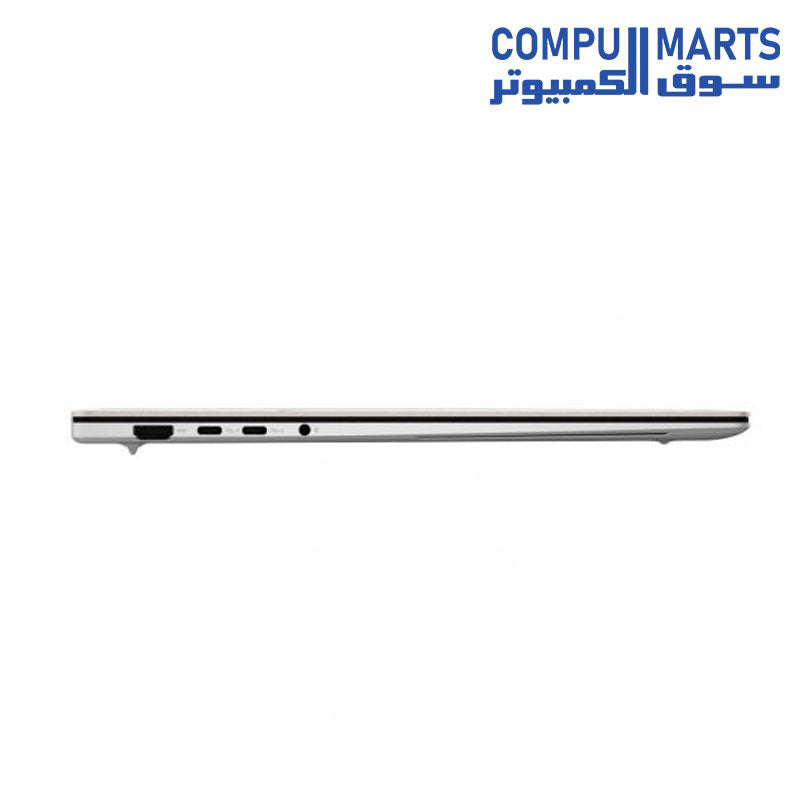

I/O ports

1x USB 3.2 Gen 2 Type-A

2x USB 4.0 Gen 3 Type-C support display / power delivery

1x HDMI 2.1 TMDS

1x 3.5mm Combo Audio Jack

SD 4.0 card reader

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Premium)

Voice control

N/A

Power

TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal

Battery

78WHrs, 2S2P, 4-cell Li-ion

Replaceable Battery

No

Dimension (W x H x D)

35.36 x 24.30 x 1.19 ~ 1.29 cm (13.92" x 9.57" x 0.47" ~ 0.51")

Weight (with Battery)

1.50 kg (3.31 lbs)

Weight (without Battery)

1.20 kg (2.65 lbs)

Antivirus

N/A

Security

IR webcam with Windows Hello support

Microsoft Pluton security processor

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Function key lock

WiFi SmartConnect

Link to MyASUS

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

StoryCube

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

One-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2024.

Ecolabels & Compliances

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

8.4
