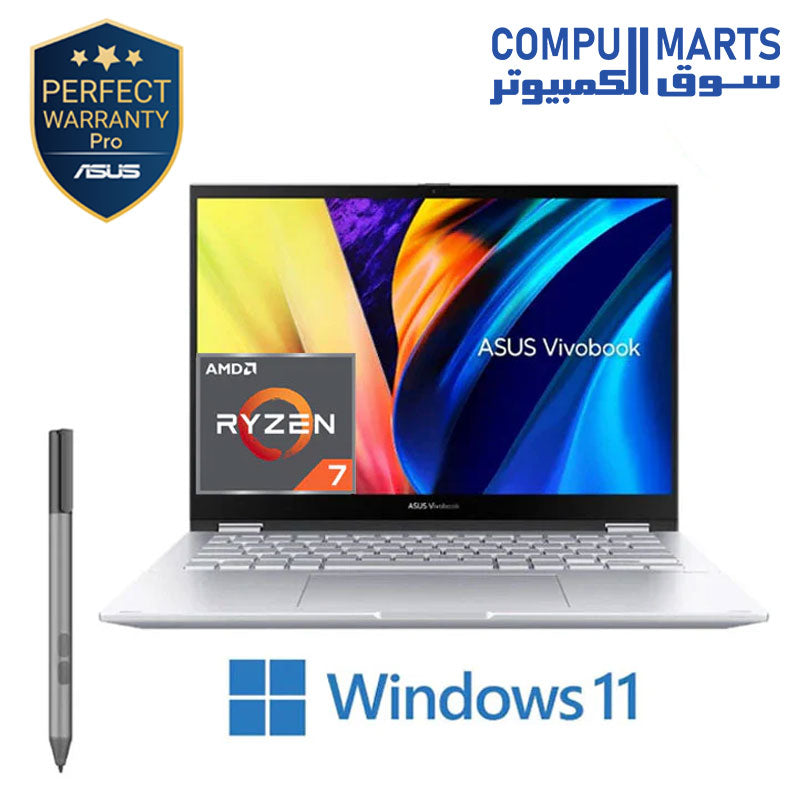

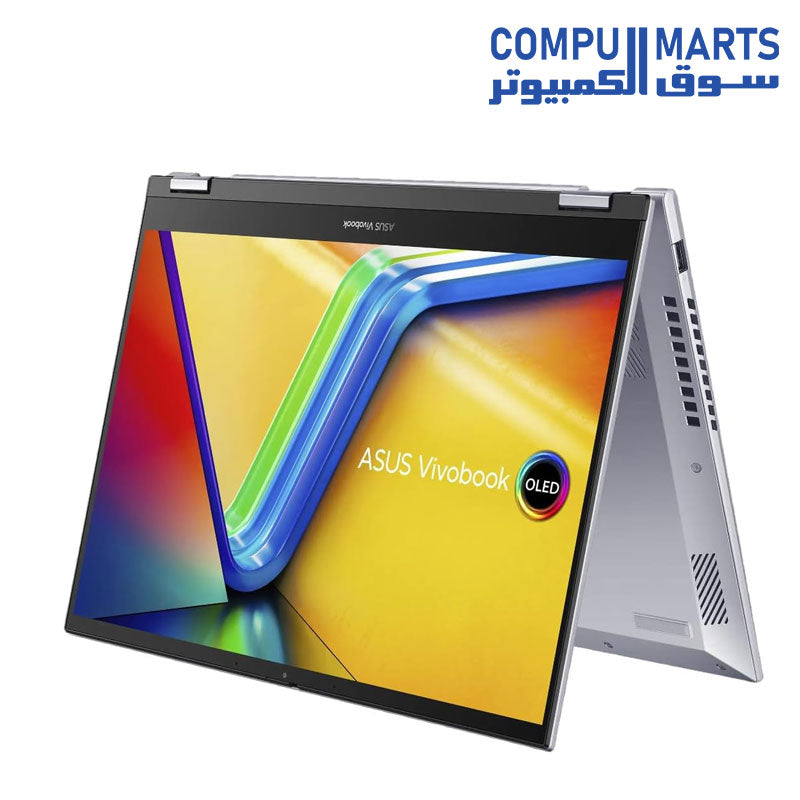

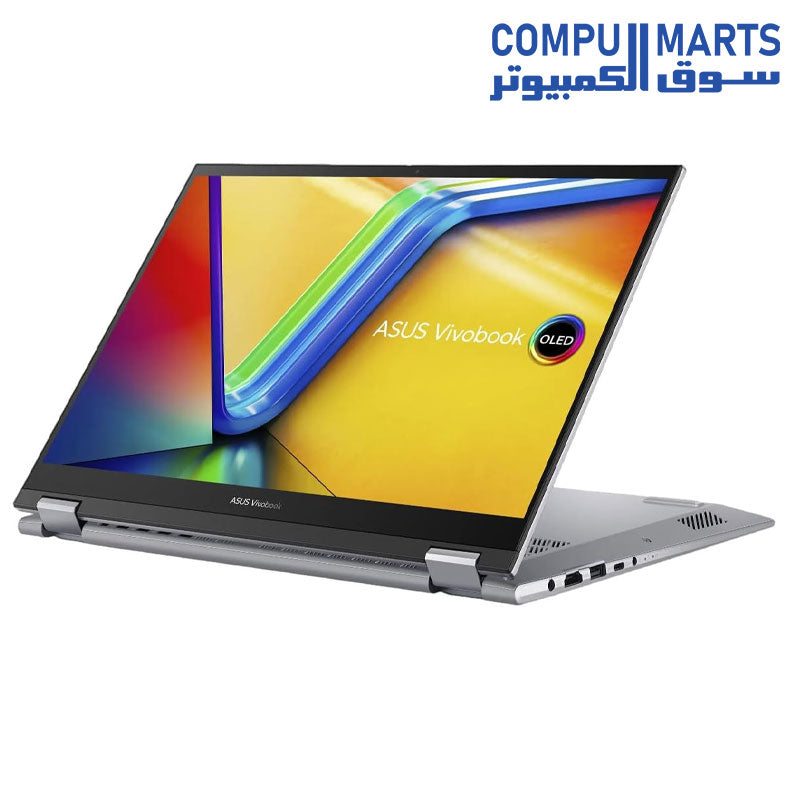

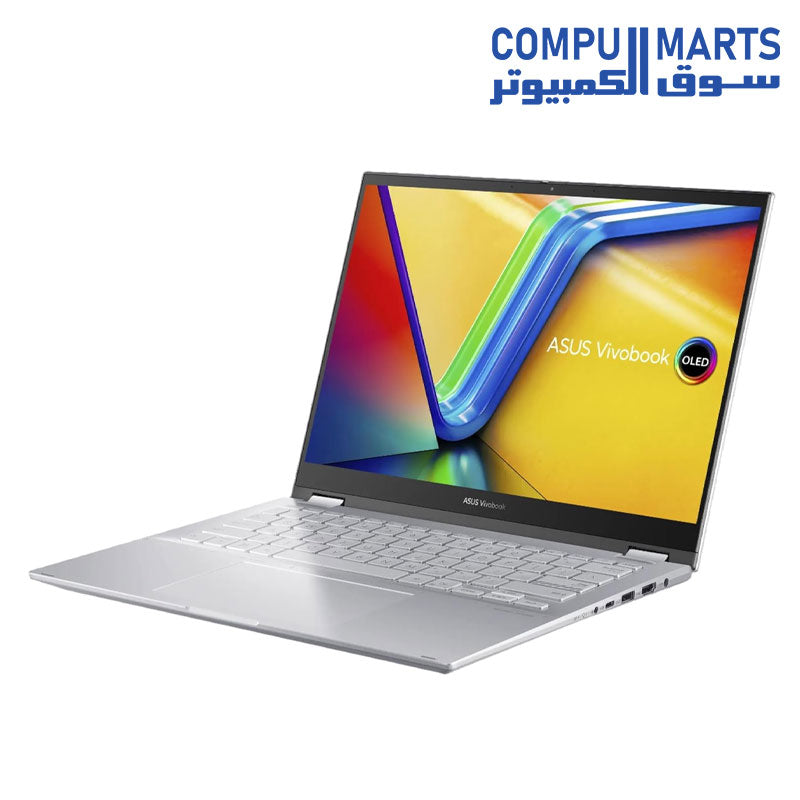

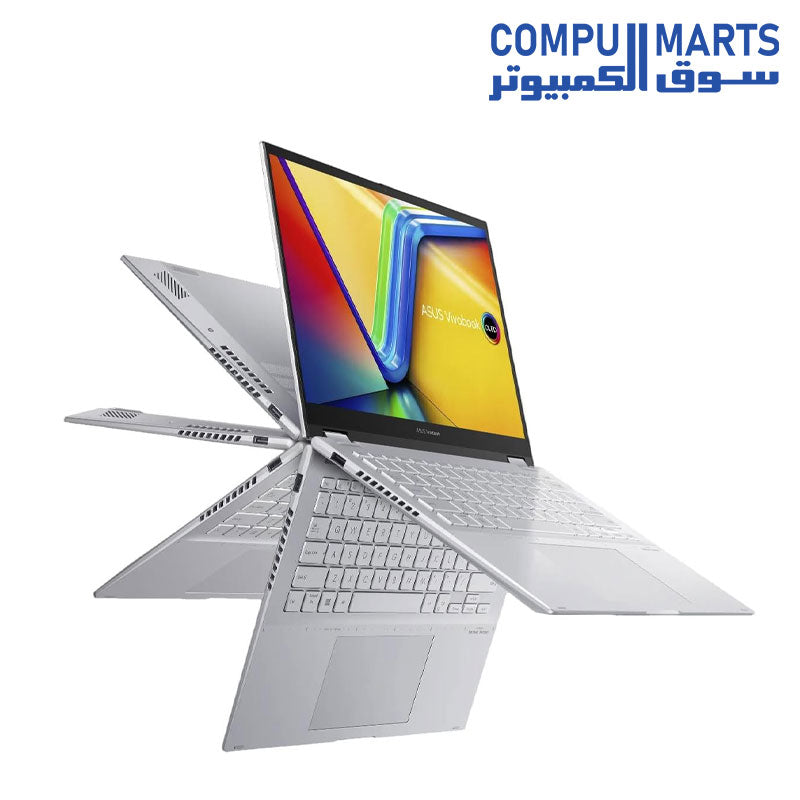

ASUS Vivobook S14 FLIP TN3402YA-LZ007W - AMD Ryzen 7 7730U - 8GB RAM DDR4 - 512GB SSD - 14 WUXGA (1920×1200) TOUCHSCREEN - AMD Radeon Graphics - Transparent Silver - WIN11 - PEN ( 90NB1112-M00EE0 )

Part No

90NB1112-M00EE0

Sales Model Name

TN3402YA-LZ007W

EAN Code

4711387460580

UPC Code

197105460584

WEEE

1.3

BASE UNIT

VSNB1112-BU1001

Marketing Name

ASUS Vivobook S 14 Flip

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Cool Silver

Top case-material

Plastic

Top case-color

Cool Silver

Keyboard color

Silver

Bottom case-material

Plastic

Bottom case-color

Cool Silver

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Touch screen

Panel Size

14.0-inch

Resolution

WUXGA (1920 x 1200) 16:10 aspect ratio

LED Backlit Unit

LED Backlit

IPS-level

IPS-level Panel

Refresh rate

60Hz refresh rate

Brightness

300nits

Color gamut

45% NTSC color gamut

Glare

Glossy display

TÜV Rheinland-certified

TÜV Rheinland-certified

Screen-to-body ratio

85%

Stylus support

With stylus support

Processor

AMD Ryzen 7 7730U Processor 2.0GHz (20MB Cache, up to 4.5 GHz, 8 cores, 16 Threads)

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

AMD Radeon Graphics

Graphic Memory

N/A

Expansion Slot(includes used)

1x DDR4 SO-DIMM slot

1x M.2 2280 PCIe 3.0x4

On board memory

8GB DDR4 on board

Total System Memory

DDR4 8GB

Disclaimer for memory

*Dual-channel memory support requires at least one SO-DIMM module.

How to upgrade memory

Upgradable; Need to remove bottom/top case

Storage

512GB M.2 NVMe PCIe 3.0 SSD

Front-facing camera

1080p FHD camera ; With privacy shutter

Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

Keyboard type

Backlit Chiclet Keyboard

Touchpad

Touchpad

support NumberPad (Optional)

FingerPrint

N/A

I/O ports

1x USB 2.0 Type-A

1x USB 3.2 Gen 2 Type-A

1x USB 3.2 Gen 2 Type-C support display / power delivery

1x HDMI 2.1 TMDS

1x 3.5mm Combo Audio Jack

1x DC-in

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Mainstream)

Voice control

with Cortana voice-recognition support

Power

ø4.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universal

Battery

50WHrs, 3S1P, 3-cell Li-ion

Replaceable Battery

No

Dimension (W x H x D)

31.32 x 22.76 x 1.89 ~ 1.89 cm (12.33" x 8.96" x 0.74" ~ 0.74")

Weight (with Battery)

1.50 kg (3.31 lbs)

Weight (without Battery)

1.40 kg (3.09 lbs)

Antivirus

McAfee 30 days free trial

Security

McAfee

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Function key lock

WiFi SmartConnect

Link to MyASUS

TaskFirst

Live update

ASUS OLED Care

QC fastcharge

AI Noise Canceling

Wi-Fi Rangeboost

Built-in Apps

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

One-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2024.

Included in the Box

Stylus (ASUS Pen SA200H-MPP1.51 support)

Ecolabels & Compliances

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

6.4
