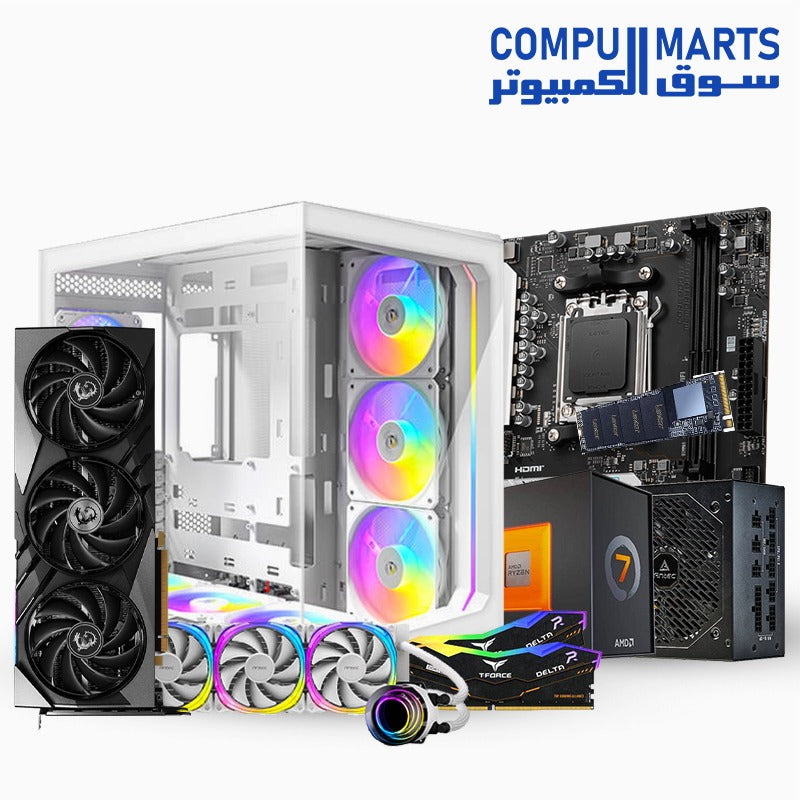

Antec White Gaming Build-BUNDLE

Antec White Gaming Build-BUNDLE



AMD Ryzen 7 7800X3D 8-Core, 16-Thread Desktop Processor:

General Specifications

Regional Availability

Global

Platform

Desktop

Product Family

AMD Ryzen Processors

Product Line

AMD Ryzen 7 Processors

 of CPU Cores

8

 of Threads

16

Max. Boost Clock

Up to 5.0GHz

Base Clock

4.2GHz

L1 Cache

512KB

L2 Cache

8MB

L3 Cache

96MB

Default TDP

120W

Processor Technology for CPU Cores

TSMC 5nm FinFET

CPU Socket

AM5

Thermal Solution (PIB)

Not included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

89°C

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

Connectivity

PCI Express Version

PCIe 5.0

System Memory Type

DDR5

Memory Channels

2

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

Graphics Capabilities

Graphics Model

AMD Radeon Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

Product IDs

Product ID Boxed

100-100000910WOF

Product ID Tray

100-000000910

Key Features

Supported Technologies

AMD EXPO Technology

AMD Ryzen Technologies



MSI B650M Gaming WIFI DDR5 Motherboard:

Model Name B650M GAMING WIFI
CPU Support Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket Socket AM5
Chipset AMD B650 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 4K 60Hz as specified in HDMI  2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5-7800+(OC)
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gb/s ports
USB ports 8x USB 3.2 Gen 1 5Gbps (7 Type-A + 1 Type-C)
6x USB 2.0 (Type-A)
LAN Realtek
 RTL8125BG 2.5Gbps LAN
WiFi / BT AMD
 Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
