Balanced Gaming Build

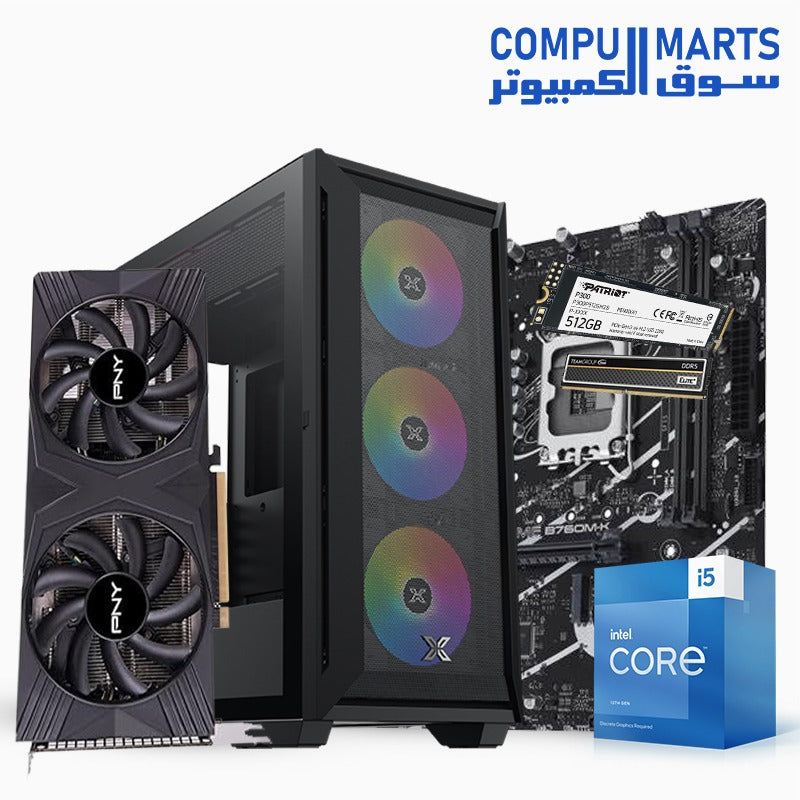

💥 Balanced Gaming Build 🎮🔥

  Intel Core i5-14400F

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Processor Number

i5-14400F

Lithography

Intel 7

Use Conditions

PC/Client/Tablet

CPU Specifications

Total Cores

10

# of Performance-cores

6

# of Efficient-cores

4

Total Threads

16

Max Turbo Frequency

4.7 GHz

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.5 GHz

Performance-core Base Frequency

2.5 GHz

Efficient-core Base Frequency

1.8 GHz

Cache

20 MB Intel Smart Cache

Total L2 Cache

9.5 MB

Processor Base Power

65 W

Maximum Turbo Power

148 W

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'24

Embedded Options Available

No

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8 GB/s

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

T_JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel Gaussian & Neural Accelerator

3.0

Intel Thread Director

Yes

Intel Deep Learning Boost (Intel DL Boost) on CPU

Yes

Intel Speed Shift Technology

Yes

Intel Turbo Boost Technology

2.0

Intel Hyper-Threading Technology

Yes

Intel 64

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel SSE4.1, Intel SSE4.2, Intel AVX2

Idle States

Yes

Enhanced Intel SpeedStep Technology

Yes

Thermal Monitoring Technologies

Yes

Intel Volume Management Device (VMD)

Yes

Security & Reliability

Intel Standard Manageability (ISM)

Yes

Intel Control-Flow Enforcement Technology

Yes

Intel AES New Instructions

Yes

Secure Key

Yes

Intel OS Guard

Yes

Execute Disable Bit

Yes

Intel Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes



  ASUS PRIME B760M-K

Audio

Back Panel I/O Ports

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x VGA port

1 x HDMI port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 anchors

Documentation

1 x User guide



Operating System

Windows 11, Windows 10 64-bit



Form Factor



 TEAM ELITE PLUS 16GB DDR5 6000MHz



• Compatible with DDR5 platforms of Intel and AMD systems.

• Effective power system configuration with low voltage for power reduction.

• Optimized structure with exceptional access efficiency.

• On-Die ECC mechanism for enhanced data transmission stability.

• Lifetime warranty and Free technical support.

Symmetrical heat sink

Through special processing, the heat sink in plain design is equipped with properties including scratch resistance, acid resistance, anti-corrosion, and non-conduction, offering comprehensive protection for the DDR5 memory module.

Frequency further enhanced for upgraded performance

In compliance with JEDEC, DDR5 increased performance by over 50% from that of the DDR4 with a 3200MHz limit. The enhanced speed enables upgraded high-performance operation quality.

Effective power system configuration with low voltage for power reduction

The standard operating voltage of DDR5 is 1.1V, compared with the 1.2V required for DDR4, it reduces the power consumption of bandwidth units and computer loading.

Transcend capacity limit with diverse upgrade options

ELITE PLUS DDR5 comes with a complete range of sing-channel and dual-channel specifications from 8GB to 32GB.

Optimized structure with exceptional access efficiency

The structure of the DDR5 module, compared with that of DDR4, has increased the number of banks from 16 to 32. It can process doubled data volume in the same amount of time, which is key to improving operational efficiency.

On-Die ECC mechanism for enhanced data transmission stability

DDR5 memory module supports On-die ECC error correction. It can repair DRAM units through its built-in functions to reduce the risk of data errors, offering enhanced stability to systems that adopt ELITE PLUS DDR5.

Module Type	DDR5 288 Pin Non-ECC Unbuffered DIMM
Frequency	4800	5200	5600	6000
Latency	CL40-40-40-77	CL42-42-42-84	CL46-46-46-90	CL48-48-48-96
Capacity	8GB 16GB 32GB 8GBx2 16GBx2 32GBx2	8GB 16GB 32GB 8GBx2 16GBx2 32GBx2	16GB 16GBx2 32GB	16GB 16GBx2
Data Transfer Bandwidth	38,400 MB/s (PC5 38400)	41,600 MB/s (PC5 41600)	44,800 MB/s (PC5 44800)	48,000 MB/s (PC5 48000)
Voltage	1.1V	1.1V	1.1V	1.1V
Compatibility	Intel: 600 Series, 700 Series AMD: 600 Series		Intel: 600 Series, 700 Series
Dimensions	31.25(H) x 133.4(L) x 6.6(W)mm
Heat Sink	Aluminum heat-sink
	Model Brand Team Series Elite Plus Model TPBD516G5600HC4601

Details

Capacity	16GB
Type	288-Pin PC RAM
Speed	DDR5 5600 (PC5 44800)
CAS Latency	46
Timing	46-46-46-90
Voltage	1.10V
Color	Black



 NVMe PATRIOT P300 500GB

The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.



Brand	Patriot
Model	P300 NVMe
FEATURES	Built with the latest PCIe 3 x 4 controller
	2280 m.2 PCIe NVMe Gen3 x 4 SSD
	NANDXtend ECC Technology
	HMB Technology
	Operating Temperature: 0~70°C
TBW	320TB
O/S Supported	Windows® 7*/8*/8.1/10



PNY RTX 4070 SUPER VERTO OC 12GB DUAL FAN

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing.

• NVIDIA Ada Lovelace, with 1980MHz core clock and 2490MHz boost clock speeds to help meet the needs of demanding games.

• 12GB GDDR6X (192-bit) on-board memory, plus 7168 CUDA processing cores and up to 504GB/sec of memory bandwidth provide the memory needed to create striking visual realism.

• PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort and HDMI outputs for expanded connectivity.

• NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.

 XIGMATEK Master X II Pro + 750W 80+ Bronze PSU
