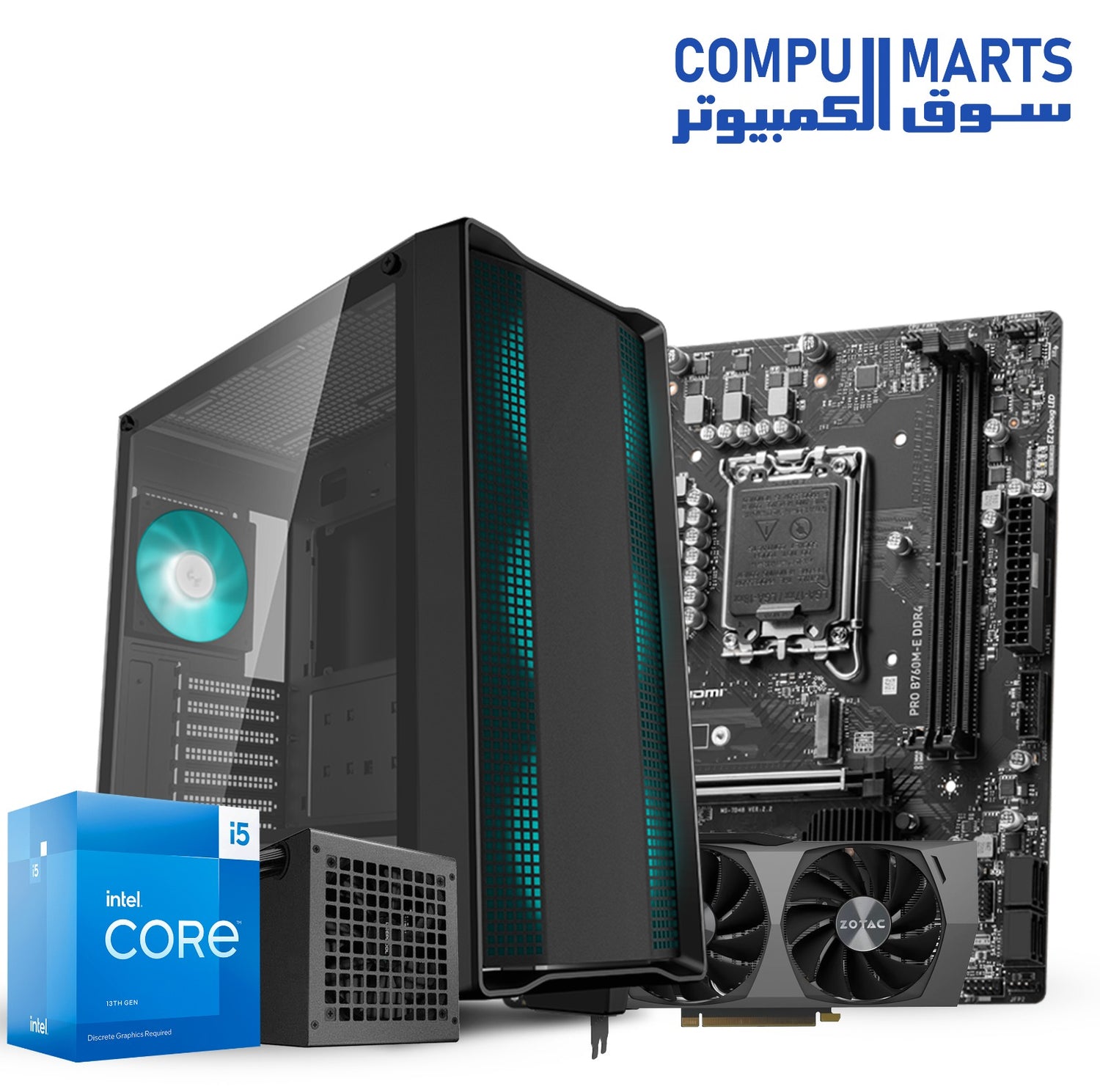

LIMIT OFFER CORE I5-13400F - RAM 16GB - SSD 256GB - RTX 3060 12GB OC
LIMIT OFFER CORE I5-13400F - RAM 16GB - SSD 256GB - RTX 3060 12GB OC - CORE I5-12400F is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description
LIMT OFFER CORE I5-1340OF - RAM 16GB - SSD 265GB - RTX 3060 12GB OC
Processor Intel Core i5-13400F (2.5 GHz / 4.6 GHz)
Hybrid architecture for outstanding performance
With even more power for demanding programs and games and more cores for background tasks, 13th generation Intel Core processors let you do more things faster. Whether it's gaming, intensive multitasking, content creation, or streaming, Intel Raptor Lake processors are the perfect solution for going beyond what you could have imagined in terms of power and performance. Smooth gaming, a PC that doesn't slow down, and simultaneous multitasking are all possible with a 13th generation Intel Core processor.
INTEL CORE I5-13400F 10-CORE (6P+4E)
-
10 Core / 16 Thread Processor
-
6 Performance-Cores (2.5 GHz - 4.6 GHz) + 4 Efficient-Cores (1.8 GHz - 3.3 GHz)
-
L3 Cache 20 MB + L2 Cache 9.5 MB
-
IGP: None
-
Memory controller: DDR4 / DDR5
-
PCI-E 5.0 compatible
-
TDP: 65W
-
Max TDP (Turbo Power): 148W
HEARTS AT WORK
Designed to meet the needs of today's gamers. The latest version of Intel's powerful hybrid architecture is ideal for enhancing your gaming experience. Performance cores unleash their talent to get the most out of the latest games and gaming software.
Efficient-cores let you work, play solo and, more importantly, with others. Finally, Intel Thread Director lets you enjoy top-notch gameplay and ensures your PC doesn't slow down, even when running background tasks
HIGHER AND HIGHER
Intel Core I53 generation desktop processors offer the most complete platform for using the gaming technologies you want. DDR4 and DDR5 support gives you the choice of memory configuration. Thunderbolt 4 support provides a quick and easy way to connect peripherals.
-
Product Collection 13th Generation Intel Core i5 Processors
-
Code Name Products formerly Reptor Lake
-
Vertical SegmentDesktop
-
Processor Number i5-13400F
-
Lithography Intel 7
-
Use ConditionsPC/Client/Tablet
CPU Specifications
-
Total Cores 10
-
of Performance-cores 6
-
of Efficient-cores 4
-
Total Threads 16
-
Max Turbo Frequency 4.60 GHz
-
Performance-core Max Turbo Frequency 4.60 GHz
-
Efficient-core Max Turbo Frequency 3.30 GHz
-
Performance-core Base Frequency 2.50 GHz
-
Efficient-core Base Frequency 1.80 GHz
-
Cache 20 MB Intel Smart Cache
-
Total L2 Cache 9.5 MB
-
Processor Base Power 65 W
-
Maximum Turbo Power 148 W
Supplemental Information
-
Marketing Status Launched
-
Launch Date Q1'23
-
Embedded Options Available No
Memory Specifications
-
Max Memory Size (dependent on memory type)128 GB
-
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s -
Max of Memory Channels2
-
Max Memory Bandwidth76.8 GB/s
Expansion Options
-
Direct Media Interface (DMI) Revision 4.0
-
Max of DMI Lanes 8
-
Scalability 1S Only
-
PCI Express Revision 5.0 and 4.0
-
PCI Express Configurations Up to 1x16+4, 2x8+4
-
Max of PCI Express Lanes 20
ackage Specifications
-
Sockets Supported FCLGA1700
-
Max CPU Configuration 1
-
Thermal Solution Specification PCG 2020C
-
TJUNCTION 100°C
-
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
-
Intel Gaussian & Neural Accelerator 3.0
-
Intel Thread Director Yes
-
Intel Deep Learning Boost (Intel DL Boost) Yes
-
Intel Speed Shift Technology Yes
-
Intel Turbo Boost Max Technology 3.0 No
-
Intel Turbo Boost Technology 2.0
-
Intel Hyper-Threading Technology Yes
-
Intel 64 Yes
-
Instruction Set 64-bit
-
Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2
Security & Reliability
-
Intel Standard Manageability (ISM) Yes
-
Intel Control-Flow Enforcement Technology Yes
-
Intel AES New Instructions Yes
-
Secure Key Yes
-
Intel OS Guard Yes
-
Execute Disable Bit Yes
-
Intel Boot Guard Yes
-
Mode-based Execute Control (MBEC) Yes
-
Intel Virtualization Technology (VT-x) Yes
-
Intel Virtualization Technology for Directed I/O (VT-d) :Yes
-
Intel VT-x with Extended Page Tables (EPT) : Yes
Graphic Card MSI GEFORCE RTX 3060 VENTUS 2X 12G OC
Brand |
MSI |
Graphics Coprocessor |
NVIDIA GeForce RTX 3060 |
Video Output Interface |
DisplayPort, HDMI |
Chipset Brand |
NVIDIA |
Graphics RAM Type |
GDDR6 |
About this item:
-
Chipset: NVIDIA GeForce RTX 3060
-
Video Memory: 12GB GDDR6
-
Memory Interface: 192-bit
-
Output: DisplayPort x 3 (v1.4a) / HDMI 2.1 x 1
-
Digital maximum resolution: 7680 x 4320
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
REINFORCING BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
CUTTING EDGE DUAL FAN THERMAL
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
-
50% More air pressure than normal fan
-
15% More air pressure than TORX Fan 2.0
-
Traditional Fan Blade
-
Dispersion Fan Blade
Chillingly Silent
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TRACES OF BRILLIANCE
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
ASRock B660M-HDV Intel (LGA1700) Motherboard
-
Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
-
6 Phase Power Design
-
Supports DDR4 5066MHz (OC)
-
1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
-
Graphics Output Options: HDMI, DisplayPort, D-Sub
-
Realtek ALC887/897 7.1 CH HD Audio Codec
-
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
-
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
5 USB 2.0 (2 Rear, 3 Front)
-
Intel Gigabit LAN
-
Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU
- Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
- Digi Power design
- 6 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology -
Chipset
- Intel B660
-
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Supports DDR4 3200 natively.
-
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment -
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
-
Audio
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
- Supports Surge Protection -
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE -
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks
-
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors
Supports Intel Optane Memory H Series (M2_2 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID -
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
-
Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
-
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
-
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets -
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V -
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design -
OS
- Microsoft Windows 10 64-bit / 11 64-bit
-
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
PATRIOT VIPER STEEL 2X8G 3200MHZ
Lexar NM620 M.2 2280 Internal SSD
Weight |
1 kg |
---|---|
Capacity |
256GB |
brands |
Lexar |
COUGAR Case DUOFACE 3 FAN RGB POWER VTE X2 650W
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / *E-ATX
Dimensions (WxHxD) 230 x 491 x 386 (mm)
9.1 x 19.3 x 15.2 (in)
I/O Panel USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 2 (2 SSD trays included)
Expansion Slots 7+3
Vertical GPU Support Yes
Cooling Fan Support Front 120mm x 2 / 140mm x 2
Top 120mm x 2 / 140mm x 2
Rear 120mm x 1 / 140mm x 1
Pre-installed Fans Front 140mm ARGB fan x 2
Rear 120mm ARGB fan x 1
Speed 1000 RPM
Connector 5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans 5 Max.
Water Cooling Support Front *280mm / 240mm / 140mm / 120mm
Top *280mm / 240mm / 140mm / 120mm
Rear 120mm / 140mm
Transparent Left Panel 4mm Tempered Glass
Onboard Lighting System Yes
RGB Sync with M/B Yes
COUGAR Logo RGB Light Yes
Max. Graphics Card Length 330 (mm) / 13 (in)
Max. CPU Cooler Height 190 (mm) / 7.5 (in)
Max. PSU Length 160 (mm) / 6.3 (in)
