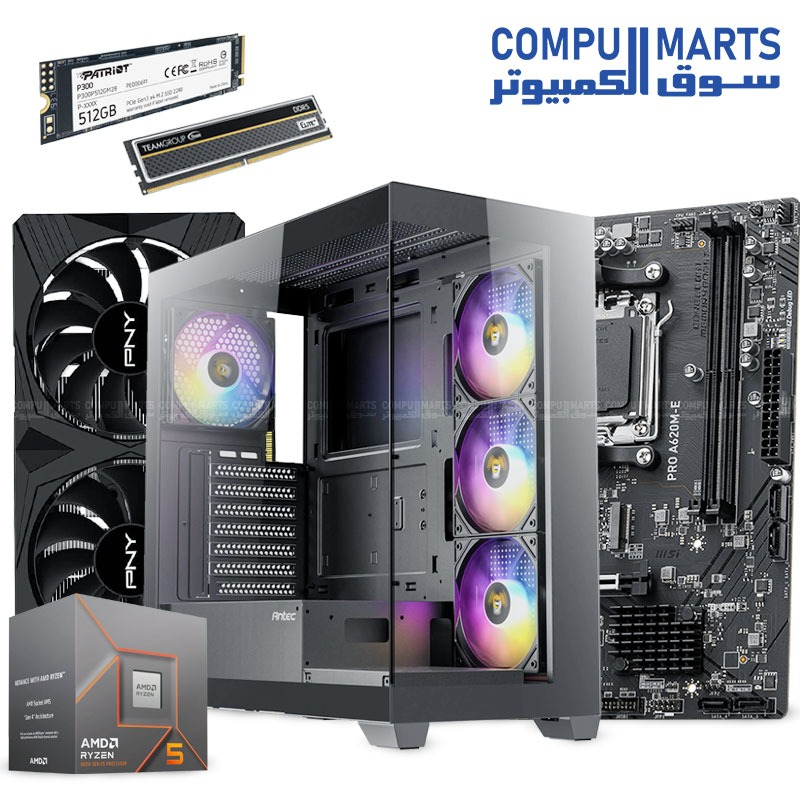

RAMADAN GANA 5 AMD RYZEN 5 8400F BOX-PNY RTX 4060 8GB VERTO MSI PRO A620M-E-RAM TEAM ELITE PLUS 16GB 6000MHZ PATRIOT P300 512GB M.2 NVME - CASE ANTEC CX300 + PSU 650W BUNDEL

RAMADAN GANA 5 AMD RYZEN 5 8400F BOX-PNY RTX 4060 8GB VERTO MSI PRO A620M-E-RAM TEAM ELITE PLUS 16GB 6000MHZ PATRIOT P300 512GB M.2 NVME - CASE ANTEC CX300 + PSU 650W BUNDEL

AMD Ryzen 5 8400F Processor:

General Specifications

• Name: AMD Ryzen 5 8400F

• Family: Ryzen

• Series: Ryzen 8000 Series

• Form Factor: Desktops

• AMD PRO Technologies: No

• Consumer Use: Yes

• Regional Availability: Global

• Former Codename: Phoenix

• Architecture: Zen 4

CPU Details

• Number of CPU Cores: 6

• Multithreading (SMT): Yes

• Number of Threads: 12

• Max. Boost Clock: Up to 4.7 GHz

• Base Clock: 4.2 GHz

• L2 Cache: 6 MB

• L3 Cache: 16 MB

• Default TDP: 65W

• AMD Configurable TDP (cTDP): 45-65W

• Processor Technology for CPU Cores: TSMC 4nm FinFET

• CPU Compute Die (CCD) Size: 178mm²

• Package Die Count: 1

• Unlocked for Overclocking: Yes

• AMD EXPO Memory Overclocking Technology: Yes

• Precision Boost Overdrive: Yes

• Curve Optimizer Voltage Offsets: Yes

• AMD Ryzen Master Support: Yes

• CPU Socket: AM5

• CPU Boost Technology: Precision Boost 2

• Instruction Set: x86-64

• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, x86-64

• Max. Operating Temperature (Tjmax): 95°C

• Launch Date: April 1, 2024

Connectivity

• Native USB 4 (40Gbps) Ports: 2

• Native USB 3.2 Gen 2 (10Gbps) Ports: 2

• Native USB 2.0 (480Mbps) Ports: 1

• PCI Express Version: PCIe 4.0

• Native PCIe Lanes (Total/Usable): 20, 16

• NVMe Support: Boot, RAID0, RAID1

System Memory

• Memory Type: DDR5

• Memory Channels: 2

• Max. Memory: 256 GB

• Memory Subtype: UDIMM

• Max Memory Speed:

  • 2x1R: DDR5-5200

  • 2x2R: DDR5-5200

  • 4x1R: DDR5-3600

  • 4x2R: DDR5-3600

Graphics Capabilities

• Graphics Model: Discrete Graphics Card Required

• AMD SmartAccess Memory: Available

AI Engine Capabilities

• AMD Ryzen AI: Not Available

Security, Virtualization, and Manageability

• AMD Enhanced Virus Protection (NX bit): Yes

Operating System Support

• Supported OS: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

PNY GeForce RTX 4060 8GB VERTO Dual Fan:

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

• NVIDIA Ada Lovelace, with 1830MHz core clock and 2460MHz boost clock speeds to help meet the needs of demanding games.

• 8GB GDDR6 (128-bit) on-board memory, plus 3072 CUDA processing cores and up to 272GB/sec of memory bandwidth provide the memory needed to create striking visual realism.

• PCI Express 4.0 interface x 16 with - Offers compatibility with a range of systems. Also includes DisplayPort and HDMI outputs for expanded connectivity.

• Engineered for maximum cooling efficiency, it features two 90mm fans, heatsink with dense fins, and 2 heat pipes. The copper base makes direct contact with the GPU for superior heat transfer, while an aluminum backplate improves structural integrity and airflow.

• PCI-Express 4.0 x16 (x8 Active)

• ONLY BUILD

MSI PRO A620M-E ProSeries Motherboard :

• Supports AMD Ryzen 7000 Series Desktop Processors

• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

• CHIPSET	AMD A620
  CPU SUPPORT	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
  MEMORY	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
  ONBOARD GRAPHICS	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  STORAGE	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
  RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
  LAN	Realtek RTL8111H Gigabit LAN
  AUDIO	Realtek ALC897 Codec 7.1-Channel High Definition Audio
  INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
  LED FEATURE	4x EZ Debug LED
  BACK PANEL PORTS	HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
  OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
  PCB DIMENSION (W × L)	mATX 211mmx243.84mm

TEAM ELITE PLUS DDR5 DESKTOP MEMORY BLACK RAM:

• Compatible with DDR5 platforms of Intel and AMD systems.

• Effective power system configuration with low voltage for power reduction.

• Optimized structure with exceptional access efficiency.

• On-Die ECC mechanism for enhanced data transmission stability.

• Lifetime warranty and Free technical support.

Symmetrical heat sink

Through special processing, the heat sink in plain design is equipped with properties including scratch resistance, acid resistance, anti-corrosion, and non-conduction, offering comprehensive protection for the DDR5 memory module.

Frequency further enhanced for upgraded performance

In compliance with JEDEC, DDR5 increased performance by over 50% from that of the DDR4 with a 3200MHz limit. The enhanced speed enables upgraded high-performance operation quality.

Effective power system configuration with low voltage for power reduction

The standard operating voltage of DDR5 is 1.1V, compared with the 1.2V required for DDR4, it reduces the power consumption of bandwidth units and computer loading.

Transcend capacity limit with diverse upgrade options

ELITE PLUS DDR5 comes with a complete range of sing-channel and dual-channel specifications from 8GB to 32GB.

Optimized structure with exceptional access efficiency

The structure of the DDR5 module, compared with that of DDR4, has increased the number of banks from 16 to 32. It can process doubled data volume in the same amount of time, which is key to improving operational efficiency.

On-Die ECC mechanism for enhanced data transmission stability

DDR5 memory module supports On-die ECC error correction. It can repair DRAM units through its built-in functions to reduce the risk of data errors, offering enhanced stability to systems that adopt ELITE PLUS DDR5.

 Hard Patriot P300 M.2 PCIe Gen 3 x4 Low-Power Consumption SSD:

The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.

CASE Antec CX300 + PSU 650W:

Main Spec

•  Motherboard Support: ATX, Micro-ATX, ITX

• Form Factor: Mid Tower

• Case Material: Steel Glass

• Side & Front Panel: 4mm Tempered Glass

• 1/0 Ports: Power, LED On/Off, USB 2.0 x 2, USB 3.0 x 1, MIC/HD-AUDIO 7

Compatibility & Clearances

• CPU Cooler Max Height: 170mm

• GPU Max Length: 420mm

• Power Supply Max Length: (Include cable) 245mm

• Cable Routing Space: 27mm

Fan Support

• Top: 3 x 120mm/2x140mm

• Side: 3 x 120mm

• Power Supply Shroud: 2 x 120mm

• Bottom: 1 x 120mm

• Rear: 1 x 120mmm

Radiator Support

• Top: 120/240/360mm (When installing water cooler on the top, if there is interference, the memory height is limited to 45mm)

• Side: 120/240mm

Expansion Slots

• Standard: 7

 Drive Bays

•  2.5": 2

• 3.5"/2.5" Drive Mounts: 2/1

 Dimensions

• Case Dimensions (DWH) 450 x 219 x 456mm

• Box Dimensions (DWH) 495 x 280 x 515mm

• Net Weight 6.55kg

• Gross Weight 8.06kg

Accessories

• Included Fans: 2 2/1 < 3 x 120mm fixed mode RGB reverse fans on right side +

• 1 x 120mm fixed mode RGB fan in rea
