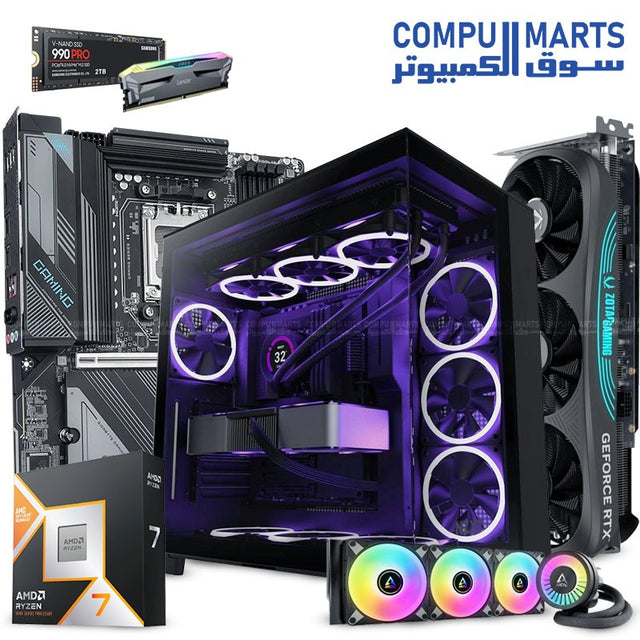

High-End PC Build – Powered by NZXT

🔥 High-End PC Build – Powered by NZXT ⚡ 🔥

  AMD Ryzen 7 9800X3D

• General specification

  NameAMD Ryzen 7 9800X3D

  FamilyRyzen

  SeriesRyzen 9000 Series

  Form FactorDesktops , Boxed Processor

  Market SegmentEnthusiast Desktop

  AMD PRO TechnologiesNo

  Consumer UseYes

  Regional AvailabilityGlobal

  Former CodenameGranite Ridge AM5

  ArchitectureZen 5

  # of CPU Cores8

  Multithreading (SMT)Yes

  # of Threads16

  Max. Boost Clock Up to 5.2 GHz

  Base Clock 4.7 GHz

  L1 Cache640 KB

  L2 Cache8 MB

  L3 Cache96 MB

  Default TDP120W

  Processor Technology for CPU CoresTSMC 4nm FinFET

  Processor Technology for I/O DieTSMC 6nm FinFET

  Package Die Count2

  Unlocked for Overclocking Yes

  AMD EXPO™ Memory Overclocking TechnologyYes

  Precision Boost OverdriveYes

  Curve Optimizer Voltage OffsetsYes

  AMD Ryzen™ Master SupportYes

  CPU SocketAM5

  Supporting ChipsetsA620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

  CPU Boost TechnologyPrecision Boost 2

  Instruction Setx86-64

  Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB)Not Included

  Recommended CoolerLiquid cooler recommended for optimal performance

  Max. Operating Temperature (Tjmax)95°C

  *OS SupportWindows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit



• Connectivity

  Native USB 3.2 Gen 2 (10Gbps) Ports4

  Native USB 2.0 (480Mbps) Ports1

  PCI Express® VersionPCIe® 5.0

  Native PCIe® Lanes (Total/Usable)28 , 24

  NVMe SupportBoot , RAID0 , RAID1 , RAID5 , RAID10

  System Memory TypeDDR5

  Memory Channels2

  Max. Memory192 GB

  System Memory SubtypeUDIMM

  Max Memory Speed

  2x1R

  DDR5-5600

  2x2R

  DDR5-5600

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

  ECC SupportYes (Requires mobo support)



• Graphics Capabilities

  Graphics ModelAMD Radeon™ Graphics

  Graphics Core Count2

  Graphics Frequency2200 MHz

  USB Type-C® DisplayPort™ Alternate ModeYes

  Gigabyte X870 Gaming X WIFI7

• AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• Digital twin 16+2+2 phases VRM solution

• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design

• EZ-Latch Click：M.2 heatsinks with screwless design

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4

• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

• Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

• Model	X870 GAMING X WIFI7
  CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
  Chipset	AMD X870
  Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
  Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  USB	CPU+ASMedia USB4 controller: 2 x USB4 USB Type-C ports on the back panel CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
  Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
  Back Panel Connectors	1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4 USB Type-C ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
  I/O Controller	iTE I/O Controller Chip
  H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
  Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
  Operating System	Support for Windows 11 64-bit
  Form Factor	ATX Form Factor; 30.5cm x 24.4cm
  Warranty	3 Years
  Note	*** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice.

  Lexar Ares RGB 32GB (2x16GB) DDR5 6400MHz CL32

• Next-Gen DDR5 Performance: Experience ultra-fast speeds for gaming and more.

• XMP 3.0 & EXPOTM Support: Enjoy blazing-fast overclocking speeds for an enhanced gaming experience.

• Customizable RGB Lighting: Use Lexar RGB Sync to personalize lighting effects by color, intensity, and speed.

• Stability and Reliability: On-die ECC for increased data stability and reliability.

• Rigorously Tested: Ensured performanc

Features

EXPERIENCE ULRA-FAST PERFORMANCE WITH NEXT-GEN DDR5

The Lexar ARES RGB DDR5 Desktop Memory allows hardcore gamers and PC enthusiasts to experience superior performance with next-gen DDR5. A premium aluminum heat spreader lets you game in style and keeps your system cool for ultra-fast performance, stability, and reliability.





GAME IN STYLE WITH LAXER RGB SYNC

With Lexar RGB Sync, a powerful RGB lighting control software, you can customize and synchronize your lighting effects by color, intensity, and speed so you can game in style.

DESIGNED WITH INCREASED STABILITY AND RELIABILITY

Lexar ARES RGB DDR5 Desktop Memory is built with an on-die ECC, which leverages real-time data error correction for increased data stability and reliability.

LEVERAGES ON-BOARD PMIC FOR A STABLE AND QUICK POWER SUPPLY

With on-board Power Management IC (PMIC), the Lexar ARES RGB DDR5 Desktop Memory provides better power control and power delivery for increased safety and stability.



KEEP YOUR GAME COOL

Designed with a premium aluminum heat spreader to keep your system running cool, allowing ultra-fast performance under intensive workloads.

SUPPORTS INTEL XMP 3.0 AND AMD EXPO

Lexar ARES RGB DDR5 Desktop Memory is compatible with the latest INTEL XMP 3.0 and AMD EXPO. Enjoy blazing-fast overclocking speeds to elevate your gaming experience.Specifications

Capacity : 32GB (2x16GB)Memory Type : DDR5Interface : 288PINStandard : JEDEC & Intel XMP 3.0 & EXPO^TSpeed5600MT/s¹

6000MT/s¹（LD5FU016G-R6000GDGA: CL34-38-38-76 ；LD5BU016G-R6000GDLA: CL30-36-36-68 ）

6400MT/s¹

6800MT/s¹

7200MT/s¹CAS Latency5600MT/s ：CL32-36-36-68

6000MT/s：CL30-36-36-68 /CL34-38-38-76

6400MT/s：CL32-38-38-76

6800MT/s：CL34-45-45-108

7200MT/s：CL34-42-42-84Voltage5600MT/s ：1.2V

6000MT/s：1.35V(CL30-36-36-68 ) /1.3V(CL34-38-38-76)

6400MT/s：1.4V(CL32-38-38-76）

6800MT/s：1.4V(CL34-42-42-84）

7200MT/s：1.4V(CL34-42-42-84）Operating Temperature : 0°C to 85°C(Tcase)Storage Temperature : -55°C to 100°C

Module Size : L140 x W43.3 x H7.9mm

  Samsung 990 PRO PCIe 4.0 NVMe SSD 2TB

Designed for tech enthusiasts, hardcore gamers and heavy-workload professionals who want blazing fast speed.

• Enjoy up to 50% improved performance per watt over 980 PRO, plus optimal power efficiency with max PCIe4.0 performance.

• Sequential read/write speeds up to 7,450/6,900 MB/s.

Our Ultimate SSD

Reach near max performance with PCIe 4.0.

The in-house controller's smart heat control delivers our best power efficiency while maintaining ferocious performance that always keeps you at the top of your game.

 PCIe 4.0’s best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7450 MB/s as of Q3, 2022.

Maximized PCIe 4.0 speed

Huge speed boost.

Get random read/write speeds that are 40%/55% faster than 980 PRO. Experience up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe 4.0. Fly high in gaming, video editing, 3D modeling, data analysis and more.

Breakthrough power efficiency

More power-efficient performance.

Get more performance while using less power. Enjoy up to 50% improved performance per watt over 980 PRO

Smart thermal control

Samsung's own nickel-coated high-end controller delivers effective thermal control and prevents sudden performance drops from overheating.

The champion maker

A more than 55% improvement in random performance enables faster loads for an ultimate gaming experience on PS5 and DirectStorage PC games

Samsung Magician Software

Unlock the full potential of 990 PRO.

  Get the most out of your SSD with Samsung Magician's advanced yet intuitive optimization tools. Monitor drive health, protect valuable data, receive important updates and set up LED color combinations for your 990 PRO. It's your personal SSD toolkit.

World's No. 1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world's number one brand  for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

• Application Client PCs, Game Consoles

•  Capacity 1,000GB (1GB=1 Billion byte by IDEMA)  Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• Interface PCIe Gen 4.0 x4, NVMe 2.0

• Dimension (WxHxD) 80 x 22 x 2.3 mm

• Weight Max 9.0g Weight

• Form Factor M.2 (2280)

• Storage Memory Samsung V-NAND 3-bit MLC

• Controller Samsung in-house Controller

• Cache Memory  Samsung 1GB Low Power DDR4 SDRAM

• Sequential Read

• Up to 7,450 MB/s  Performance may vary based on system hardware & configuration

• Sequential write

• Up to 6,900 MB/s  Performance may vary based on system hardware & configuration

• Random Read (4KB ,QD32)

• Up to 1,200,000 IOPS Performance may vary based on system hardware & configuration

• Random Write (4KB ,QD32)

• Up to 1,550,000 IOPS  Performance may vary based on system hardware & configuration

• Random Read (4KB ,QD1)

• Up to 22,000 IOPS  Performance may vary based on system hardware & configuration

• Random Write (4KB ,QD1)

• Up to 80,000 IOPS  Performance may vary based on system hardware & configuration

• Product Type 990 PRO

• NVMe  Yes

•  Operating Temperature 0 - 70 ℃ Operating Temperature

• Shock 1,500 G & 0.5 ms (Half sine)

• Management SW Magician Software for SSD management

 ZOTAC Gaming GeForce RTX 4080 Super AMP DLSS 3 16GB GDDR6X

GPU

GeForce RTX 4080 SUPER
CUDA cores

10240
Video Memory

16GB GDDR6X
Memory Bus

256-bit
Engine Clock

Boost: 2610 MHz
Memory Clock

23 Gbps
PCI Express

4.0 16x
Display Outputs

3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
1 x HDMI Connector*
*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification
HDCP Support

2.3
Multi Display Capability

Quad Display
Recommended Power Supply

750W
Power Consumption

320W
Power Input

1 x 12VHPWR
DirectX

12 Ultimate
OpenGL4.6
CoolingIce

Storm 2.0
Slot Size

3.5 slot
SLIN/A
Supported OS

Windows 11 / 10 (64-bit, v1809 November 2018 or later)
Card Length

355.5mm x 149.6mm x 72.1mm / 14" x 5.9" x 2.8"
Accessories

GPU Support Stand
3-pin RGB Header Cable
3x 8-pin-to-12VHPWR cable
Manual

 NZXT H9 Flow Perforated Dual-Chamber Mid-Tower

The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.

• Unique uninterrupted glass panel for a clear view of the interior

• Intuitive cable management and dual chamber design

• Room for ten fans or three 360mm Radiators

• Perforated top panel for enhanced cooling

• Direct airflow to the GPU for handling high-powered components

• Enhanced experience with other products from the NZXT ecosystem

• Includes four F Series 120mm Quiet Airflow fans

 Liquid Freezer III 360 A-RGB Multi-Compatible AIO

Product Description:

Manufacturer:

Model:

 MSI MAG A850GL

• Efficiency Rating :  80 PLUS Gold (up to 90%)

• Modular :  Yes (full modular)

• Fan Size : 120 mm

• Fan Bearing : Fluid Dynamic Bearing

• Dimensions (DxWxH) : 140 x 150 x 86 mm

• PFC Type : Active PFC

• Input Voltage Range : 100~240 VAC

• Power Watt : 850W

• Power Excursion : 1700W (*up to 200% of the PSU's rated power for 100μs)

• Input Frequency Range : 47-63Hz

• Protection : OCP / OVP / OPP / OTP / SCP / UVP

• ATX (24 pin) : 1

• EPS (4+4 pin) : 2

• PCI-E 5.0 (16 pin) : 1 (600W)

• PCI-E (6+2 pin) : 4

• SATA (15 pin) : 8

• MOLEX (4 pin) : 4

• FDD (4 pin) : 1
