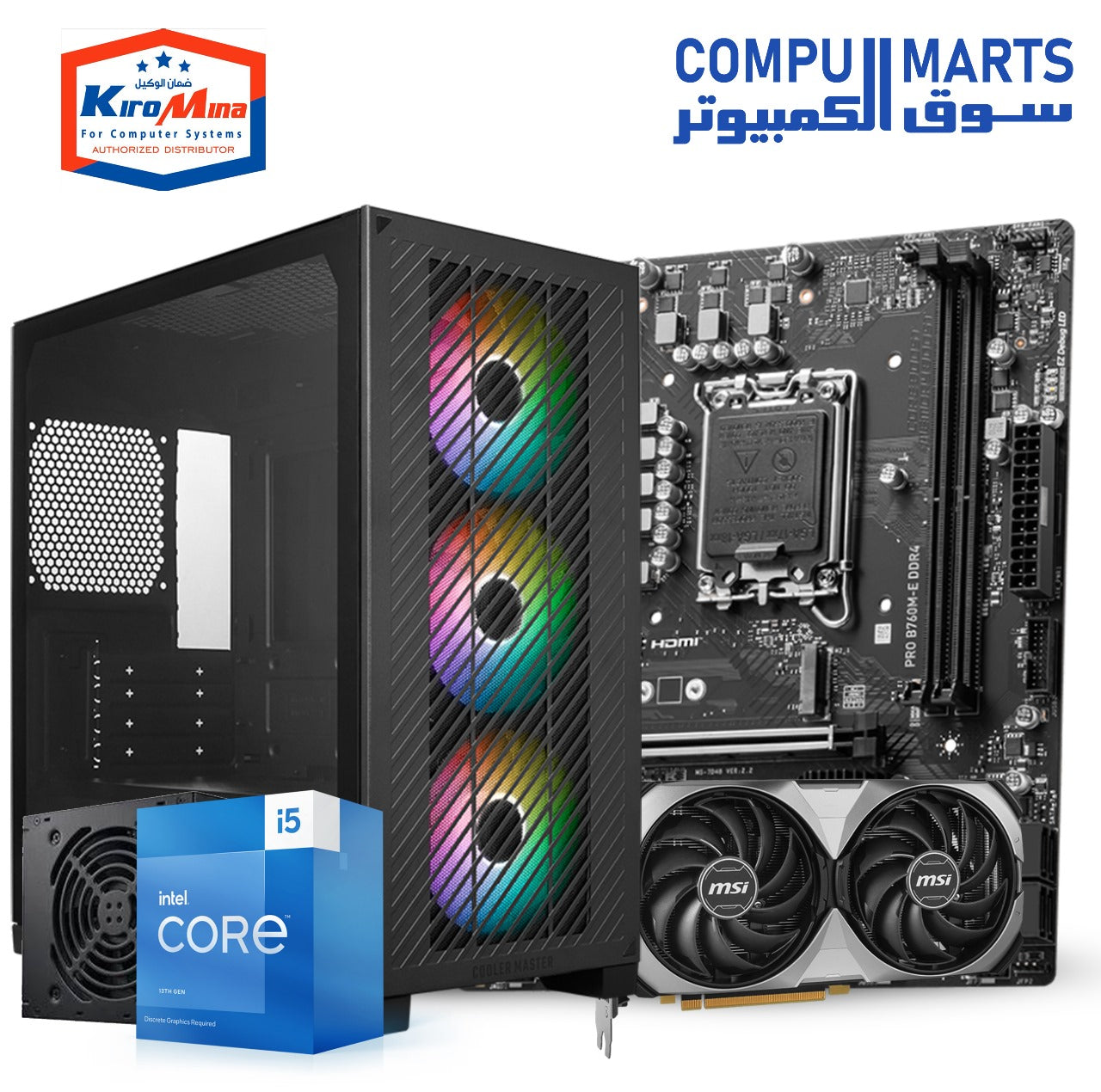

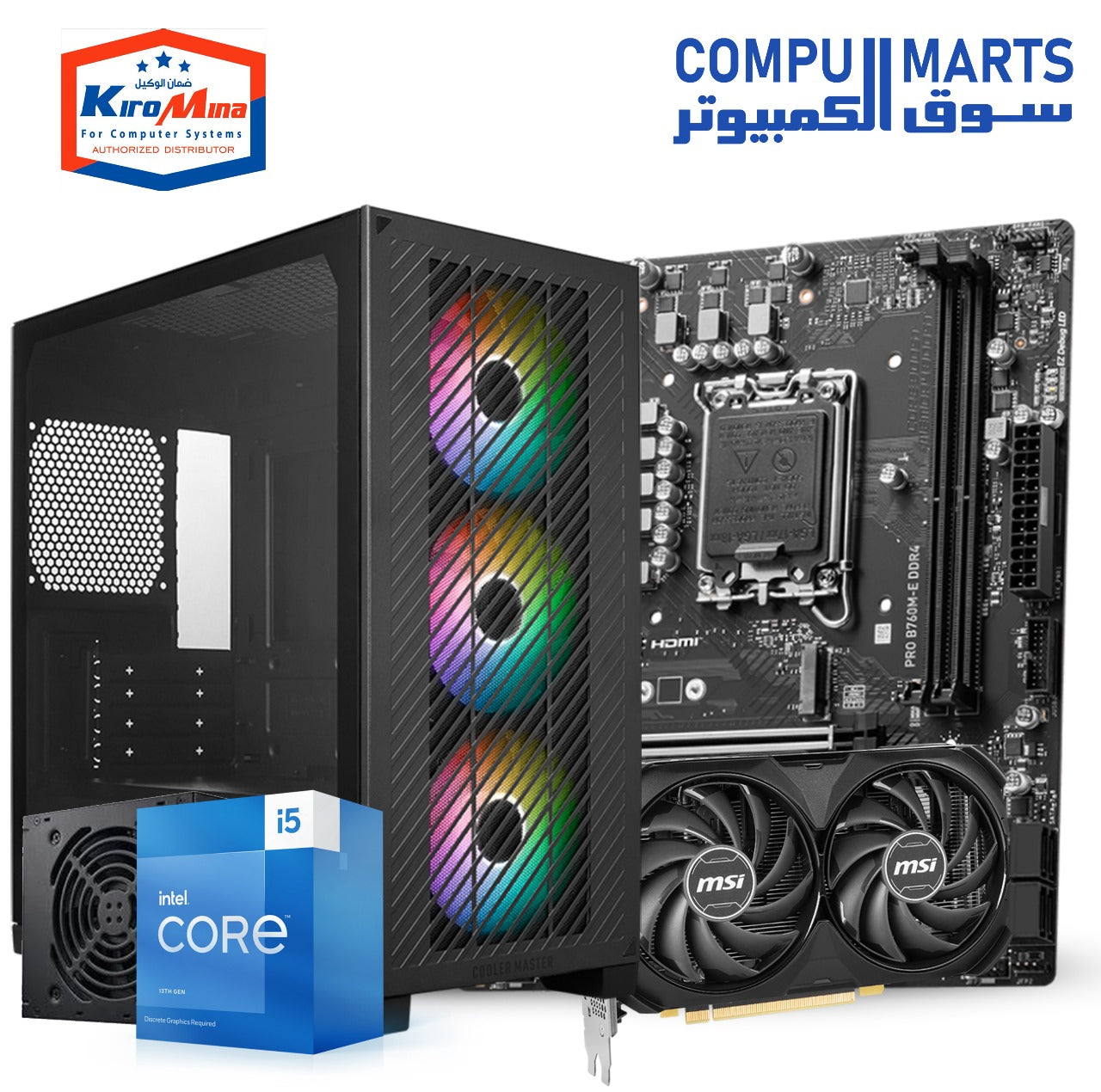

Ramadan Flex lIntel Core i5 14400F processor l MSI PRO B760M-E Motherboard l Cooler Master Elite 301 Lite Case l MSI RTX 4060 TI l MSI GeForce RTX 4070 l Bundles
Ramadan Flex lIntel Core i5 14400F processor l MSI PRO B760M-E Motherboard l Cooler Master Elite 301 Lite Case l MSI RTX 4060 TI l MSI GeForce RTX 4070 l Bundles - MSI RTX 4060TI 8G VENTUS 2X OC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description
Intel Core i5 14400F 20M Cache, up to 4.70 GHz processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-14400F
Lithography
Intel 7
Use Conditions
PC/Client/Tablet
CPU Specifications
Total Cores
10
# of Performance-cores
6
# of Efficient-cores
4
CHIPSET |
INTEL B760 |
---|---|
CPU |
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron ProcessorsLGA 1700 |
MEMORY |
2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 6400+ MHz• 1DPC 2R Max speed up to 5600+ MHzSupports Intel XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
ONBOARD GRAPHICS |
1x HDMISupport HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
SLOT |
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
STORAGE |
1x M.2M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) |
LAN |
Realtek RTL8111H Gigabit LAN |
AUDIO |
Realtek ALC897 Codec7.1-Channel High Definition Audio |
INTERNAL IO |
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports |
LED FEATURE |
4x EZ Debug LED |
BACK PANEL PORTS |
|
OPERATING SYSTEM |
Support for Windows 11 64-bit, Windows 10 64-bit |
PCB INFO |
mATX200mmx236.16mm |
BOX CONTENT |
![]() |
Cooler Master Elite 301 Lite Case + Elite NEX PN700 230V power Supply
Cooler Master Elite 301 Lite Micro-ATX High Airflow PC Case
Materials Steel, Plastic, Tempered Glass (Left Side Panel)
Dimensions (L x W x H) 390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions
Motherboard Support ITX / Micro ATX
Expansion Slots 4
3.5" Drive Bays 1
2.5" Drive Bays 1 (Max. 2)
I/O Panel1x USB 3.2 Gen 1 Type-A
I/O Panel1x USB 3.2 Gen 1 Type-C
I/O Panel - Audio In / Out 1x 3.5mm Combo
Pre-installed Fans - Fron t3x 120mm CF120 ARGB
Fan Support - Front 3x 120mm
Fan Support - Top 2x 120mm / 2x 140mm
Fan Support - Rear 1 x 120mm
Radiator Support - Front 120 / 240mm
Radiator Support - Top 120 / 140 / 240 / 280mm
Radiator Support - Rear 120mm
Clearance - CPU Cooler 163.5mm
Clearance - PSU 160mm
Clearance - GFX 365mm (without front fans & radiator)
Cable Routing 18.5mm
Dust Filters Top / Bottom / Front
Power Supply Support ATX
Warranty 2 years
Series Elite Series
Size Mini Tower
Elite NEX PN700 230V power Supply
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 200-240V
Input Current 4.5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Sleeve Fan
Efficiency ≥ 75% @ Typical Load
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 500 ms
Hold Up Time ≥10ms at 100% load
MTBF >100,000 Hours
Protections OVP / OPP / SCP / UVP / OTP / Inrush Protection
Regulatory TUV, CE, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
SATA Connectors 5
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Series Elite Series
Category 500 to 750W
Modular Non Modular
80 Plus Efficiency None 80 PLUS
Form Factor ATX
Watts 700W
MSI RTX 4060 TI Ventus 2X OC 8GB GDDR6
Brand |
MSI |
---|---|
Series |
Ventus |
Model |
RTX 4060 Ti VENTUS 2X BLACK 8G OC |
Interface |
PCI Express 4.0 x8 |
---|
Chipset Manufacturer |
NVIDIA |
---|---|
GPU Series |
NVIDIA GeForce RTX 40 Series |
GPU |
GeForce RTX 4060 Ti |
CUDA Cores |
4352 Cores |
Effective Memory Clock |
18000 MHz (18 Gbps) |
---|---|
Memory Size |
8GB |
Memory Interface |
128-Bit |
Memory Type |
GDDR6 |
DirectX |
DirectX 12 Ultimate |
---|---|
OpenGL |
OpenGL 4.6 |
Multi-Monitor Support |
4 |
---|---|
HDMI |
1 x HDMI 2.1a |
DisplayPort |
3 x DisplayPort 1.4a |
Max Resolution |
7680 x 4320 |
---|---|
Cooler |
Double Fans |
Thermal Design Power |
160W |
Power Connector |
8-Pin |
HDCP Ready |
Yes |
Form Factor |
ATX |
---|---|
Max GPU Length |
199 mm |
MSI RTX 4060 TI VENTUS 2X 16GB OC GRAPHICS CARD 912-V517-005
MODEL NAME |
GeForce RTX 4060 Ti VENTUS 2X BLACK 16G OC |
GRAPHICS PROCESSING UNIT |
GeForceGeForce RTX 4060 Ti |
INTERFACE |
PCI Express Gen 4 x16 (uses x8) |
CORE CLOCKS |
Extreme Performance: 2625 MHz (MSI Center)Boost: 2610 MHz |
CUDA CORES |
4352 Units |
MEMORY SPEED |
18 Gbps |
MEMORY |
16GB GDDR6 |
MEMORY BUS |
128-bit |
OUTPUT |
DisplayPort x 3 (v1.4a)HDMI x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
HDCP SUPPORT |
Y |
POWER CONSUMPTION |
165 W |
POWER CONNECTORS |
8-pin x 1 |
RECOMMENDED PSU |
550 W |
CARD DIMENSION (MM) |
199 x 120 x 42 mm |
WEIGHT (CARD / PACKAGE) |
595 g / 832 g |
DIRECTX VERSION SUPPORT |
12 Ultimate |
OPENGL VERSION SUPPORT |
4.6 |
MAXIMUM DISPLAYS |
4 |
G-SYNC TECHNOLOGY |
Y |
DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
MSI GeForce RTX 4070 SUPER 12G VENTUS 2X OC
