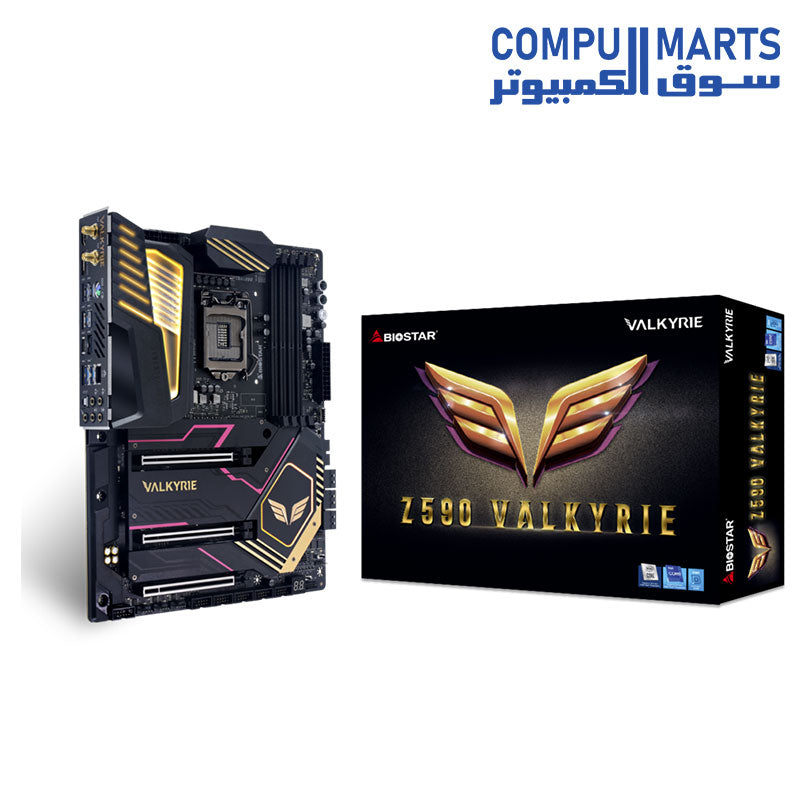

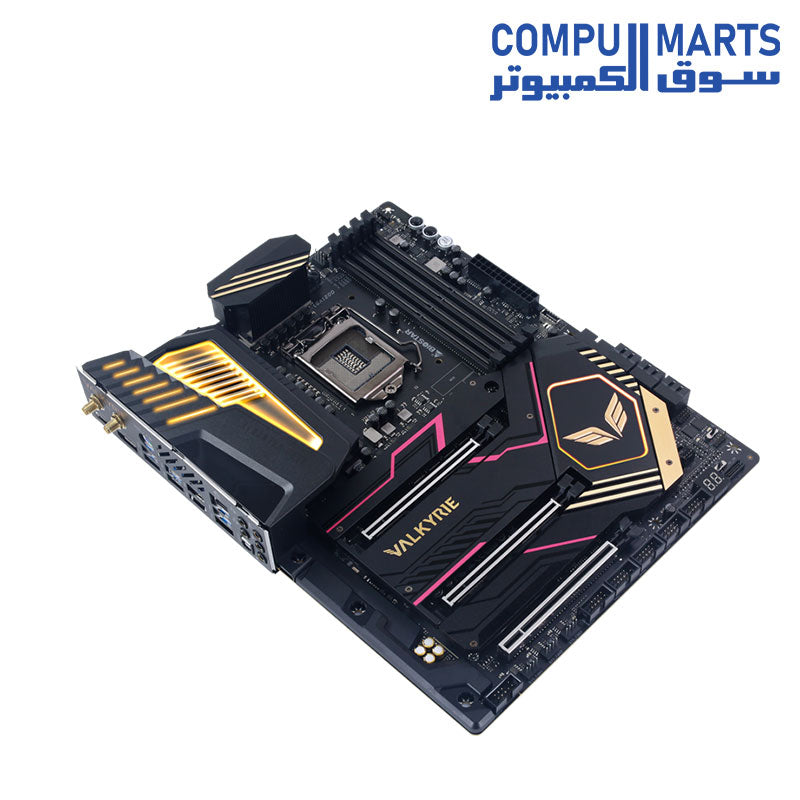

Biostar Z590 Valkyrie DDR4 ATX Motherboard, Intel Z590 Chipset, 10/11th Gen LGA1200

Chipset

Intel Z590

CPU SUPPORT

Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

Supports Intel Turbo Boost Max 3.0 Technology

MEMORY

Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133

4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory

Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module

Support Intel Extreme Memory Profile (XMP) memory modules

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

-- Total supports 3 x M.2 socket and 6x SATA III (6Gb/s) ports

6 x SATA III (6Gb/s) Connector : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):

Supports M.2 Type 2280 SSD module

Supports PCIe 4.0 x 4 (64Gb/s)

Support 11th Gen processor only

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):

Supports M.2 Type 2280/ 22110 SSD module

Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD

Supports Intel Rapid Storage Technology and Intel Optane Technology

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_2):

Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD

Supports Intel Rapid Storage Technology and Intel Optane Technology

 M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.

 When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_RST_1), the SATA_5 connector will be disabled.

 When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_2), the SATA_6 connector will be disabled.

 Specifications vary by CPU types

LAN

Realtek RTL8125B

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

ALC1220

7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)

USB

2 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O and 1 via internal header)

5 x USB 3.2 (Gen2) port (5 on rear I/Os)

4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal header)

4 x USB 2.0 port (4 via internal header)

EXPANSION SLOT

1 x PCIe 4.0 x 16 Slot (x16 or x8 mode)

1 x PCIe 4.0 x 16 Slot (x8 mode)

1 x PCIe 3.0 x 16 Slot (x4 mode)

 The PCIe x 16 (PCIE4X16) slot speed is changed to x 8 mode in the following situations:

1. The use of the PCIe x16 (PCIE4X16) slot and PCIe x 8 (PCIE4X8) slot simultaneously.

2. When using AMD Crossfire technology.

 According to different CPUs will have different speeds.

 PCIe 4.0 speed only for INTEL 11th Gen CPUs.

 Specifications vary by CPU types

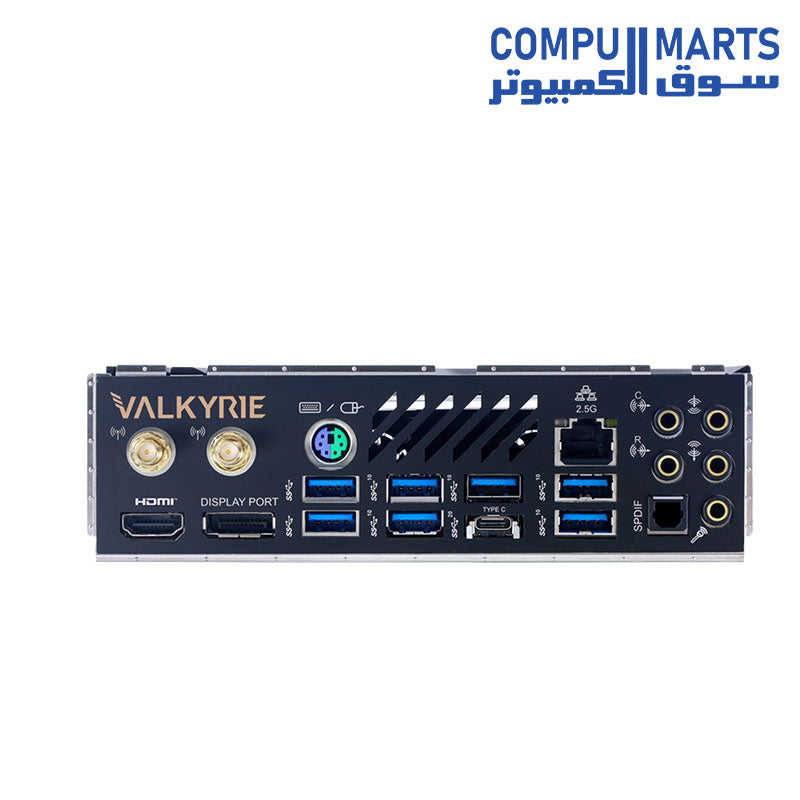

REAR I/O

2 x WIFI Antenna Ports

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI Port (HDMI2.0)

1 x DP Port (DP1.4)

1 x USB 3.2 (Gen2x2) Type-C Port

5 x USB 3.2 (Gen2) Ports

2 x USB 3.2 (Gen1) ports

1 x 2.5 GbE LAN port

5 x Audio Jack

1 x SPDIF_Out

INTERNAL I/O

6 x SATA III Connectors (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port)

2 x 8-Pin Power Connectors

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

3 x System Fan Connectors

2 x MOSFET Fan Connectors

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Switch Button

1 x Power Switch Button

1 x Reset Switch Button

1 x COM Port Header

1 x TPM Header

1 x Thunderbolt 3 Header

2 x LED Header (5V)

1 x LED Header (12V)

1 x IO LED Header

1 x SB LED Header

* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

ATX Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )

OS SUPPORT

Supports Windows 10(64bit) / 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

AURORA Utility

ACCESSORIES

4 x SATA Cable

1 x DVD Driver

1 x User Manual

1 x Smart Connector

FEATURES

VIVID LED DJ

M.2 Cooling Protection

Touch Button

Dual BIOS

Tweak Tech

Rapid Debug3

BIO-FLASHER

A.I FAN

LED ROCK ZONE

RGB Memory Sync

BIOS EZ Mode /Advanced Mode

Intel Optane technology
