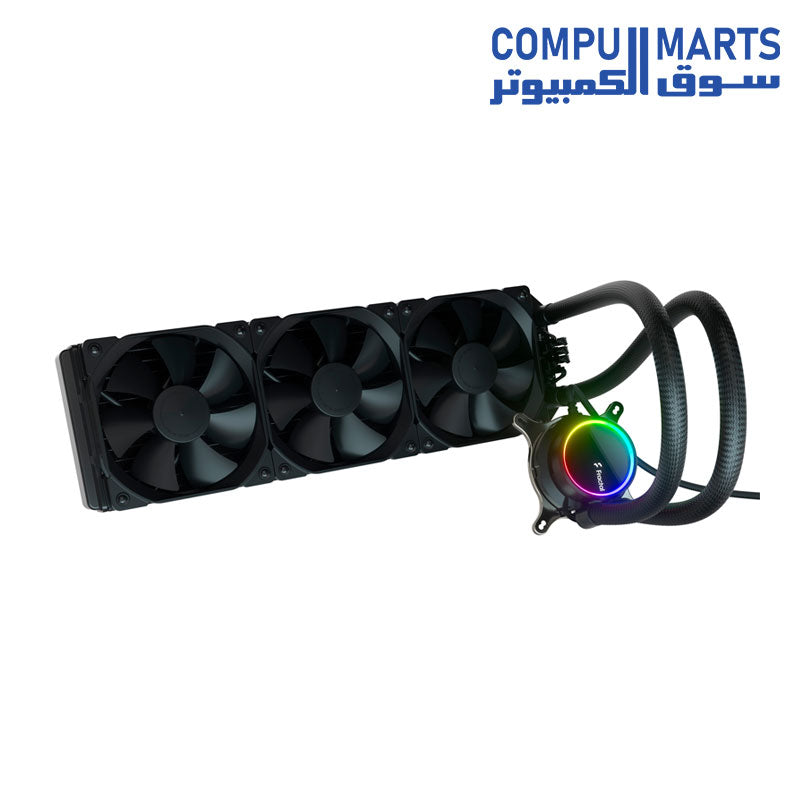

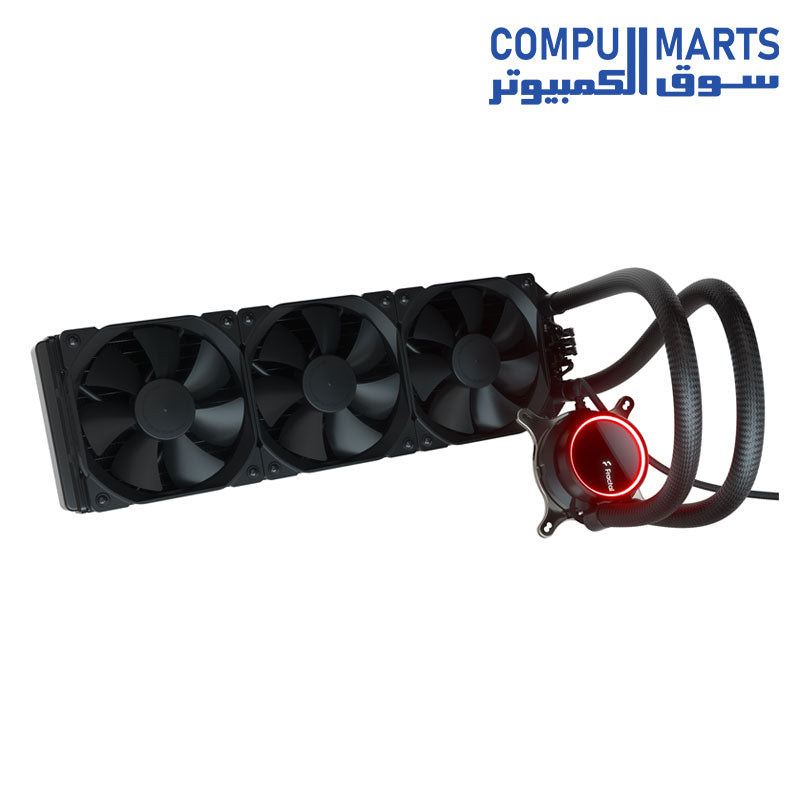

Fractal Design Celsius+ S36 Dynamic Water Cooling Unit
General specifications
-
Sockets supported (Intel)
1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
-
Sockets supported (AMD)
AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
-
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
-

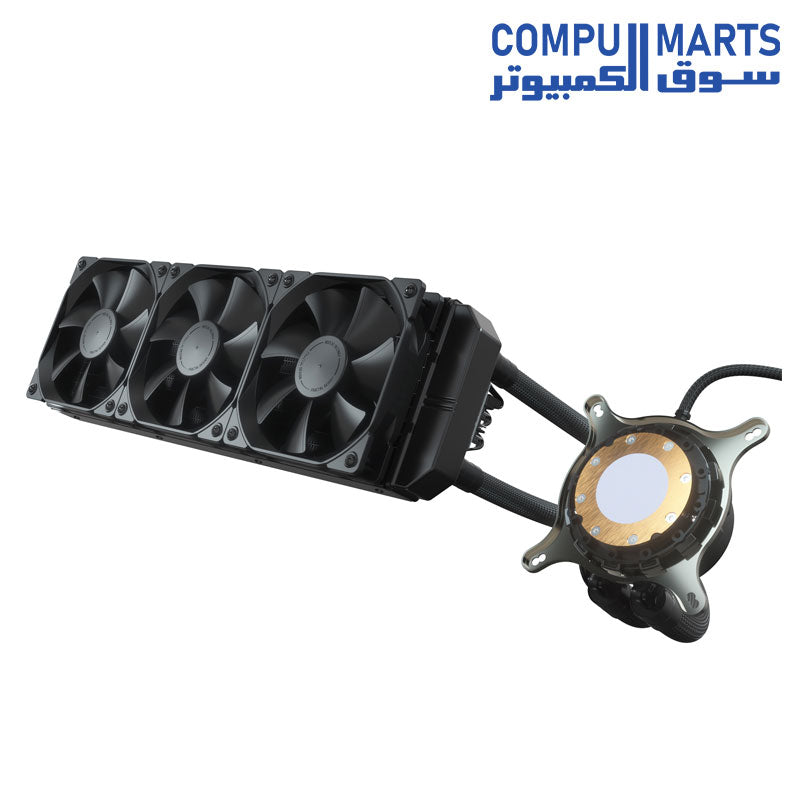

Coldplate material
Copper
-
Thermal paste
Pre-applied
-
Tube length
400 mm
-
Tube material
Low-permeability rubber with braided nylon sleeve
-
Fittings, block side
Articulating 90-degree elbow
-
Fittings, radiator side
Straight rotary
-
Fan control
Dual mode (Auto/PWM)
-
Note:
The Celsius+ is NOT compatible with the Adjust R1
Fan specifications
-
Fan type
Dynamic X2 GP-12 PWM
-
Rotational speed
500 – 2000 RPM
-
Bearing
LLS
-
PWM control
Yes
-
Acoustical noise (full speed)
32.2 dBA
-
Maximum air flow
87.6 CFM
-
Maximum static pressure
2.3 mm H2O
-
Input voltage
12V DC
-
Maximum input current
0.2A
-
MTBF
100,000 hours
Pump specifications
-
Rotational speed
800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
-
Bearing type
Ceramic bearing and shaft
-
PWM control
Yes
-
Acoustical noise (full speed)
20 dBA
-
Maximum pressure
14.4 kPa / 1.46 mm H2O /2.0 PSI
-
Input voltage
12V DC
-
Input current (without fans)
0.36A
-
MTTF
50,000 hours
-
Block height
45 mm
-
Block measurements (with fittings)
86 x 75 mm
-
Block diameter (main block body)
62 mm
Radiator specifications
-
Dimensions
123 x 30 x 403 mm
-
Housing material
Aluminum
-
Fin material
Aluminum
-
Fan screw threads
6-32
Other
-
Package contents
Celsius+ S36 unit, 3 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
-
Package Dimensions
470 x 180 x 145 mm
-
EAN
7340172702092
-
UPC
843276102098
-
JAN
4537694275538
-
Product code
FD-W-2-S3601
-
Warranty
5 years
-
High-performance Dynamic X2 PWM fans provide excellent airflow with minimal noise
-
Optimized fan geometry balances airflow with extra emphasis on static pressure
-
Strategic blade notches diffuse noise from blade/stator interaction
-
Trip Wire technology reduces blade turbulence
-
LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
Get the balance right

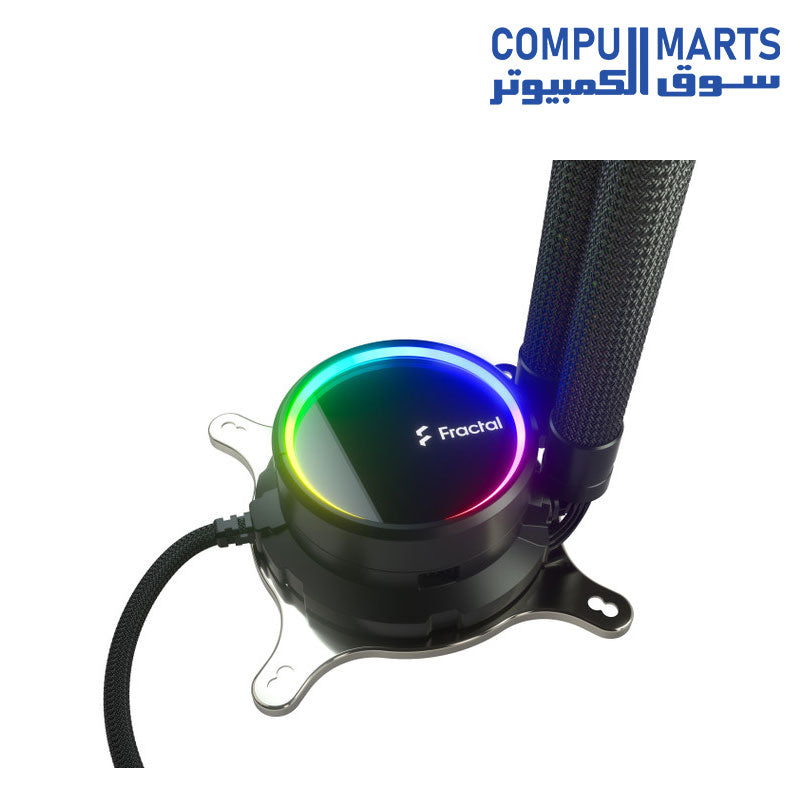

Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control

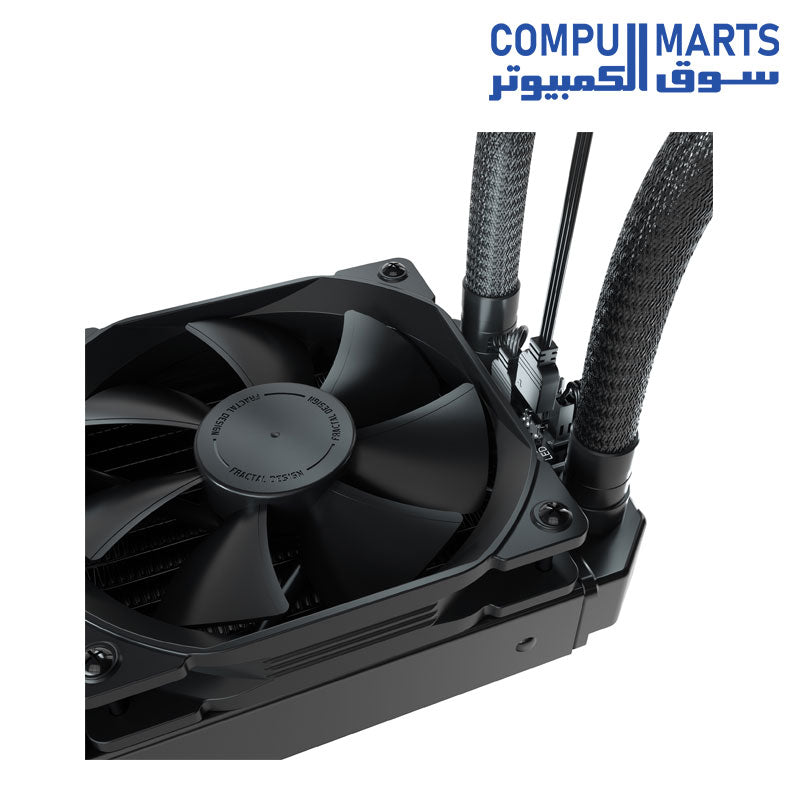

Tidier through technologyARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
Color-coordinated cooling
Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
Mounting made easySupports the most common sockets for both Intel and AMDCompatible with LGA 1700 and AM5
