Gigabyte B650M Gaming X AX Motherboard

Gigabyte B650M Gaming X AX Motherboard

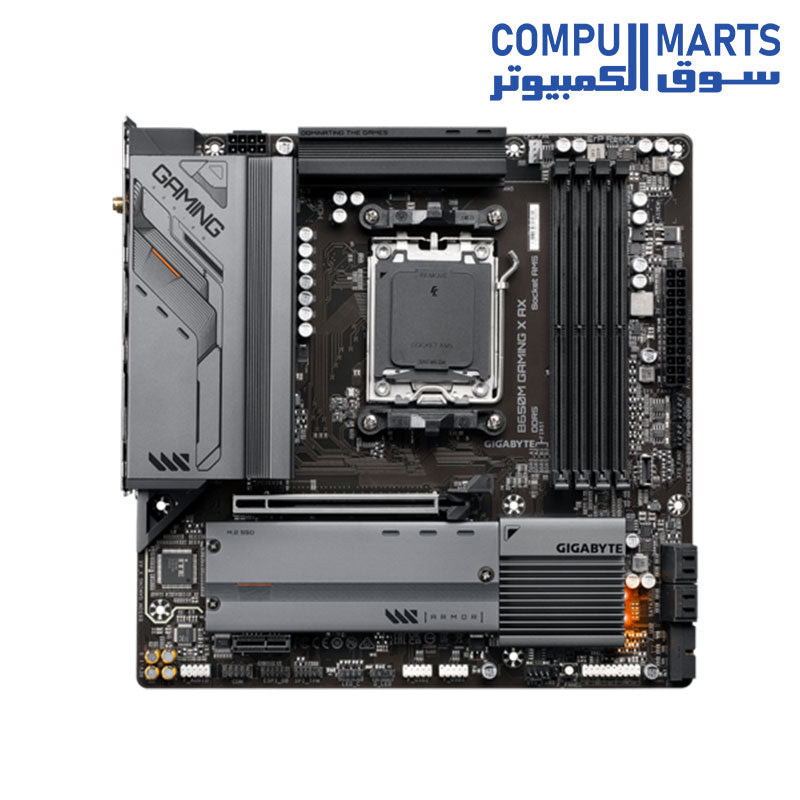

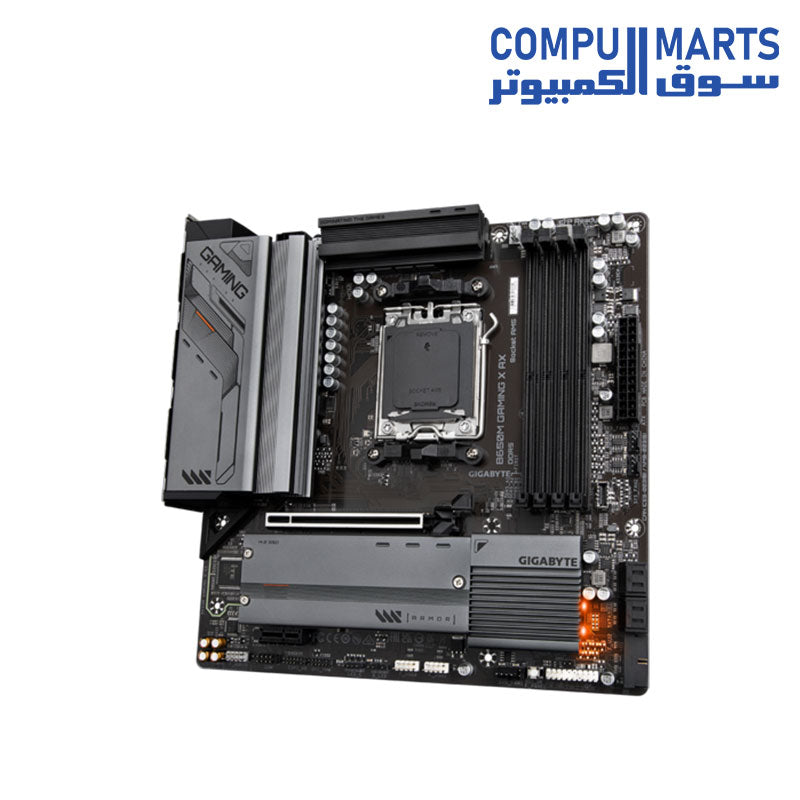

• AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors

• Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution

• Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

• SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance

• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design

• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

• Extended Connectivity：2*DP, HDMI, 2*USB-C 10Gb/s

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  1. AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. AMD B650

• Memory

  1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,

• Onboard Graphics Integrated Graphics Processor:

  1. 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz

     * Support for DisplayPort 1.4 version.

  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

     * Support for HDMI 2.1 version and HDCP 2.3.

     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  Intel Wi-Fi 6E AX210 (For PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

• Storage Interface CPU:

  1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB CPU:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 3 x system fan headers

  5. 1 x addressable LED strip header

  6. 1 x RGB LED strip header

  7. 2 x M.2 Socket 3 connectors

  8. 4 x SATA 6Gb/s connectors

  9. 1 x front panel header

  10. 1 x front panel audio header

  11. 1 x USB Type-C header, with USB 3.2 Gen 2 support

  12. 1 x USB 3.2 Gen 1 header

  13. 2 x USB 2.0/1.1 headers

  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  15. 1 x serial port header

  16. 1 x reset button

  17. 1 x reset jumper

  18. 1 x Clear CMOS jumper

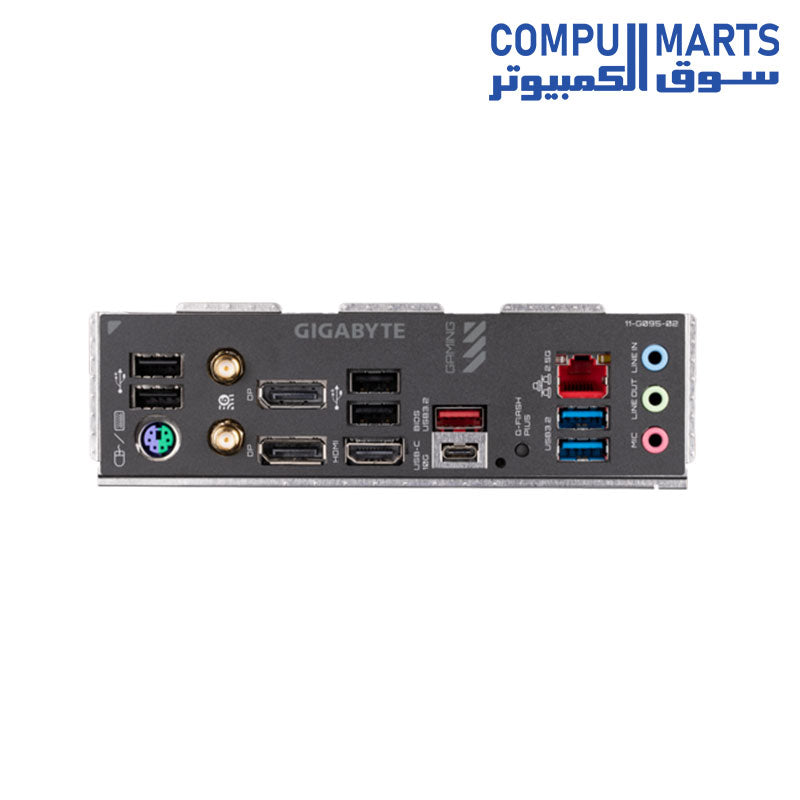

• Back Panel Connectors

  1. 4 x USB 2.0/1.1 ports

  2. 1 x PS/2 keyboard/mouse port

  3. 2 x SMA antenna connectors (2T2R)

  4. 2 x DisplayPorts

  5. 1 x HDMI port

  6. 1 x USB 3.2 Gen 2 Type-A port (red)

  7. 1 x USB Type-C port, with USB 3.2 Gen 2 support

  8. 1 x Q-Flash Plus button

  9. 1 x RJ-45 port

  10. 2 x USB 3.2 Gen 1 ports

  11. 3 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Fan fail warning

  5. Fan speed control

     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm
