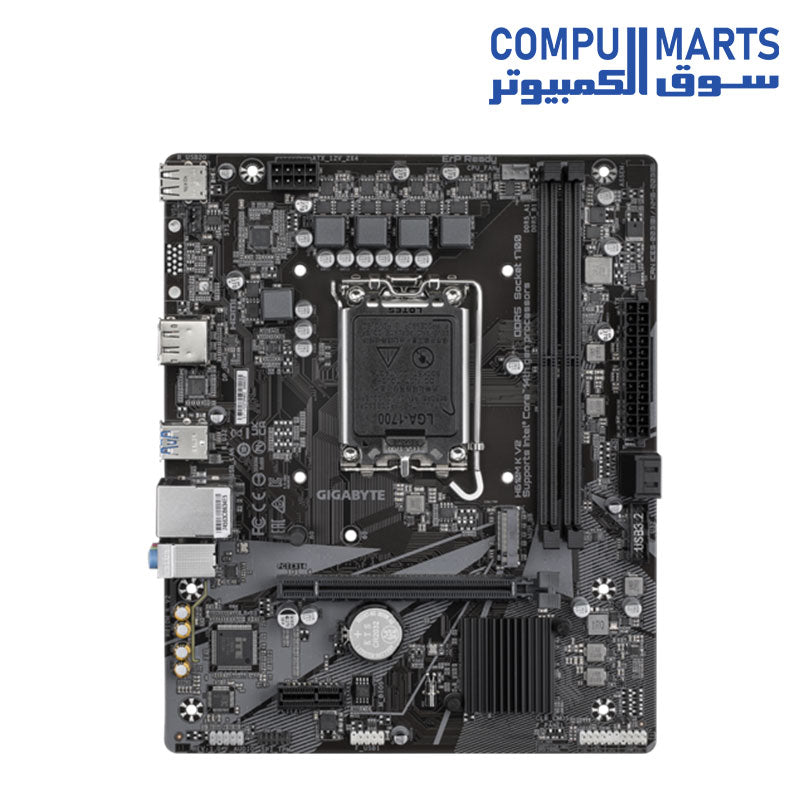

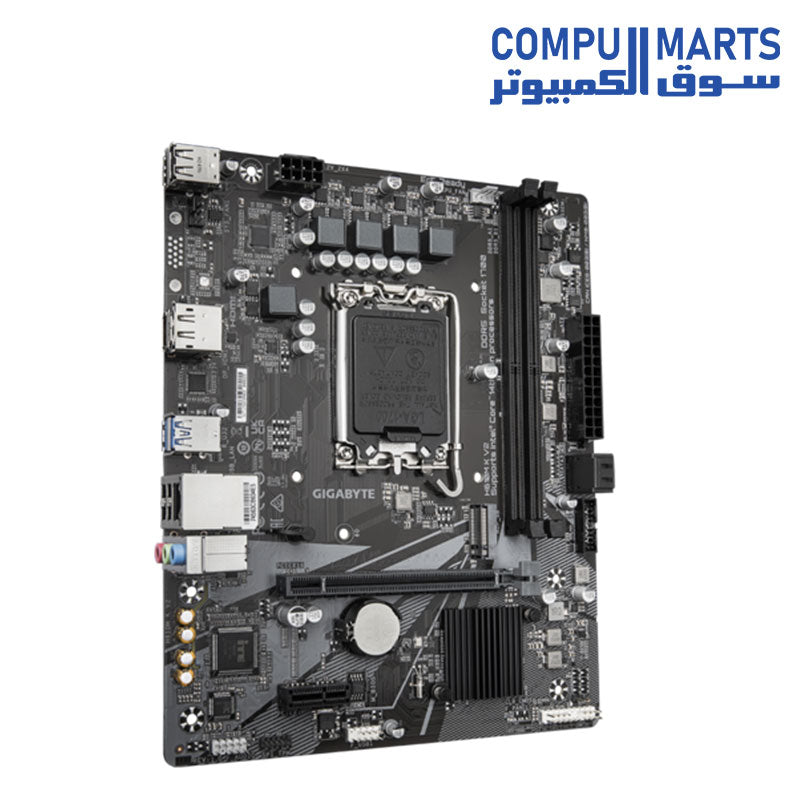

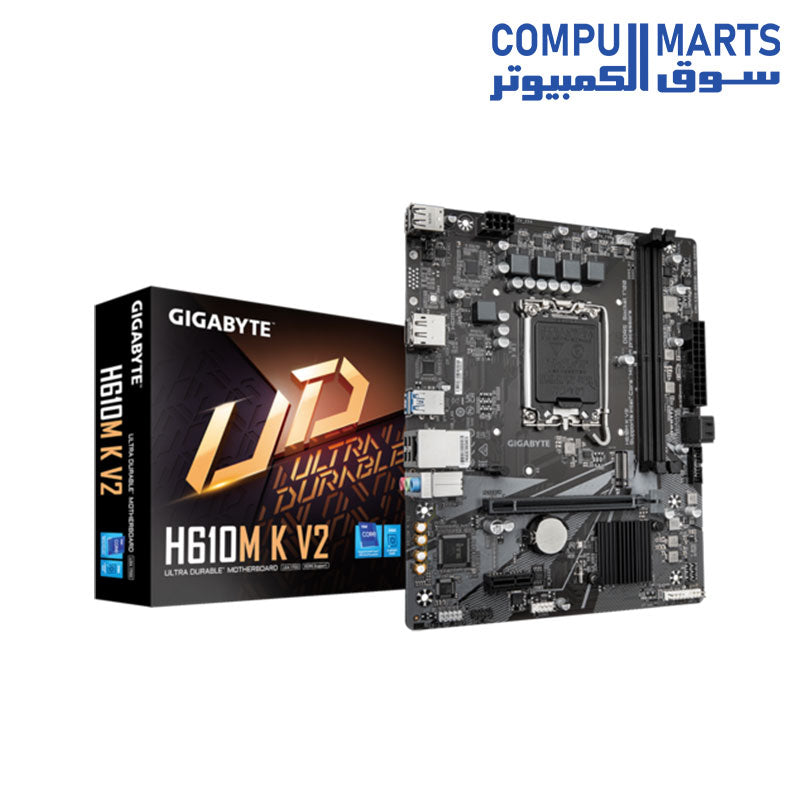

Gigabyte H610M K V2 Motherboard

Gigabyte H610M K V2

PCIe 4.0 Design, Gen3 x4 M.2 ,GbE LAN ,Anti-Sulfur Resistor, Smart Fan 6

• Supports Intel Core 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​

• GbE LAN with Bandwidth Management​

• NVMe PCIe 3.0 x4 M.2​

• High Quality Audio Capacitors and Audio Noise Guard​

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​

• GIGABYTE APP Center, Simple and Easy Use​

• Anti-Sulfur Resistors Design​

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  L3 cache varies with CPU

• Chipset

  Intel H610 Express Chipset

• Memory

  14th and 13th Generation Intel Core i9/i7 Pocessors:
  - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core , Pentium Gold and Celeron Processors:
  - Support for DDR5 4800/4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.


  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3


  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  - 2 x SATA 6Gb/s connectors

• USB

  Chipset:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x M.2 Socket 3 connector
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  1 x Clear CMOS jumper

• Back Panel Connectors

  1 x HDMI port
  1 x DisplayPort
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• I/O Controller

  iTE I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for APP Center


  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  - BIOS
  - EasyTune
  - Smart Backup
  - System Information Viewer
  Support for Q-Flash

• Bundled Software

  Norton Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  Micro ATX Form Factor; 22.6cm x 18.5cm
