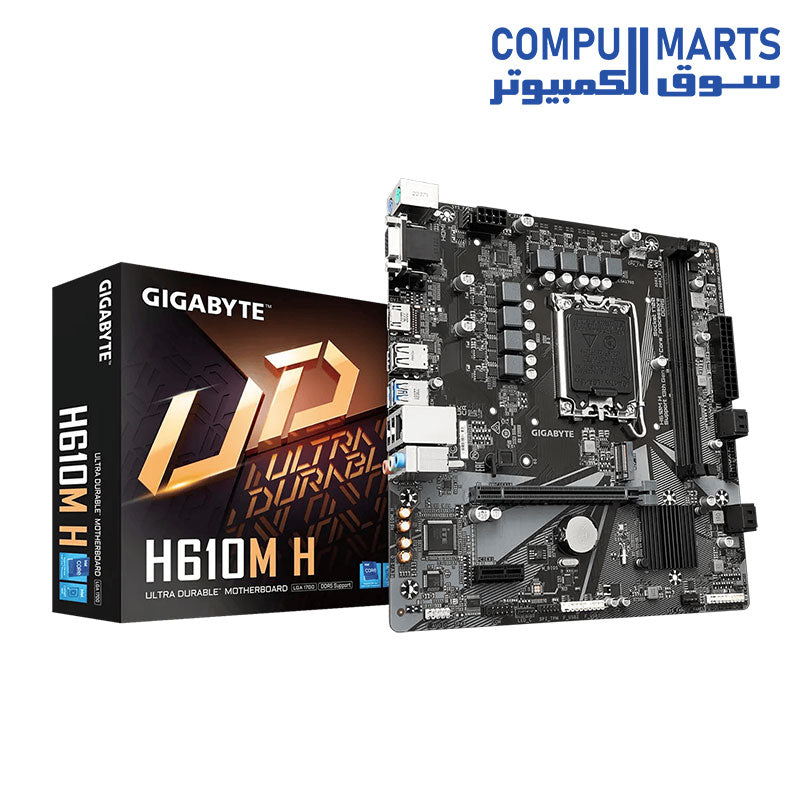

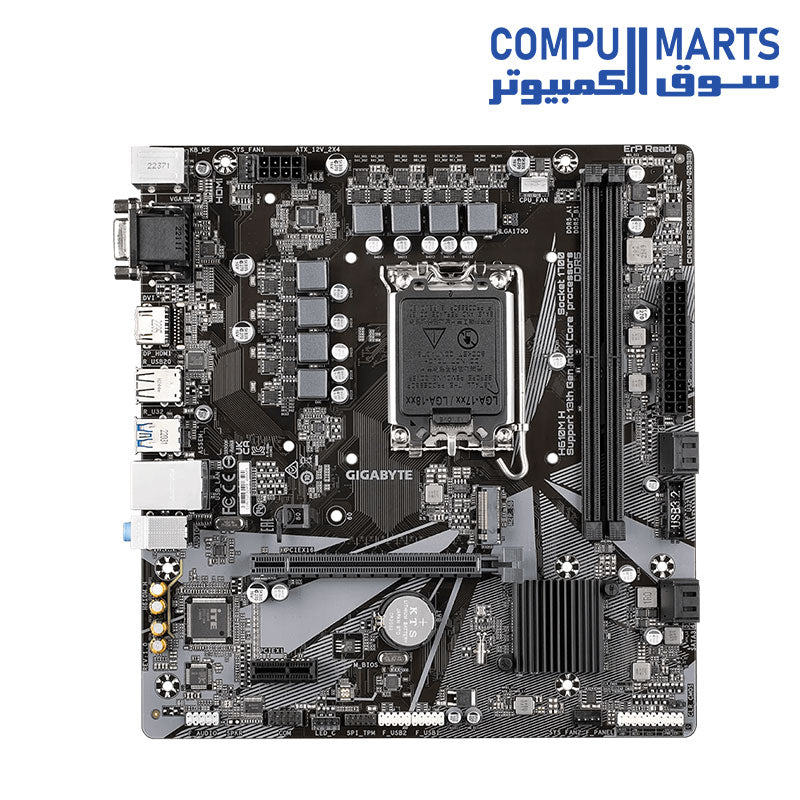

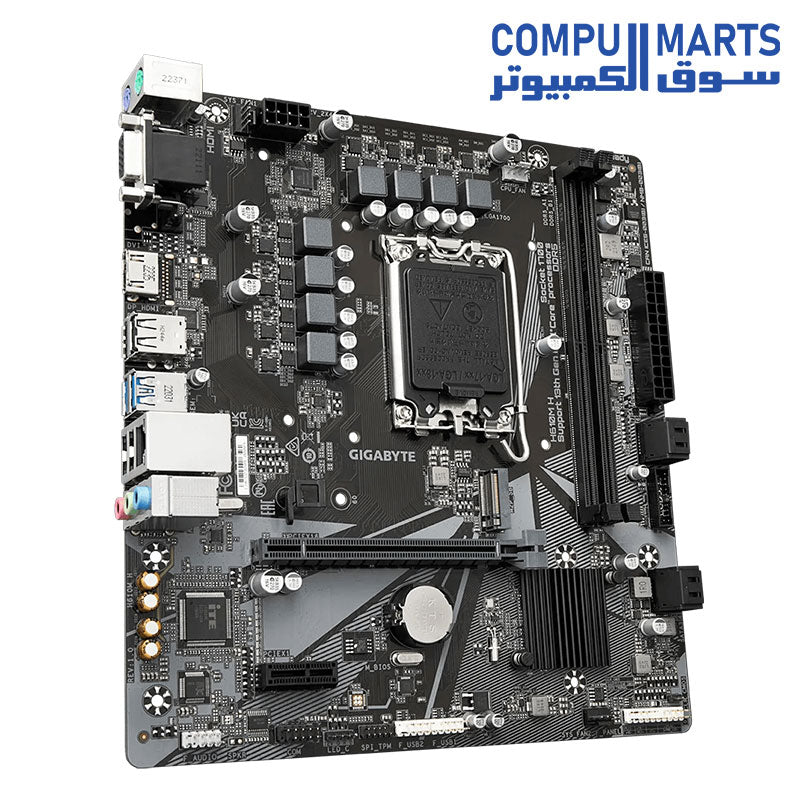

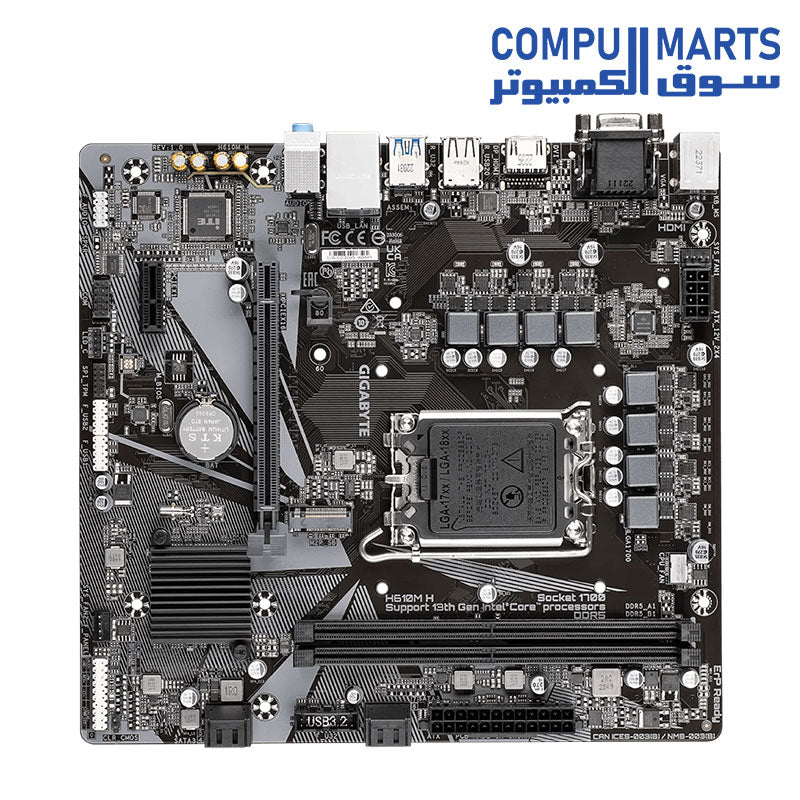

GIGABYTE Motherboard H610M H DDR5
GIGABYTE Motherboard H610M H DDR5 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Bostan Mall , 10th Floor , Bab Al Louq, Abdeen, Egypt
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description
GIGABYTE Motherboard H610M H DDR5
-
CPU
-
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
-
L3 cache varies with CPU
-
-
Chipset
-
Intel H610 Express Chipset
-
-
Memory
-
13th Generation Intel Core i9/i7 processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
-
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
-
Support for DDR5 4800/4400 MT/s memory modules
-
2 x DDR DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
-
Dual channel memory architecture
-
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
Support for Extreme Memory Profile (XMP) memory modules
-
-
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
-
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
-
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)
-
-
Audio
-
Realtek Audio CODEC
-
High Definition Audio
-
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
-
LAN
-
Realtek GbE LAN chip (1 Gbps/100 Mbps)
-
-
Expansion Slots
CPU:
-
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
-
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
-
-
Storage Interface
Chipset:
-
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
-
4 x SATA 6Gb/s connectors
-
-
USB
Chipset:
-
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
-
4 x USB 2.0/1.1 ports available through the internal USB headers
-
-
Internal I/O Connectors
-
1 x 24-pin ATX main power connector
-
1 x 8-pin ATX 12V power connector
-
1 x CPU fan header
-
2 x system fan headers
-
1 x M.2 Socket 3 connector
-
4 x SATA 6Gb/s connectors
-
1 x RGB LED strip header
-
1 x front panel header
-
1 x front panel audio header
-
1 x USB 3.2 Gen 1 header
-
2 x USB 2.0/1.1 headers
-
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
-
1 x serial port header
-
1 x Clear CMOS jumper
-
-

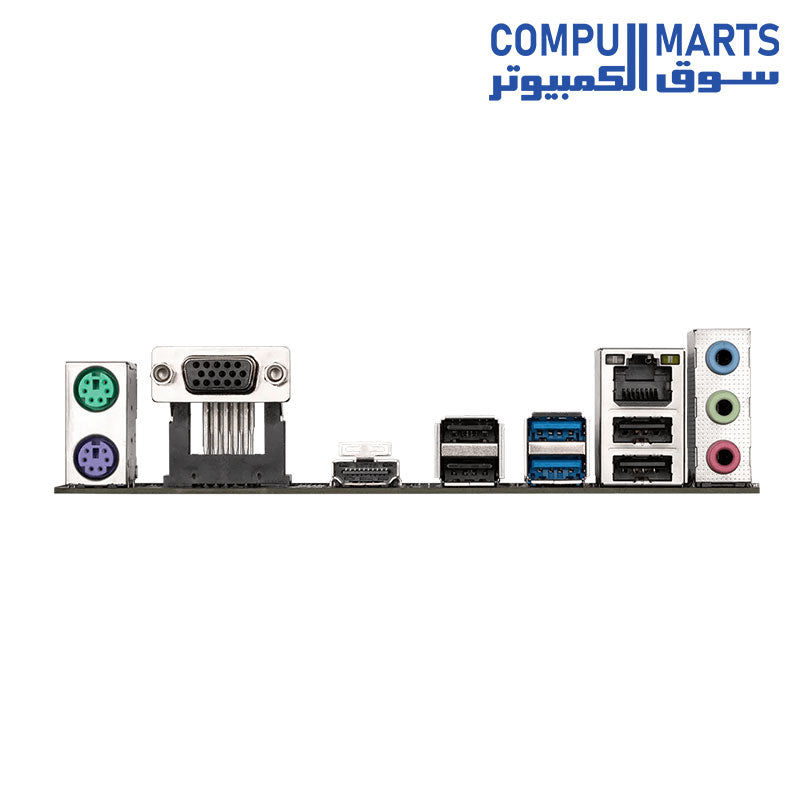

Back Panel Connectors
-
1 x PS/2 keyboard port
-
1 x PS/2 mouse port
-
1 x D-Sub port
-
1 x HDMI port
-
2 x USB 3.2 Gen 1 ports
-
4 x USB 2.0/1.1 ports
-
1 x RJ-45 port
-
3 x audio jacks
-
-
I/O Controller
-
iTE I/O Controller Chip
-
-
H/W Monitoring
-
Voltage detection
-
Temperature detection
-
Fan speed detection
-
Water cooling flow rate detection
-
Fan fail warning
-
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
-
BIOS
-
1 x 128 Mbit flash
-
Use of licensed AMI UEFI BIOS
-
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
-
Unique Features
-
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
-
Support for Q-Flash
-
Support for Xpress Install
-
-
Bundled Software
-
Norton Internet Security (OEM version)
-
LAN bandwidth management software
-
-
Operating System
-
Support for Windows 11 64-bit
-
Support for Windows 10 64-bit
-
-
Form Factor
-
Micro ATX Form Factor; 23.0cm x 21.5cm
-
