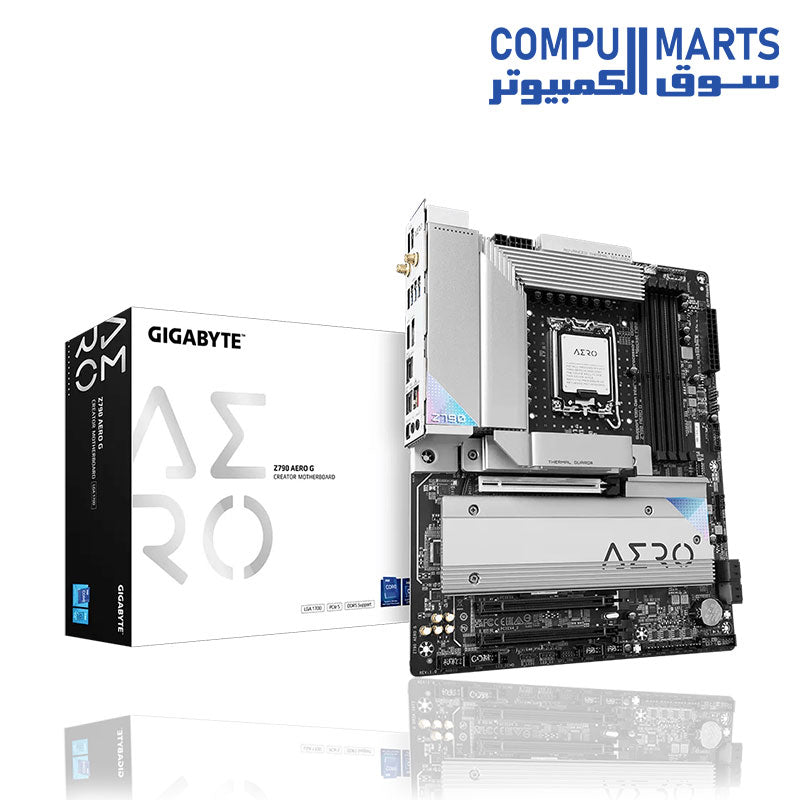

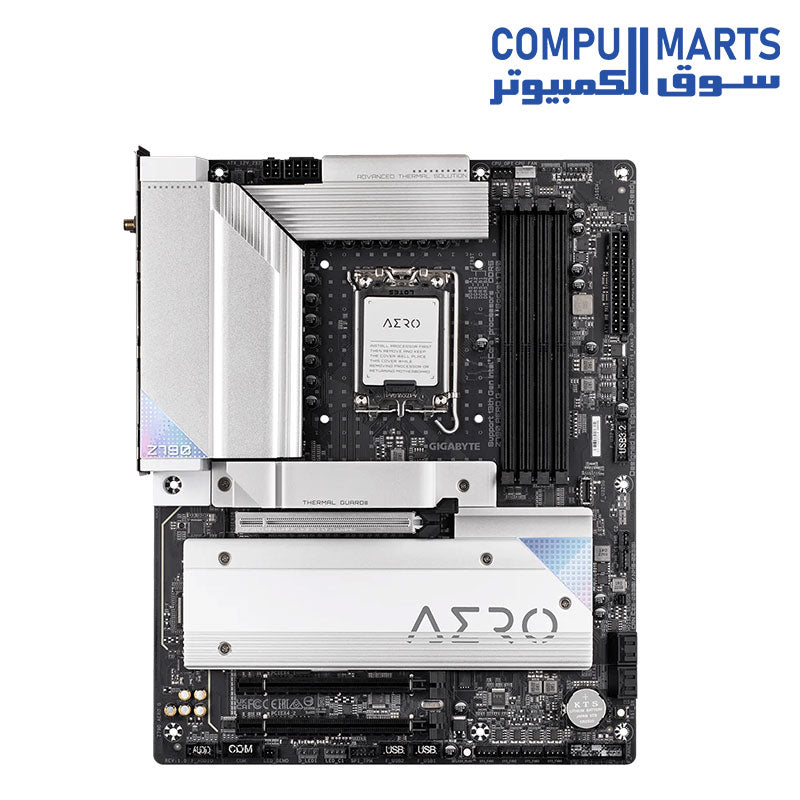

GIGABYTE Z790 AERO G DDR5 Motherboard

 GIGABYTE Z790 AERO G DDR5 Motherboard

GIGABYTE Creator Motherboard LGA 1700

• Supports 13th and 12th Gen Intel Core Series Processors

• Vision LINK : One USB-C Port for Video, Data Transfer and Charging

• Dual Channel DDR5 : 4*SMD DIMMs with XMP Memory Module Support

• Next Generation Storage : 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

• EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design

• Fast Networks : Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax

• Extended Connectivity : DP IN, HDMI, Front USB-C 20Gb/s Support

• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.

Intel 2.5GbE LAN

Wi-Fi 6E

SuperSpeed USB 20Gbps

Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.

PCIe 5.0 M.2 Slots &
Next-Gen Connector Dimension Design

Supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions.

PCIe 5.0 x16 Slot

PCIe x4 M.2

Creates Exclusive Storage Performance.

All PCIe x4 M.2 slots provide NVMe  SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.

Aesthetic Cooling Design.

GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.

• CPU

  LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  L3 cache varies with CPU







• Chipset : Intel Z790 Express Chipset

• Memory

  Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,




• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz

  * Support for drawing tablets and 20V@3A of power delivery.

  * Support for DisplayPort 1.4 version and HDR.

  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.0 version and HDCP 2.3.
  (Graphics specifications may vary depending on CPU or graphics card support.)




• Audio

  Realtek ALC1220-VB CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

  Support for S/PDIF Out

• LAN : Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)




• Wireless Communication module

  Intel Wi-Fi 6E AX211

  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  BLUETOOTH 5.3

  Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  (Actual data rate may vary depending on environment and equipment.)







• Expansion Slots




  CPU:

  1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

  Chipset:

  1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

  1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)




• Storage Interface

  CPU:

  1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

  1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)




  Chipset:

  1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices




• USB

  Chipset:

  2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

  1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  2 x USB 3.2 Gen 1 ports available through the internal USB header

  2 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 3.2 Gen 1 Hub:

  4 x USB 3.2 Gen 1 ports on the back panel
  Chipset+USB 2.0 Hub:

  4 x USB 2.0/1.1 ports available through the internal USB headers




• Internal I/O Connectors

  1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x 4-pin ATX 12V power connector

  1 x CPU fan header

  1 x water cooling CPU fan header

  4 x system fan headers

  2 x system fan/water cooling pump headers

  2 x addressable LED strip headers

  2 x RGB LED strip headers

  5 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x USB Type-C header, with USB 3.2 Gen 2x2 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x noise detection header

  2 x Thunderbolt add-in card connectors

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  1 x serial port header

  1 x Q-Flash Plus button

  1 x reset button

  1 x reset jumper

  2 x temperature sensor headers

  1 x Clear CMOS jumper




• Back Panel Connectors

  2 x USB 2.0/1.1 ports

  2 x SMA antenna connectors (2T2R)

  4 x USB 3.2 Gen 1 ports

  1 x DisplayPort In port

  1 x HDMI 2.0 port

  2 x USB 3.2 Gen 2 Type-A ports (red)

  1 x USB Type-C port, with USB 3.2 Gen 2x2 support

  1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support

  1 x RJ-45 port

  1 x optical S/PDIF Out connector

  2 x audio jacks




• I/O Controller : iTE  I/O Controller Chip

• H/W Monitoring

  Voltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend

  on the fan (pump) you install.

  Noise detection




• BIOS

  1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




• Unique Features

  Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus

  Support for Smart Backup

• Bundled Software

  Norton Internet Security (OEM version)

  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor : ATX Form Factor; 30.5cm x 24.4cm
