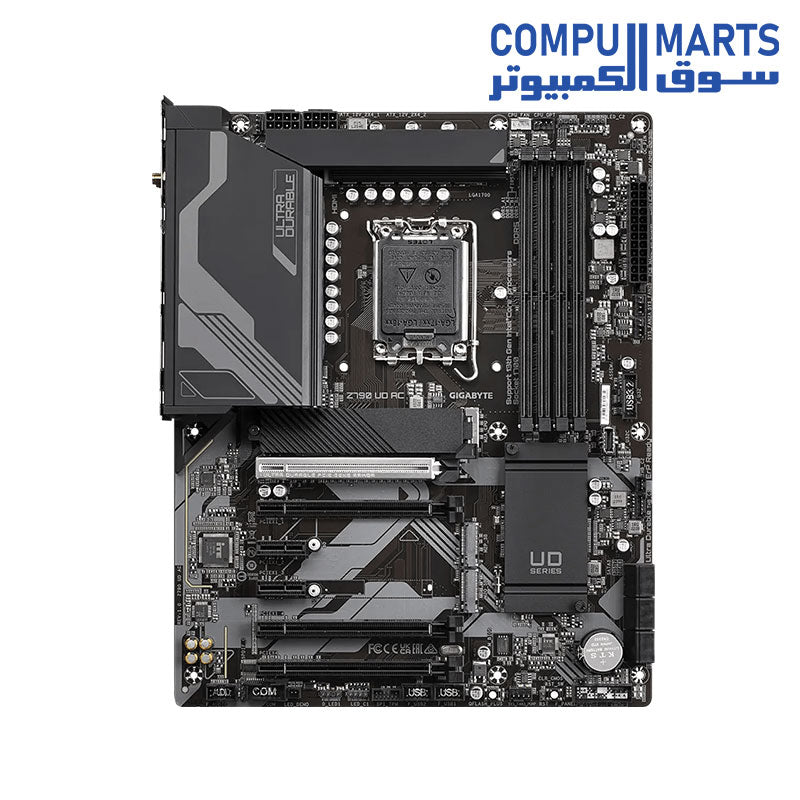

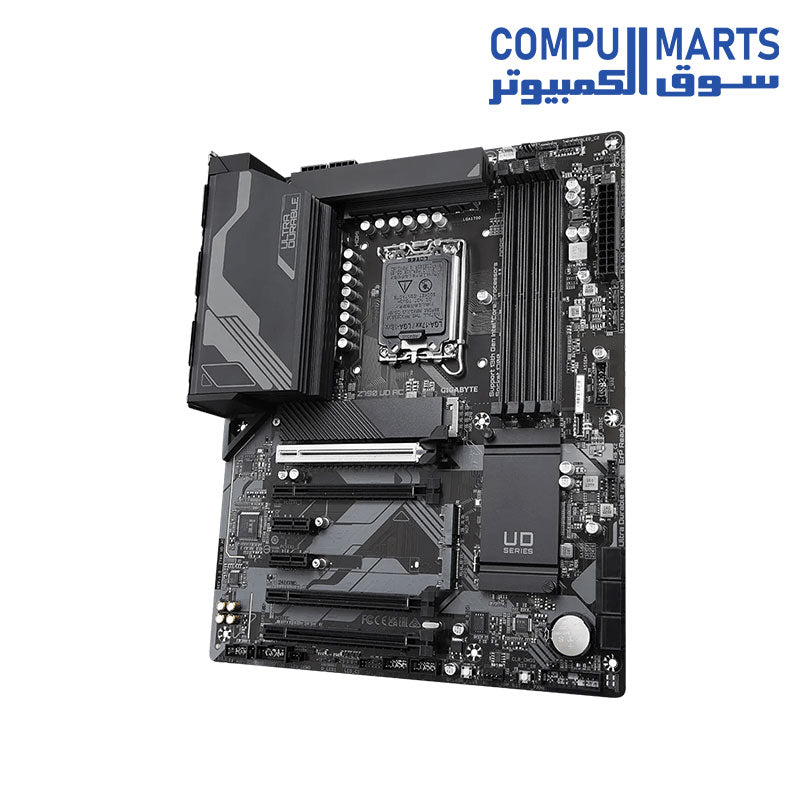

GIGABYTE Z790 UD AC DDR5 LGA 1700 Motherboard

GIGABYTE Z790 UD AC DDR5 LGA 1700 Motherboard

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors

• Unparalleled Performance：Twin 16+1+１ Phases Digital VRM Solution*

• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support

• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance

• EZ-Latch：PCIe 5.0 x16 Slot with Quick Release & Screwless Design

• Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac

• Extended Connectivity：DP, HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus： Update BIOS Without Installing the CPU, Memory, and Graphics Card

• CPU

  1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. Intel Z790 Express Chipset

• Memory

  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

     * Support for HDMI 2.0 version and HDCP 2.3.

  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

     * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  Realtek Wi-Fi RTL8821CE

  1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

  2. BLUETOOTH 4.2

  3. Support for 11ac wireless standard and up to 433 Mbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  2. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)

  3. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

  Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

  2. 6 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support

  2. 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 2 x 8-pin ATX 12V power connectors

  3. 1 x CPU fan header

  4. 1 x water cooling CPU fan header

  5. 3 x system fan headers

  6. 1 x system fan/water cooling pump header

  7. 2 x addressable LED strip headers

  8. 2 x RGB LED strip headers

  9. 3 x M.2 Socket 3 connectors

  10. 6 x SATA 6Gb/s connectors

  11. 1 x front panel header

  12. 1 x front panel audio header

  13. 1 x S/PDIF Out header

  14. 1 x USB Type-C header, with USB 3.2 Gen 1 support

  15. 1 x USB 3.2 Gen 1 header

  16. 2 x USB 2.0/1.1 headers

  17. 1 x serial port header

  18. 2 x Thunderbolt add-in card connectors

  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  20. 1 x reset button

  21. 1 x Q-Flash Plus button

  22. 1 x reset jumper

  23. 1 x Clear CMOS jumper

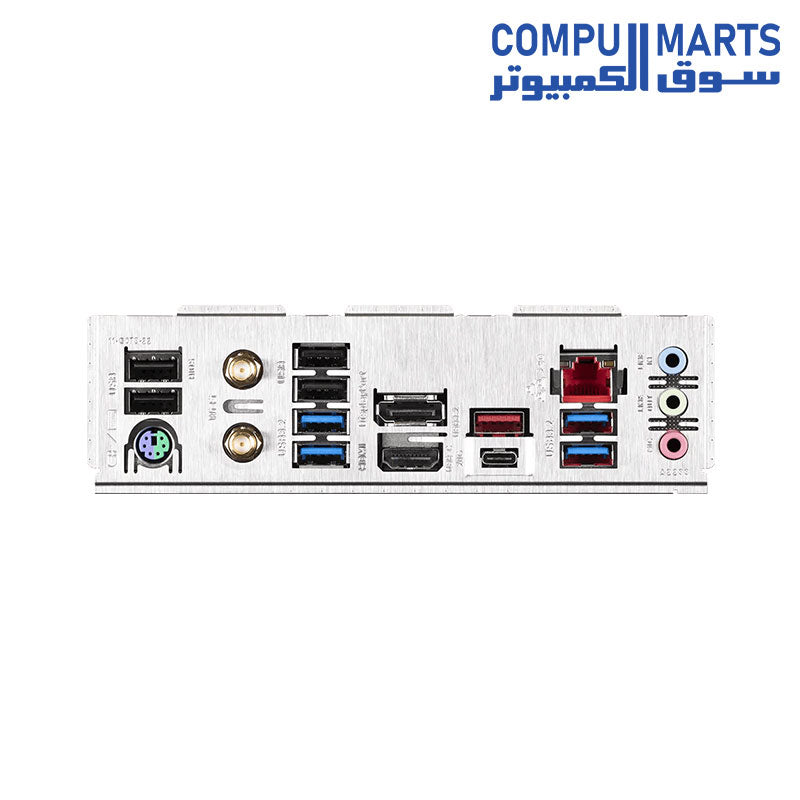

• Back Panel Connectors

  1. 1 x USB Type-C port, with USB 3.2 Gen 2×2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red)

  3. 4 x USB 3.2 Gen 1 ports

  4. 4 x USB 2.0/1.1 ports

  5. 2 x SMA antenna connectors (1T1R)

  6. 1 x HDMI 2.0 port

  7. 1 x DisplayPort

  8. 1 x RJ-45 port

  9. 3 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

  4. Support for Smart Backup

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
