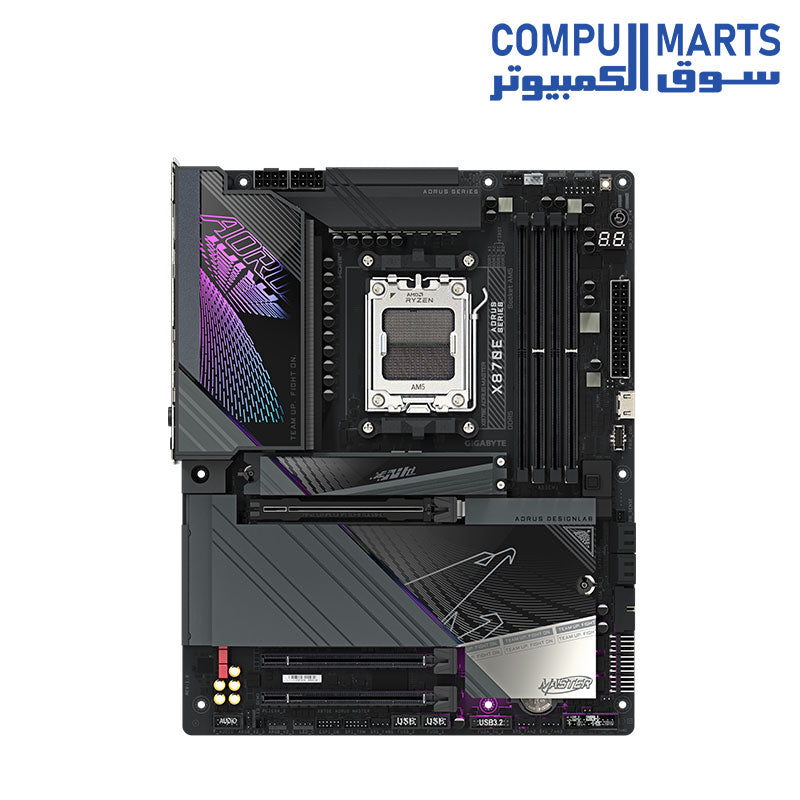

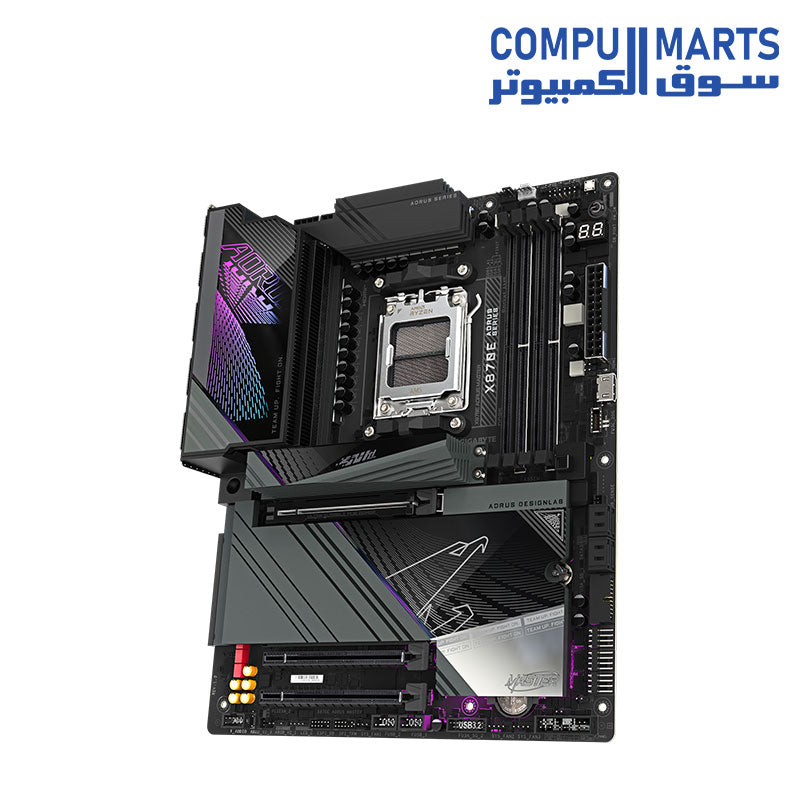

GIGABYTE X870E AORUS MASTER MOTHERBOARD
CPU
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors
Chipset
AMD X870E
Memory
Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
Dual channel memory architecture
Support for ECC and non-ECC Un-buffered DIMM memory modules
Support for AMD EXPO and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4 Controller:
2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs (3840x2160@240 Hz)
1 x HDMI port, supporting (4096x2160@60 Hz)
1 x Front HDMI port, supporting (1920x1080@30 Hz)
Audio
Realtek ALC1220 CODEC
Support for DTS:X Ultra
High Definition Audio (2/4/5.1/7.1-channel)
Support for S/PDIF Out
LAN
Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication
Qualcomm Wi-Fi 7 QCNCM865
802.11a, b, g, n, ac, ax, be (2.4/5/6 GHz)
Bluetooth 5.3
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), supporting PCIe 5.0 x16
1 x PCI Express x16 slot (PCIEX4_1), supporting PCIe 4.0 x4
1 x PCI Express x16 slot (PCIEX4_2), supporting PCIe 3.0 x4
Storage Interface
1 x M.2 connector (M2A_CPU) supporting PCIe 5.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU) supporting PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2D_SB) supporting PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB Ports
2 x USB4 USB Type-C ports (back panel)
1 x USB 3.2 Gen 2 Type-A port (back panel)
4 x USB 3.2 Gen 1 ports (back panel)
1 x USB Type-C port with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (back panel)
4 x USB 3.2 Gen 1 ports (internal)
6 x USB 2.0/1.1 ports (2 back panel, 4 internal)
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header
1 x HDMI port
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points

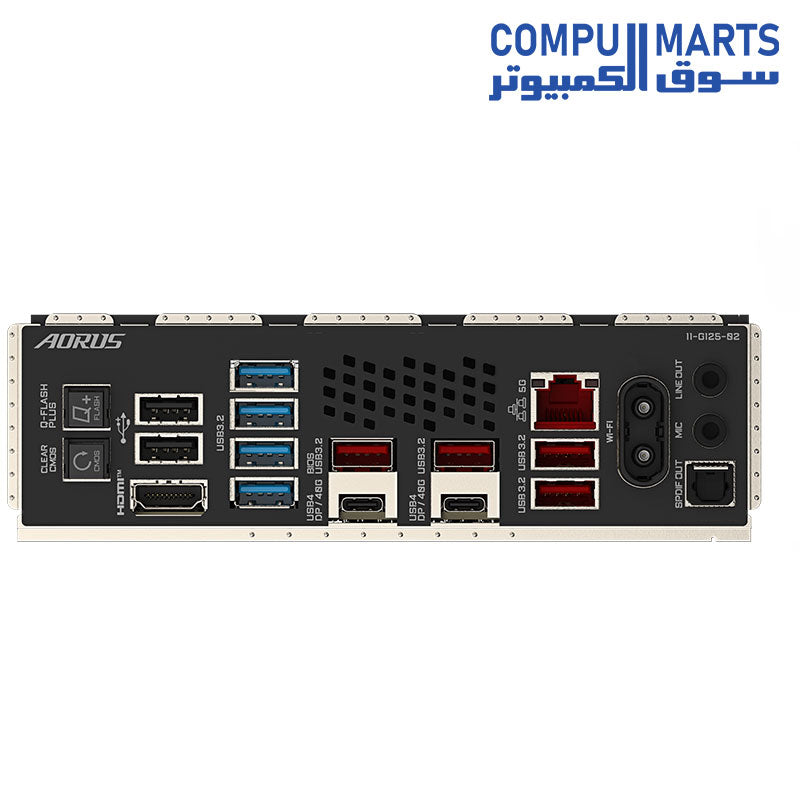

Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port
2 x USB4 USB Type-C ports
4 x USB 3.2 Gen 2 Type-A ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors
2 x audio jacks
1 x optical S/PDIF Out connector
I/O Controller
iTE I/O Controller Chip
Hardware Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection
BIOS
1 x 256 Mbit flash
AMI UEFI BIOS
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash and Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor (30.5cm x 24.4cm)
