TUF COMPONENTS
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
T’S COOLER OUT BACK
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.
FUNCTIONAL FRONT

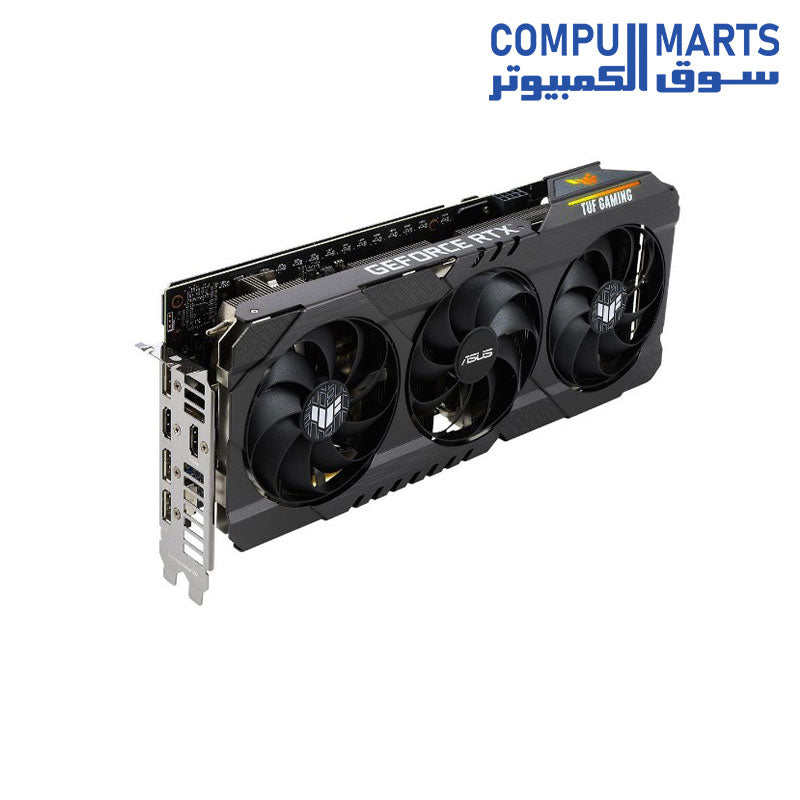

The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. An 8-pin connector fulfills the power demands of the GeForce RTX 3060, and onboard LEDs light up if the power connectors are not plugged in correctly.
GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

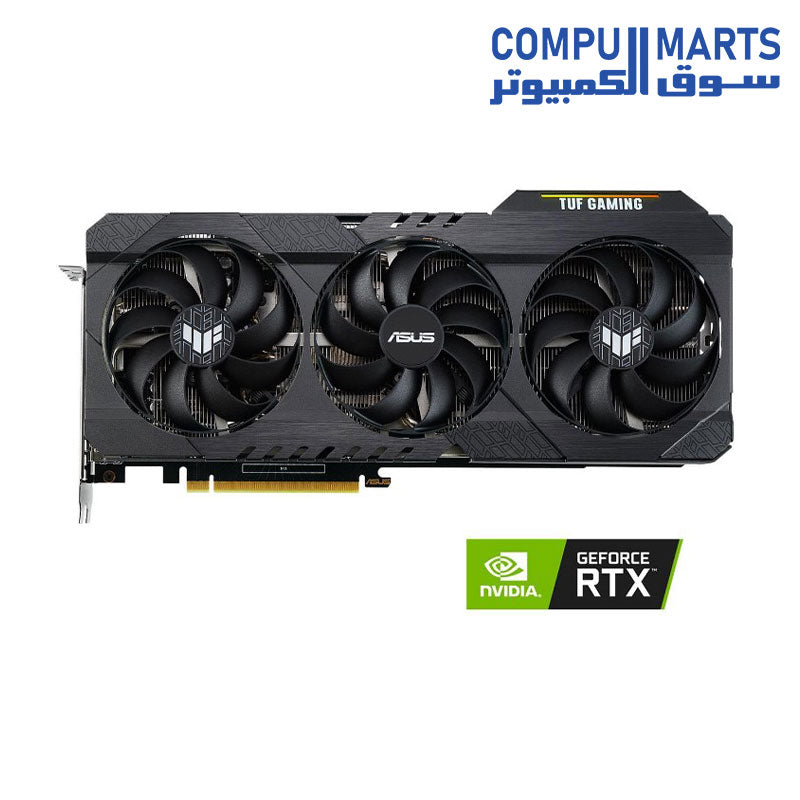

Model :TUF Gaming GeForce RTX 3060 V2 OC Edition
Graphic Engine : NVIDIA GeForce RTX 3060
Bus Standard : PCI Express 4.0
OpenGL : OpenGL4.6
Video Memory : 12GB GDDR6
Engine Clock
OC Mode - 1882 MHz (Boost Clock)
Gaming Mode - 1852 MHz (Boost Clock)
CUDA Core : 3584
Memory Speed : 15 Gbps
Memory Interface :192-bit
Resolution : Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support: No
Accessories
1 x TUF certificate of Reliability
1 x Collection card
1x Speedsetup Manual
Dimensions
11.81 " x 5.63 " x 2.13 " Inch
30.1 x 14.3 x 5.4 Centimeter
Recommended PSU : 650W
Power Connectors : 1 x 8-pin
Slot : 2.7 Slot
AURA SYNC : ARGB
