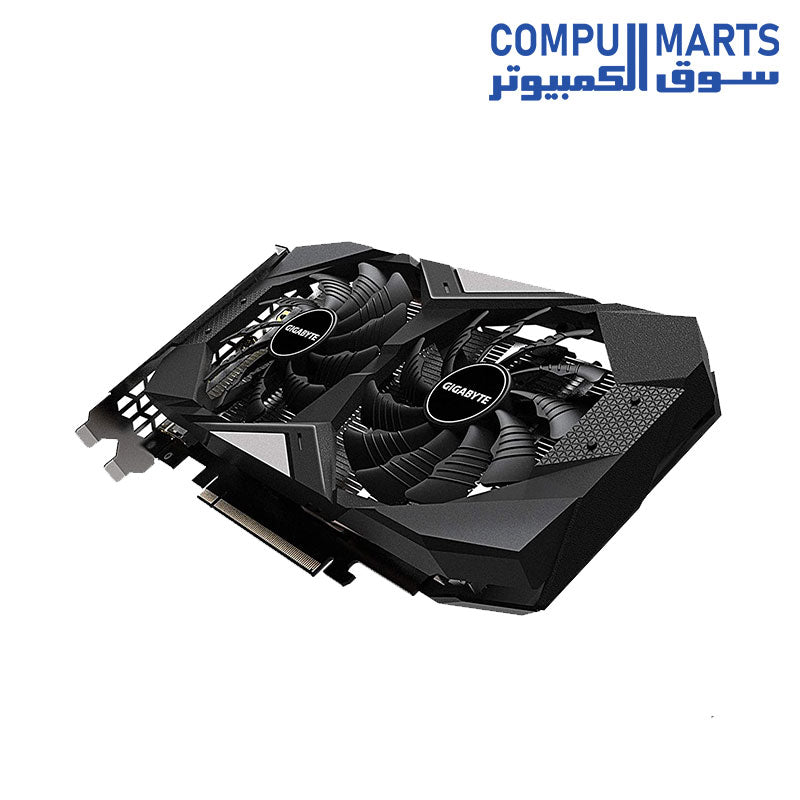

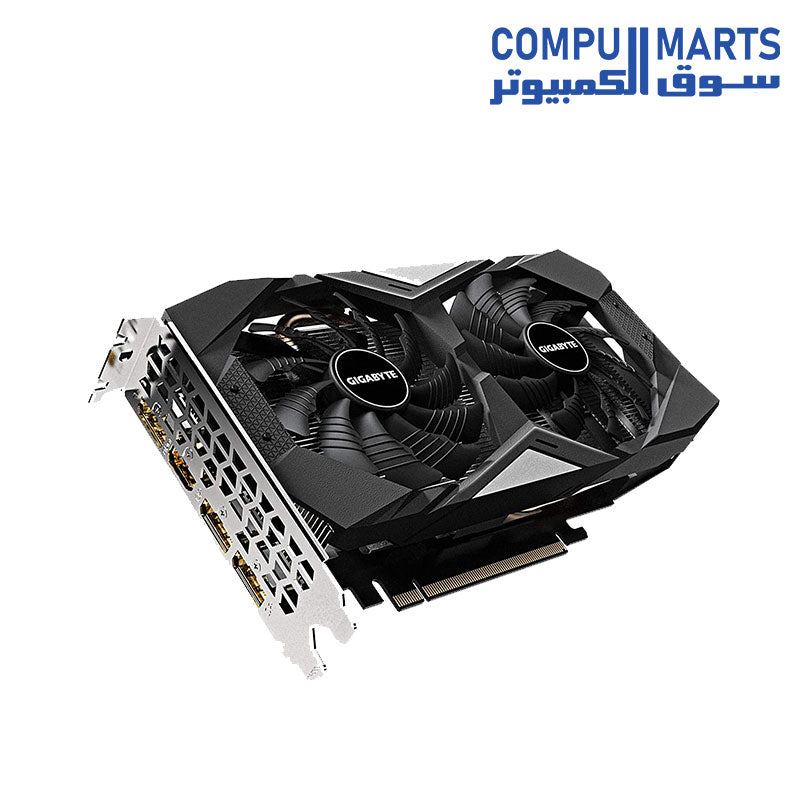

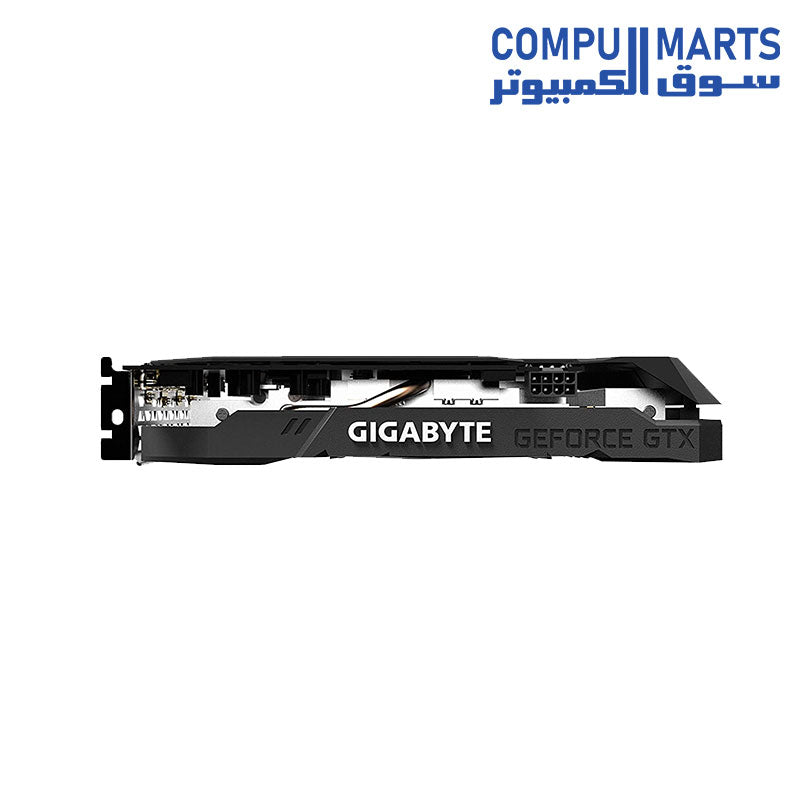

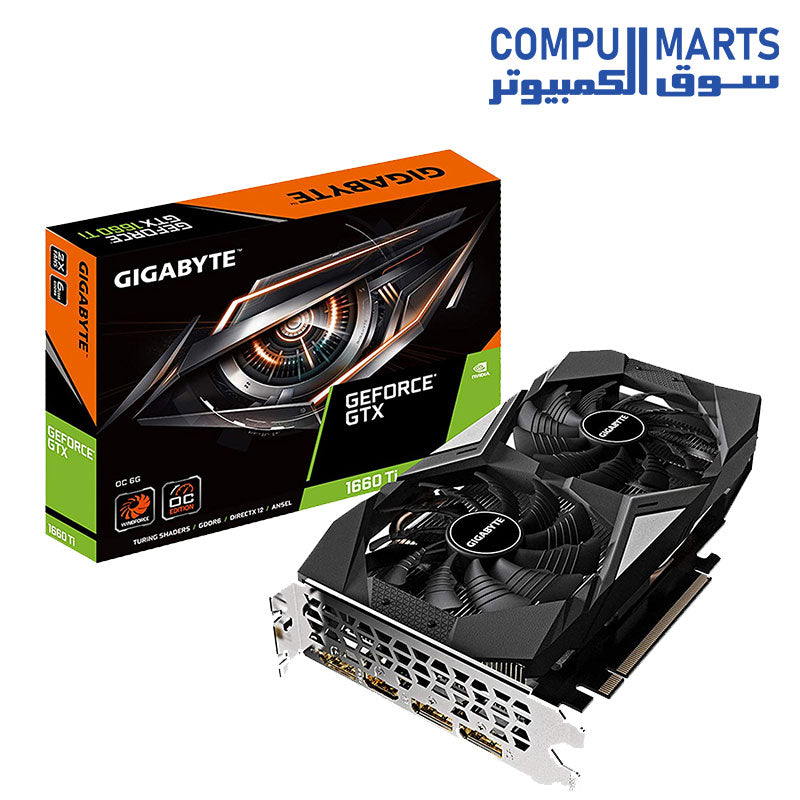

GIGABYTE GeForce GTX 1660 Ti OC 6G GRAPHIC CARD
Features
Powered by GeForce GTX 1660 Ti
NVIDIA Turing architecture and GeForce Experience
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
90mm unique blade fans
Protection back plate
Core Clock
1800 MHz (Reference card is 1770 MHz)

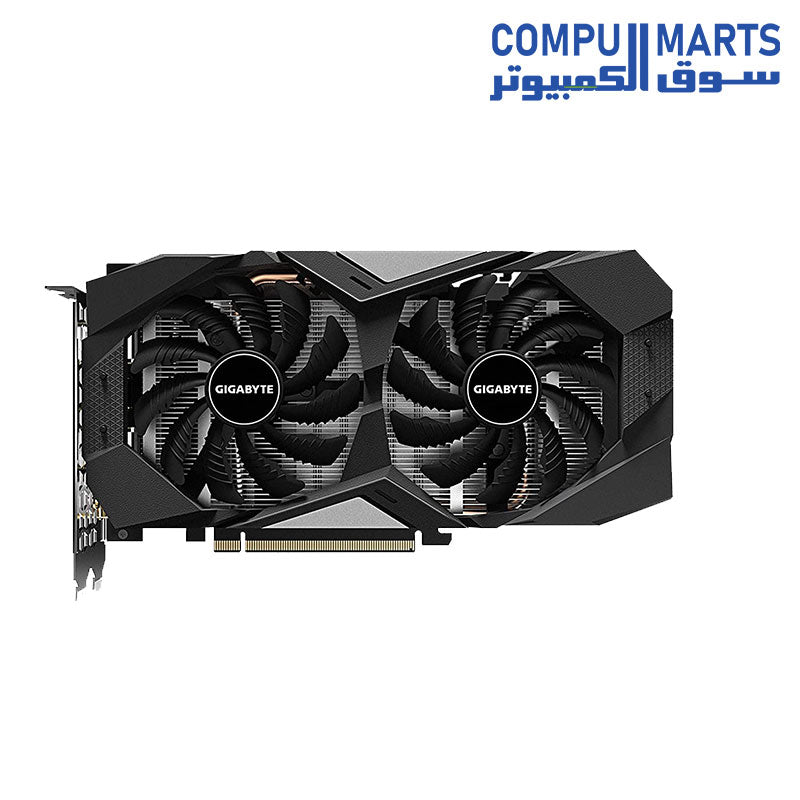

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

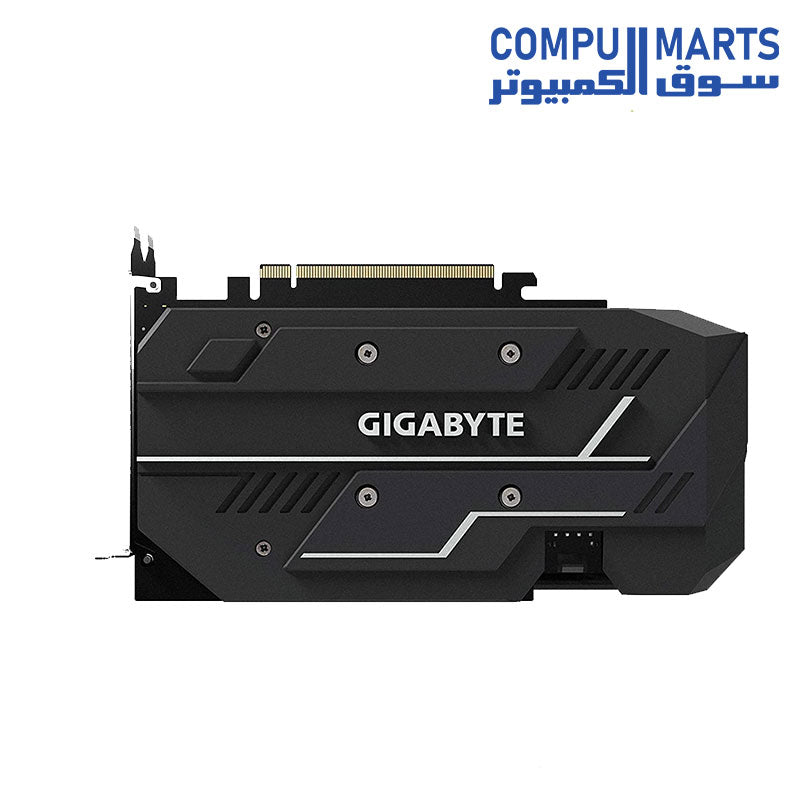

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The actual software UI and functionalities depend on each device model
-
Graphics Processing : GeForce GTX 1660 Ti
-
Core Clock : 1800 MHz (Reference Card: 1770 MHz)
-
CUDA Cores : 1536
-
Memory Clock : 12000 MHz
-
Memory Size : 6 GB
-
Memory Type : GDDR6
-
Memory Bus : 192 bit
-
Memory Bandwidth (GB/sec) : 288 GB/s
-
Card Bus : PCI-E 3.0 x 16
-
Digital max resolution : 7680x4320
-
Multi-view : 4
-
Card size : L=225.65 W=122.02 H=40.5 mm
-
PCB Form : ATX
-
DirectX : 12
-
OpenGL : 4.6
-
Recommended PSU : 450W
-
Power Connectors : 8 Pin*1
-

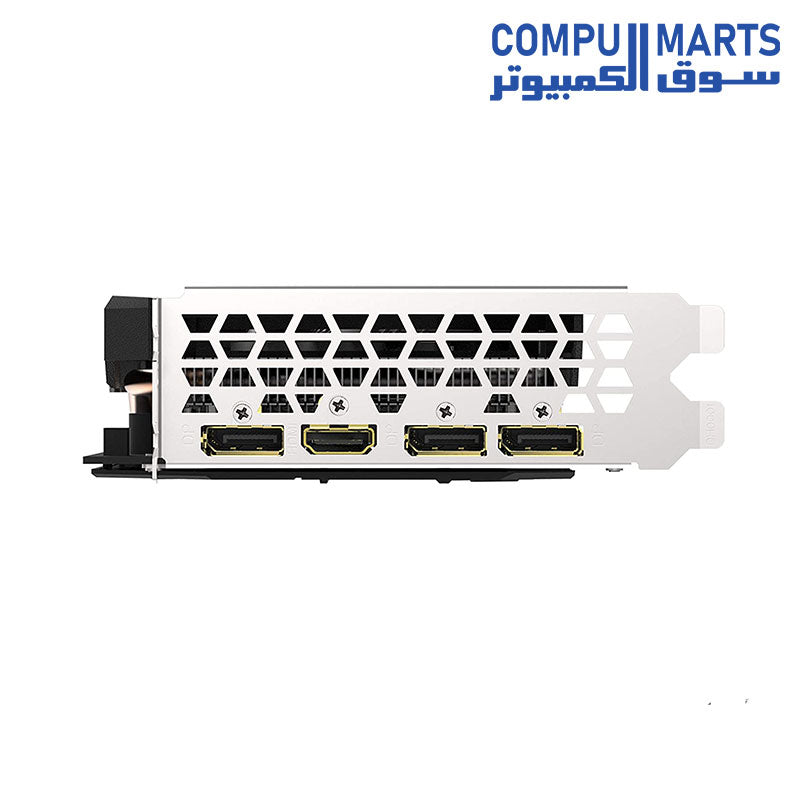

Output
DisplayPort 1.4 *3
HDMI 2.0b *1 -
SLI support : No
-
Accessories
1. Quick guide
2. Driver CD
