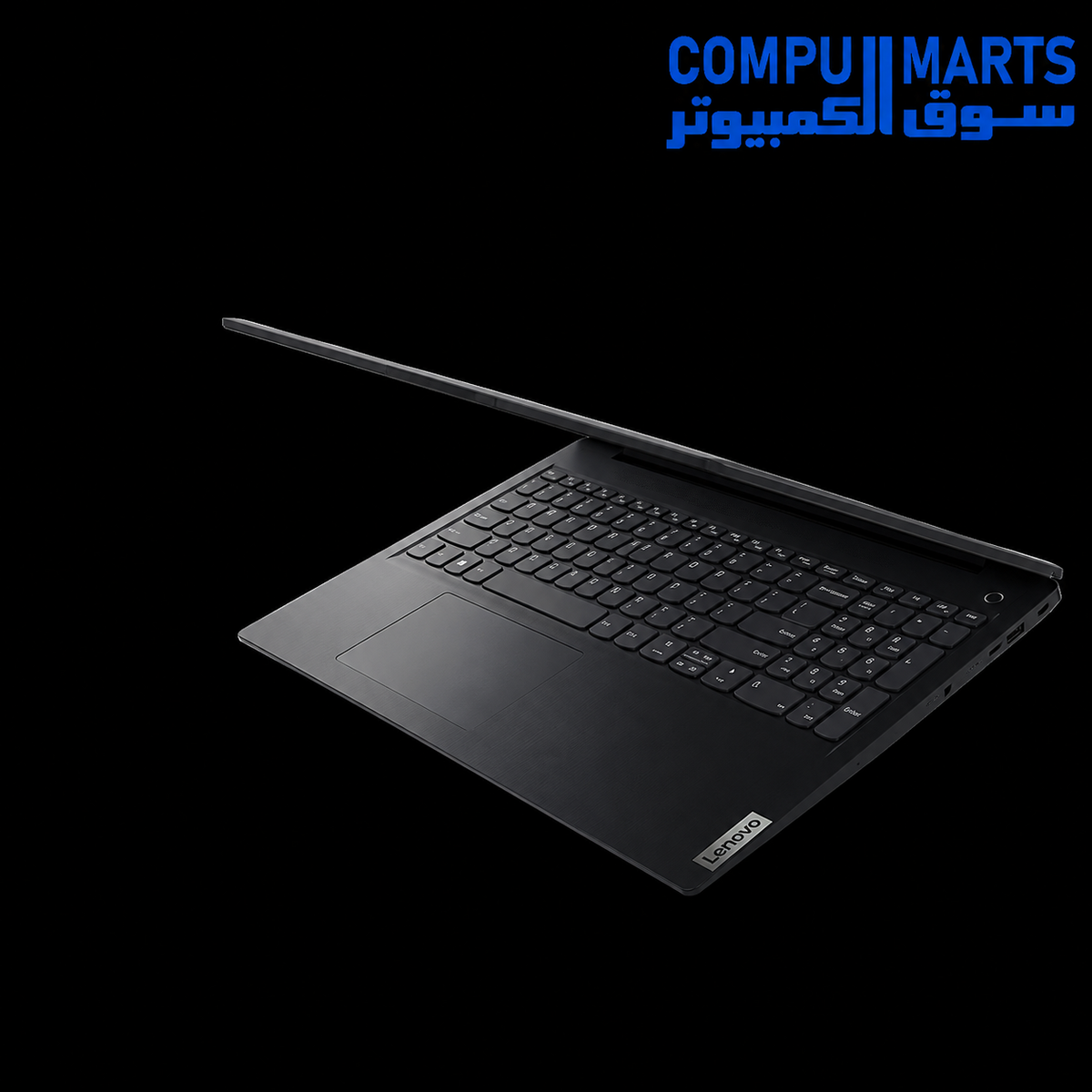

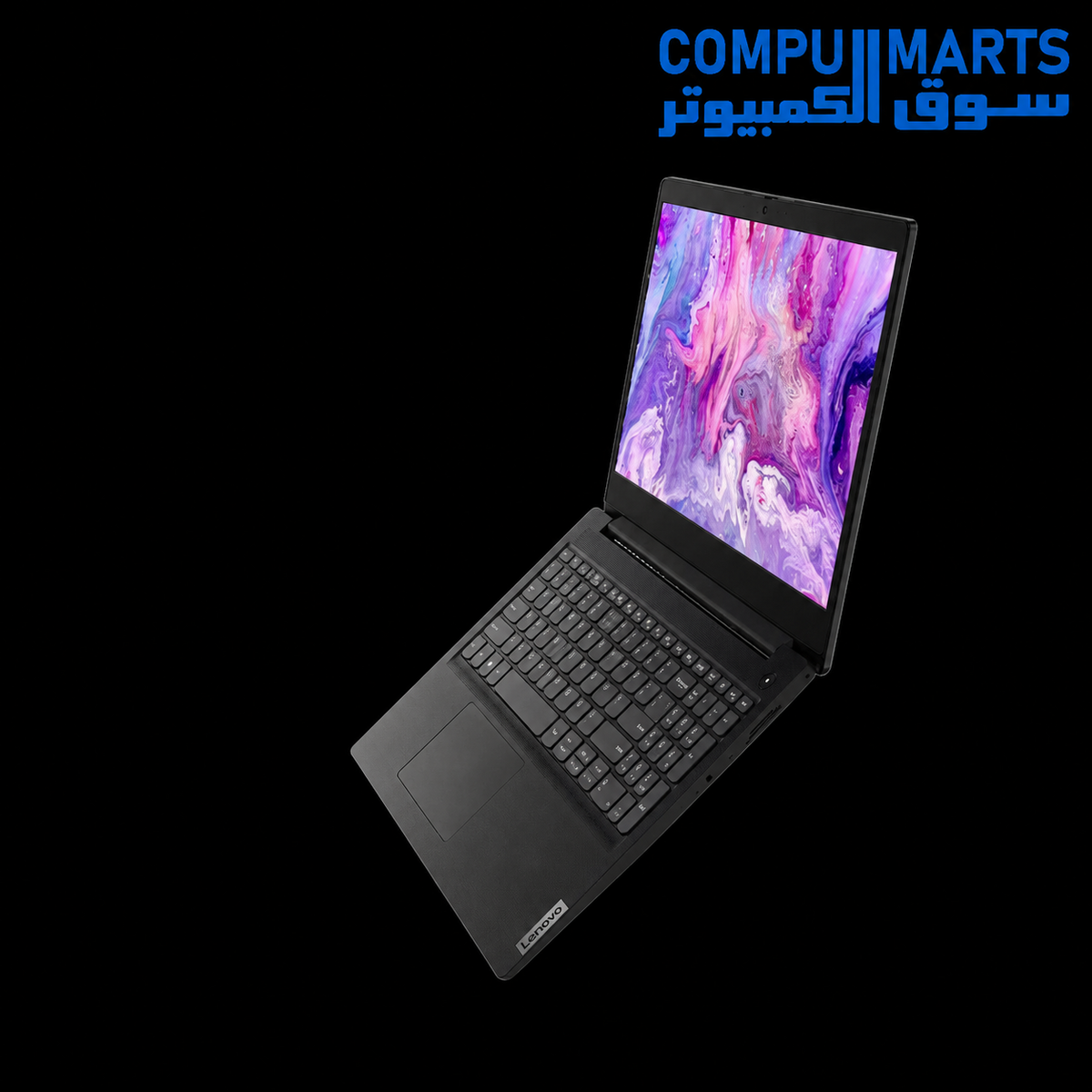

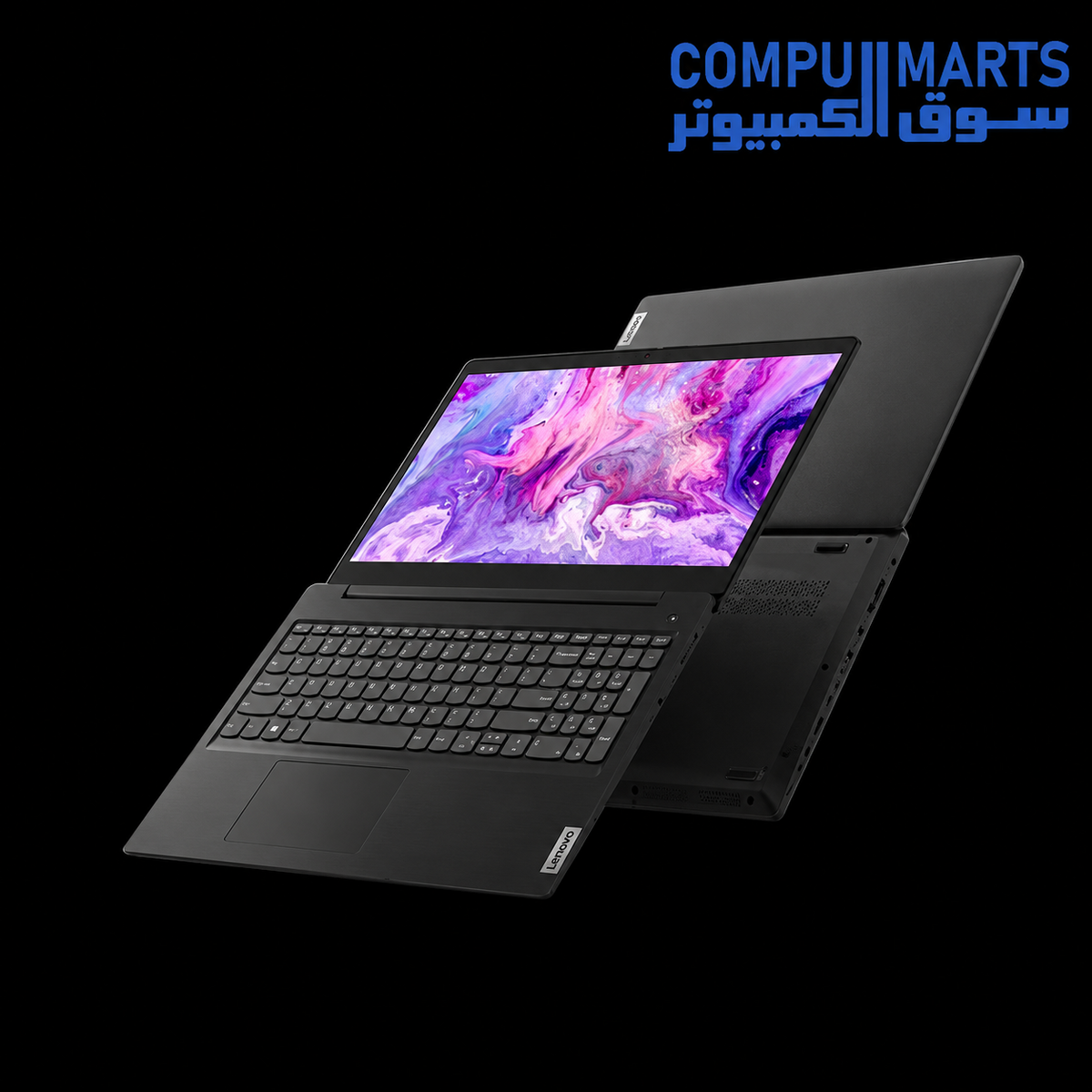

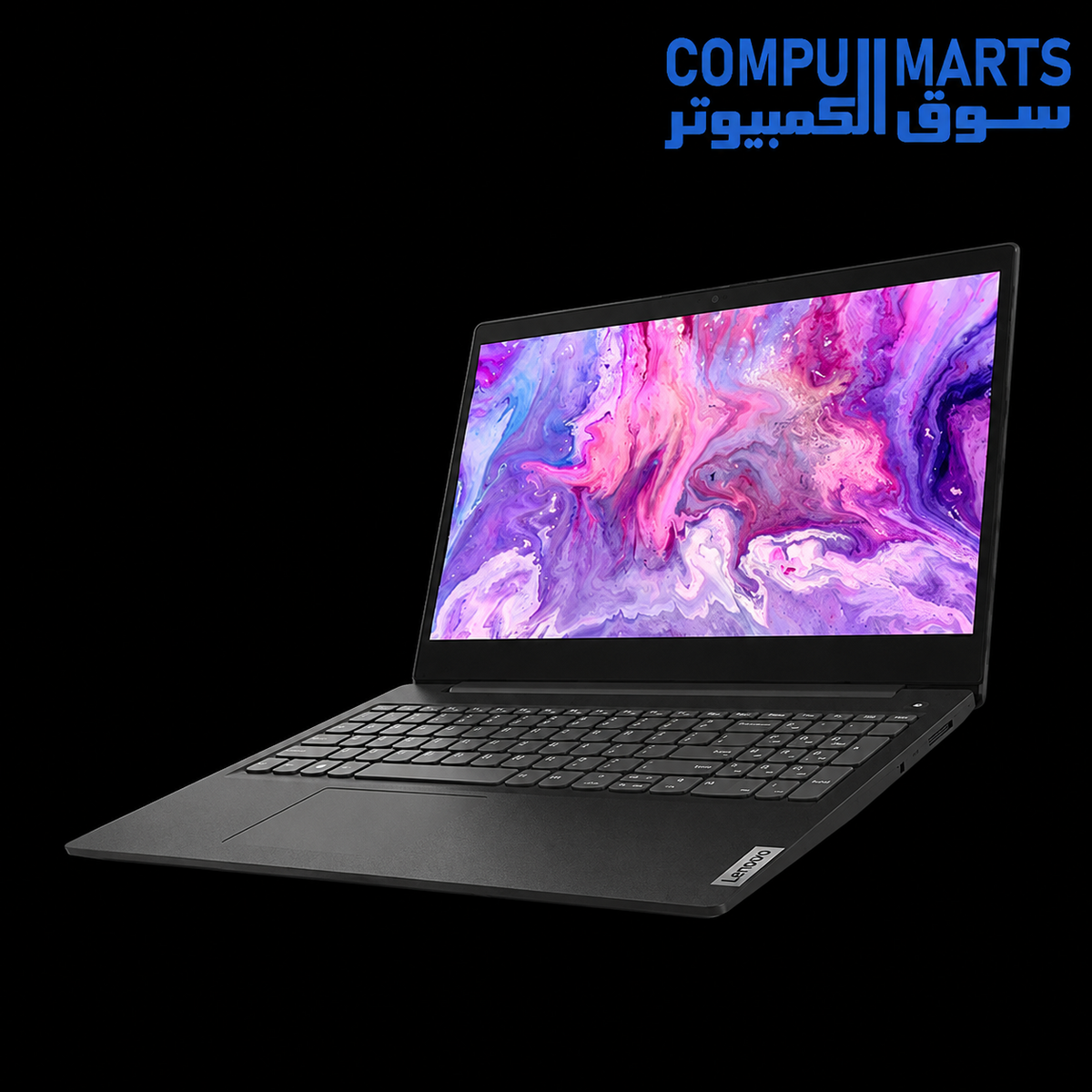

Lenovo IdeaPad 3 Laptop, Intel Core i3-1005G1, 15.6 Inch, 1TB HDD, 4GB RAM, Intel UHD Graphics, Dos - Black - Black

Lenovo IdeaPad 3 Laptop, Intel Core i3-1005G1, 15.6 Inch, 1TB HDD, 4GB RAM, Intel UHD Graphics, Dos - Black

Processor	Intel Core i3-1005G1 (2C / 4T, 1.2 / 3.4GHz, 4MB)
Graphics	Integrated Intel UHD Graphics
Chipset	Intel SoC Platform
Memory	4GB Soldered DDR4-2666
Memory Slots	One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory	Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-2666 offering
Storage	1T HDD 2.5 SATA Storage Support
	Models with 45Wh battery: one drive, 1x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB • Optional Intel Optane Memory integrated with SSD, M.2
Storage Slot	Models with 45Wh battery: one M.2 slot • One M.2 2280 PCIe Gen 3x4 slot, supports M.2 2242/2280 SSD
Card Reader	4-in-1 Card Reader
Optical	None
Audio Chip	High Definition (HD) Audio
Speakers	Stereo speakers, 1.5W x2, Dolby Audio
Camera	HD 720p with Privacy Shutter
Microphone	2x, Array
Battery	Integrated 45Wh
Max Battery Life	MobileMark 2014: 9.3 hr (45Wh + integrated graphics)
Power Adapter	65W Round Tip (2-pin, Wall-mount)
DESIGN
Display	15.6" HD (1366x768) TN 220nits Anti-glare
Touchscreen	None
Keyboard	Non-backlit, English
Case Color	Almond
Surface Treatment	IMR (In-Mold Decoration by Roller)
Case Material	PC + ABS (Top), PC + ABS (Bottom)
Dimensions (WxDxH)	362.2 x 253.4 x 19.9 mm (14.26 x 9.98 x 0.78 inches)
Weight	Around 1.85 kg (4.08 lbs)
SOFTWARE
Operating System	Windows 10 Home in S mode, English
Bundled Software	Office Trial
CONNECTIVITY
Ethernet	None
WLAN + Bluetooth	11ac, 2x2 + BT5.0
Standard Ports	1x USB 2.0 2x USB 3.2 Gen 1 1x HDMI 1.4b 1x Card reader 1x Headphone / microphone combo jack (3.5mm) 1x Power connector
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0
Fingerprint Reader	None
Other Security	Camera privacy shutter

Included Upgrade	None
CERTIFICATIONS
Green Certifications	ErP Lot 3 RoHS compliant

Recommended Services
Best	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in (5WS0T73714)
Good	3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in (5WS0K75663)

1. Power connector	5. USB 3.2 Gen 1
2. HDMI 1.4b	6. Headphone / microphone combo jack (3.5mm)
3. USB 2.0	7. NOVO button hole
4. USB 3.2 Gen 1	8. Card reader

Processor

Processor Family

10th Generation Intel Core i3  Processor

Processor

Core i3-1005G1

2

4

1.2GHz

3.4GHz

4MB

DDR4-3200

Intel UHD Graphics

Operating System

• Free  DOS

Graphics

Graphics	Type	Memory	Key Features
Intel UHD Graphics	Integrated	Shared	DirectX 12

Monitor Support

Monitor Support

Supports up to 2 independent displays (native display and 1 external monitor via HDMI) • HDMI supports up to 1920x1080 60Hz

Chipset

Chipset

Intel SoC (System on Chip) platform

Memory

Max Memory

Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-2666 offering

Memory Slots

One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Memory Type

DDR4-2666

Notes:

• The max memory is based on the test results with current Lenovo memory offerings. The system may support more memory as the technology develops.

Storage

Storage Support

• Models with 35Wh battery: up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB • Optional Intel Optane™ Memory integrated with SSD, M.2

• Models with 45Wh battery: one drive, 1x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB • Optional Intel Optane Memory integrated with SSD, M.2

Storage Slot

• Models with 35Wh battery: one 2.5" drive slot + one M.2 slot • One 2.5" drive slot, supports 2.5" SATA HDD • One M.2 2280 PCIe Gen 3x4 slot, supports M.2 2242/2280 SSD

• Models with 45Wh battery: one M.2 slot • One M.2 2280 PCIe Gen 3x4 slot, supports M.2 2242/2280 SSD

Storage Type

Disk Type	Interface	RPM
2.5" SATA HDD	SATA 6Gb/s	5.4K

Notes:

• The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.

Removable Storage

Optical

• USB external DVD burner (DVD±RW), 9.5mm high

• None

Card Reader

4-in-1 card reader (SD, SDHC, SDXC, MMC)

Multi-Media

Audio Chip

High Definition (HD) Audio

Speakers

Stereo speakers, 1.5W x2, Dolby Audio

Microphone

Dual array microphone

Camera

• 0.3-megapixel, with privacy shutter, fixed focus

• HD 720p, with privacy shutter, fixed focus

Notes:

• HD720p camera for AP and NA only.

Battery

• Integrated Li-Polymer 35Wh battery

• Integrated Li-Polymer 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr)

Max Battery Life

• MobileMark 2014: 6.6 hr (35Wh + discrete graphics)

Notes:

• All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.

Power Adapter

Power Adapter

65W round tip (2-pin, wall-mount) AC adapter, 100-240V, 50-60Hz

Notes:

• AC adapter offerings depend on the country.

Design

Display

Displa

Size	Resolution	Touch	Type	Brightness	Surface	Aspect Ratio	Color Gamut
15.6"	HD (1366x768)	None	TN	220 nits	Anti-glare	16:9	45% NTSC

Touchscreen

• On-cell touch, supports 10-point touch

• Non-touch

Notes:

• California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information,

Keyboard

6-row, multimedia Fn keys, numeric keypad

Keyboard Backlight

Non-backlight

Touchpad

Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 69 x 104 mm (2.72 x 4.09 inches)

Mechanical

Dimensions (WxDxH)

362.2 x 253.4 x 19.9 mm (14.26 x 9.98 x 0.78 inches)

Weight

Around 1.85 kg (4.08 lbs)

Case Color

• Abyss blue

• Almond

• Business black

• Cherry red

• Platinum grey

Surface Treatment

• IMR (in-mold decoration by roller)

• Texture

Case Material

PC + ABS (top), PC + ABS (bottom)

Notes:

• The system dimensions and weight vary depending on configurations.

Connectivity

Network

Ethernet

No Ethernet

WLAN + Bluetooth

• 802.11ac 2x2 Wi-Fi + Bluetooth 5.0, M.2 card

• Wi-Fi 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.0, M.2 card

Notes:

• Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation

Ports^[1]

Standard Ports

• 1x USB 2.0
• 2x USB 3.2 Gen 1
• 1x HDMI 1.4b
• 1x Card reader
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Power connector

Notes:

• The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in SoC

Fingerprint Reader

• Touch style fingerprint reader on power button
• No fingerprint reader

BIOS Security

• Administrator password

• Power-on password

• Hard disk password

Other Security

Camera privacy shutter

Service

Notes:

• More information of warranty policy, please access https://pcsupport.lenovo.com/warranty

Environmental

Operating Environment

Temperature

• At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
• At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)

Humidity

• Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
• Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)

Notes:

• When you charge the battery, its temperature must be no lower than 10°C (50°F).

Certifications

Green Certifications

Green Certifications

• ErP Lot 3
• RoHS compliant

• Feature with  means that only one offering listed under the feature is configured on selected models.

• Feature with  means that one or more offerings listed under the feature could be configured on selected models.

• Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.

• The specifications on this page may not be available in all regions, and may be changed or updated without notice.
