Motherboard ASUS PRIME B450M-A II AMD B450 (Ryzen AM4) micro ATX
-
Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
-
Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A
-
5X Protection III: Multiple hardware safeguards for all-around system protection
-
Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware

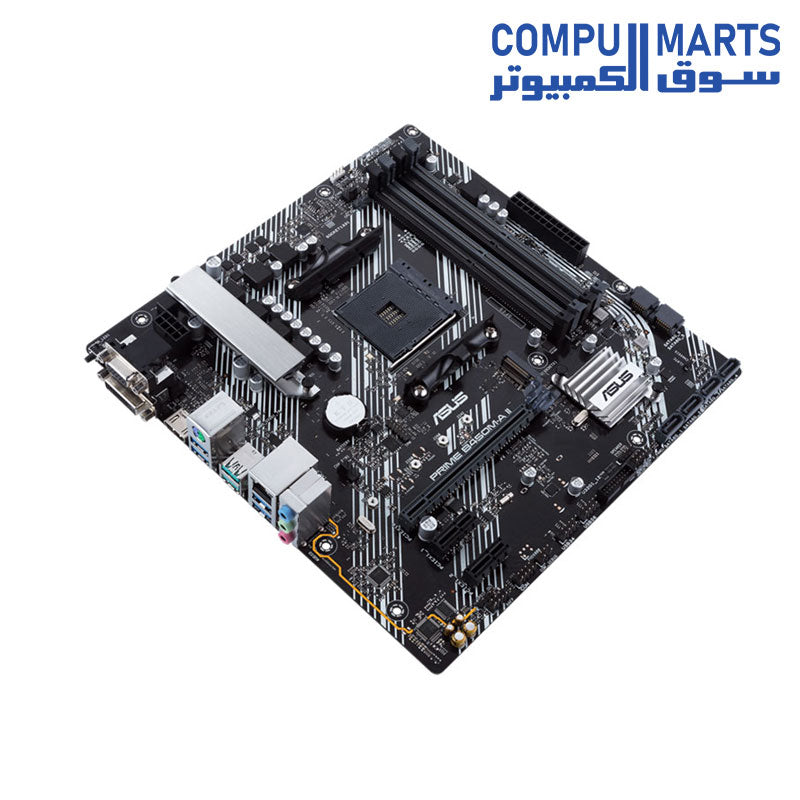

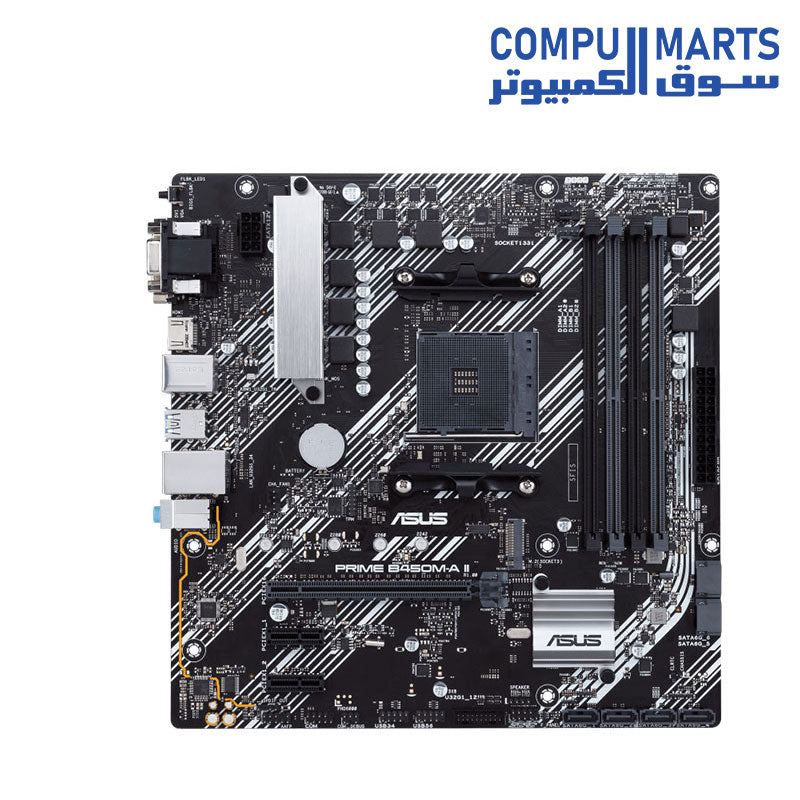

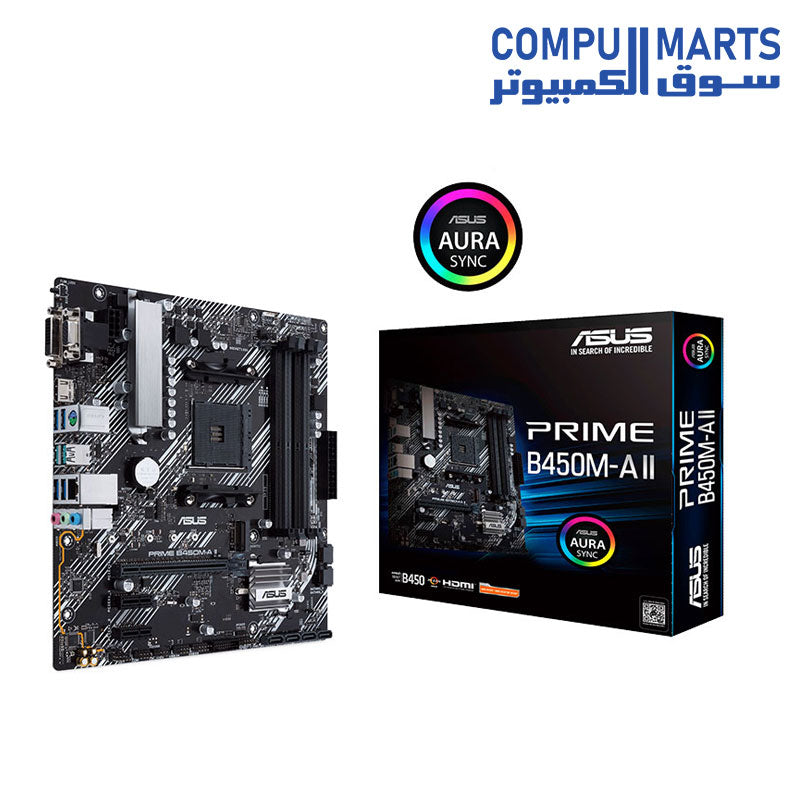

PRIME B450M-A II
AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack, and Aura Sync RGB lighting support
|
|
|
|
|---|---|---|
VRM Heatsink and Thermal PadsA VRM heatsink with an underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance. |
Cooler by DesignPrime B450M-A II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads. |
PCIe 3.0 M.2 (up to 32 Gbps)
|
|
|
|
|
|---|---|---|
USB 3.2 Gen 2 Type-A
|
BIOS FLASHBACK
|
SafeSlot CoreA fortified PCIe slot prevents damage.SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
|
CPU |
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen™ with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors * |
Chipset |
AMD B450 |
Memory |
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * |
|
Dual Channel Memory Architecture |
|
ECC Memory (ECC mode) support varies by CPU. |
|
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
* The maximum memory frequency supported varies by processor. |
|
Graphic |
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * |
1 x D-Sub |
|
1 x DVI-D |
|
1 x HDMI 2.0b |
|
*Graphics specifications may vary between CPU types. |
|
Expansion Slots |
3rd/2nd/1st Gen AMD Ryzen Processors |
1 x PCIe 3.0 x16 (x16 mode) |
|
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
|
1 x PCIe 3.0 x16 (x8 mode) |
|
AMD Athlon with Radeon Vega Graphics Processors |
|
1 x PCIe 3.0 x16 (x4 mode) |
|
AMD B450 chipset |
|
2 x PCIe 2.0 x1 |
|
Storage |
Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1 |
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
Athlon with Radeon Vega Graphics Processors : *1 |
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) |
|
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : |
|
2 x SATA 6Gb/s port(s), |
|
Support Raid 0, 1, 10 |
|
AMD B450 chipset : |
|
4 x SATA 6Gb/s port(s), |
|
Support Raid 0, 1, 10 |
|
LAN |
Realtek RTL8111H |
ASUS LANGuard |
|
Audio |
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * |
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
|
Audio Feature : |
|
- LED-illuminated design |
|
- Audio Shielding |
|
- Dedicated audio PCB layers |
|
- Premium Japanese audio capacitors |
|
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|
USB Ports |
Rear USB Port ( Total 6 ) |
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A) |
|
4 x USB 3.2 Gen 1 port(s)(4 x Type-A) |
|
Front USB Port ( Total 6 ) |
|
2 x USB 3.2 Gen 1 port(s) |
|
4 x USB 2.0 port(s) |
|
Software Features |
ASUS Exclusive Software |
Armoury Crate |
|
- AURA Creator |
|
- AURA Sync |
|
AI Suite 3 |
|
- Performance and Power Saving Utility |
|
TurboV EVO |
|
EPU |
|
DIGI+ VRM |
|
Fan Xpert 2+ |
|
PC Cleaner |
|
- EZ update |
|
- System Information |
|
ASUS CPU-Z |
|
AI Charger |
|
ASUS EZ Installer |
|
DAEMON Tools |
|
Norton Anti-virus software (Free Trial for 60 days) |
|
WinRAR |
|
UEFI BIOS |
|
ASUS EZ DIY |
|
- ASUS CrashFree BIOS 3 |
|
- ASUS EZ Flash 3 |
|
- ASUS UEFI BIOS EZ Mode |
|
ASUS Special Features |
ASUS 5X PROTECTION III |
- ASUS DIGI+ VRM |
|
- ASUS LANGuard |
|
- ASUS Overvoltage Protection |
|
- ASUS SafeSlot Core |
|
- ASUS Stainless-Steel Back I/O |
|
ASUS Q-Design |
|
- ASUS Q-DIMM |
|
- ASUS Q-Slot |
|
ASUS Thermal Solution |
|
- Aluminum heatsink design |
|
ASUS EZ DIY |
|
- BIOS FlashBack button |
|
- BIOS FlashBack LED |
|
AURA Sync |
|
- AURA RGB header |
|
ASUS Lighting Control |
|

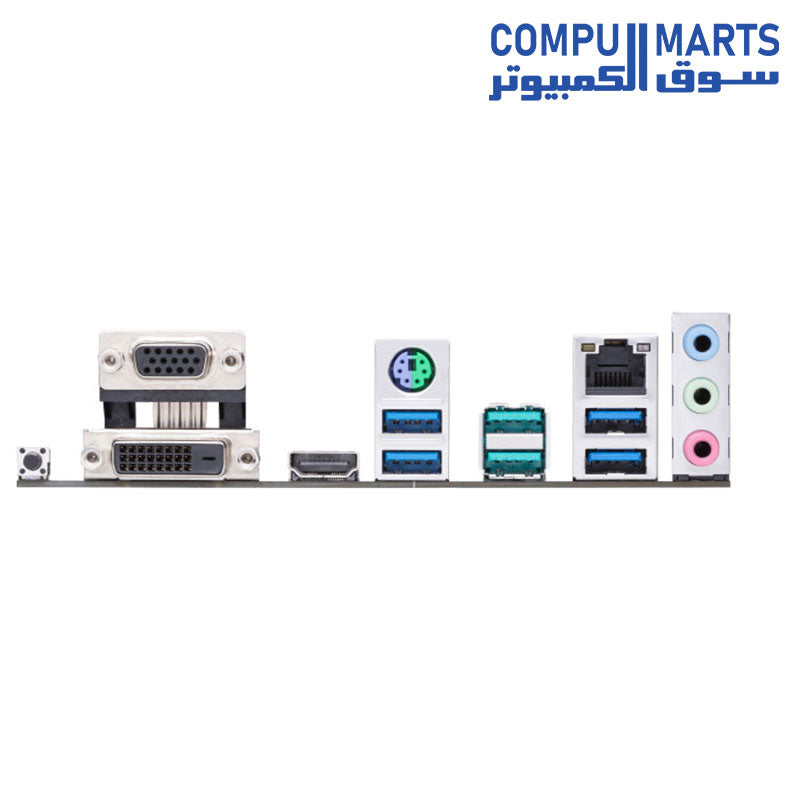

Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) |
1 x DVI-D |
|
1 x D-Sub |
|
1 x HDMI |
|
1 x LAN (RJ45) port(s) |
|
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) |
|
4 x USB 3.2 Gen 1 (blue) Type-A |
|
3 x Audio jack(s) |
|
1 x BIOS FlashBack Button(s) |
|
Internal I/O Ports |
1 x CPU Fan connector(s) (1 x 4 -pin) |
2 x Chassis Fan connector(s) (2 x 4 -pin) |
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) |
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
1 x SPI TPM header |
|
1 x COM port(s) connector(s) |
|
6 x SATA 6Gb/s connector(s) |
|
1 x S/PDIF out header(s) |
|
1 x 24-pin EATX Power connector(s) |
|
1 x 8-pin ATX 12V Power connector(s) |
|
1 x Front panel audio connector(s) (AAFP) |
|
1 x System panel(s) |
|
1 x Clear CMOS jumper(s) |
|
1 x COM port header |
|
1 x Speaker connector |
|
1 x RGB Header |
|
Accessories |
User´s manual |
I/O Shield |
|
2 x SATA 6Gb/s cable(s) |
|
1 x M.2 Screw Package |
|
1 x Supporting DVD |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Operating System |
Windows 10 64-bit |
Windows 7 64-bit *2 |
|
Form Factor |
mATX Form Factor |
9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ) |
