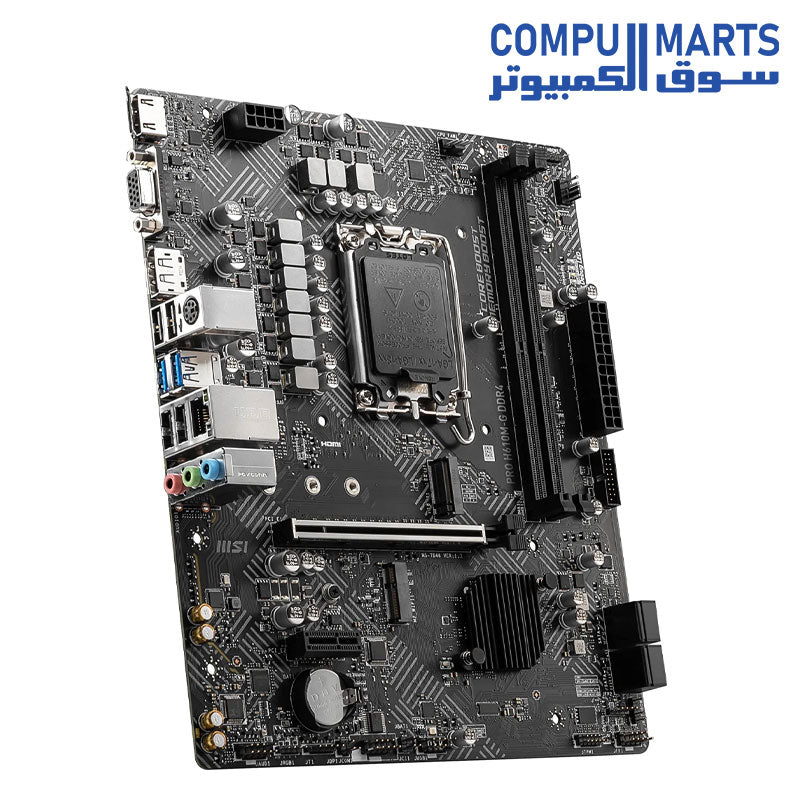

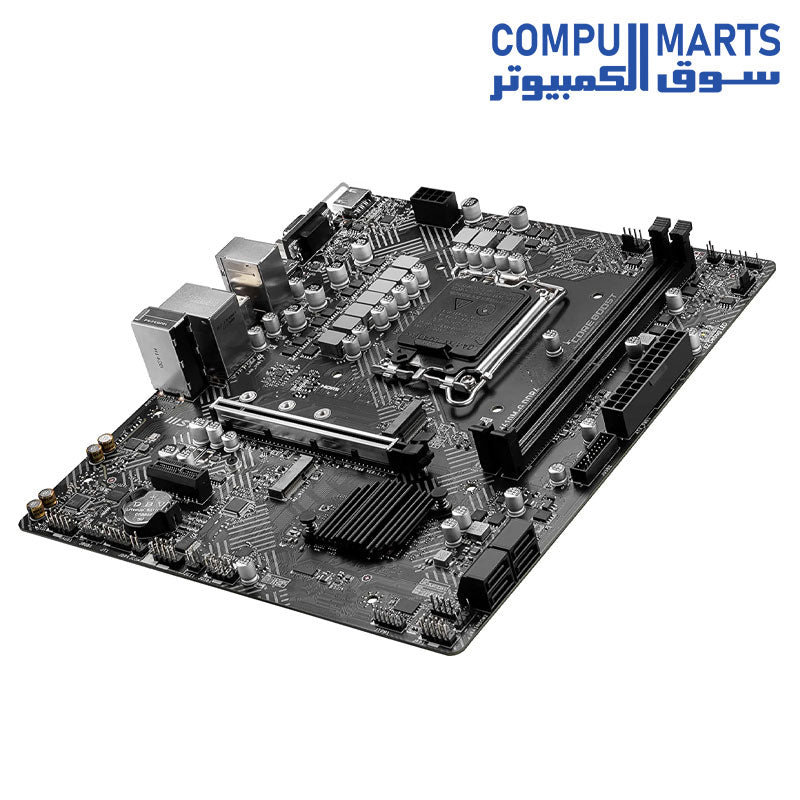

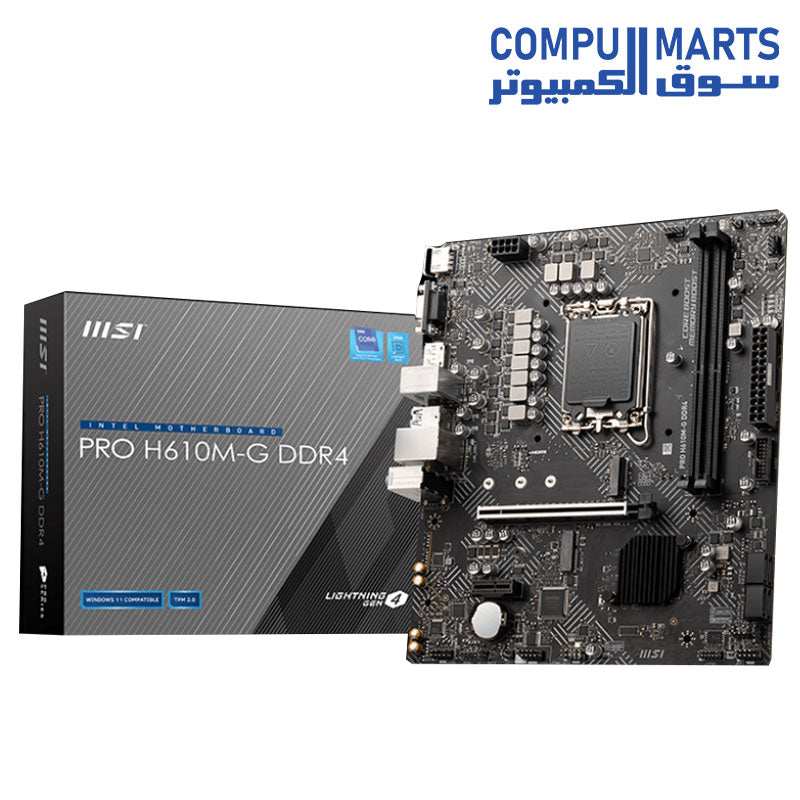

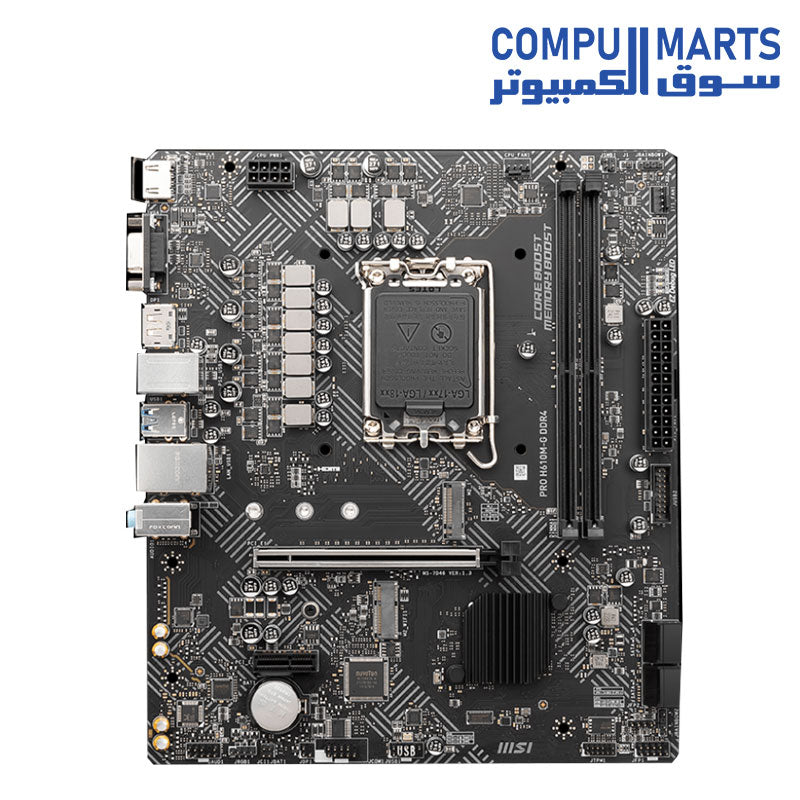

Motherboard MSI PRO H610M-G DDR4 LGA 1700 DDR4

Motherboard MSI PRO H610M-G DDR4 LGA 1700

Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR4 Memory, up to 3200(MAX) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

• SOCKET : 1700

• CHIPSET : Intel H610 Chipset

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 2

• MAX MEMORY (GB) : 64

• PCI-E X16 : 1

• PCI-E X1 : 1

• SATAIII : 4

• M.2 SLOT : 1

• TPM (HEADER) : 1

• USB 3.2 PORTS (FRONT) : 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 2(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 2

• USB 2.0 PORTS (REAR) : 4

• AUDIO PORTS (REAR) : Realtek ALC892/ ALC897 Codec

• DISPLAYPORT : 1

• VGA : 1

• HDMI : 1

• DIRECTX : 12

• OPERATING SYSTEM : Support for Windows 11 64-bit, Windows 10 64-bit

• FORM FACTOR  : M-ATX

PROCESSORSupports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron ProcessorsProcessor socket LGA1700

CHIPSET

Intel H610 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB

• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)

• Supports up to PCIe 4.0 x16

• 1x PCIe x1 slot

• Supports PCIe 3.0 x1

• 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

ONBOARD GRAPHICS

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

• x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

•  Available only on processors featuring integrated graphics.

•  Graphics specifications may vary depending on the CPU installed.

SATA PORTS

• 4x SATA 6Gb/s ports

•  SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT

• 1x M.2 slot (Key M, from chipset)

• Supports up to PCIe 3.0 x4

• Supports up to SATA 6Gb/s

• Supports 2242/ 2260/ 2280 storage devices

• Supports Intel Smart Response Technology for Intel Core processors

•  SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB

Intel H610 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel I219V 1Gbps LAN controller

POWER CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

FAN CONNECTORS

• 1x 4-pin CPU fan connector

• 1x 4-pin system fan connector

SYSTEM CONNECTORS

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

JUMPERS

• 1x Clear CMOS jumper

LED FEATURES

• 1x 4-pin RGB LED connector

• 2x 3-pin RAINBOW LED connectors

• 4x EZ Debug LED

BACK PANEL PORTS

1. HDMI

2. VGA

3. DisplayPort

4. Keyboard/Mouse

5. USB 3.2 Gen 1 5Gbps Type-A

6. LAN port

7. Audio connector

8. USB 2.0

DIMENSIONS

• mATX Form Factor

• 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
